Ref.: 762407 10

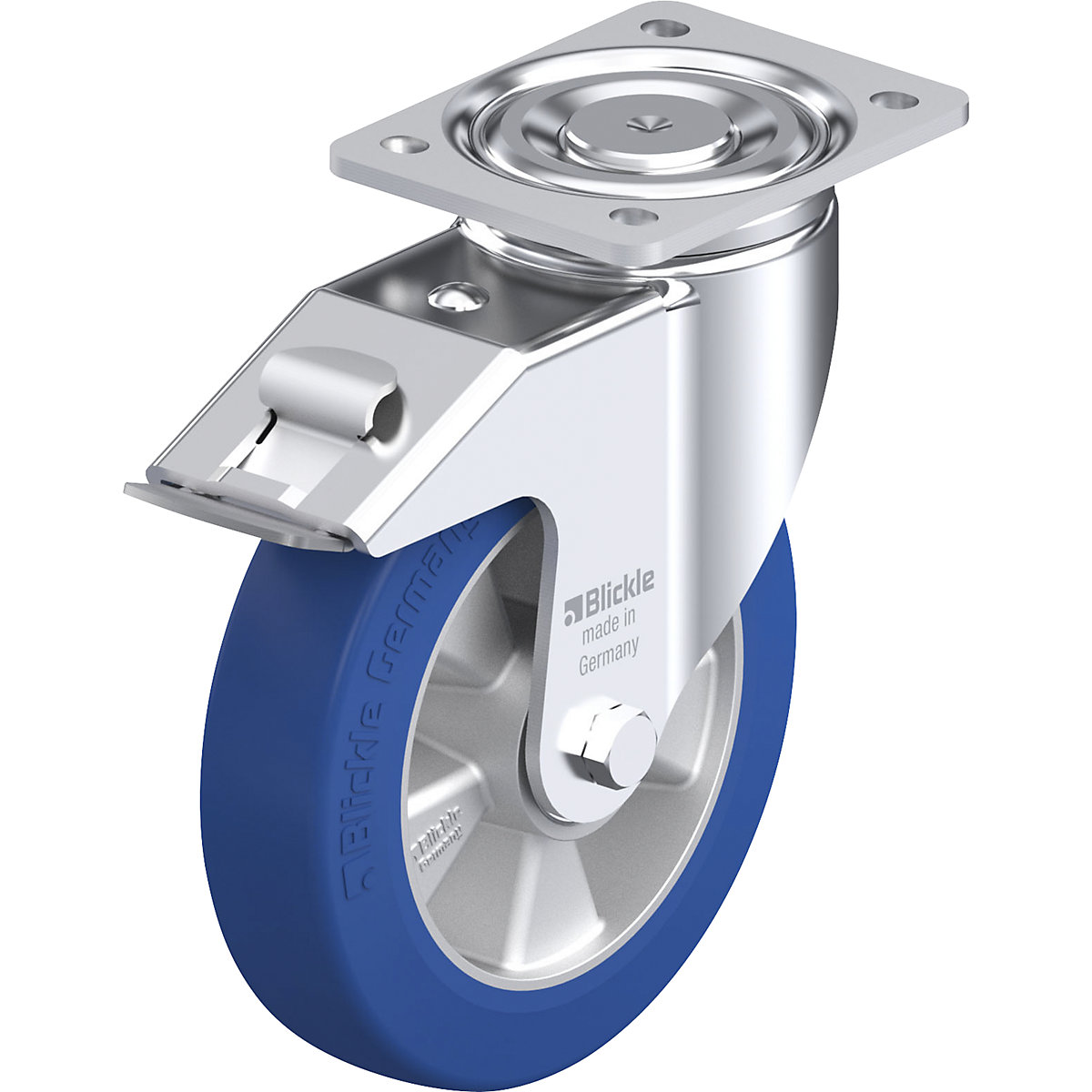

BK-ALBS-FI sheet steel swivel castor – Blickle wheel Ø 200 mm, max. load 750 kg
plate dimensions 140 x 110 mm
Ref.: 762407 10
BK-ALBS-FI sheet steel swivel castor – Blickle wheel Ø 200 mm, max. load 750 kg
plate dimensions 140 x 110 mm
plate dimensions 140 x 110 mm
€ 389.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 389.00
Price / item (Excl. VAT)
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Heavy fork and base plate
- Double ball bearing in the ring bearing
- Very stable centre bolt, screwed and secured
- Particularly insensitive to shocks and impacts due to specially moulded, hardened bearing cases
- Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Sheet steel swivel castor, heavy duty model, with mounting plate, with stop-fix stop.
Technical data
| Wheel diameter | 200 mm |
|---|---|
| Structure | swivel castor with wheel stop |
| Wheel material | polyurethane |
| Material of rim | cast aluminium |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 750 kg |
| Wheel width | 50 mm |
| Overall height | 245 mm |
| Wheel bearing | ball bearing |
| Model | heavy duty castors |
| Swivel castor plate dimensions | 140 x 110 mm |
| Shore hardness | 75 Shore A |
| Running surface colour | blue |
| Product type | fixed castors |
| Supplied | assembled |
| Weight | 4.94 kg |
