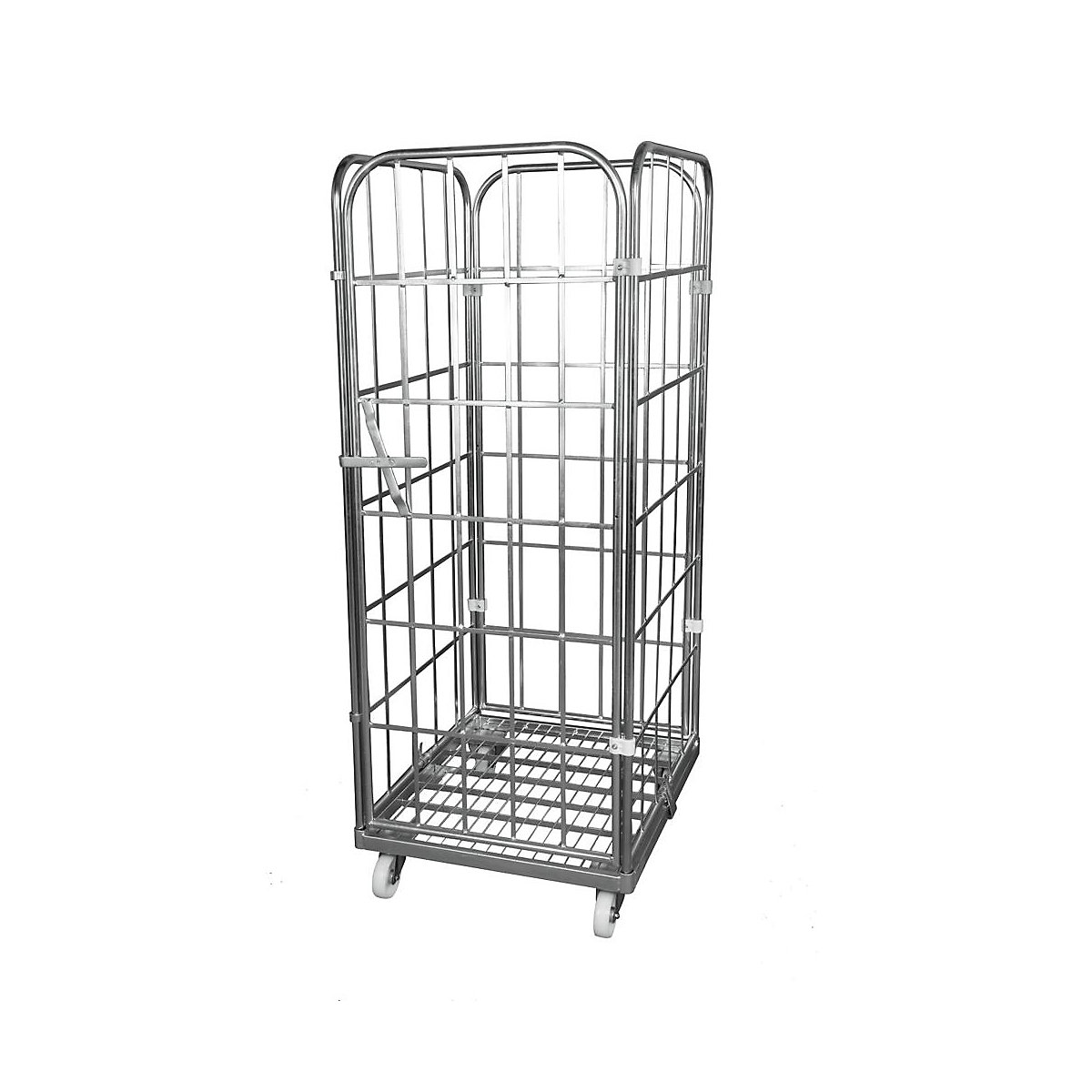

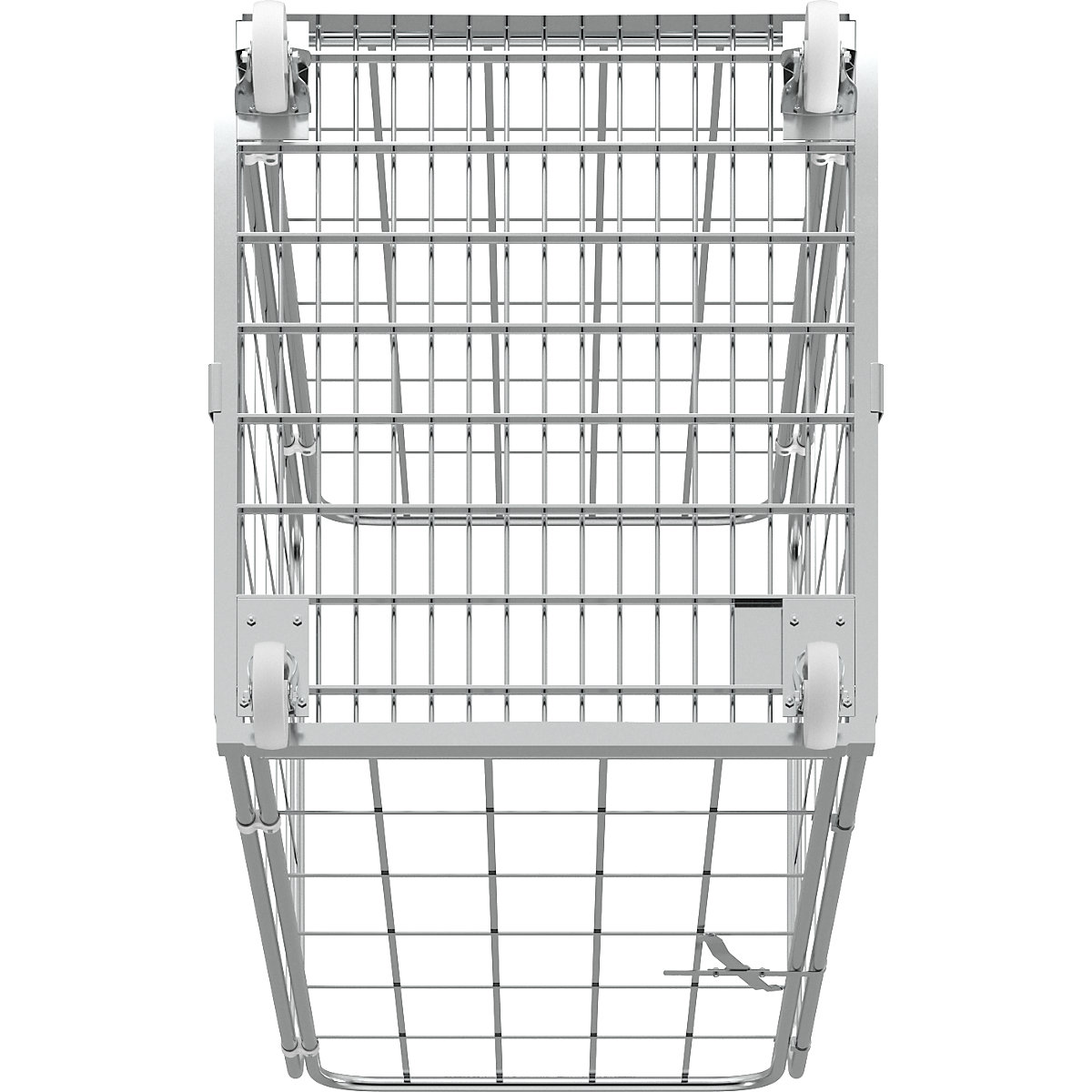

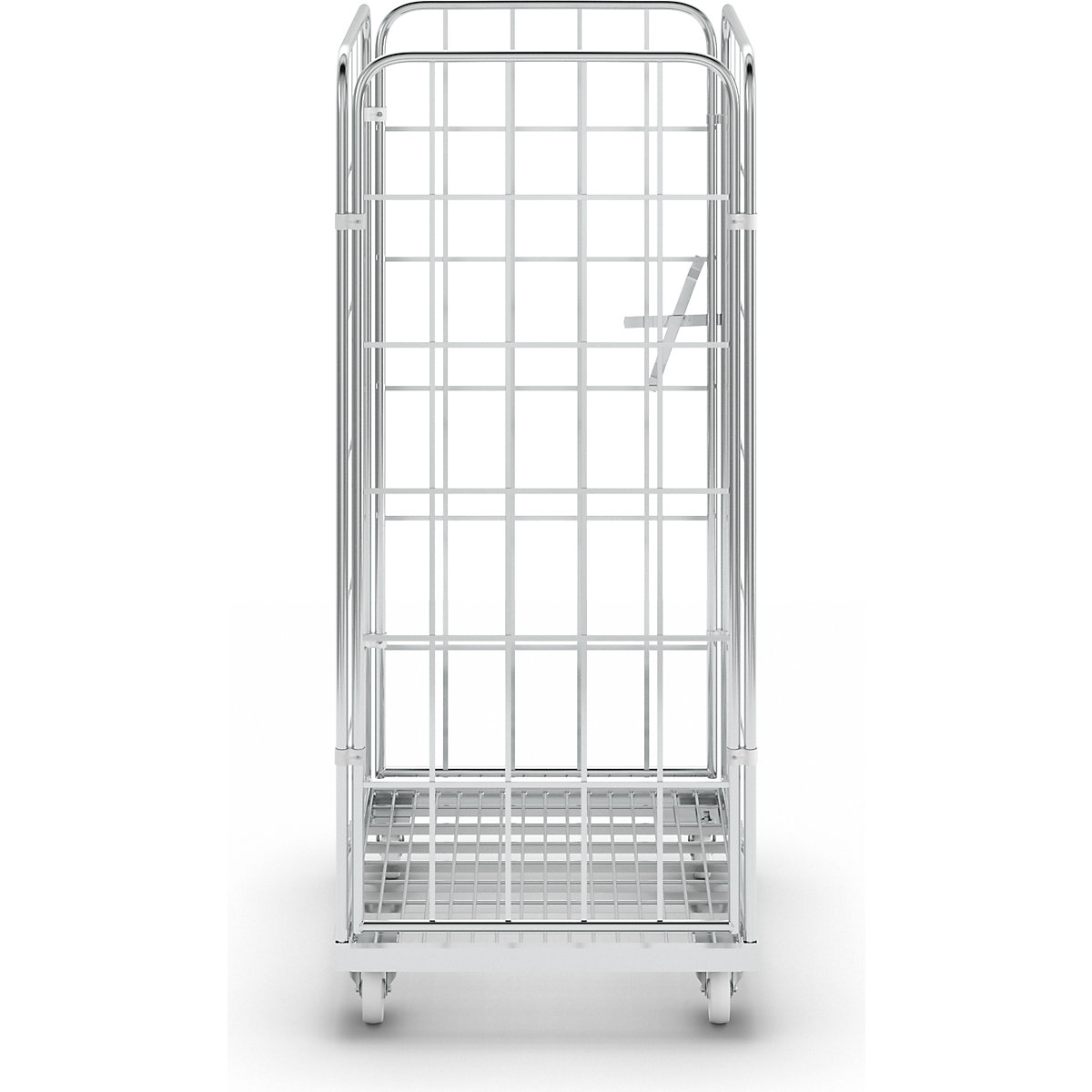

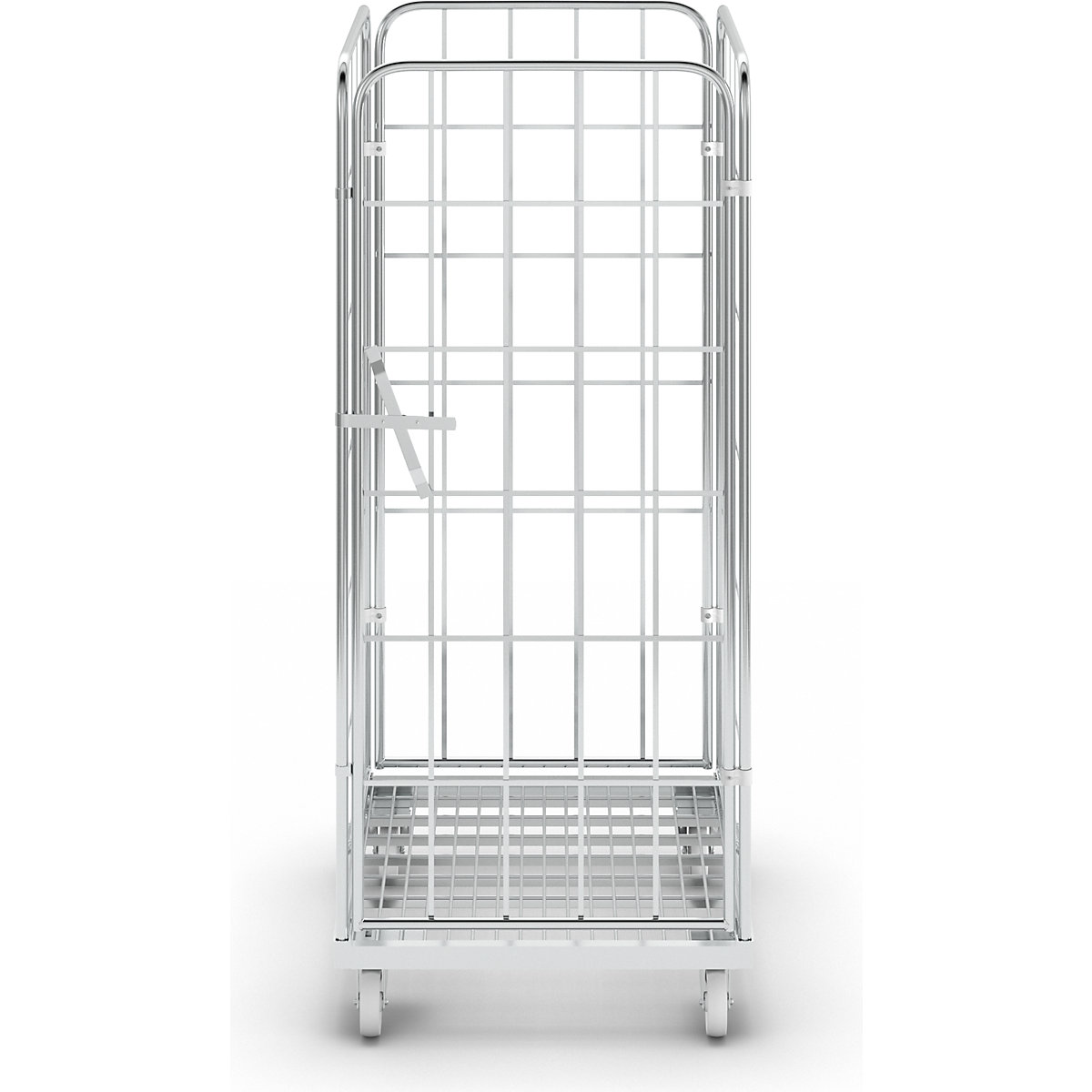

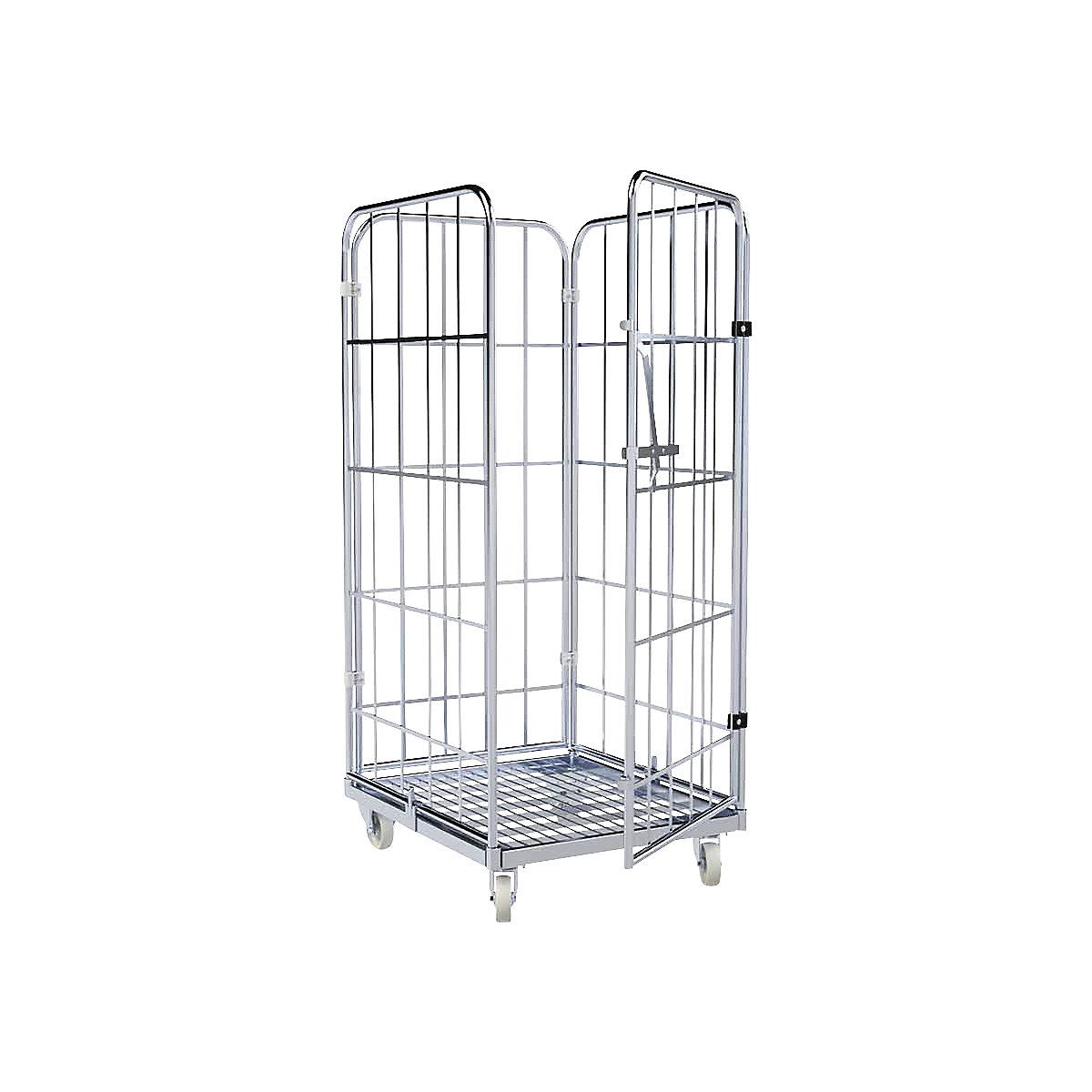

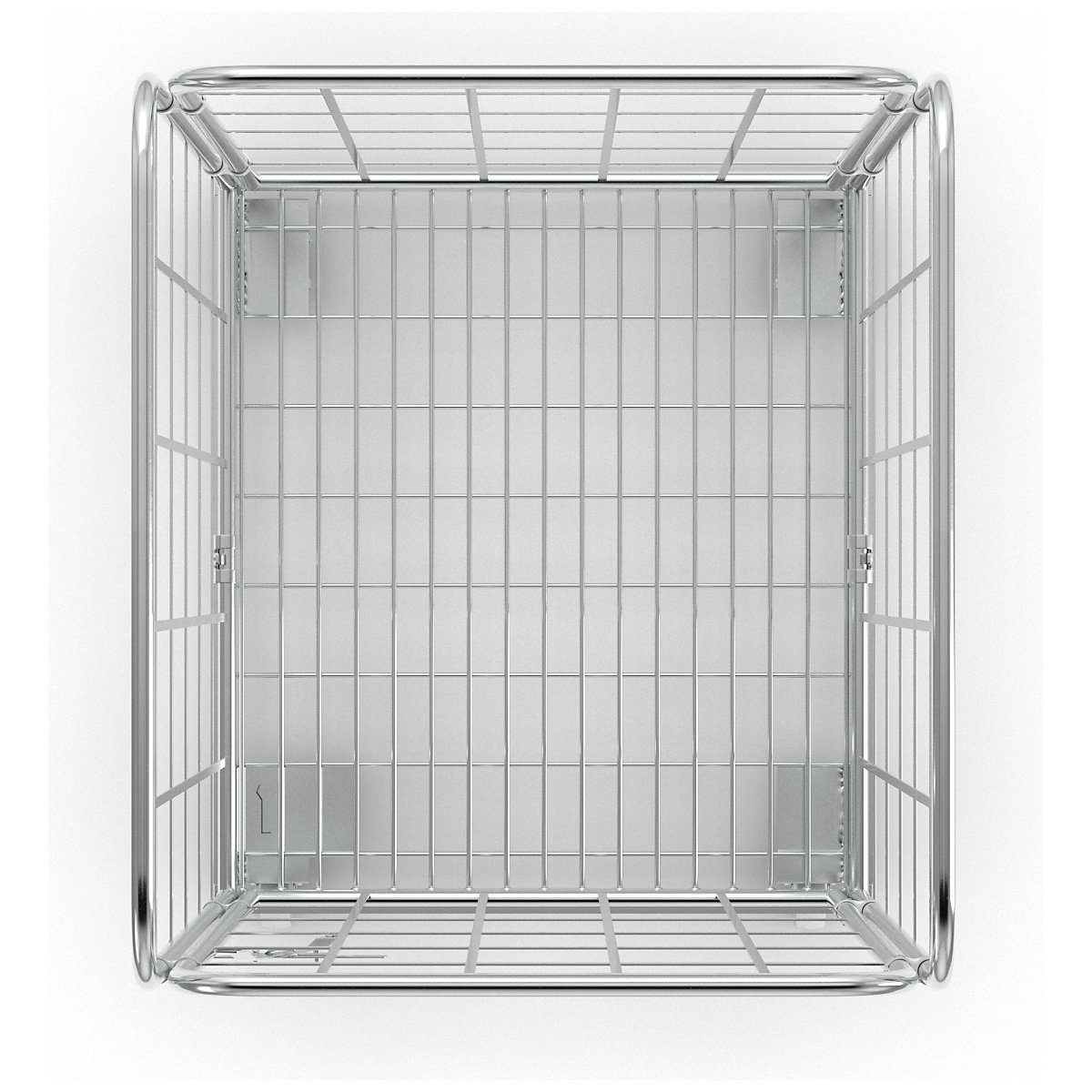

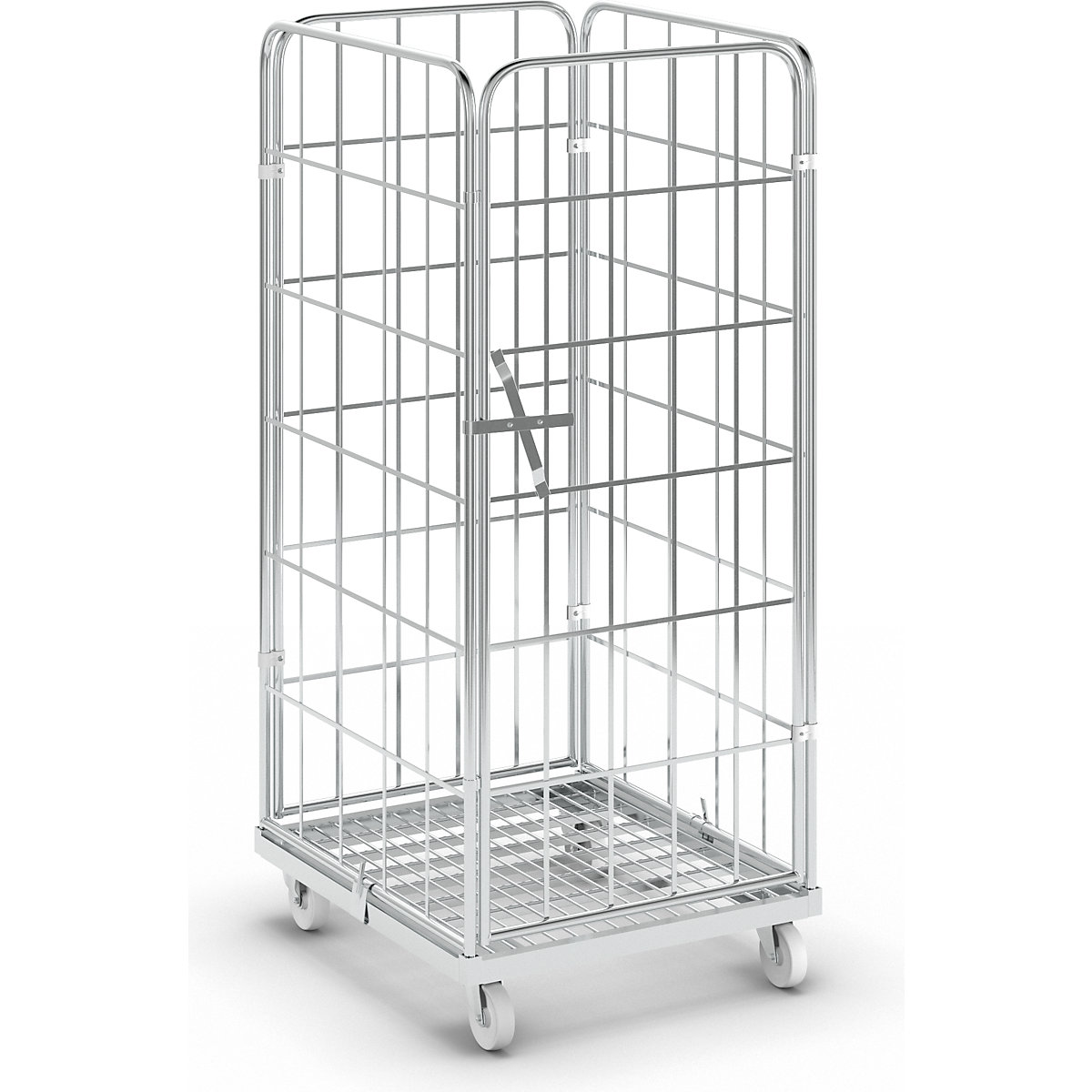

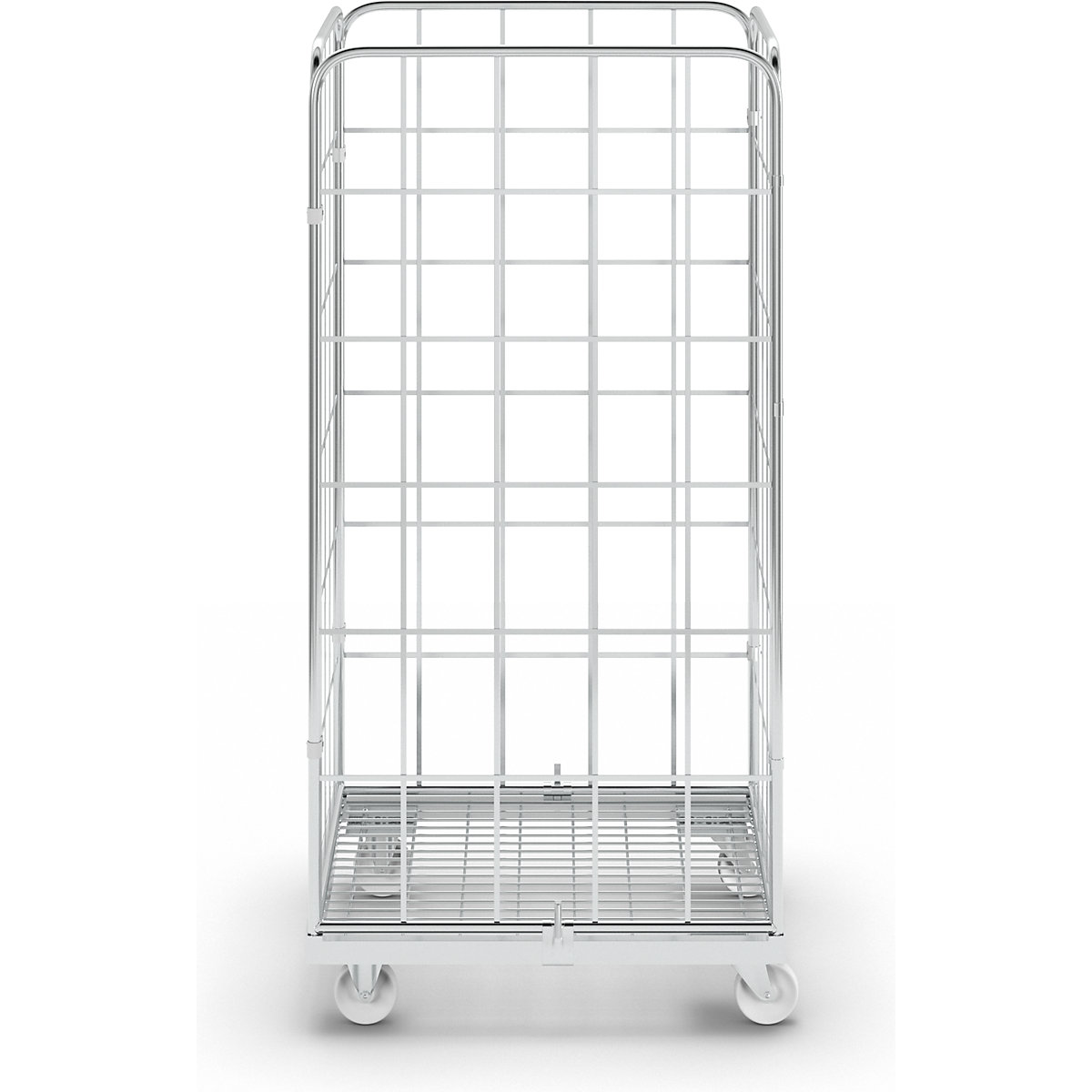

Steel roll container 4-sided, overall height 1640 mm
1 front panel, one-part
Ref.: 177744 10
Steel roll container 4-sided, overall height 1640 mm
1 front panel, one-part
1 front panel, one-part
€ 449.00
Price / item (Excl. VAT)
Delivery time: 12-14 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 449.00
Price / item (Excl. VAT)
Product description
- Safe transport of goods and form-fit loading due to mesh panels on 4 sides
- Zinc plating increases the level of corrosion protection
- Swivel castors and fixed castors make it flexible to move to the place of use
- Ready for immediate use as it is delivered fully assembled
Surface: electrolytically zinc plated in blue
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.
2 side mesh panels (up to 4 shelves possible)
1 rear panel incl. 4 plastic clamps with screws and nuts for connection to the side mesh panels
1 front panel, one-part
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
4 x horizontal flat irons 12 x 3 mm
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.
2 side mesh panels (up to 4 shelves possible)
1 rear panel incl. 4 plastic clamps with screws and nuts for connection to the side mesh panels
1 front panel, one-part
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
4 x horizontal flat irons 12 x 3 mm
Technical data
| Roll container model | 4-sided |
|---|---|
| Max. load | 500 kg |
| Width | 710 mm |
| Depth | 800 mm |
| Height | 1640 mm |
| Finish | zinc plated by galvanization |
| Wheel fittings | 2 swivel castors, 2 fixed castors |
| Wheel type | polypropylene |
| Wheel diameter | 108 mm |
| Platform material | steel |
| Mesh height | 1460 mm |
| Internal width | 660 mm |
| Internal depth | 740 mm |
| Internal height | 1460 mm |
| Frame material | steel |
| Weight | 41.9 kg |
| Product type | roll containers |
| Supplied | assembled |
