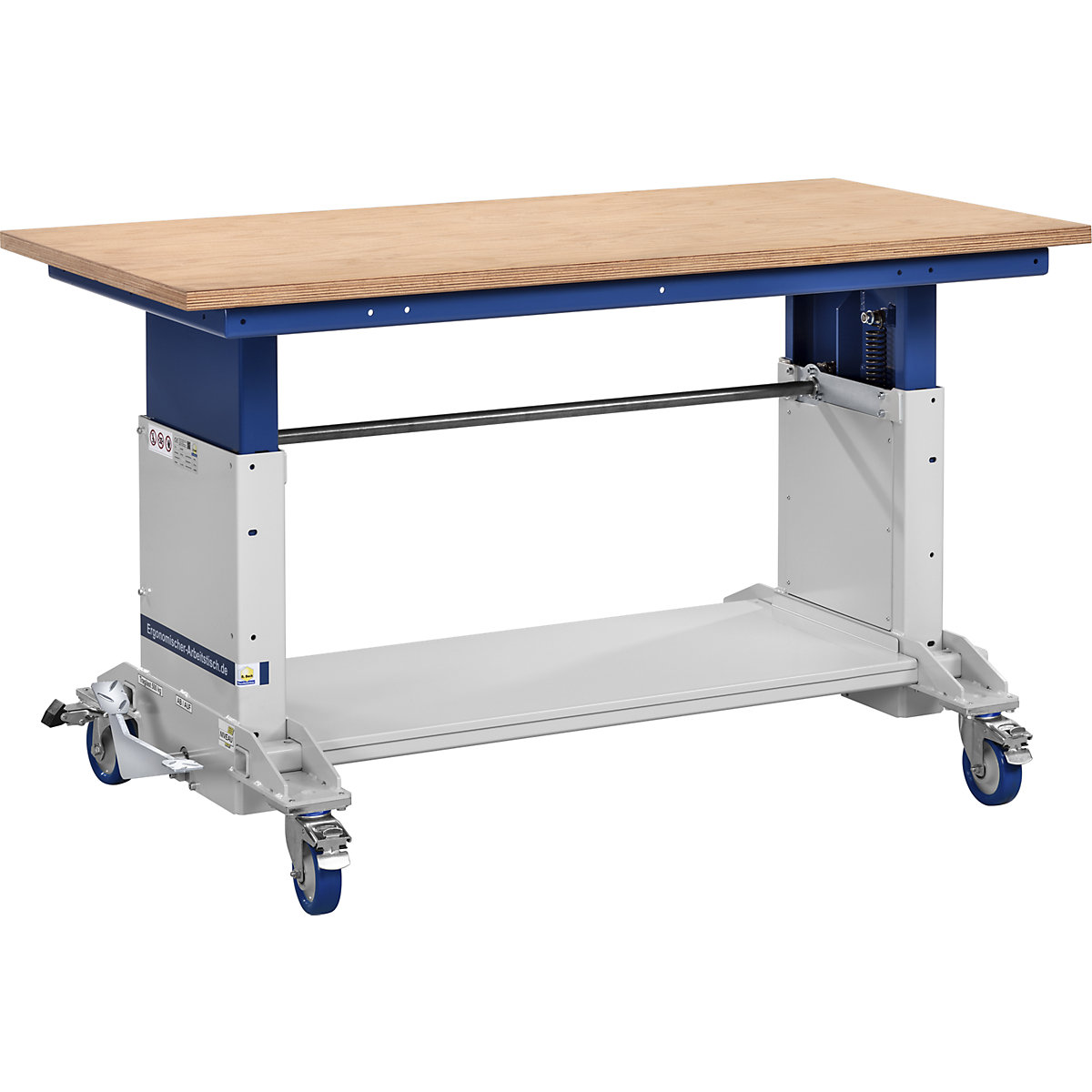

Work table SUPPORTER with lifting mechanism multiplex board, max. load 500 kg

The SUPPORTER assembly tables were specifically developed for manual workstations in production and assembly. Strong physical strain on employees in these areas leads to an increase in illness-related absences due to musculoskeletal disorders. Ergonomic workstation solutions therefore usually pay for themselves very quickly – and incidentally, employee satisfaction and well-being at their workplace increase.

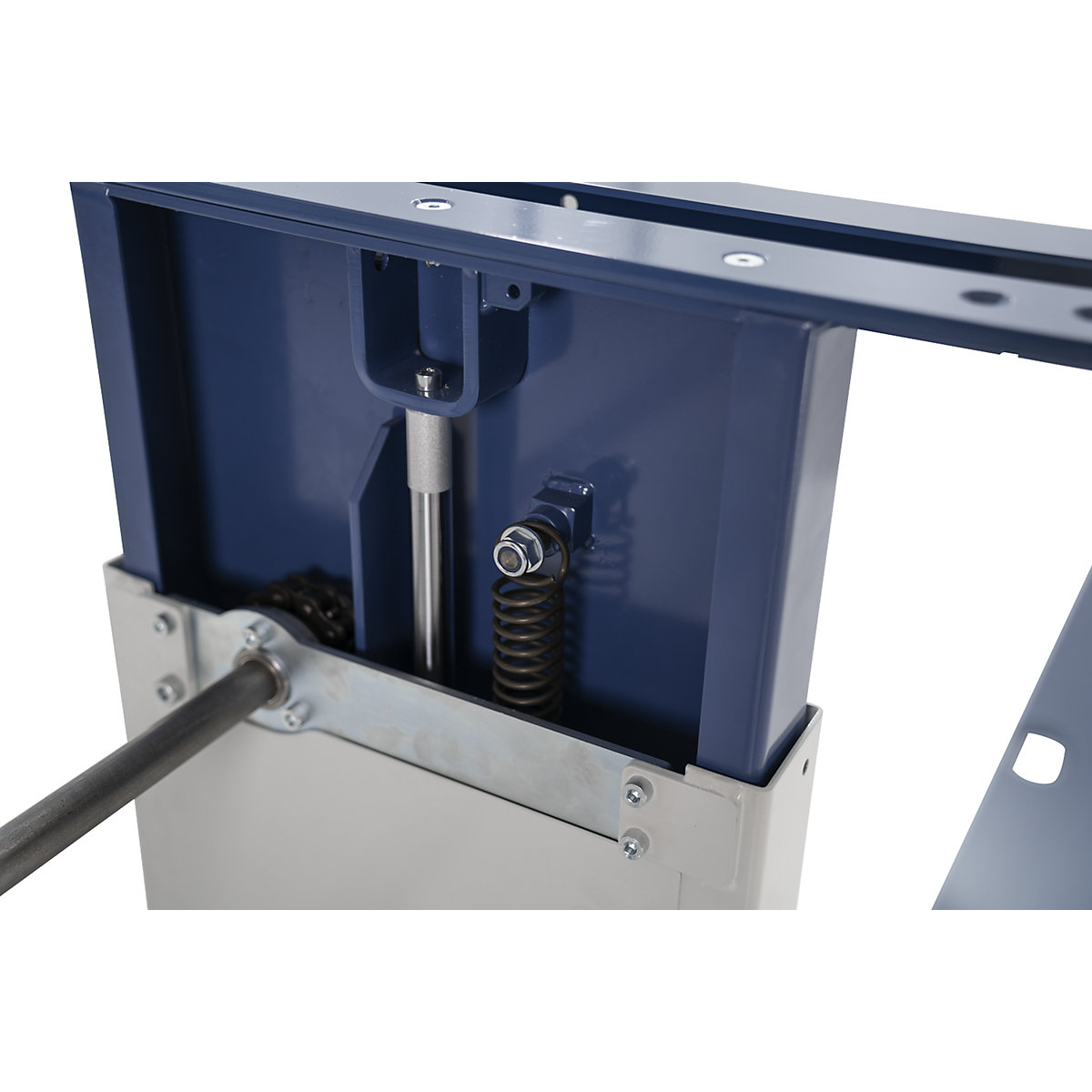

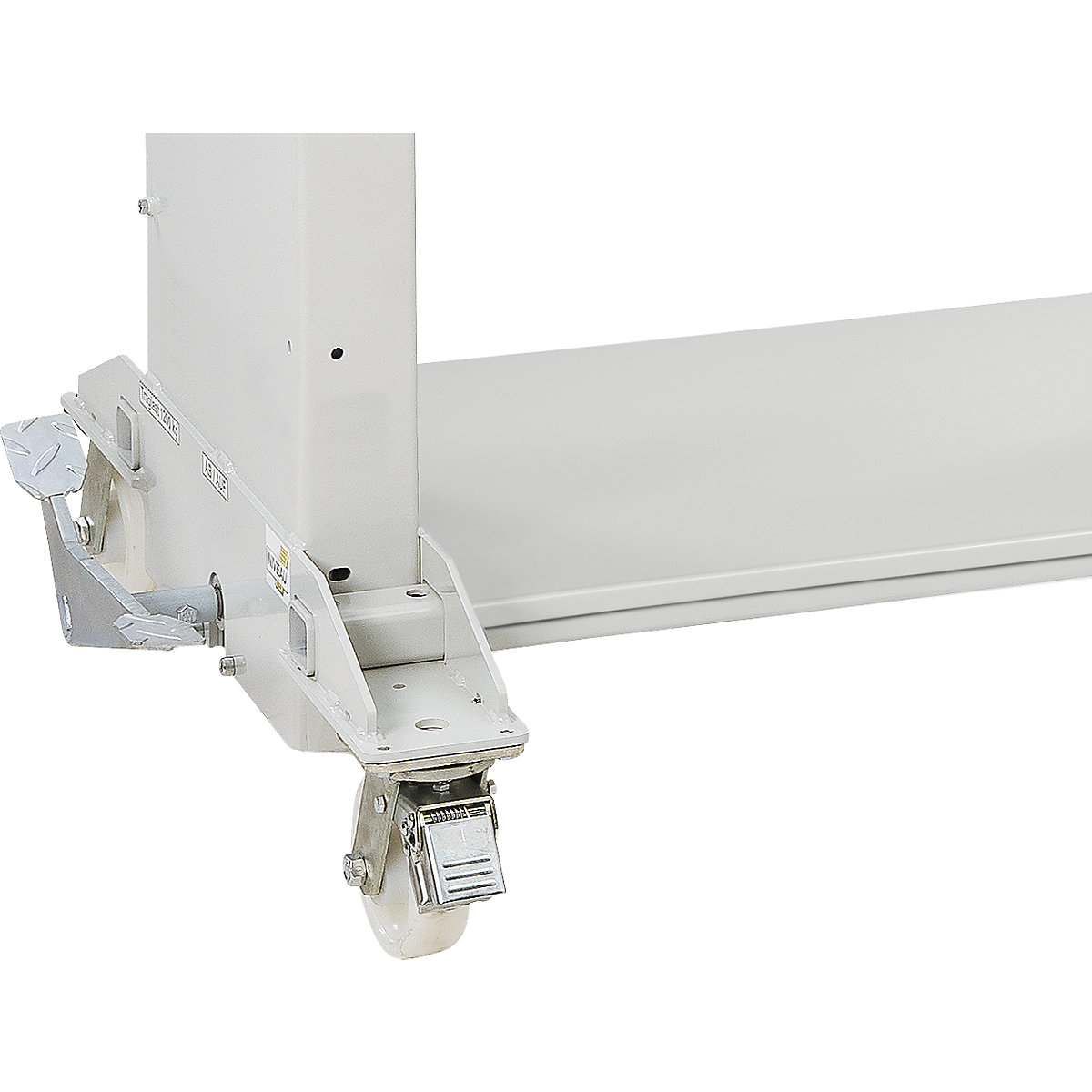

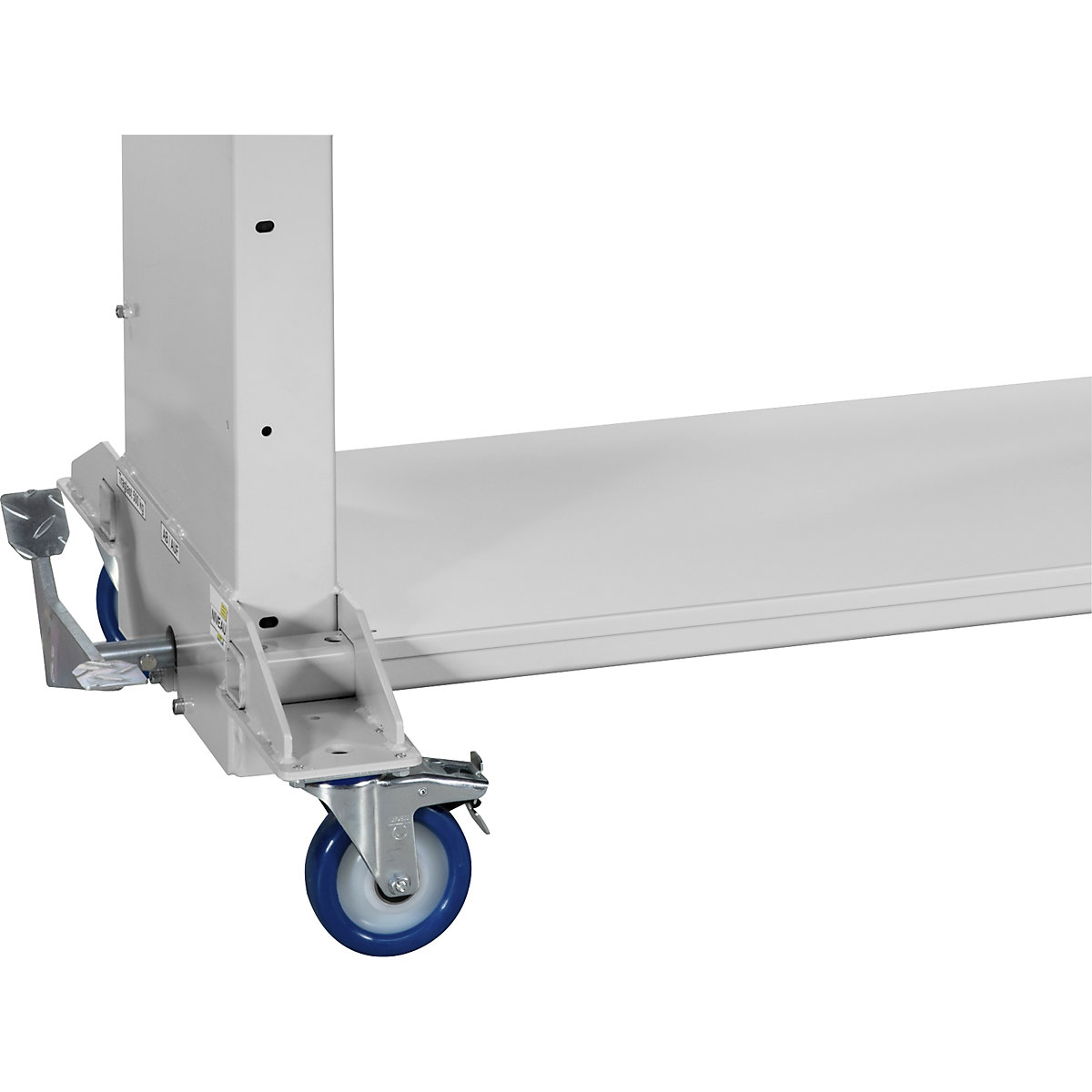

Robust, durable sheet steel construction. The side panels ensure the necessary stability and at the same time protect the lifting and lowering mechanism inside them. High-quality drives on both sides move the work table to the desired level. operation is carried out manually via a foot hydraulic system. power-independent use at changing locations is thus easily possible. This is ensured by 4 heavy-duty castors with 2 locking brakes. Usable stroke 310 mm (working height continuously adjustable from 700 to 1000 mm). Overall height 835 mm. Overall height 1145 mm. platform size 1460 x 740 mm.

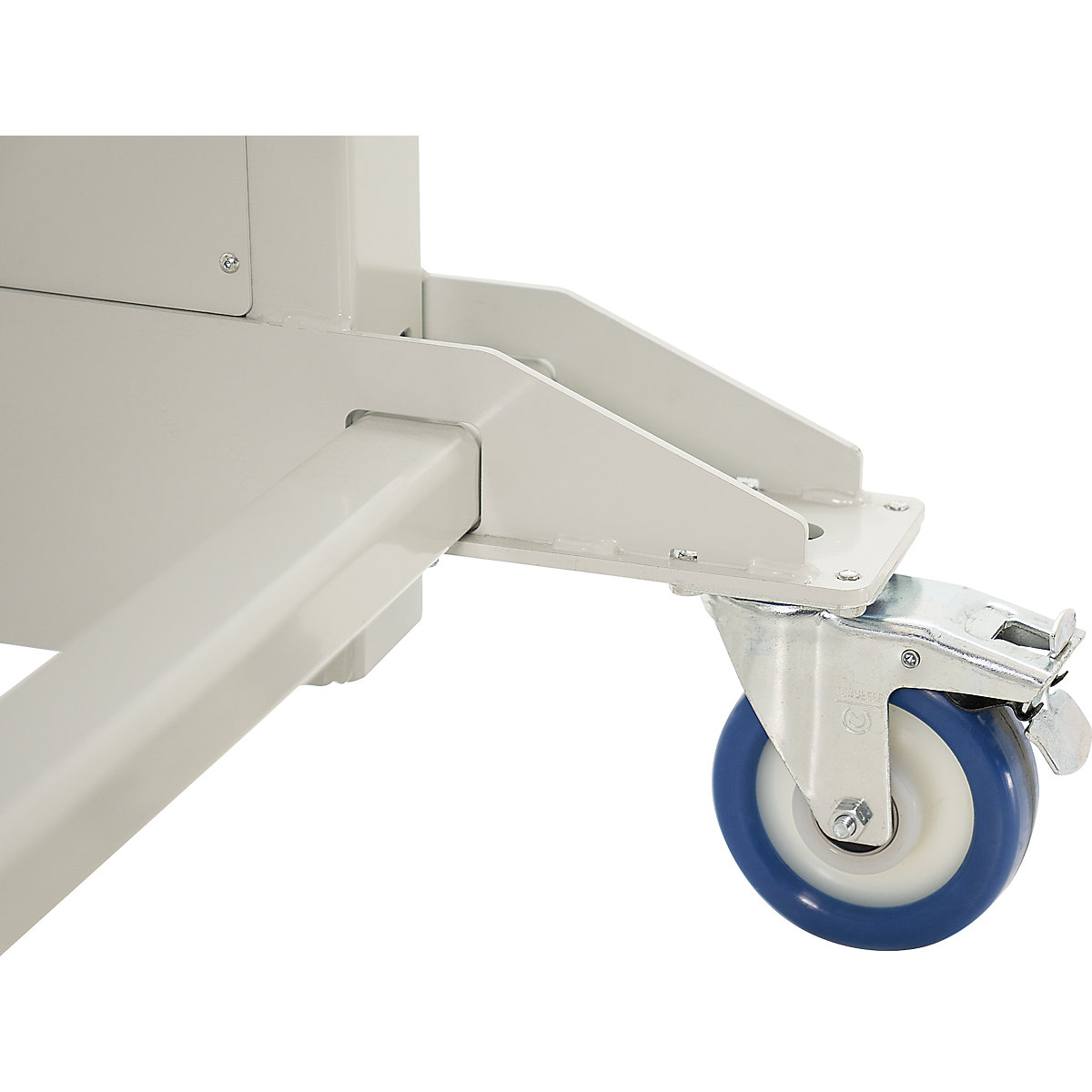

Beech multiplex worktop, width x depth 1600 x 790 mm. thickness 30 mm. With sheet steel shelf below. 4 swivel castors, 2 of which with brakes. wheel ø 125 mm. operation by 1 lifting unit.
