Ref.: 588745 10
Sump tray for skip trailer – eurokraft pro for skip trailers
sump capacity 850 l, orange
Sump capacity [l]
Length [mm]
Colour
Ref.: 588745 10
Sump tray for skip trailer – eurokraft pro for skip trailers
sump capacity 850 l, orange
sump capacity 850 l, orange
Sump capacity [l]
Length [mm]
Colour
€ 3,990.00
Price / item (Excl. VAT)
Delivery time: 7-8 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 3,990.00
Price / item (Excl. VAT)
Product description
- For the storage of containers with waste materials contaminated by emulsions, coolants, oils etc
- Sump tray cover to protect the liquids collected from contamination
- Lifting points for stackers and cranes
- General building inspection certification in accordance with DIBt (German Institute for Construction Technology)

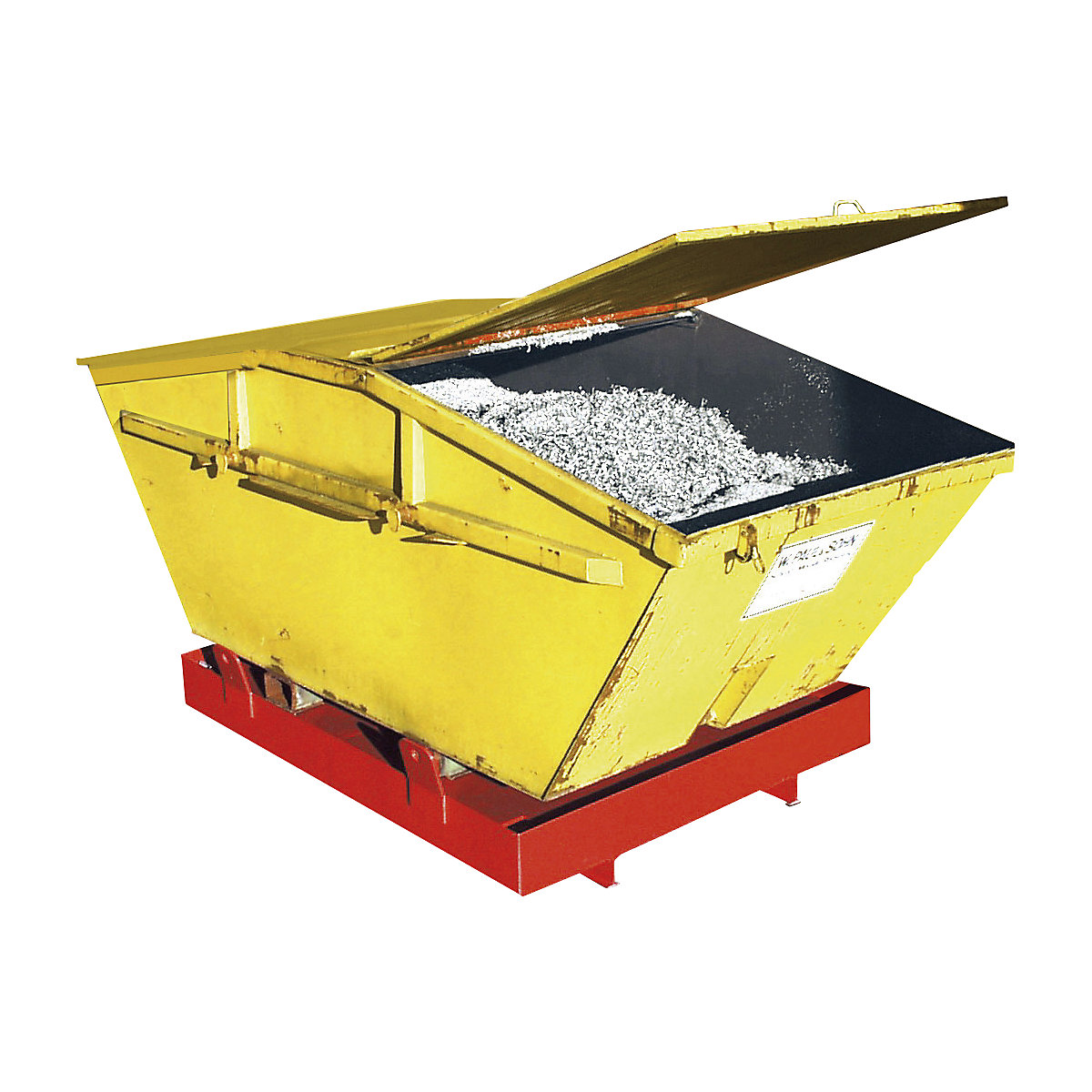

Sump tray for environmentally friendly storage of skip trailers with waste materials contaminated by emulsions, coolants, oils etc. – e.g. for metal swarf contaminated by coolants, oils etc.
Water hazardous liquids and flammable liquids are collected and do not end up in the groundwater.
For skip trailers in accordance with DIN 30720 up to 10 m³.
Can be used indoors or under roofs (roofed over outdoor area).
Robust steel construction with sump tray cover to protect the liquids collected from contamination.

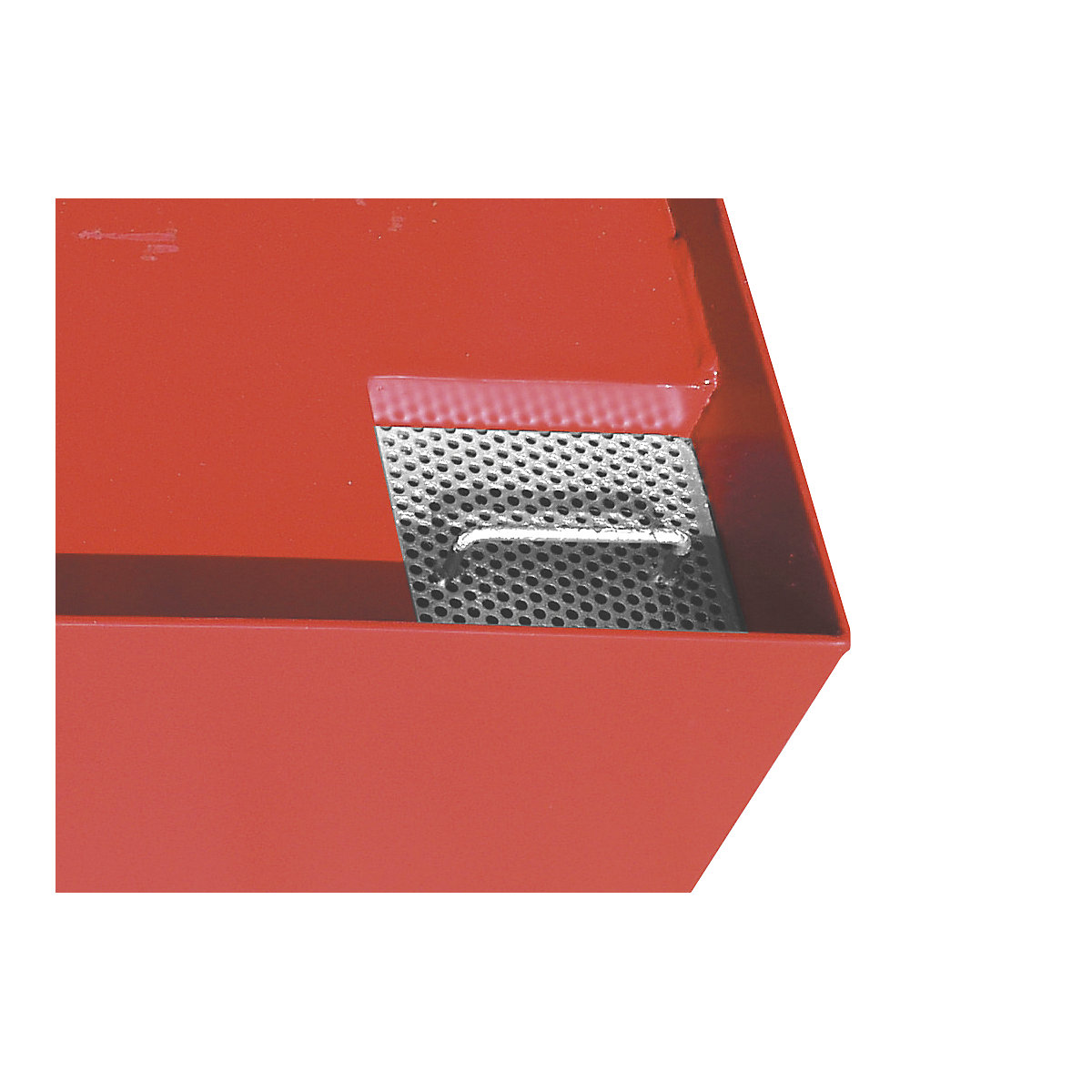

4 suction holes protected by a removable strainer, and which simultaneously function as level indicators.
Platform area with a 5° slope.
Lifting points for forklift trucks, crane eyelets for lifting with crane.
Easy to clean.
Water hazardous liquids and flammable liquids are collected and do not end up in the groundwater.
For skip trailers in accordance with DIN 30720 up to 10 m³.
Can be used indoors or under roofs (roofed over outdoor area).
Robust steel construction with sump tray cover to protect the liquids collected from contamination.
4 suction holes protected by a removable strainer, and which simultaneously function as level indicators.
Platform area with a 5° slope.
Lifting points for forklift trucks, crane eyelets for lifting with crane.
Easy to clean.
10 year guarantee
For water hazardous liquids
For flammable liquids
Technical data
| Type of grate | without |
|---|---|
| Width | 2030 mm |
| Height | 560 mm |
| Material | sheet steel |
| Finish | painted |
| Design of sump tray | with cover |
| Max. load | 20000 kg |
| Clearance height | 120 mm |
| Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Distributed load | 20000 kg |
| Certification | with |
| Product type | container sump trays |
| Supplied | assembled |
| Sump capacity | 850 l |
| Length | 2300 mm |
| Colour | yellow orange RAL 2000 |
| Weight | 558 kg |
