Ref.: 588763 10
Storage and transport pallet with sump tray – eurokraft pro 3 mesh panels
for 1 x 200 l drum, orange
Sump capacity [l]
Length [mm]
Width [mm]
Height [mm]
Drum capacity
Finish
Colour
Ref.: 588763 10
Storage and transport pallet with sump tray – eurokraft pro 3 mesh panels
for 1 x 200 l drum, orange
for 1 x 200 l drum, orange
Sump capacity [l]
Length [mm]
Width [mm]
Height [mm]
Drum capacity
Finish
Colour
Sale
€ 1,125.00
€ 1,095.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 1,125.00
€ 1,095.00
Price / item (Excl. VAT)
Product description
- Mesh panels on 3 sides to protect the load
- For regulation compliant transport and storage of hazardous goods drums

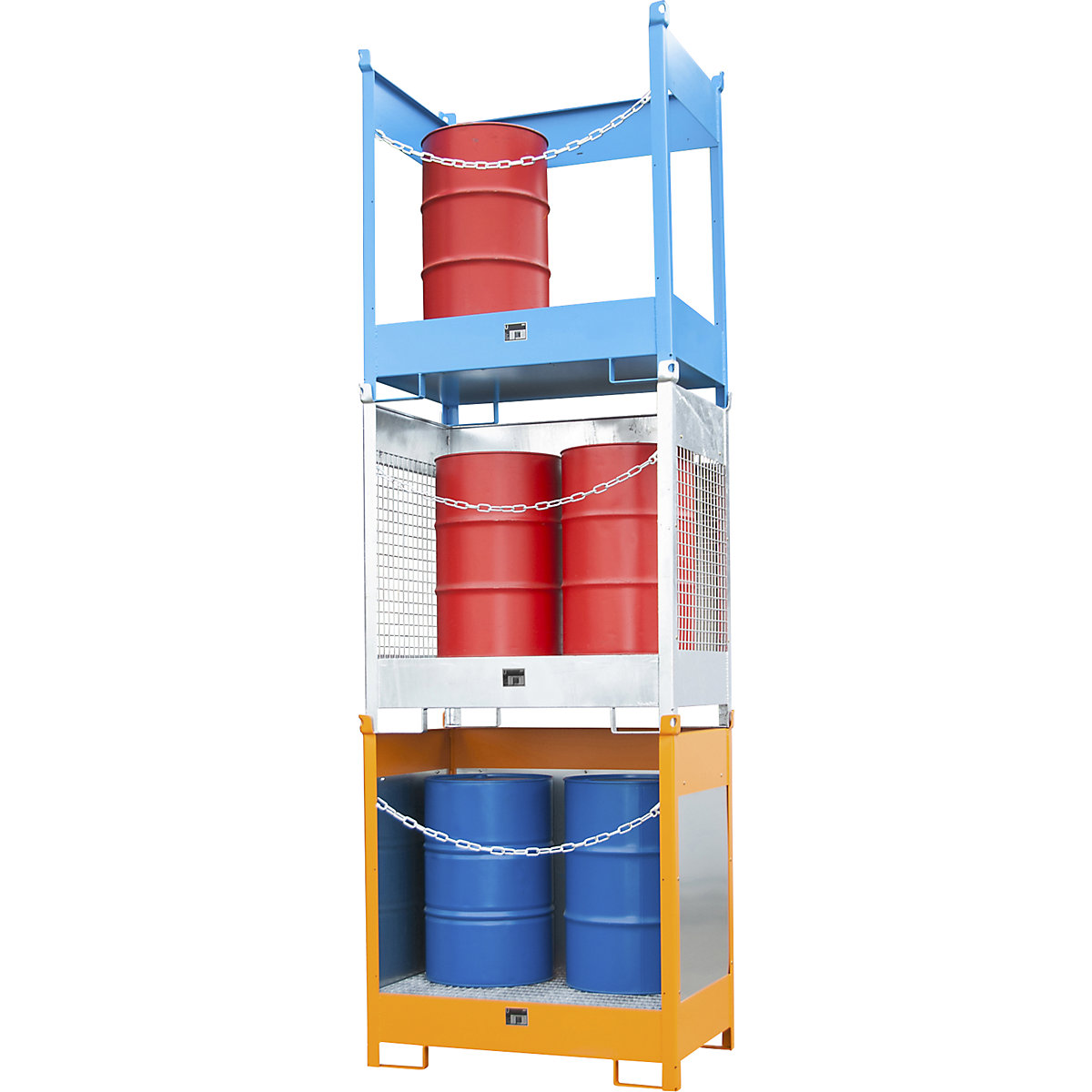

- Saves space – up to 3 units can be stacked
- Optimal handling by means of crane eyelets and fork pockets for transport using a stacker and lifting device
Sump tray for storing, stacking and transporting drums using a pallet truck or forklift truck.
For 200 litre drums, 60 litre drums and small containers.
Sturdy steel profile construction made of 3 mm sheet steel.
Drum sump with removable, hot dip galvanised grate. Max. load 1000 kg/m².
100 mm base clearance.
Stacking corners with crane eyelets, up to 3 units can be stacked.
Chain to secure the drums once positioned.
For use in buildings or shelters.
Manufacturers' declaration of conformity in accordance with StawaR – approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4.
3 panels (rear and side panels) made of sturdy wire mesh to protect the drums or small containers once positioned.
Open side with chain to secure the drums once positioned.
For 200 litre drums, 60 litre drums and small containers.
Sturdy steel profile construction made of 3 mm sheet steel.
Drum sump with removable, hot dip galvanised grate. Max. load 1000 kg/m².
100 mm base clearance.
Stacking corners with crane eyelets, up to 3 units can be stacked.
Chain to secure the drums once positioned.
For use in buildings or shelters.
Manufacturers' declaration of conformity in accordance with StawaR – approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4.
3 panels (rear and side panels) made of sturdy wire mesh to protect the drums or small containers once positioned.
Open side with chain to secure the drums once positioned.
10 year guarantee
For water hazardous liquids
For flammable liquids
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Material | sheet steel |
| Max. load | 1000 kg/m² |
| Clearance height | 100 mm |
| Test symbol | manufacturers declaration of conformity in accordance with StawaR |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Feature | stackable |
| Drum storage | upright |
| Certification | with |
| Product type | storage/transport pallets with sump trays |
| Supplied | assembled |
| Sump capacity | 210 l |
| Length | 750 mm |
| Width | 750 mm |
| Height | 1590 mm |
| Drum capacity | 1 x 200 l |
| Finish | painted |
| Colour | yellow orange RAL 2000 |
| Stacking load | 986 kg |
| Weight | 103 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.0 | |
| 30% | 3.9 | |
| 25% | 3.0 | |
| 10% | 0.3 | |
| 5% | 3.9 | |
| Overall score | 3.2 | |
