Ref.: 941167 10

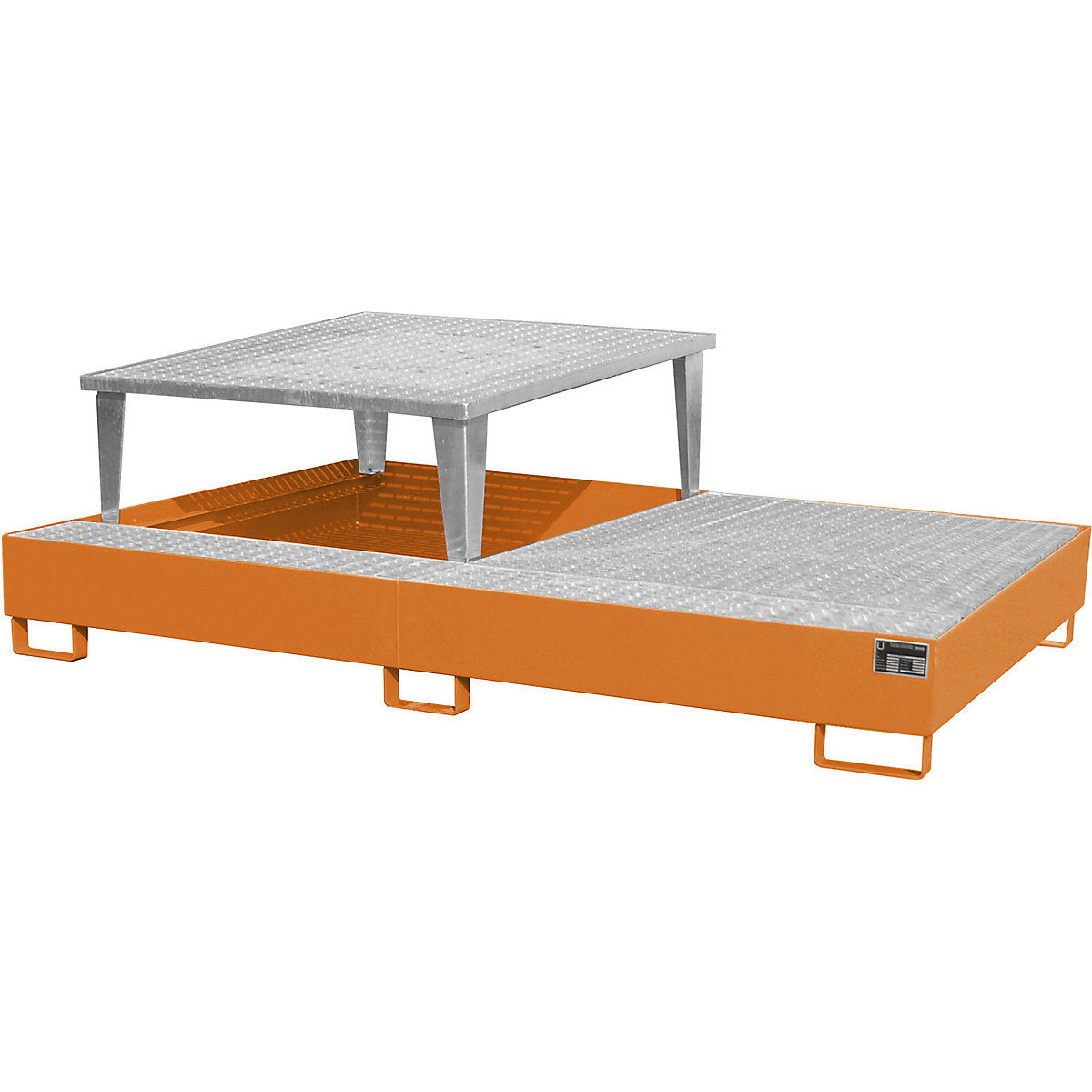

Steel sump tray for IBC / CTC tank containers – eurokraft pro LxWxH 2650 x 1460 x 865 mm, with 1 filling attachment
sump capacity 1000 l, painted, orange RAL 2000
1000 l container capacity [pcs.]
Length [mm]
Height [mm]
Colour
Quantity of filling attachments [pcs.]
Ref.: 941167 10
Steel sump tray for IBC / CTC tank containers – eurokraft pro LxWxH 2650 x 1460 x 865 mm, with 1 filling attachment
sump capacity 1000 l, painted, orange RAL 2000
sump capacity 1000 l, painted, orange RAL 2000
10 year guarantee
For water hazardous liquids
For flammable liquids
Sustainability score:1000 l container capacity [pcs.]
Length [mm]
Height [mm]
Colour
Quantity of filling attachments [pcs.]
€ 2,950.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
€ 2,950.00
Price / item (Excl. VAT)
€ 2,950.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
Product description
- Made of steel
- For IBC/CTC containers
- Protection against leaking liquids
- High mechanical load capacity
- Suitable for continuous use
- Corrosion-resistant surface
- With zinc plated support grates for storing drums and IBC/CTC and zinc plated filling attachments for easy filling of IBC/CTC
- The filling attachment can be positioned individually
The sump tray is made of steel and designed for the safe storage of tank containers (IBC/KTC). It is used to collect leaking liquids and thus contributes to protecting the ground and environment when storing substances hazardous to water. The steel construction offers high mechanical strength, as required when used with heavy containers and when manoeuvring with industrial trucks. The tray is intended for stationary use in storage, production and handling areas where tank containers are stored or filled. It supports companies in complying with regulations on handling substances hazardous to water. Due to its robust construction, the tray is designed for regular, continuous operational use. The surface finish of the tray is adapted to the respective storage conditions and additionally contributes to corrosion protection. Thanks to its sturdy design, the tray is suitable for permanent indoor and outdoor installation.
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Sump capacity | 1000 l |
| Drum capacity | 4 x 200 l |
| Width | 1460 mm |
| Filling attachment dimensions | 1250 x 1210 x 430 / 493 mm |
| Material | sheet steel |
| Max. load | 1000 kg/m² |
| Clearance height | 100 mm |
| Test symbol | manufacturers declaration of conformity in accordance with StawaR |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Distributed load | 1000 kg/m² |
| Certification | with |
| Product type | 1000 l sump trays |
| Supplied | assembled |
| 1000 l container capacity | 2 pcs. |
| Length | 2650 mm |
| Height | 865 mm |
| Colour | yellow orange RAL 2000 |
| Quantity of filling attachments | 1 pcs. |
| Finish | painted |
| Weight | 272 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 25
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
PCF Lifecycle Breakdown
PCF Lifecycle Breakdown1,278kg CO₂e
| LCA Raw Material Extraction & Processing | 40.2% |
| LCA packaging production | 1.6% |
| LCA Product Manufacturing | 50% |
| LCA Inbound and Outbound Transportation | 8.2% |
Scoring System
More about our sustainability approach.
3.6/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.5 |
 Circulatory economy | 30% | 4.2 |
 Biodiversity | 25% | 3.0 |
 Economic efficiency | 10% | 1.7 |
 Innovation | 5% | 3.9 |
