Mobile sump tray made of sheet steel, standing drums – eurokraft basic LxW 1200 x 800 mm, 2 x 200 l drums

(7)

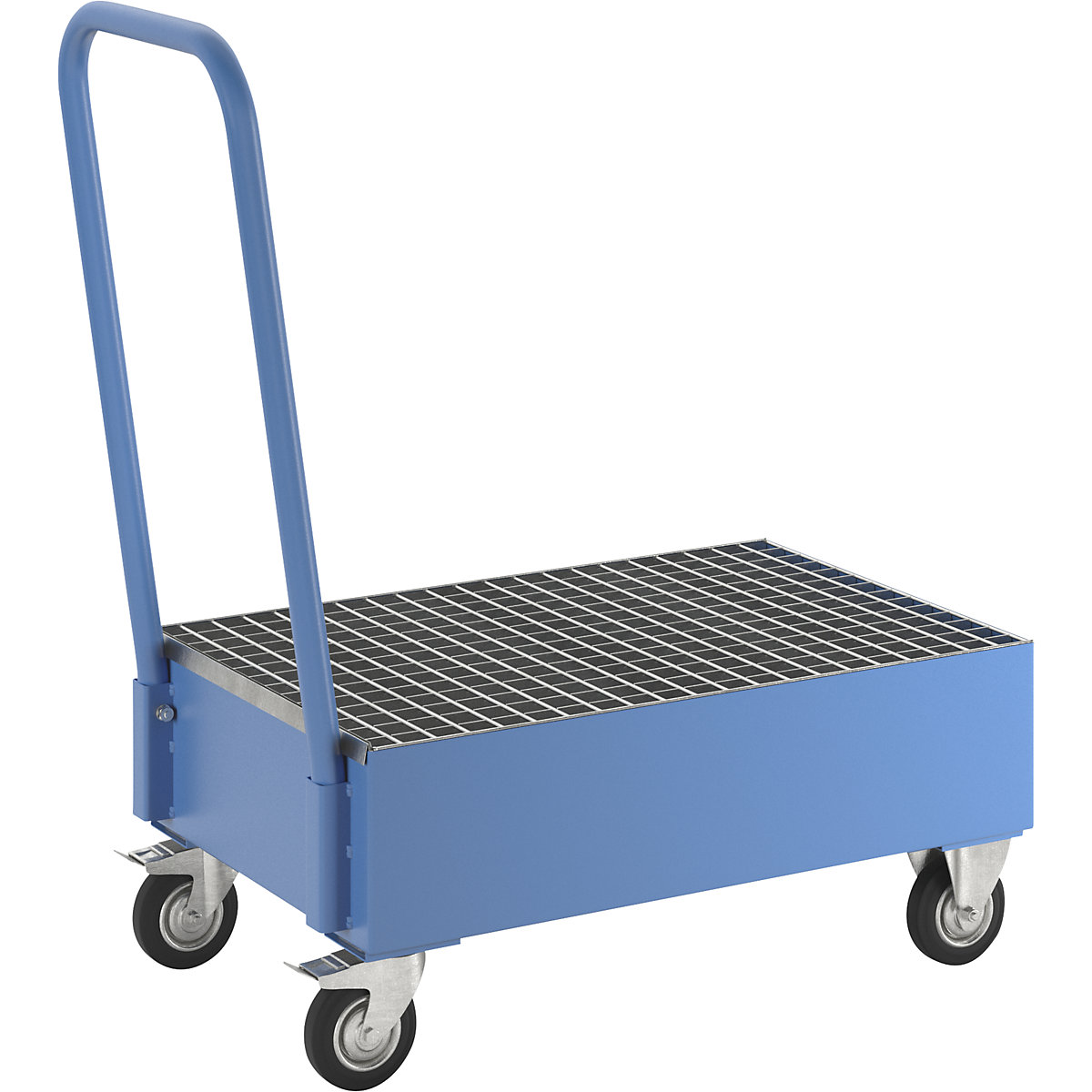

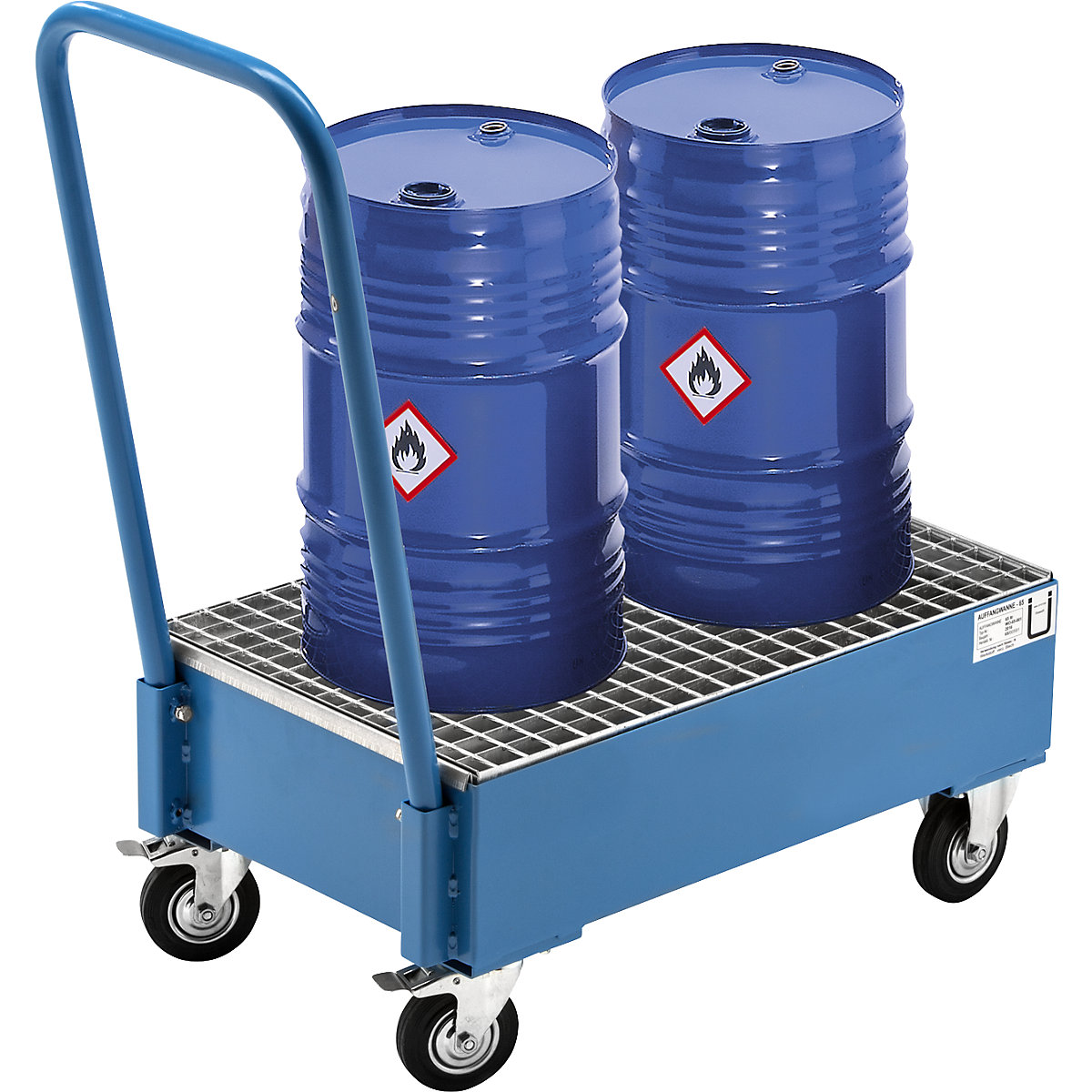

Mobile sump tray made of sheet steel, standing drums – eurokraft basic

blue RAL 5012

For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Sump capacity [l]
Drum capacity
Length [mm]
€ 729.00
Price / item (Excl. VAT)

Delivery time: > 3 months
Product description
  • Regulation compliant company internal transport, filling and storage of 60 and 200 l drums
  • Robust trays with approval
  • With push handle
  • 2 swivel castors and 2 fixed castors
  • For vertical storage with grate – drum restraint strap as accessories

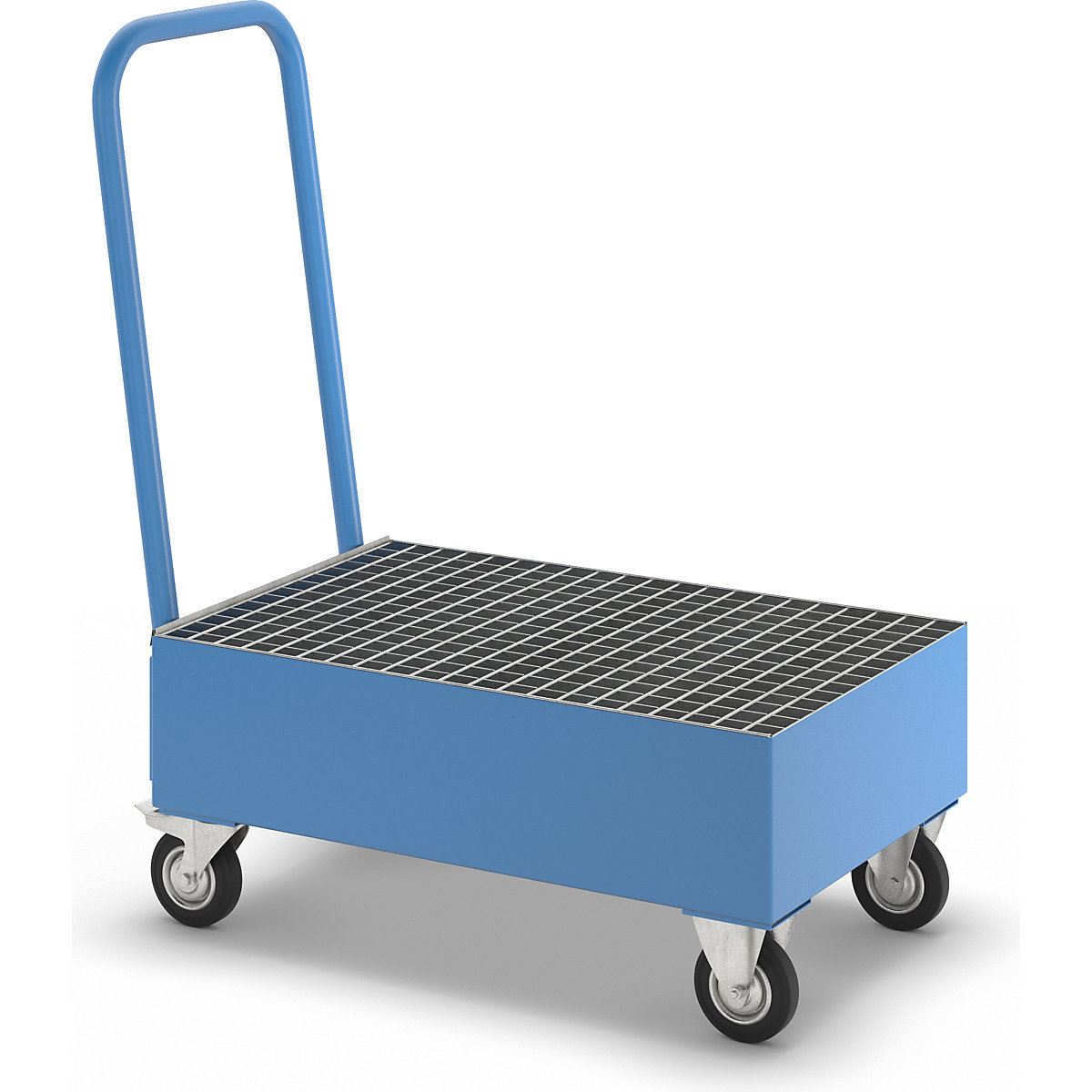

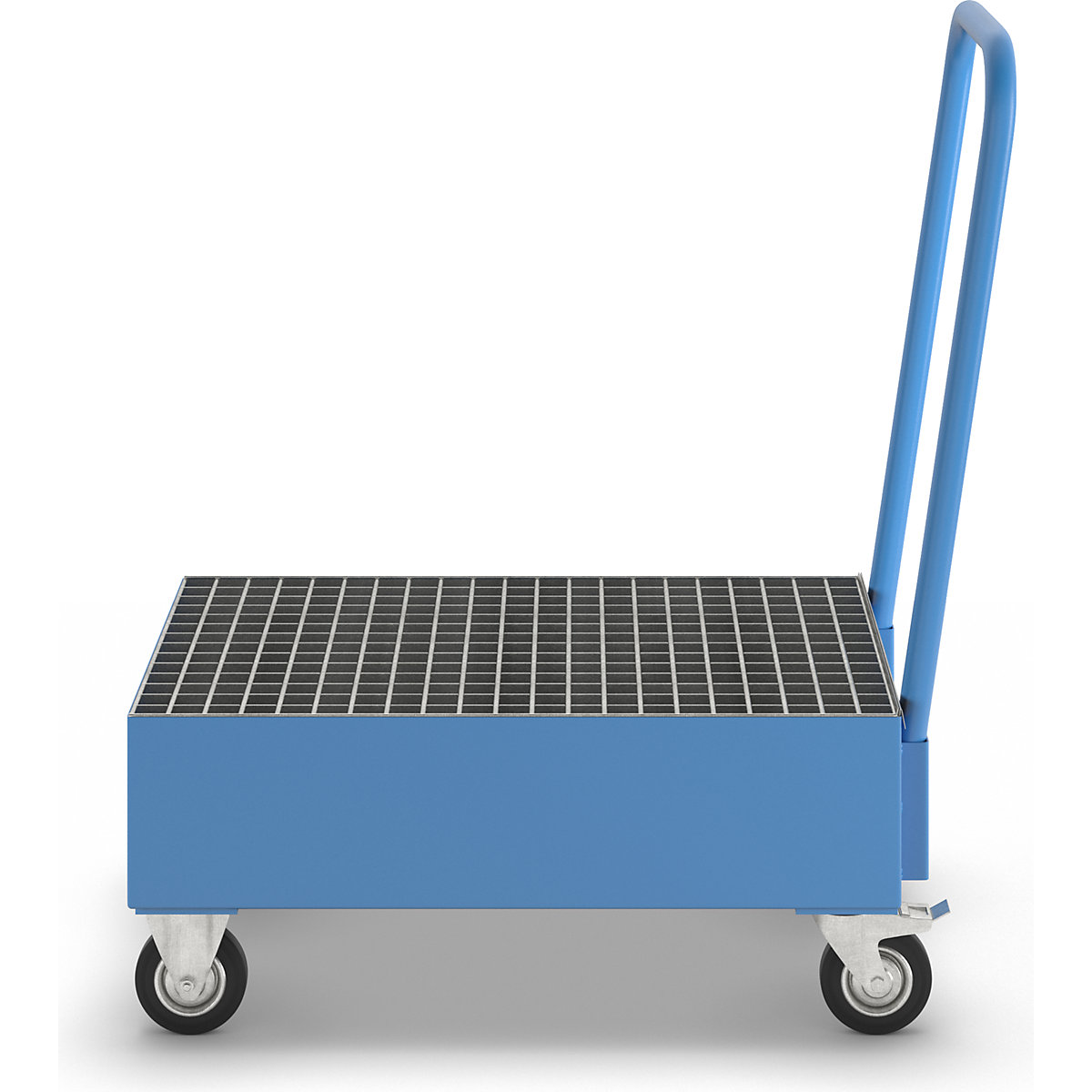

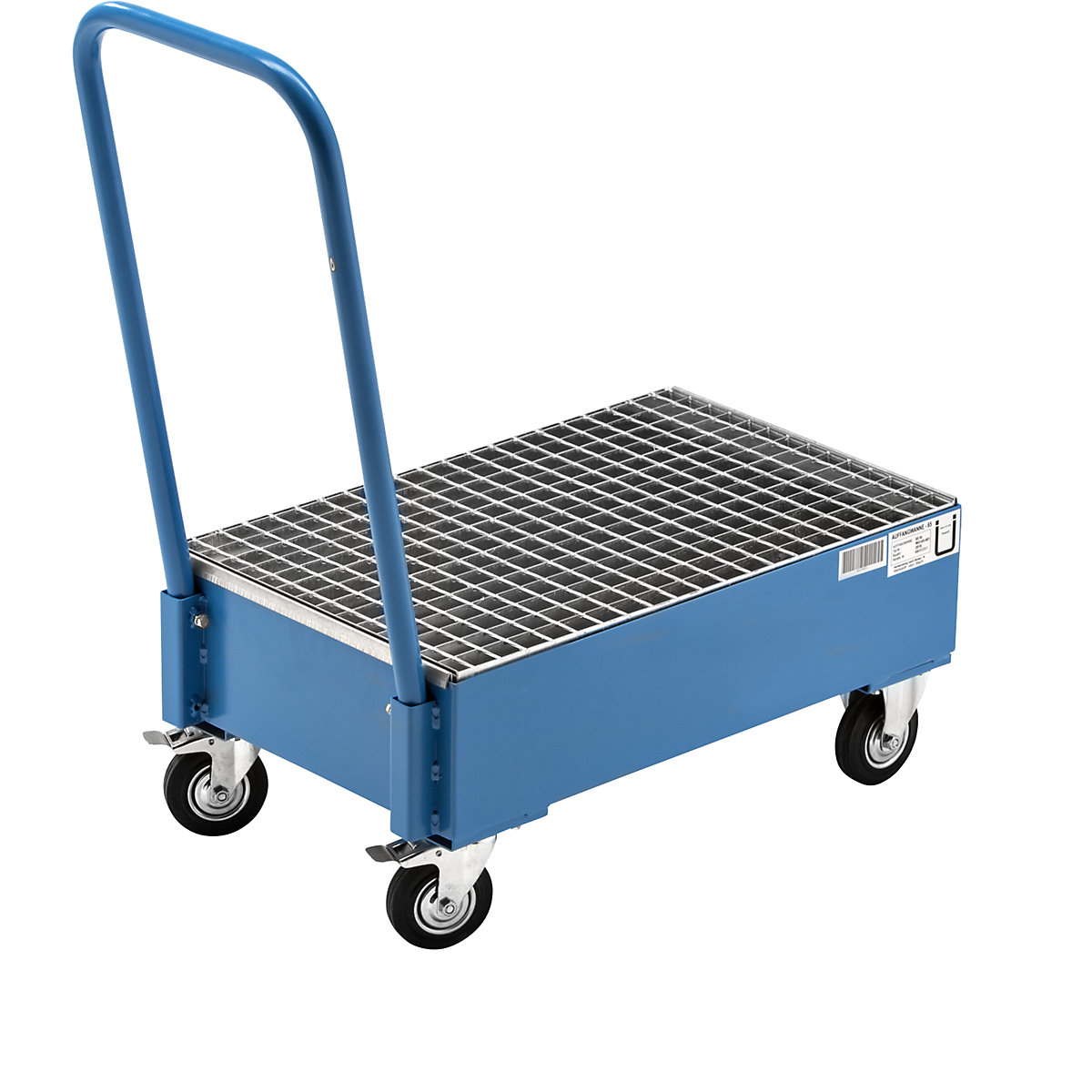

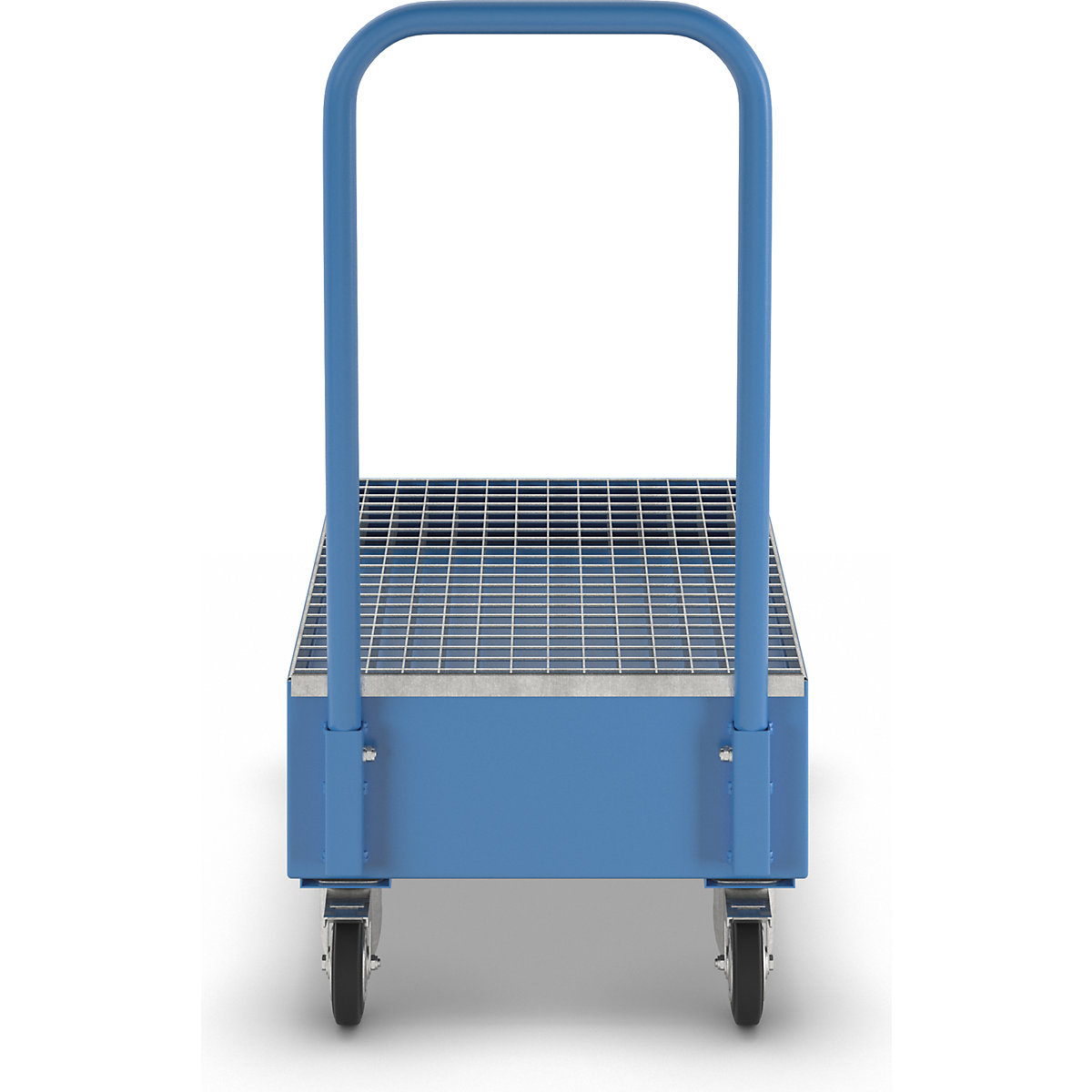

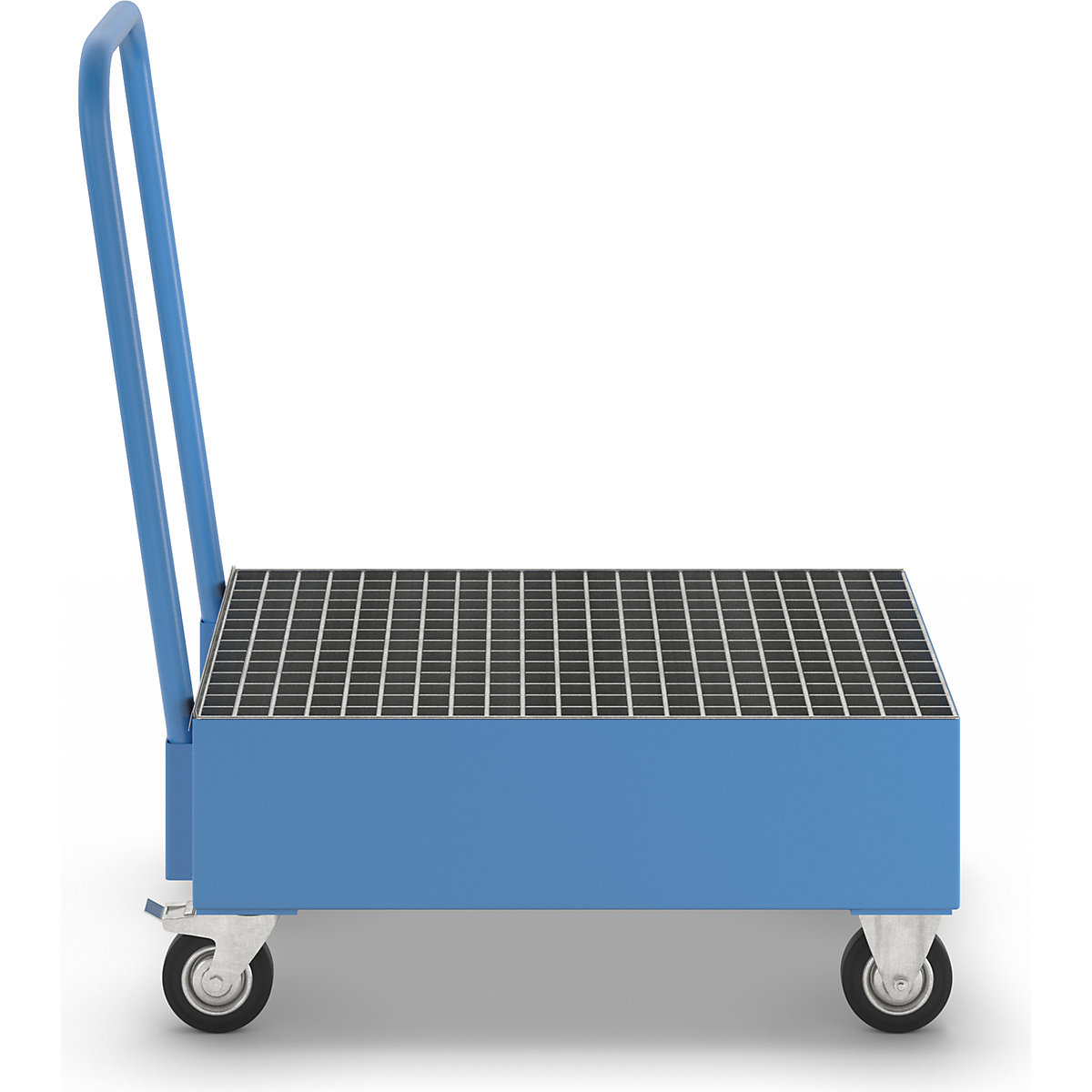

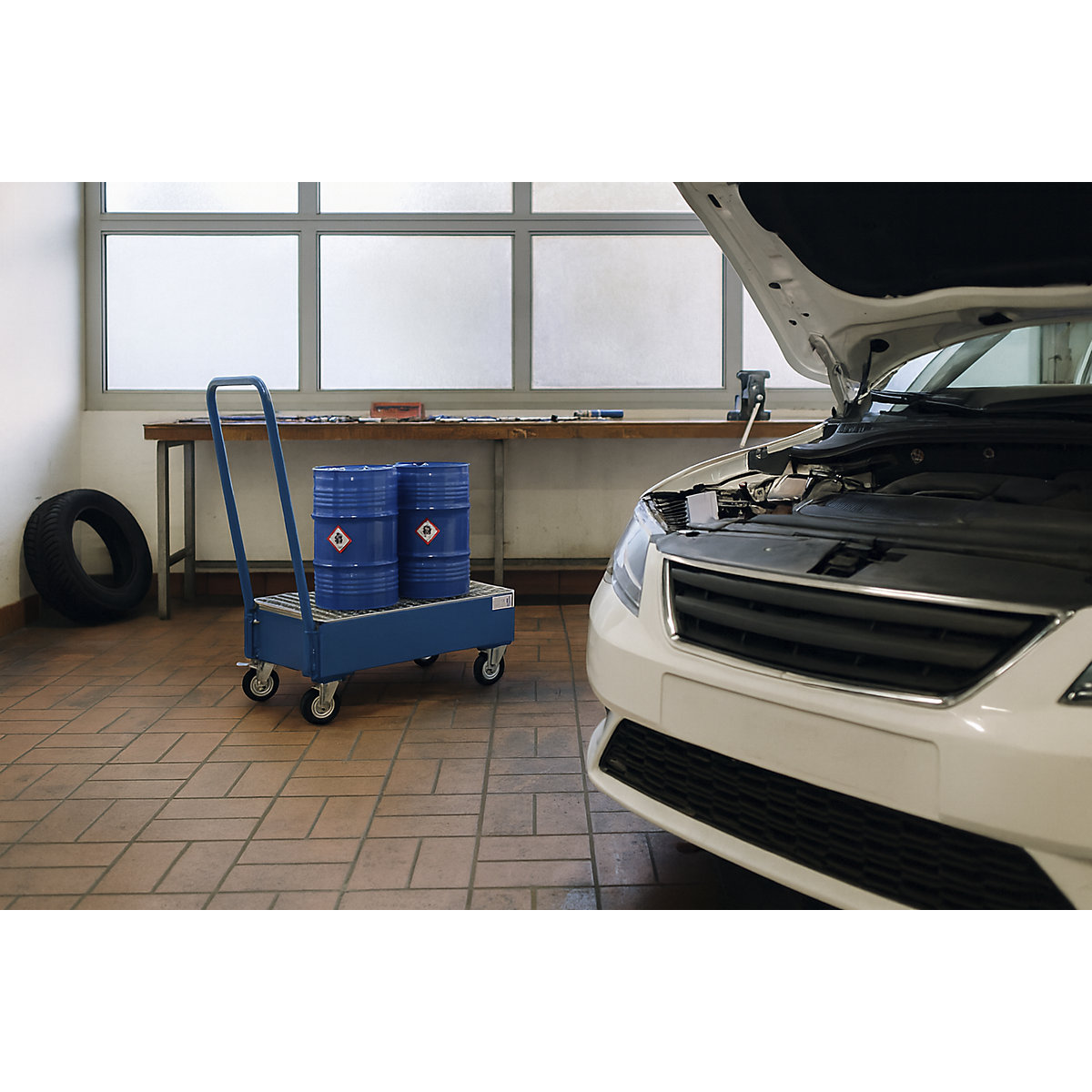

The mobile sump tray made of 3 mm sheet steel impresses with its robust construction and reliable mobility. It is designed for the safe transport, filling and storage of upright 60 and 200 litre drums in internal use.

With declaration of conformity (ÜHP) in accordance with StawaR. Approved for flammable liquids of GHS categories 1 – 3 and water-hazardous liquids of GHS categories 1 – 4.

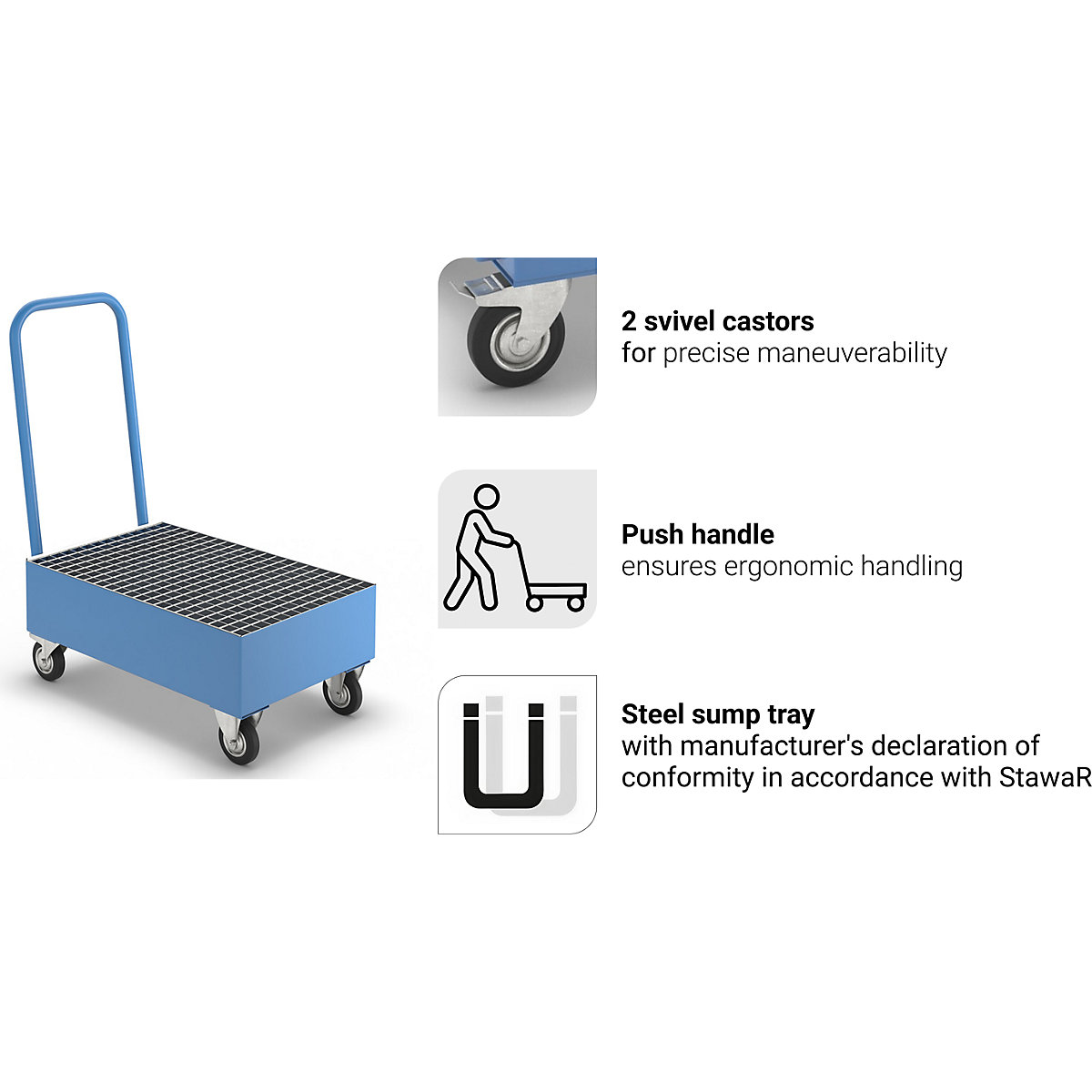

2 swivel castors and 2 fixed castors with a wheel Ø of 125 mm enable precise manoeuvring. The swivel castors are equipped with stops. The practical push handle ensures ergonomic handling and greater safety in daily use. Thanks to the integrated sump tray with approval, it reliably protects against leaking liquids. The sturdy steel construction makes it a durable companion in professional drum logistics and supports efficient working with drum transporters.

Simple assembly of push handle and wheels.
Technical data
Type of gratewith zinc plated grate
Modelwith push handle
Materialsheet steel
Test symbolmanufacturers declaration of conformity in accordance with StawaR
Material thickness3 mm
For mediaflammable and water hazardous liquids
Hazard classfor flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4
Featuremobile
Wheel fittings2 swivel castors with wheel stop, 2 fixed castors
Wheel diameter125 mm
Drum storageupright
Certificationwith
Suppliedpre-assembled, final assembly by customer
Sump capacity215 l
Drum capacity2 x 200 l
Length1200 mm
Width800 mm
Height425 mm
Colourlight blue RAL 5012
Finishpowder coated
Max. load768 kg
Push handle height1115 mm
Product type200 l sump trays mobile sump trays
Weight76 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
20
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

367.63kg CO₂e
LCA Raw Material Extraction & Processing
42.5%
LCA packaging production
1.1%
LCA Product Manufacturing
48.4%
LCA Inbound and Outbound Transportation
8%
‌
‌
‌
‌
‌
‌
