Ref.: 118341 10
Assembled mesh gas cylinder cage – eurokraft pro 104 cylinders with Ø 220 mm
grate floor
Type of floor
Ref.: 118341 10
Assembled mesh gas cylinder cage – eurokraft pro 104 cylinders with Ø 220 mm
grate floor
grate floor
Type of floor
€ 8,200.00
Price / item (Excl. VAT)
Delivery time: 7-8 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 8,200.00
Price / item (Excl. VAT)
Product description
- For regulation compliant outdoor storage of gas cylinders in accordance with TRGS 510
- Sturdy, hot-dip galvanised steel frame construction – pre-assembled with roof and base
- Rear panels, side panels and hinged doors made of wire mesh for ventilation

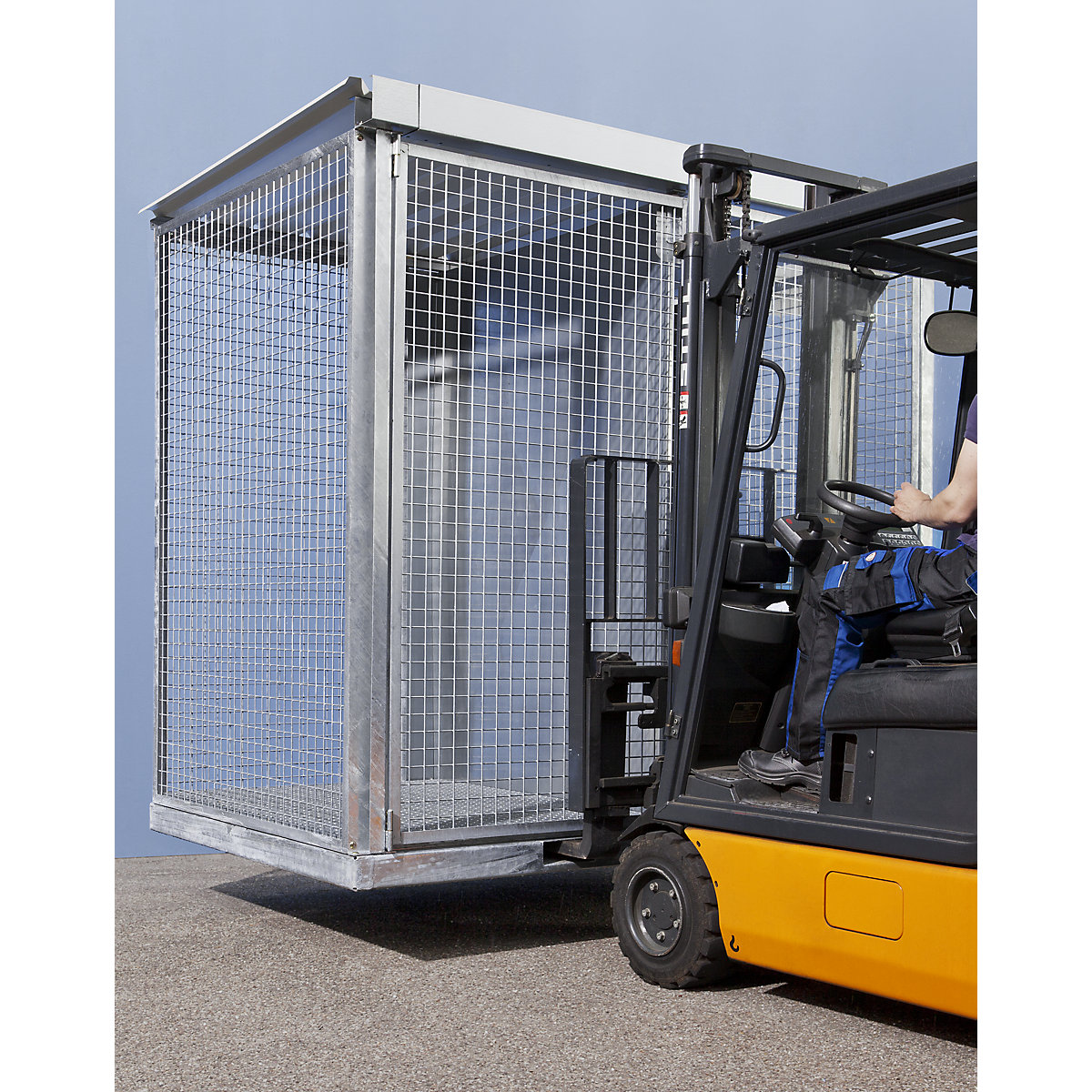

- With stacker forklift pockets to make empty transport with a forklift truck easy
- Hinged gates, lockable using profile cylinder

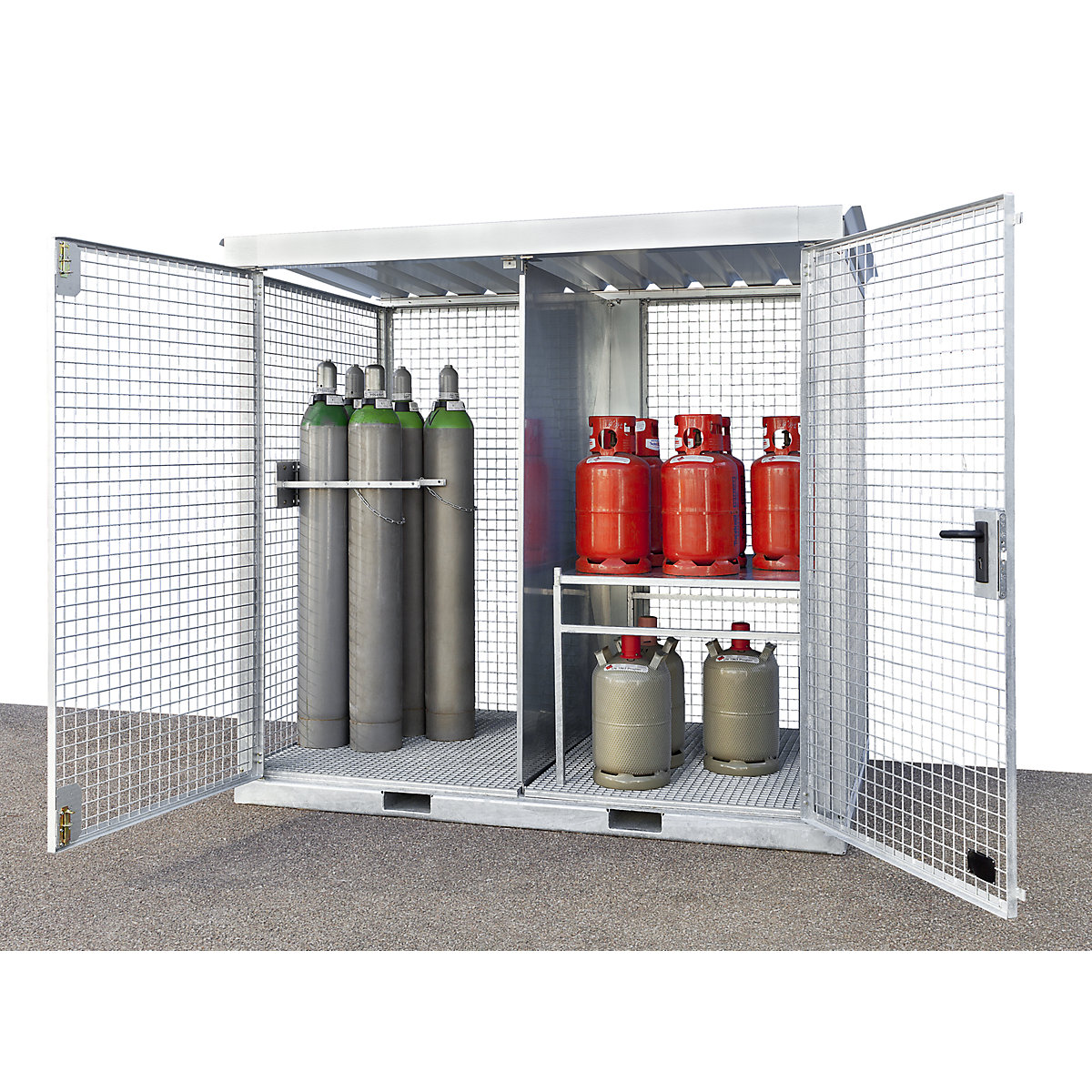

The eurokraft pro assembled mesh gas cylinder cage allows safe and regulation compliant outdoor storage of gas cylinders in accordance with TRGS 510. The sturdy, hot dip galvanised steel frame construction is both weatherproof and durable, providing a high level of protection and safety. It is delivered fully assembled with a roof and base.
The rear panels, side panels and hinged doors made of mesh ensure good ventilation, while the lockable hinged doors with profile cylinders provide additional theft protection. Access using gas cylinder pallets is made considerably easier by the double wing door, which opens across the full width. A single hinged door measures 1000 x 2000 mm WxH. Practical forklift pockets are provided for transport, making it efficient to transport when empty using a forklift truck.
The base design is available in two versions: made of tear sheet metal or as a grate, both with a max. load of up to 1000 kg/m². The eurokraft pro mesh gas cylinder cage combines functionality and safety and is used for regulation compliant outdoor storage of gas cylinders.
Base made of tear sheet metal: the base, which is made of tear sheet metal, provides an anti-slip surface that increases safety when walking and loading.
Base made of grate: the grate base enables good air circulation, which is important for the ventilation of gas cylinders. Its open structure prevents the build up of moisture and ensures faster drying.
The rear panels, side panels and hinged doors made of mesh ensure good ventilation, while the lockable hinged doors with profile cylinders provide additional theft protection. Access using gas cylinder pallets is made considerably easier by the double wing door, which opens across the full width. A single hinged door measures 1000 x 2000 mm WxH. Practical forklift pockets are provided for transport, making it efficient to transport when empty using a forklift truck.
The base design is available in two versions: made of tear sheet metal or as a grate, both with a max. load of up to 1000 kg/m². The eurokraft pro mesh gas cylinder cage combines functionality and safety and is used for regulation compliant outdoor storage of gas cylinders.
Base made of tear sheet metal: the base, which is made of tear sheet metal, provides an anti-slip surface that increases safety when walking and loading.
Base made of grate: the grate base enables good air circulation, which is important for the ventilation of gas cylinders. Its open structure prevents the build up of moisture and ensures faster drying.
Supplied fully assembled.
10 year guarantee
Technical data
| Place of use | outdoor use |
|---|---|
| Height | 2260 mm |
| Width | 3135 mm |
| Depth | 2170 mm |
| Cylinder capacity | 104 x Ø 220 mm |
| Max. snow load | 75 kg/m² |
| Material | steel |
| Finish | hot dip galvanised |
| Hazard class | for regulation compliant outdoor storage of gas cylinders in accordance with TRGS 510 |
| Door type | double hinged doors |
| Lock type | profile cylinder |
| Product type | gas cylinder containers |
| Supplied | assembled |
| Type of floor | with grate |
| Weight | 688 kg |
