Tilting lifting platform truck easier access to crates

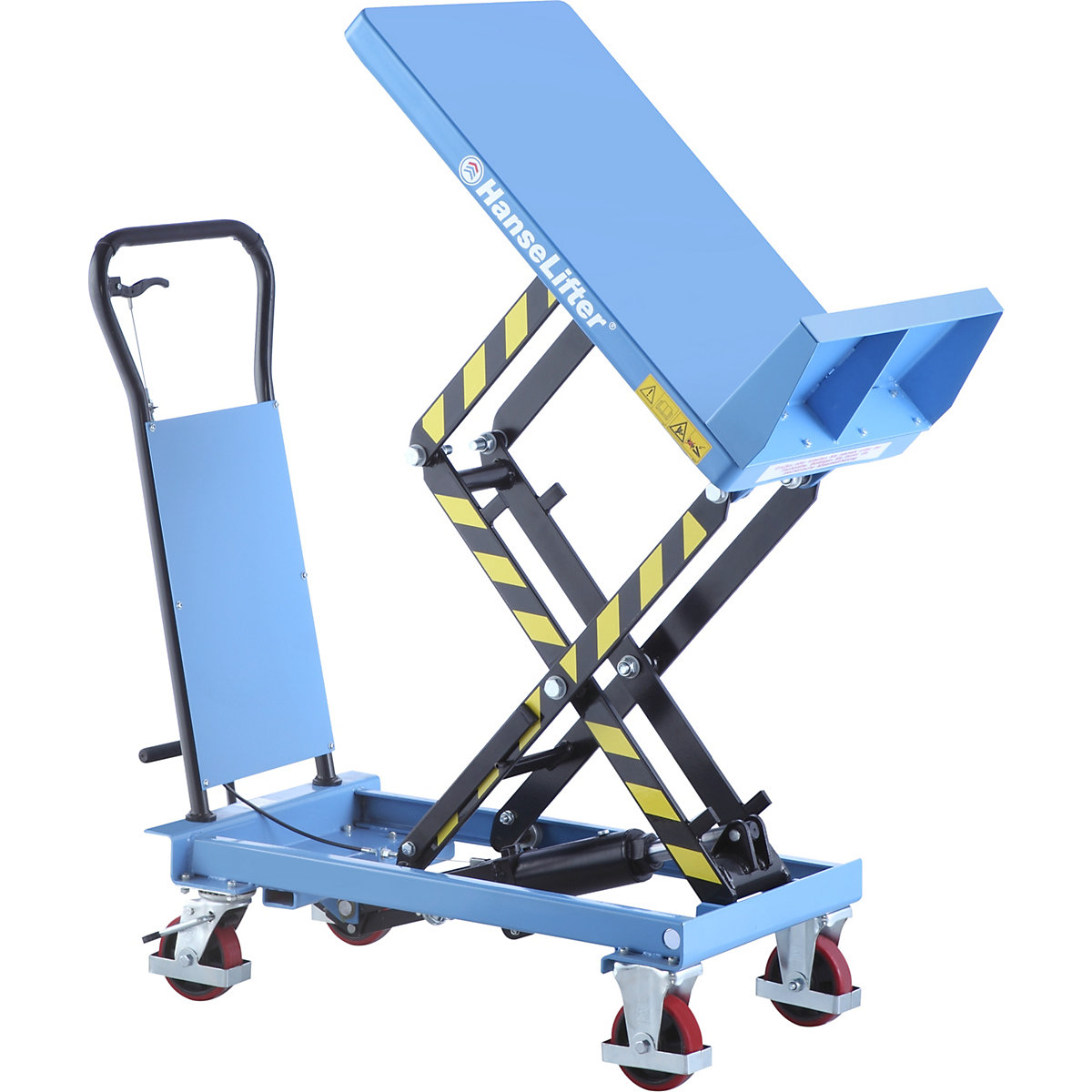

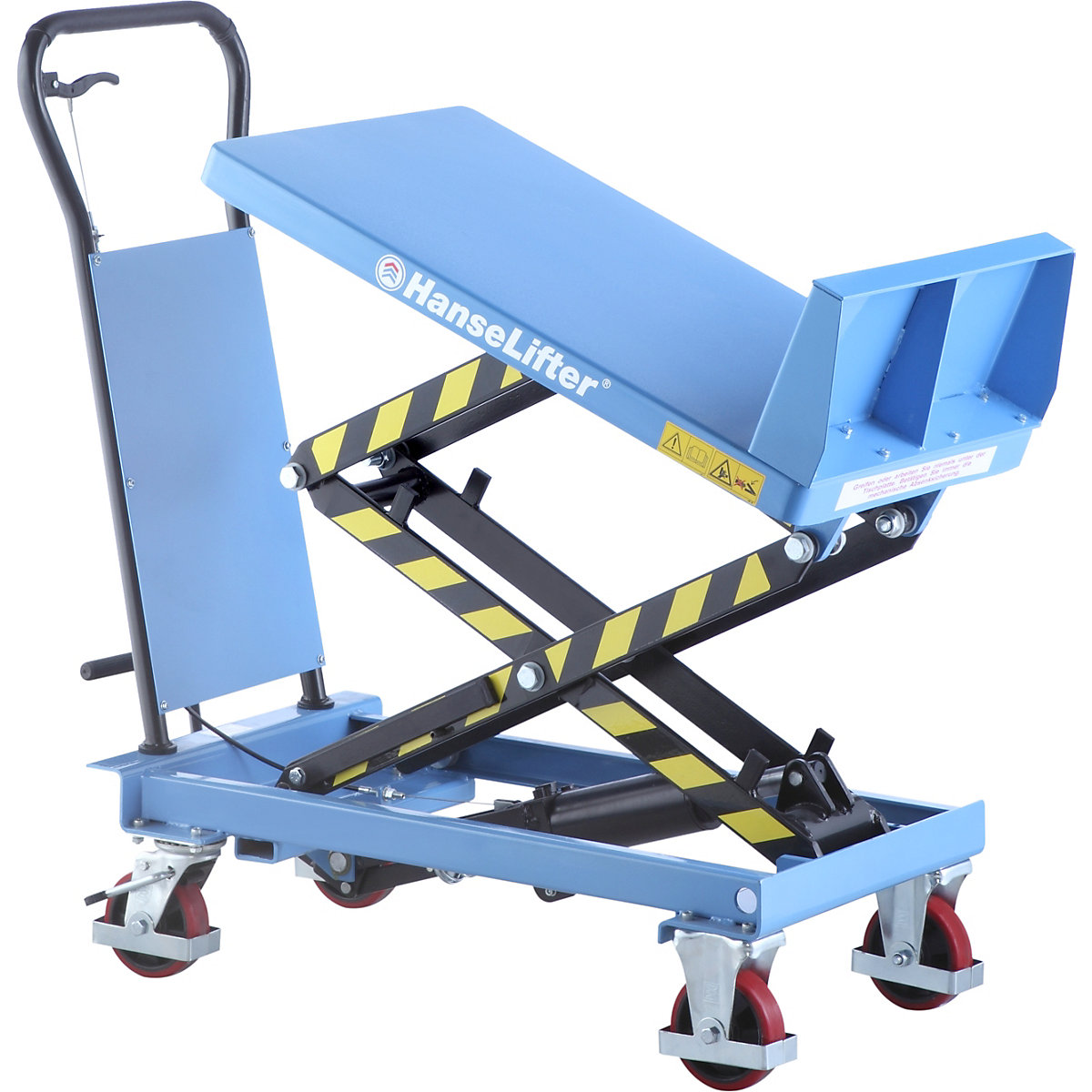

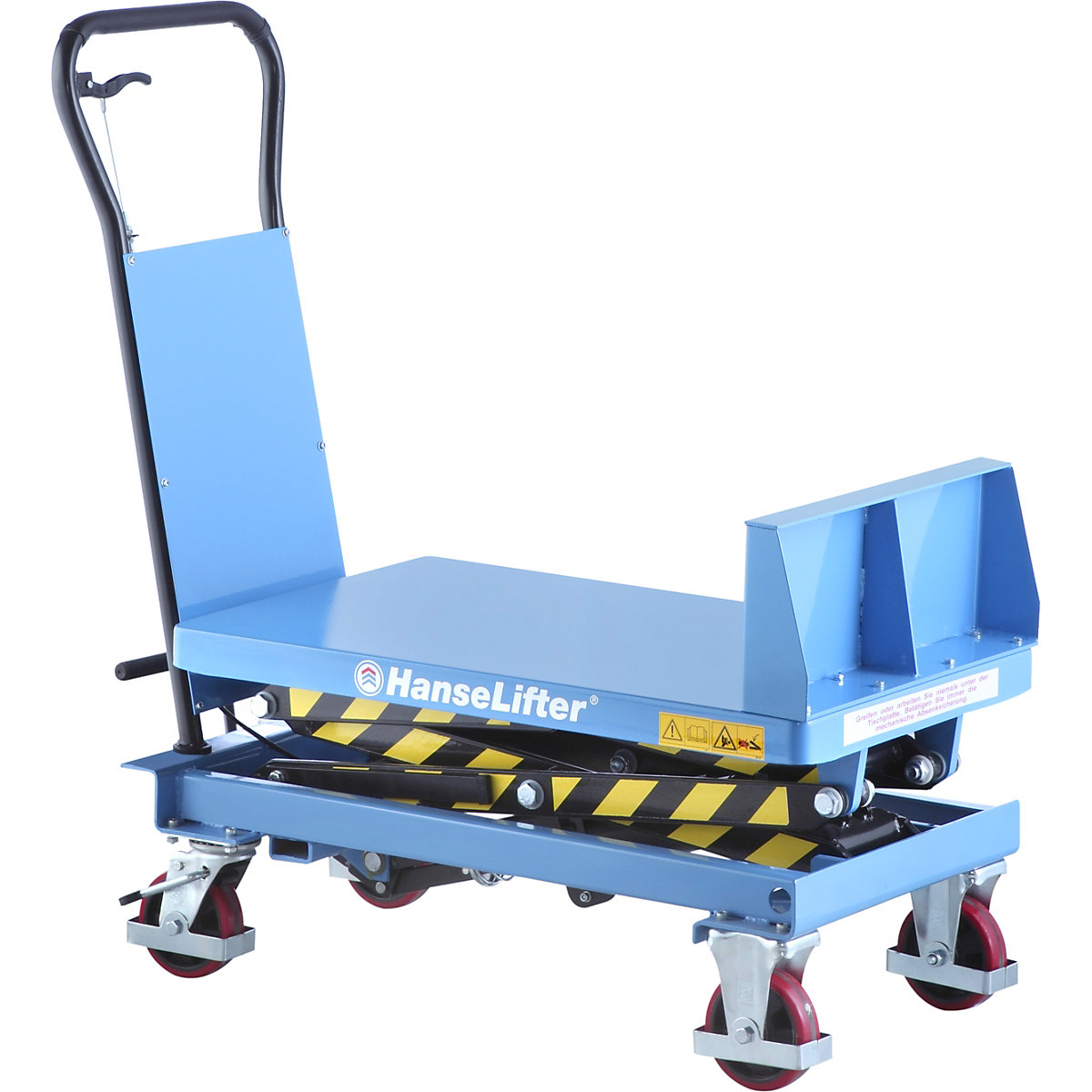

Tilting lifting platform truck

max. load 150 kg

Max. load [kg]
€ 1,045.00
Price / item (Excl. VAT)

Delivery time: 6-8 Working Days
Product description
  • Ideal for loading and unloading transport crates or boxes
  • Ergonomic working
  • Table platform is lifted and tilted at the same time
  • Brake on the right swivel castor
  • High quality polyurethane castors
  • Sturdy foot pump for raising the table
The lifting table with tilting function is particularly suitable for tooling production machinery. The tilting lifting table is, however, also perfect for order picking. Crates and boxes can be easily inclined forwards with the tilting function. It’s easier to fill them in this angled position. The table platform on the tilting lifting table is lifted and tilted simultaneously. When the platform is first raised, it is also positioned at an angle until its maximum height and inclination are reached. The goods are moved to a convenient working height and this improves ergonomics.
Technical data
Wheel materialpolyurethane
Featuremobile manual
Platform materialsteel, powder coated
Platform colourlight blue RAL 5012
Lift drivemanual
Product typetilting lifting platform trucks
Wheel bearingball bearing
Fittingspush handle castors with foot protection
Suppliedassembled
Max. load150 kg
Lifting range415 – 880 mm
Platform length748 mm
Platform width500 mm
Length1010 mm
Width500 mm
Lift per pump stroke20 mm
Wheel diameter125 mm
Weight92 kg
