Ref.: 474285 10

High lift stacker lifting range 90 – 1600 mm, max. load 1100 kg

(3)

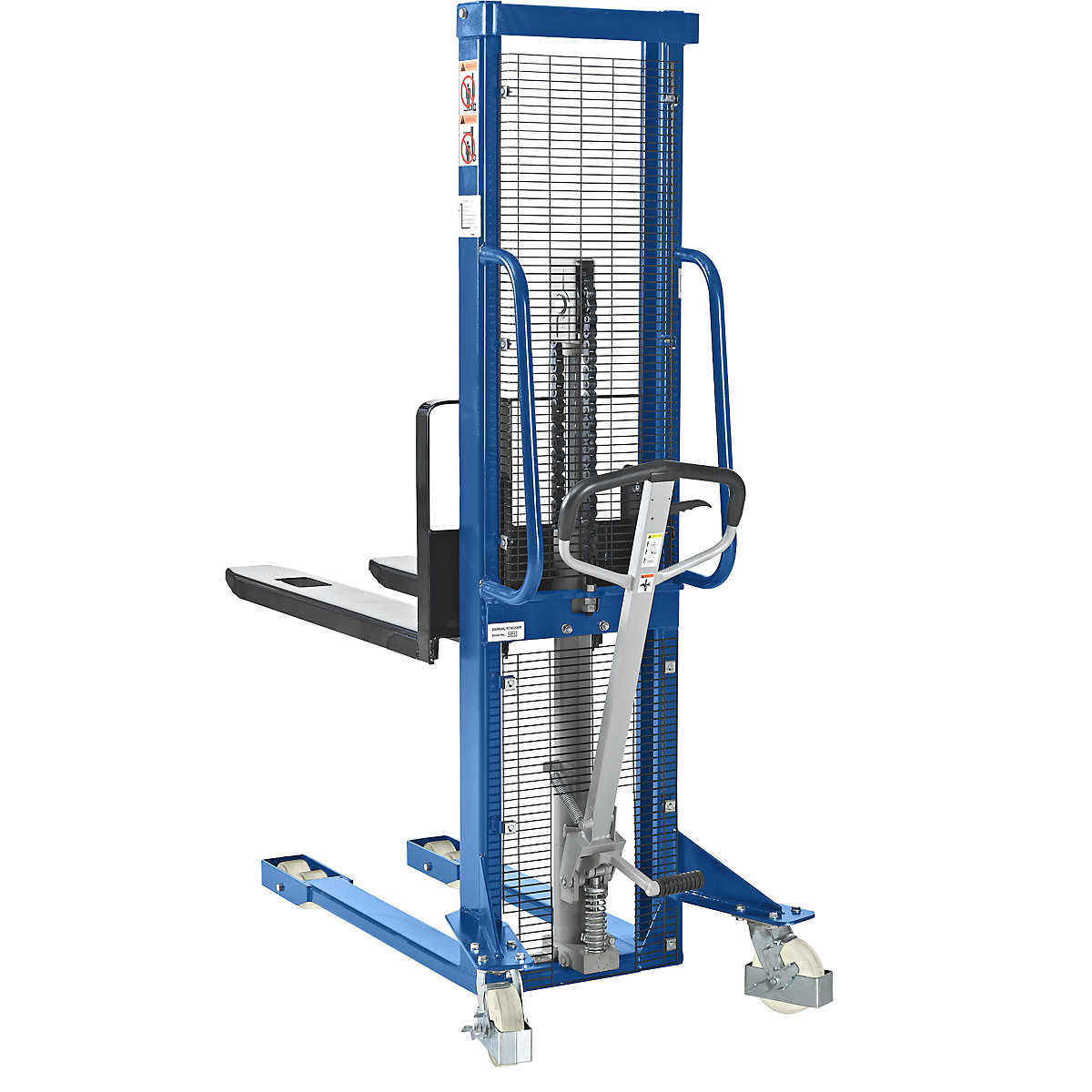

High lift stacker

overall height 1980 mm

€ 1,845.00
Price / item (Excl. VAT)
Only 16 available
Delivery time: 6-8 Working Days
Product description
  • Fits through most doors
  • Energy saving lifting using drawbar or pedal
  • Compact design for narrow aisles and warehouses
  • Smooth running due to nylon castors, even with a full load
  • Increased floor clearance and tandem fork rollers for uneven floors
  • Long service life due to safety overload pressure valve
The high lift stacker provides a practical combination that allows pallets and heavy loads to be lifted and moved in warehouse and production environments. The drawbar stacker lifts loads precisely to the required height and is also ideal for intermediate levels of shelving units. Lifting is effortless using the drawbar or the practical pedal. Continuous lowering using the lowering lever on the ergonomically shaped drawbar ensures easy handling. In addition, a safety overload valve provides protection from damage for a long stacker service life.

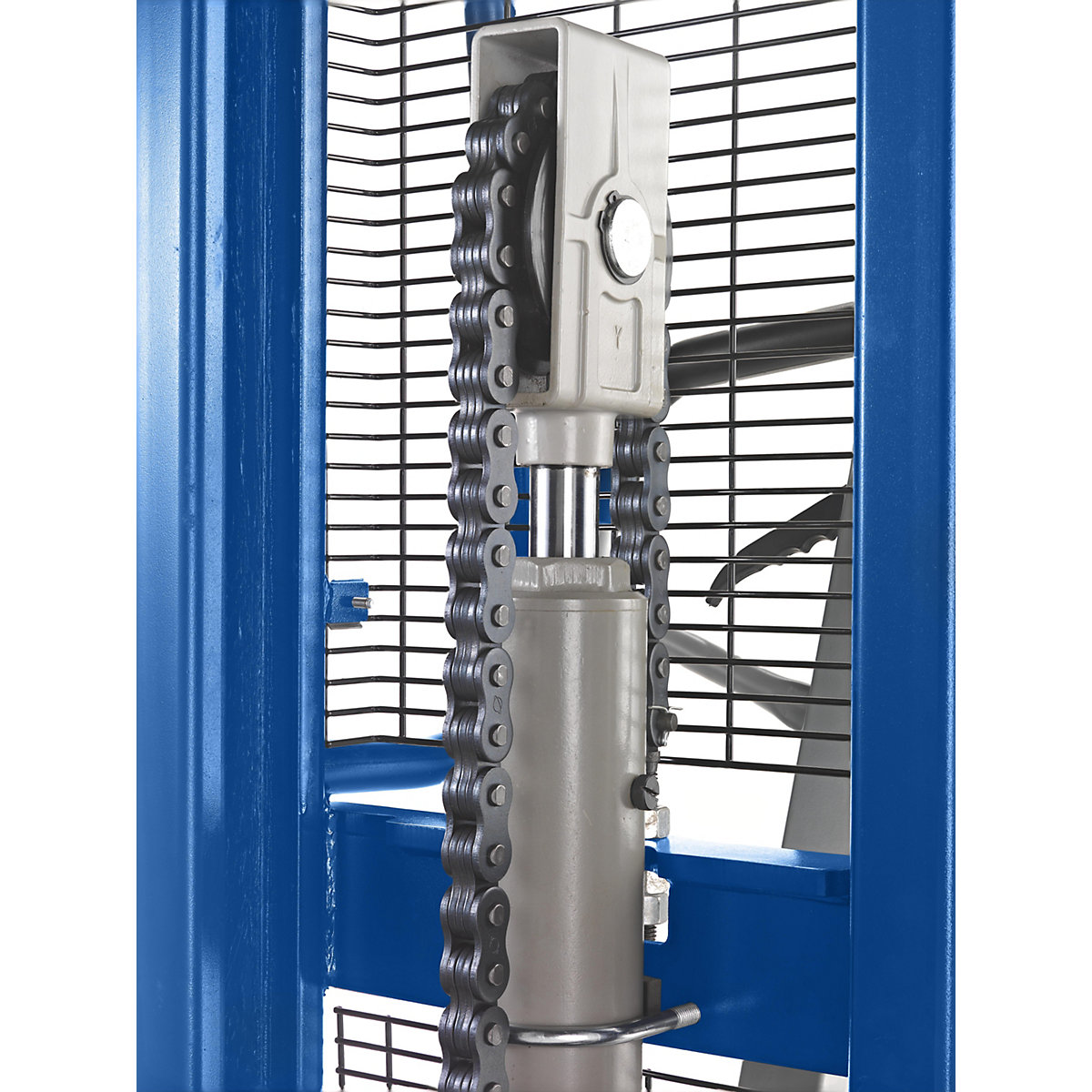

The robust workmanship with a reinforced mast profile and a chrome plated hydraulic piston make this high lift stacker particularly durable and reliable. The load chains and the lifting cylinder are secured by a guard screen, which provides protection from falling objects and allows a clear view in the direction of travel. Large push handles provide a good grip for comfortable manoeuvring. Brakes on the castor wheels ensure a safe stand.

The drawbar stacker fits through almost any door.
Nylon castors ensure smooth running, even when under full load. The tandem fork rollers also make the high lift stacker suitable for uneven floors, while the increased floor clearance of 40 mm allows versatile use in a wide variety of environments. A hardwearing powder coating protects the surface and ensures an attractive appearance. This high lift stacker is particularly suitable for precise handling and positioning of pallets and loads – even in narrow rows of shelves and aisles.
Technical data
Max. load1100 kg
Load centre600 mm
Lifting range90 – 1600 mm
Fork length1150 mm
Distance across forks550 mm
Fork width170 mm
Length1705 mm
Width755 mm
Overall height1980 mm
Design of mastsingle mast
Lift per pump stroke20 mm
Wheel fittings2 swivel castors with wheel stops
Wheel materialnylon
Castor diameter front / rear83 / 150 mm
Steering wheel materialnylon
Steering wheel width40 mm
Fork roller versiontandem
Roller materialnylon
Fork roller width60 mm
Finishpowder coated
Coloursignal blue RAL 5005
Product typehigh lift stackers
Suppliedassembled
Weight204 kg
