Ref.: 490807 10

Support beams, 1 pair – SCHULTE pure orange RAL 2004

(4)
Support beams, 1 pair – SCHULTE

length 1825 mm, profile type 100 / 50 x 1.5 mm

Cross beam length [mm]
Max. load per pair [kg]
€ 199.00
Price / pair (Excl. VAT)
Delivery time: 9-11 Working Days
Product description
  • Individual components for individual requirements
  • Structural analysis in accordance with DIN standard EN 15512:2020
  • Faster assembly due to plug-in beams (50 mm beam adjustment grid)

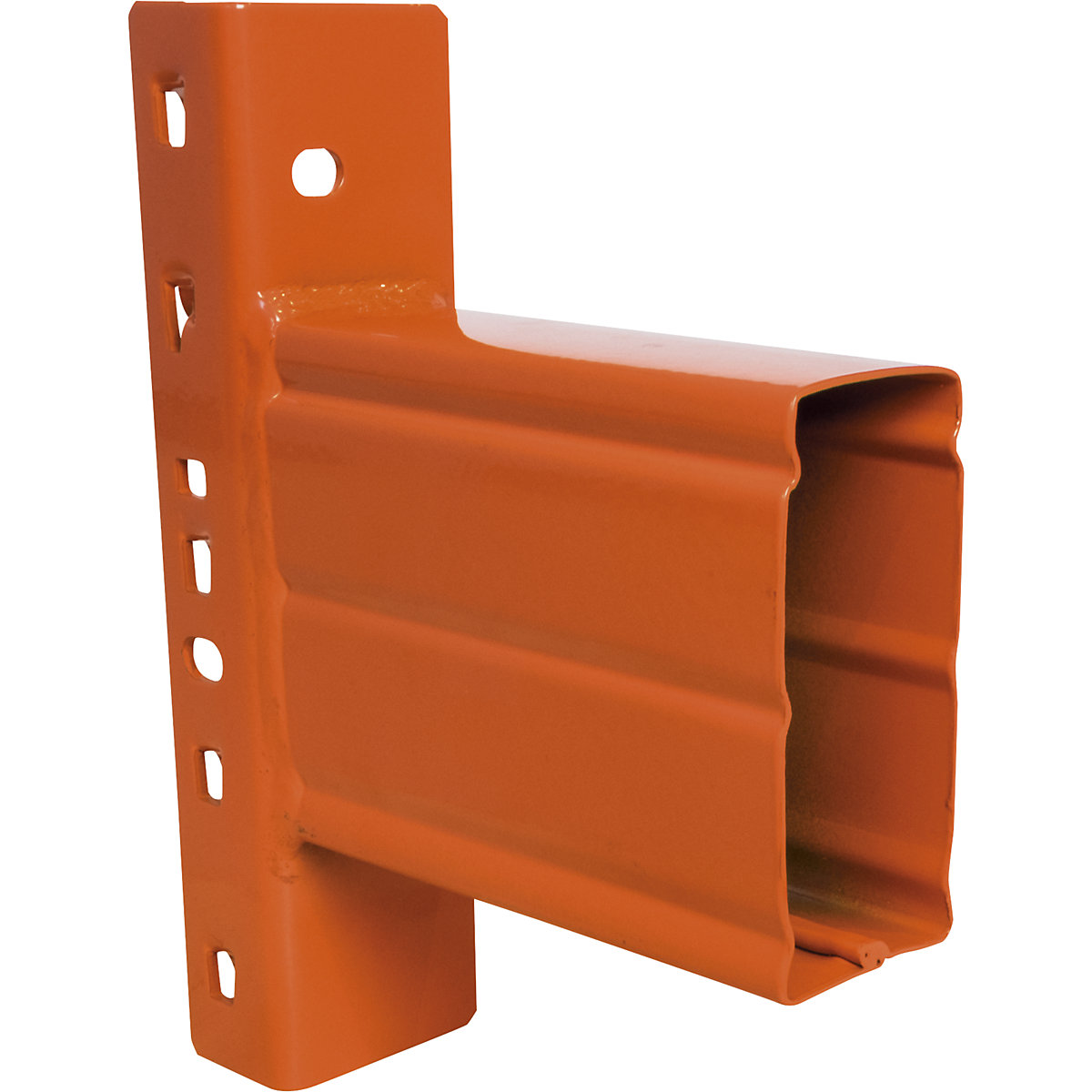

Box-shaped, cold-formed profiles with welded clasps. Each clasp has 5 robust hooks, so that the load is optimally distributed.

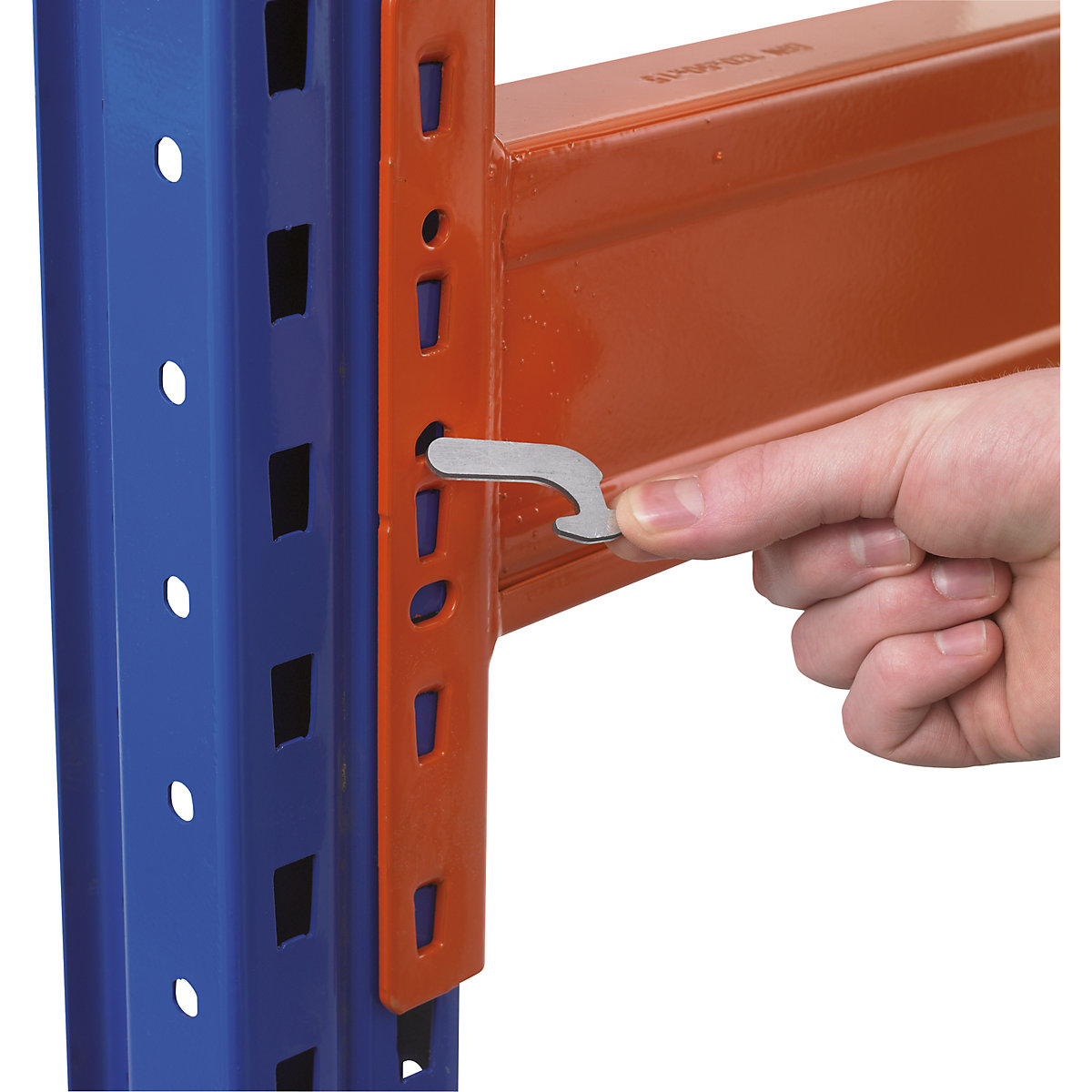

Powder coated in pure orange RAL 2004. Supplied in pairs, incl. 4 securing pins.
The max. load per pair is for an evenly distributed load.
All specified max. loads apply with uniform load distribution.
Technical data
Cross beam width50 mm
Materialsteel
Colourpure orange RAL 2004
Product typepallet racking support beams
Suppliedflat pack
Cross beam length1825 mm
Max. load per pair2082 kg
Cross beam height100 mm
Profile dimensions100 / 50 x 1,5 mm
Weight13.94 kg
