Ref.: 686886 10

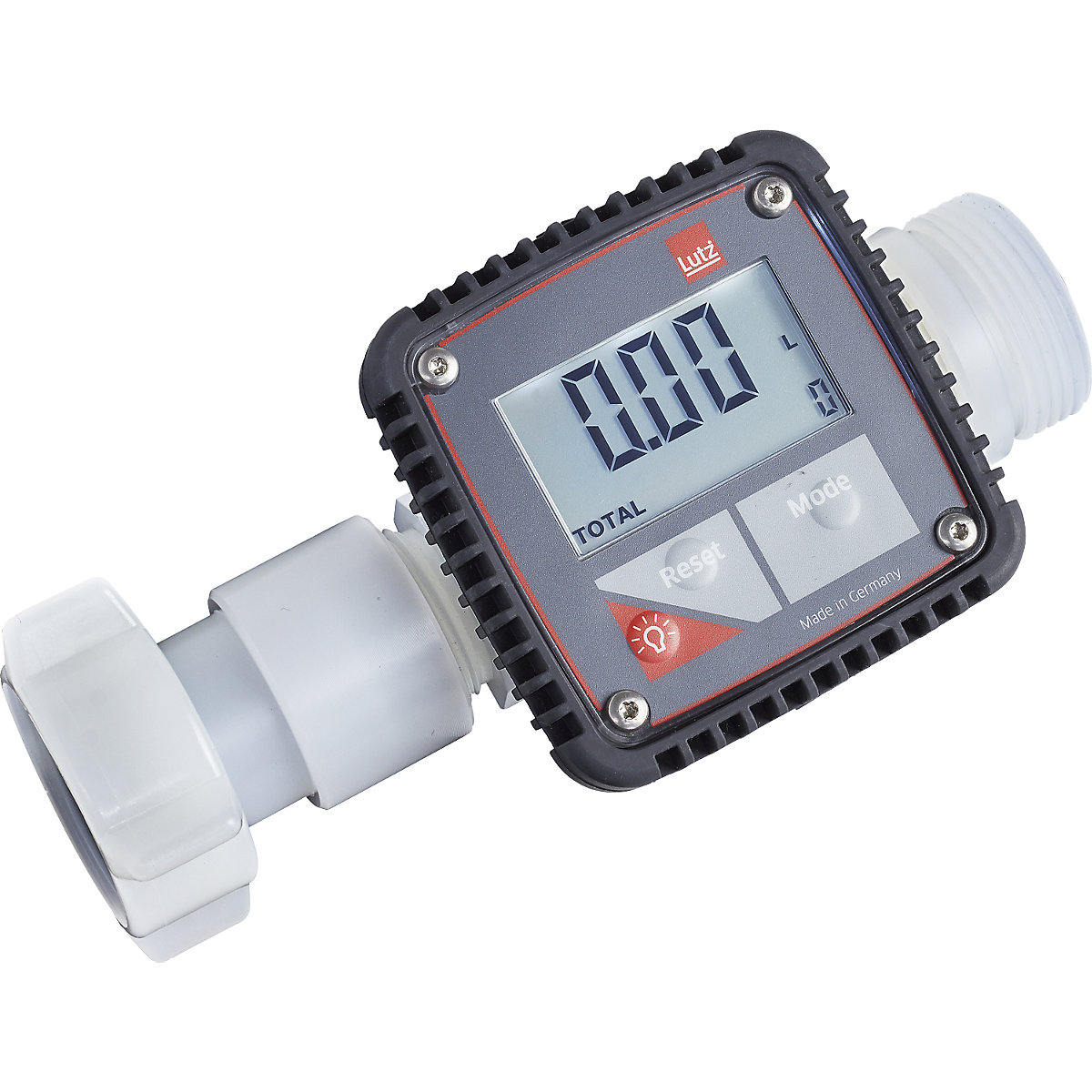

TR3 flow meter – Lutz PVDF

TR3 flow meter – Lutz

G 1 1/4 inch

External connection [inch]
€ 849.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Product description
  • For highly aggressive non-gassing acids and alkaline solutions and many non-flammable liquids
  • Operation with standard 1.5 V batteries (AAA)
  • Variable display alignment – easy to rotate when installed
With backlit digital display based on the measuring principle used by a turbine meter.
Two-line LED display shows current delivery and totalising memory or the 8 part total memories.
Display can be set up to suit the viewing angle or be moved while set up.

Measurement accuracy: better than ±1%.
Nominal operating pressure: 10 bar.

Flow meters ideal for measuring highly aggressive non-gassing acids and alkaline solutions and many other non-flammable liquids.
Technical data
For mediahighly aggressive acids and alkaline solutions, sulphuric acid, nitric acid, chlorine bleaching agents
Max. operating pressure10 bar
Measuring range5-120 l/min
Accuracy± 1% mm
Product typeflow meters
Suppliedassembled
External connection1.25 inch
Weight0.368 kg
