Ref.: 686884 10

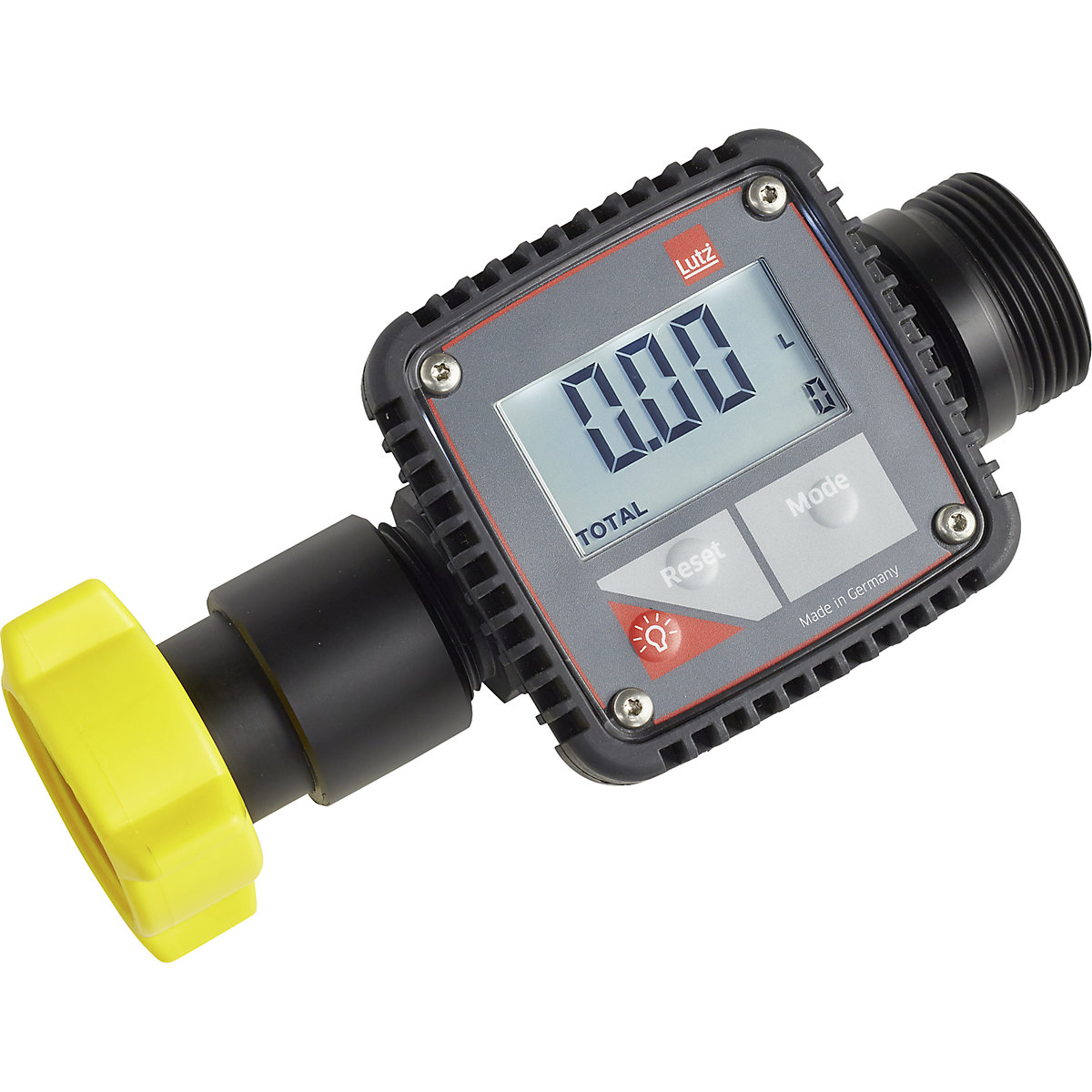

TR3 flow meter – Lutz PP

TR3 flow meter – Lutz

G 1 1/4 inch

External connection [inch]
€ 669.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Product description
  • For neutral media, acids/alkaline solutions, many non-flammable liquids
  • Operation with standard 1.5 V batteries (AAA)
  • Variable display alignment – easy to rotate when installed
With backlit digital display based on the measuring principle used by a turbine meter.
Two-line LED display shows current delivery and totalising memory or the 8 part total memories.
Display can be set up to suit the viewing angle or be moved while set up.

Measurement accuracy: better than ±1%.
Nominal operating pressure: 10 bar.

Flow meters ideal for measuring neutral media, acids and alkaline solutions and many other non-flammable liquids.
Technical data
For medialow-viscosity alkalis, sodium hydroxide, potassium hydroxide, ammonia, formic acid, acetic acid, etc.
Max. operating pressure10 bar
Measuring range5-120 l/min
Accuracy± 1% mm
Product typeflow meters
Suppliedassembled
External connection1.25 inch
Weight0.31 kg
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
‌
