Ref.: 941127 10
Stainless steel solvent pump, foot operated with drainage elbow
20 l/min
Ref.: 941127 10
Stainless steel solvent pump, foot operated with drainage elbow
20 l/min
20 l/min
€ 849.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 849.00
Price / item (Excl. VAT)
Product description
- For dispensing highly flammable and combustible liquids
- Resistant to high purity solvents such as acetone, isopropanol, ethanol etc.
- For drums up to 220 l
- Immersion tube infinitely adjustable to depth of drum
Pump for contamination free removal of organic solvents and aromatic compounds. For highly flammable, combustible liquids and high purity solvents such as acetone, isopropanol, ethanol etc.
All parts that come into contact with the medium are made of stainless steel (1.4301) and PTFE. Including drum screw connection for R2'' steel fine threads, internal.

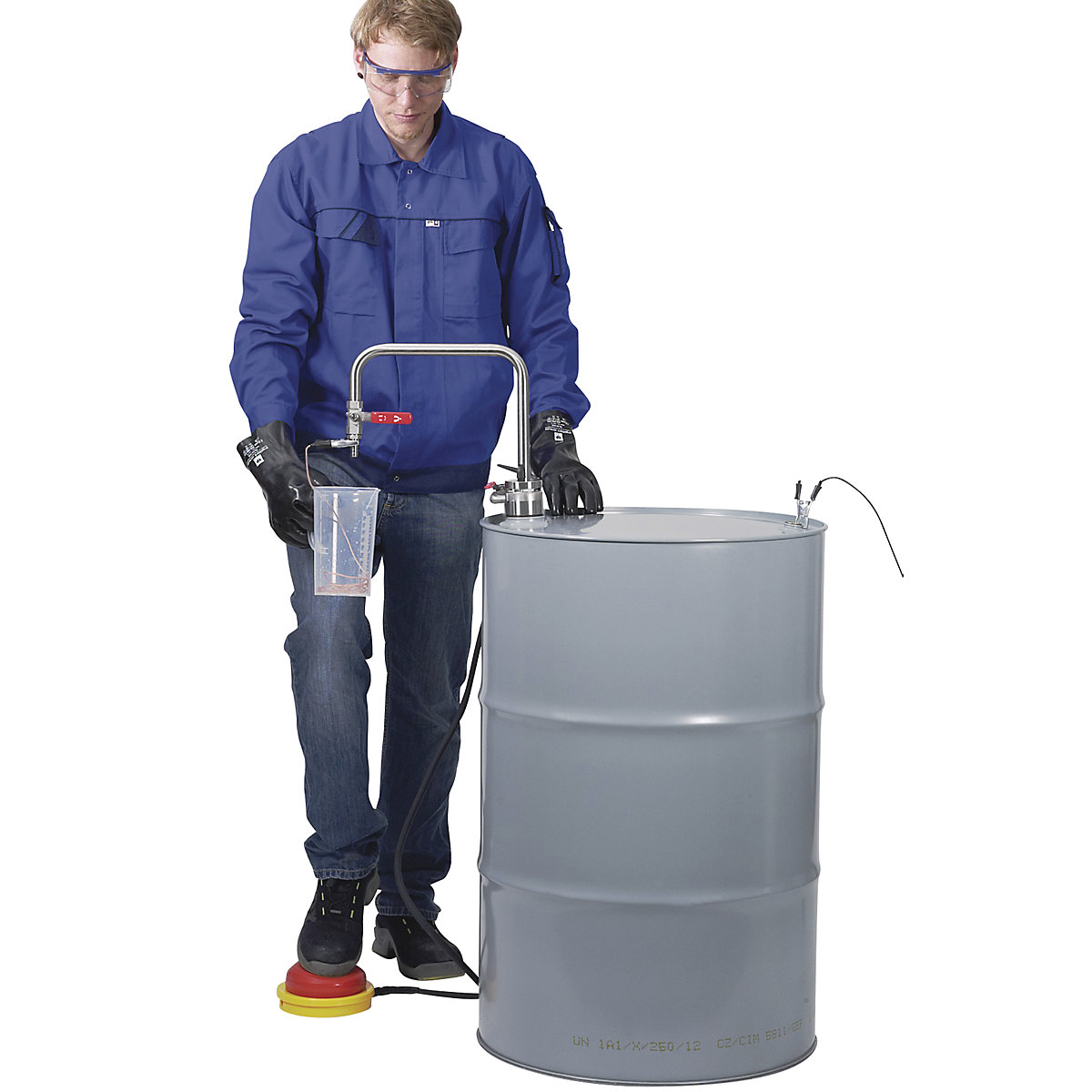

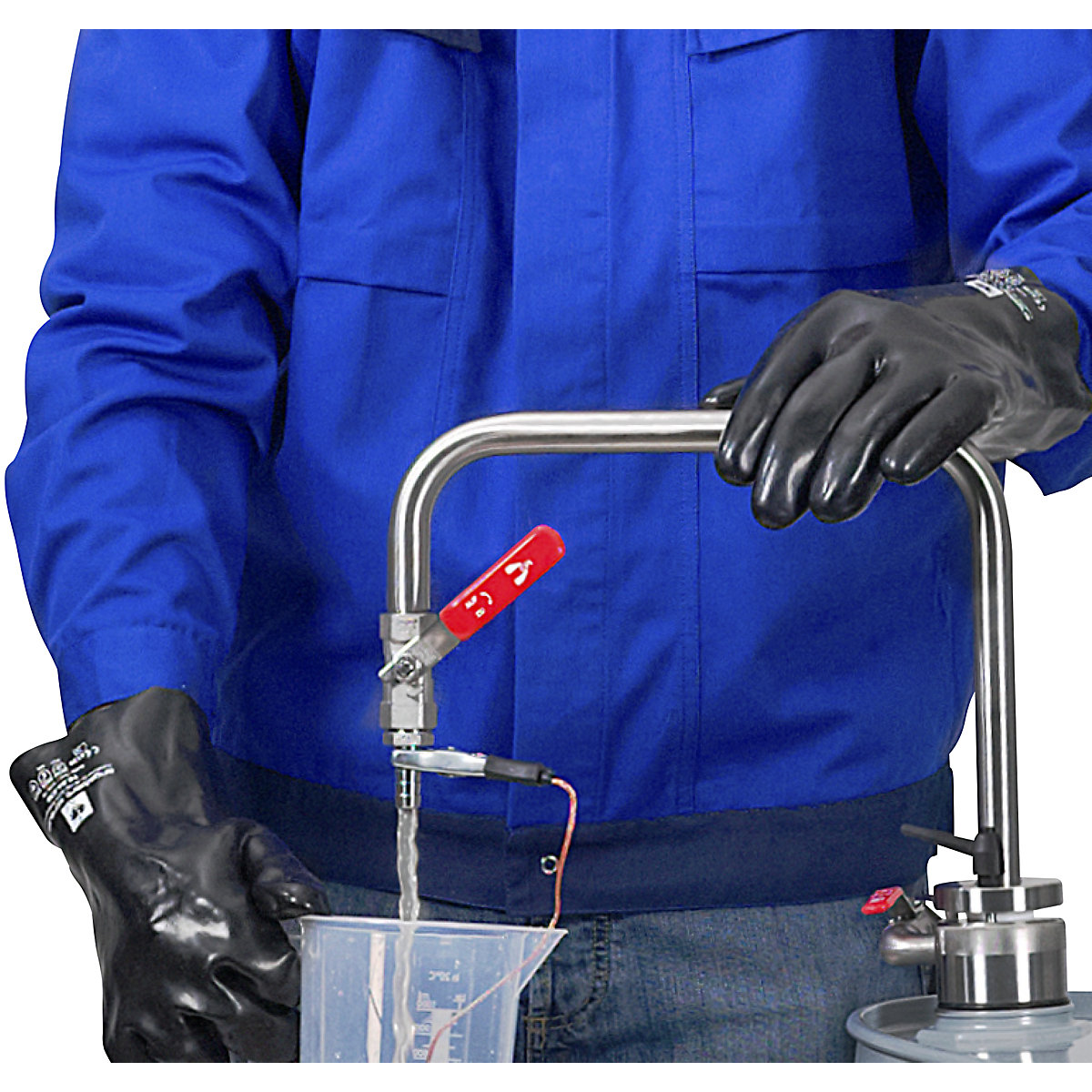

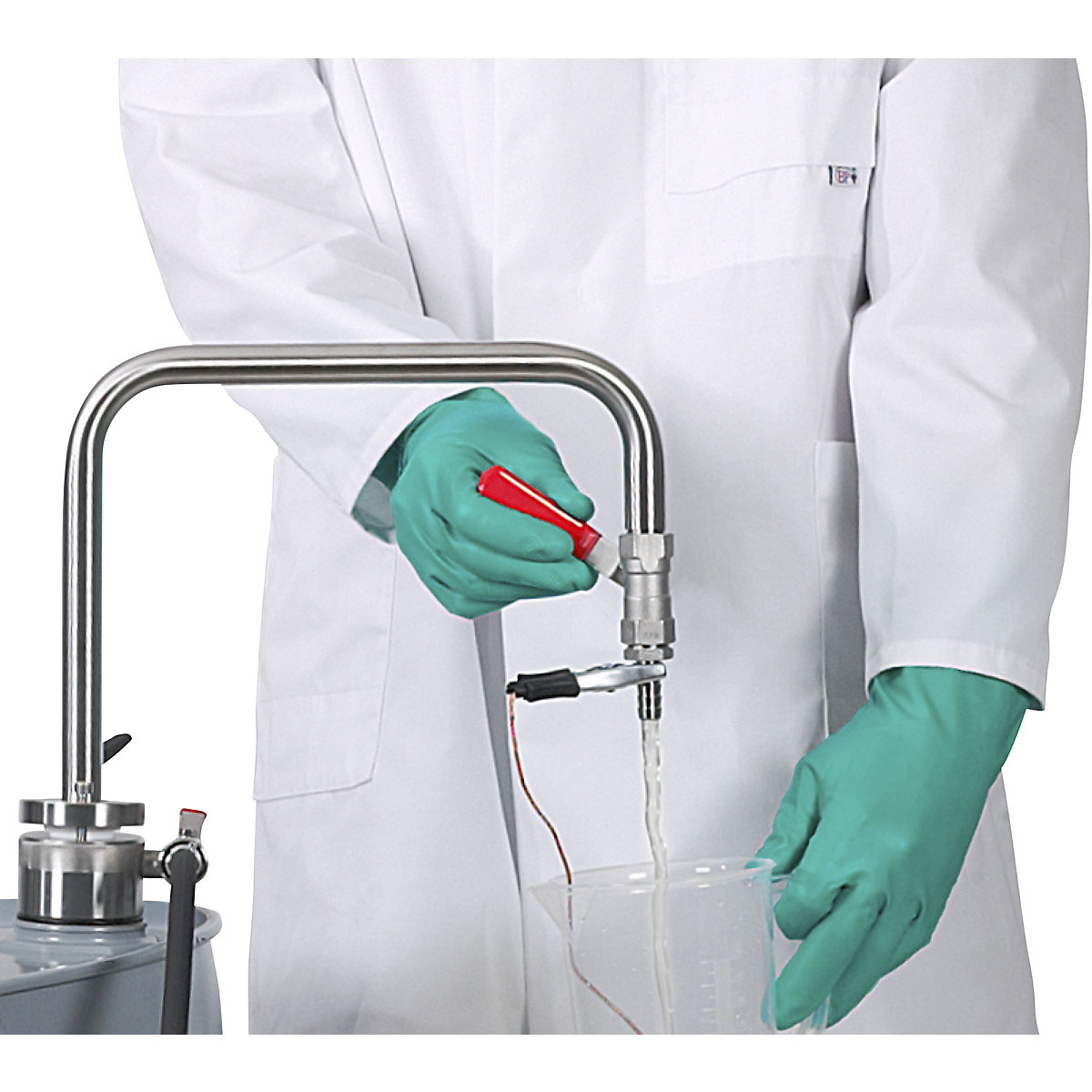

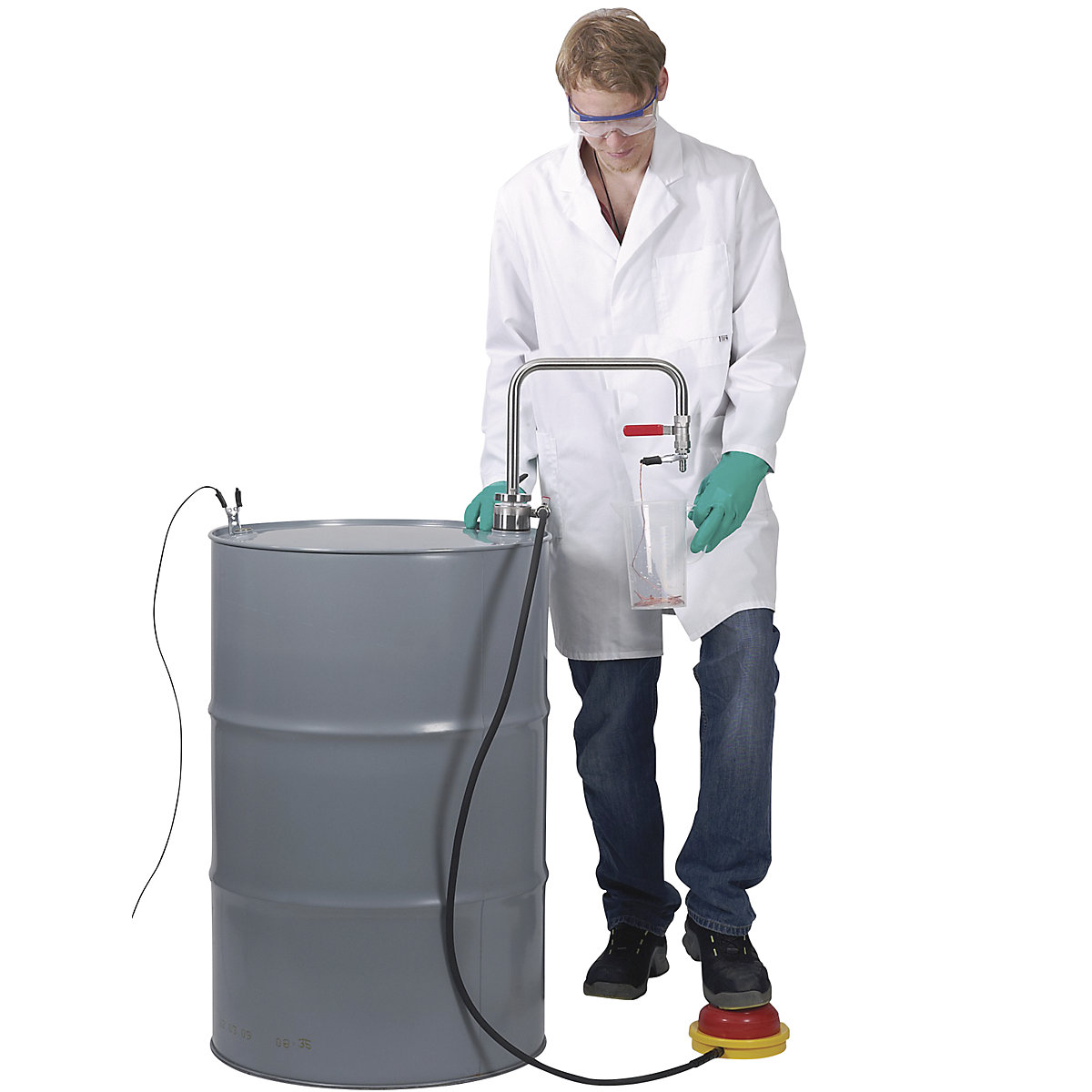

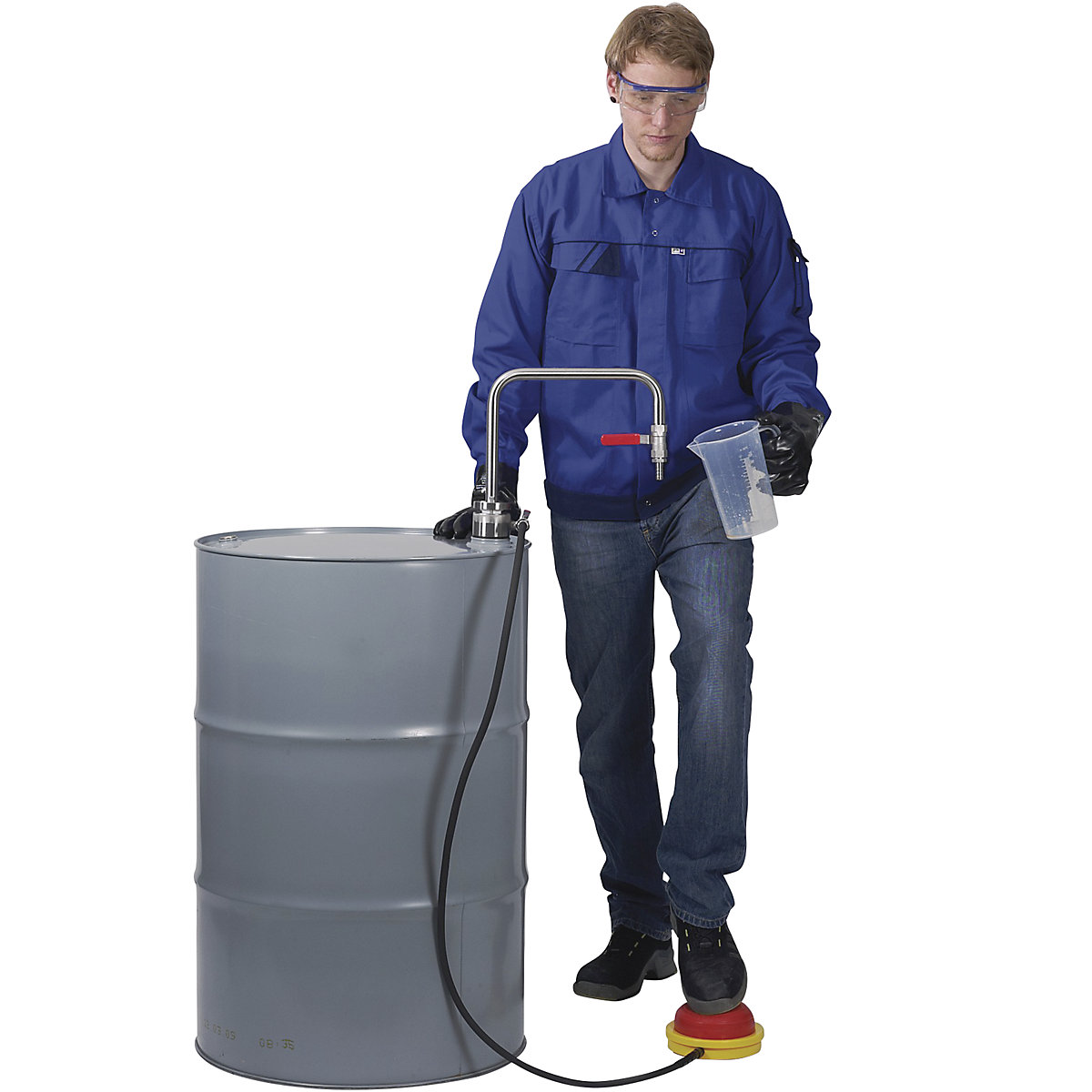

The pump operates using the excess pressure principle. A foot pump is used to build up excess pressure in the container, which pushes the liquid out of the container. The simple operation of the pump using your foot bellows leaves both hands free for filling tasks. The clip connection allows the air hose to be attached and detached quickly and easily.
Immersion depth 950 mm.
Pumping capacity approx. 20 l/min.
All parts that come into contact with the medium are made of stainless steel (1.4301) and PTFE. Including drum screw connection for R2'' steel fine threads, internal.
The pump operates using the excess pressure principle. A foot pump is used to build up excess pressure in the container, which pushes the liquid out of the container. The simple operation of the pump using your foot bellows leaves both hands free for filling tasks. The clip connection allows the air hose to be attached and detached quickly and easily.
Immersion depth 950 mm.
Pumping capacity approx. 20 l/min.
Attention: the drum and the pump must be earthed with an anti-static kit (accessory) when dispensing combustible liquids, ensuring that no electrostatic charges can build up (explosion hazard zone 0).
For flammable liquids
Technical data
| Design of pump | foot operation with drainage elbow |
|---|---|
| For media | highly flammable/flammable/high purity liquids explosion hazard zone 0 solvents (explosion protected) |
| Material of pump | stainless steel (V2A) PTFE |
| Immersion depth | 950 mm |
| Pump rate | 20 l/min |
| Immersion tube length | 950 mm |
| Thread | R 2 inch |
| Max. viscosity at +20 °C | 500 mPas |
| Scope of delivery | solvent pump with drainage elbow and drum screw connection without antistatic kit |
| Weight | 4.48 kg |
| Product type | hand pumps |
| Supplied | flat pack |
| Pictorial instructions |
