Ref.: 862005 10
Pallet racking – SCHULTE hot-dip galvanised
HxWxD 4500 x 1950 x 1100 mm, 3 shelf levels, extension shelf unit
Shelf unit type
Height [mm]
Cross beam length [mm]
Max. shelf load [kg]
Max. bay load [kg]
Ref.: 862005 10
Pallet racking – SCHULTE hot-dip galvanised
HxWxD 4500 x 1950 x 1100 mm, 3 shelf levels, extension shelf unit
HxWxD 4500 x 1950 x 1100 mm, 3 shelf levels, extension shelf unit
Shelf unit type
Height [mm]
Cross beam length [mm]
Max. shelf load [kg]
Max. bay load [kg]
New
on request
Price / item (Excl. VAT)
Delivery time: up to 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?on request
Price / item (Excl. VAT)
Product description
- Robust pallet racking for outdoor use
- Hard-wearing, hot-dip galvanised surface coating
- Extremely stable beams made of IPE profiles

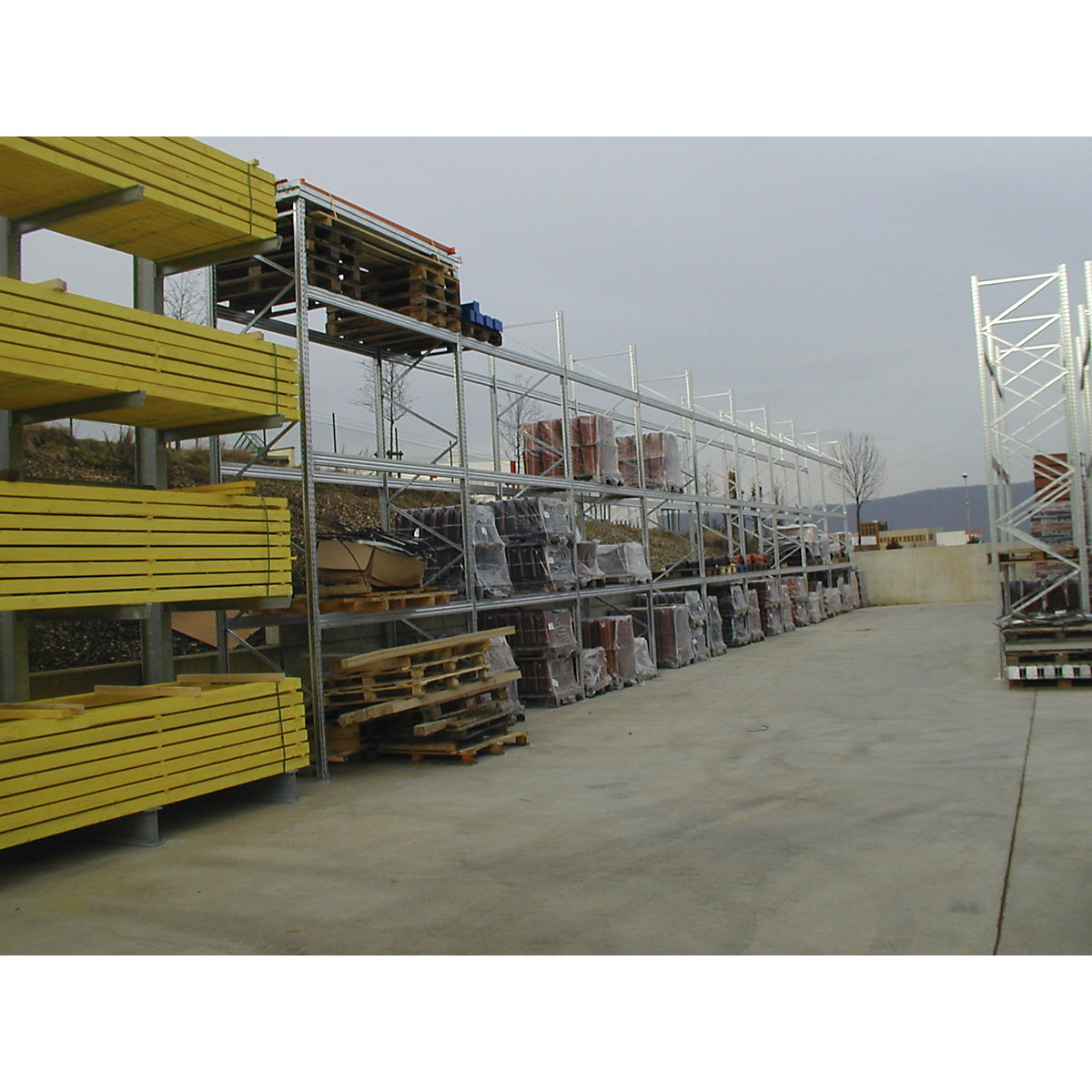

Suitable for outdoor use: The hot-dip galvanised pallet racking impresses with a hard-wearing surface coating and is therefore ideally suited for outdoor installation.
The sturdy beams made of IPE profiles ensure a high load capacity and reliable load absorption. Rain, moisture and changing temperatures do not affect the structure – meaning the pallet racking provides safe storage areas outdoors.
The structural analysis of the pallet racking is carried out in accordance with the current state of the art: DIN EN 15512:2022, DIN 15620:2011, DGUV 108-007 and other relevant building regulations.
Scope of delivery:
Complete bay:
footplate: 8 / screw anchor: 16 / shim plate: 8 / load sign: 1
Add-on bay:
footplate: 2 / screw anchor: 4 / shim plate: 2
The sturdy beams made of IPE profiles ensure a high load capacity and reliable load absorption. Rain, moisture and changing temperatures do not affect the structure – meaning the pallet racking provides safe storage areas outdoors.
The structural analysis of the pallet racking is carried out in accordance with the current state of the art: DIN EN 15512:2022, DIN 15620:2011, DGUV 108-007 and other relevant building regulations.
Scope of delivery:
Complete bay:
footplate: 8 / screw anchor: 16 / shim plate: 8 / load sign: 1
Add-on bay:
footplate: 2 / screw anchor: 4 / shim plate: 2
Technical data
| Depth | 1100 mm |
|---|---|
| Material | steel |
| Cross beam colour | hot dip galvanised |
| Colour of uprights | hot dip galvanised |
| Product type | pallet racks |
| Supplied | flat pack |
| Shelf unit type | extension unit |
| Height | 4500 mm |
| Cross beam length | 1825 mm |
| Max. shelf load | 2000 kg |
| Max. bay load | 6000 kg |
| Number of shelf levels | 3 pcs. |
| Width | 1950 mm |
| Height of uprights | 4500 mm |
| Weight | 208.21 kg |
| Instructions |
