Ref.: 709097 10

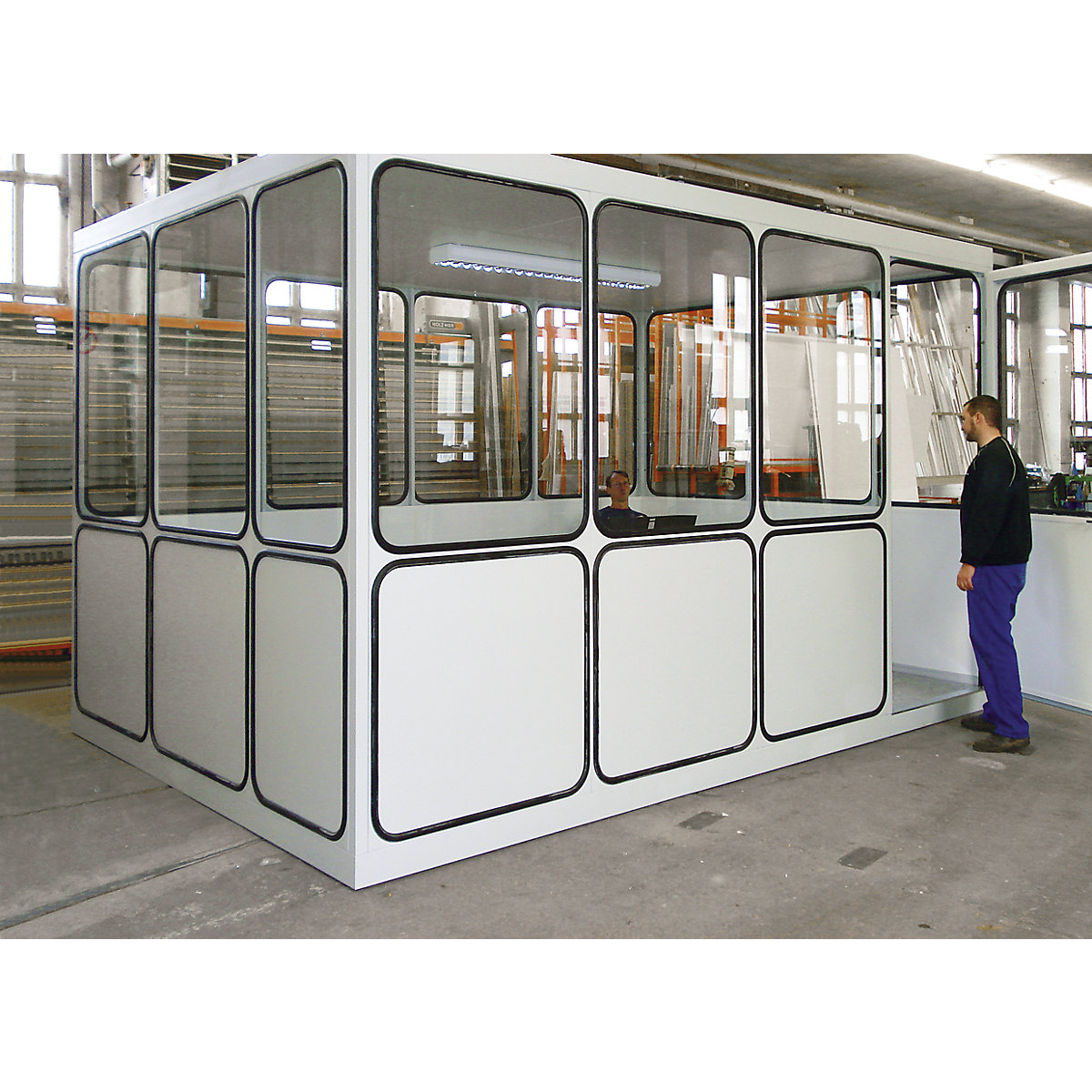

Multi-purpose building, panelling with rounded square pattern for indoor areas
LxW 1160 x 1160 mm
Length [mm]
Width [mm]
Ref.: 709097 10
Multi-purpose building, panelling with rounded square pattern for indoor areas
LxW 1160 x 1160 mm
LxW 1160 x 1160 mm
Length [mm]
Width [mm]
on request
Price / item (Excl. VAT)
Delivery time: 7-8 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?on request
Price / item (Excl. VAT)
Product description
- For indoor use
- Projects with 1 to 2 storeys, with steel support frames and stairs, wall fastening materials etc.
- Versatile configuration options for wall sections
Standard model
4-sided free standing unit, with roof, without floor, assembly frame.
Wall sections
Rounded square pattern. Height 2500 mm, grid 1060 mm. Railing height 1030 mm.
Lower part made of sheet steel, painted on both sides in RAL colour specified by customer.
Upper part with single pane 5 mm float glass. Wall sections without glazing available on request.
Door design
Double walled sheet metal door with window. Complete with door handle, lock and profile cylinder.
Solid panel and custom doors available on request.
Roof for indoor installations
Steel frame with decorative chipboard ceiling panels, without insulation and exterior panelling (cannot be walked on).
Ideal for a wide range of uses due to the modular construction:
In indoor areas as prefab offices, test and measurement rooms, control rooms, break or social rooms, bathrooms.
4-sided free standing unit, with roof, without floor, assembly frame.
Wall sections
Rounded square pattern. Height 2500 mm, grid 1060 mm. Railing height 1030 mm.
Lower part made of sheet steel, painted on both sides in RAL colour specified by customer.
Upper part with single pane 5 mm float glass. Wall sections without glazing available on request.
Door design
Double walled sheet metal door with window. Complete with door handle, lock and profile cylinder.
Solid panel and custom doors available on request.
Roof for indoor installations
Steel frame with decorative chipboard ceiling panels, without insulation and exterior panelling (cannot be walked on).
Ideal for a wide range of uses due to the modular construction:
In indoor areas as prefab offices, test and measurement rooms, control rooms, break or social rooms, bathrooms.
Custom models
Sound and heat insulation, different types of glazing, electrical equipment, heating and air conditioning, ventilation systems, bathroom facilities, cable channels etc. are available on request.
Please enquire, we would be happy to advise you.
Sound and heat insulation, different types of glazing, electrical equipment, heating and air conditioning, ventilation systems, bathroom facilities, cable channels etc. are available on request.
Please enquire, we would be happy to advise you.
Supplied flat pack for self-assembly according to assembly instructions.
On request, optionally delivered fully assembled directly from the manufacturer or can be assembled on-site by plant technicians.
Must be assembled on a firm and flat surface.
Delivered by a freight company.
A forklift or crane with a load capacity of at least 2.5 t is required for unloading.
All multi-purpose buildings are fitted with crane eyelets.
On request, crane unloading service available at extra cost.
On request, optionally delivered fully assembled directly from the manufacturer or can be assembled on-site by plant technicians.
Must be assembled on a firm and flat surface.
Delivered by a freight company.
A forklift or crane with a load capacity of at least 2.5 t is required for unloading.
All multi-purpose buildings are fitted with crane eyelets.
On request, crane unloading service available at extra cost.
Technical data
| Place of use | indoor use |
|---|---|
| Height | 2500 mm |
| Design of multi-purpose buildings / office buildings | 4 sides, free-standing |
| Material | sheet steel, painted |
| Railing height | 1030 mm |
| Design of ceiling | steel frame with decorative chipboard ceiling panels, without insulation and exterior panelling (cannot be walked on) |
| Section glazing | float glass, 5 mm |
| Door type | double walled door with window |
| Door material | sheet steel |
| Grid dimensions | 1060 mm |
| Product type | multi-purpose buildings |
| Supplied | pre-assembled, final assembly by customer |
| Length | 1160 mm |
| Width | 1160 mm |
| Internal length | 1050 mm |
| Internal width | 1050 mm |
| Weight | 350 kg |
| Instructions |
