Ref.: 491269 10

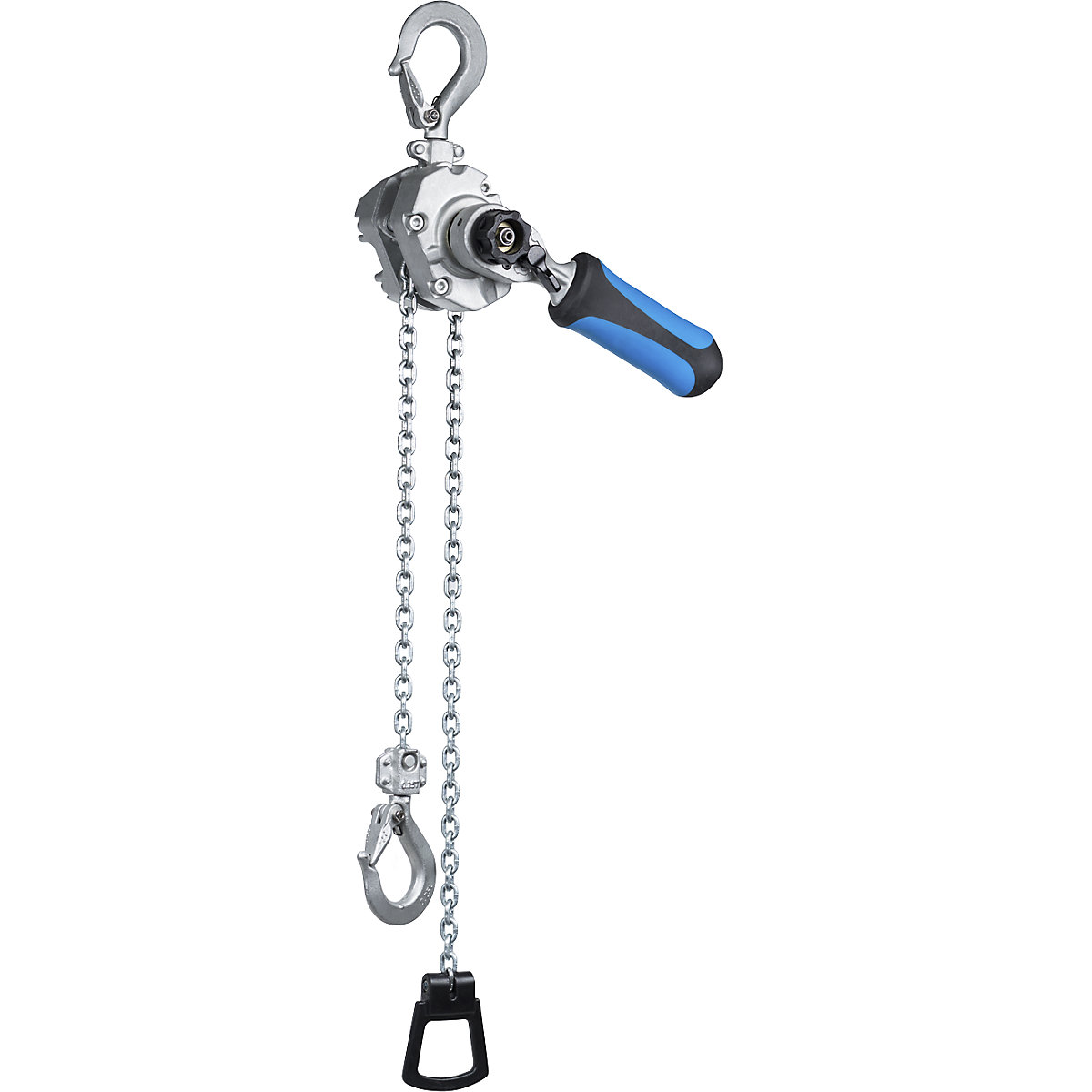

AH ratchet chain hoist standard lifting height 1.5 m

AH ratchet chain hoist

max. load 250 kg

Max. load [kg]
€ 217.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Product description
  • Small and lightweight design made of aluminium for handy use
  • Enclosed die-cast housing to protect the internal components
  • Can be used at ambient temperatures from –20 °C to +60 °C
  • Robust chain stop for a reliable chain hold
  • Two robust safety latches for increased operational safety
  • Free-wheeling lever for quickly pulling through the unloaded chain
The AH lever hoist is a compact aluminium lever hoist with an exceptionally small and lightweight design, making it suitable for industry and service applications where handy and heavy-duty lifting tools are required.

The enclosed die-cast housing protects the internal components from dirt and weather. Use the temperature-resistant design from –20 °C to +60 °C for variable operating conditions. The lever hoist features two robust safety latches for safe working and a reinforced chain stop that prevents the chain from slipping through. A free-wheeling lever also enables the chain to be pulled through quickly when no load is applied.

The lifting device is suitable for workshops, assembly lines and service teams requiring a lightweight yet resilient hoist. The protection provided by the die-cast housing reduces failure risks caused by environmental influences, while the hook and chain solutions ensure a reliable hold during recurring lifting tasks.
Technical data
Lift1.5 m
Number of chain strands1 pcs.
Housing materialaluminium
Product typeratchet chain hoists
Coloursilver
Suppliedassembled
Max. load250 kg
Overall height (between device hook / load hook inner edges)223 mm
Power required at full load17
Weight1.8 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

23.29kg CO₂e
LCA Raw Material Extraction & Processing
70.7%
LCA packaging production
0.4%
LCA Product Manufacturing
23.4%
LCA Inbound and Outbound Transportation
5.4%
‌
‌
‌
‌
