Ref.: 772547 10
Gas cylinder heating jacket for Ø 232 – 270 mm
max. 40 °C, 435 W
Purpose of use
Ref.: 772547 10
Gas cylinder heating jacket for Ø 232 – 270 mm
max. 40 °C, 435 W
max. 40 °C, 435 W
Purpose of use
€ 1,125.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 1,125.00
Price / item (Excl. VAT)

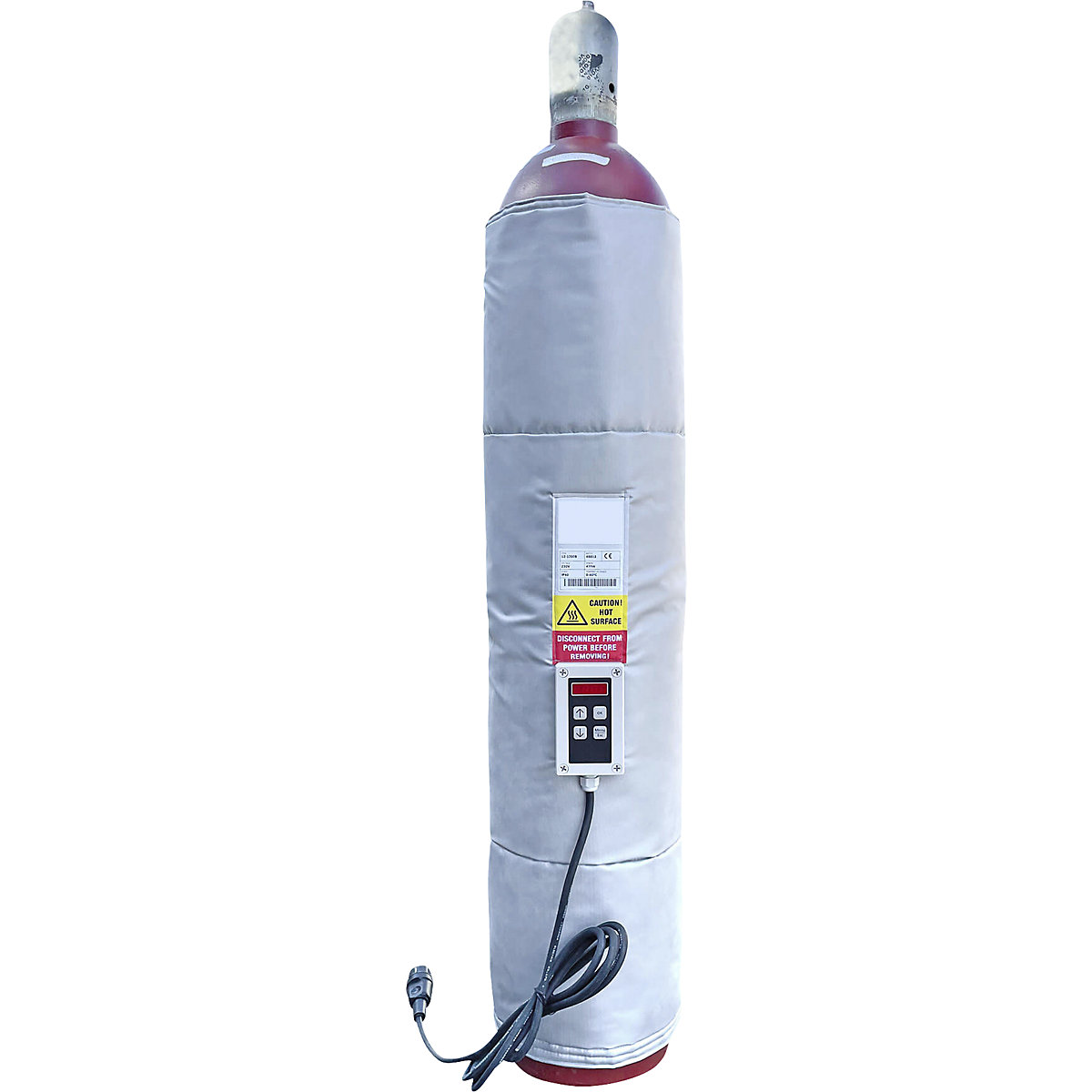

Product description
- Ensures a stable flow of gas and prevents freezing
- Steplessly adjustable thermostat with digital temperature controller and timer function

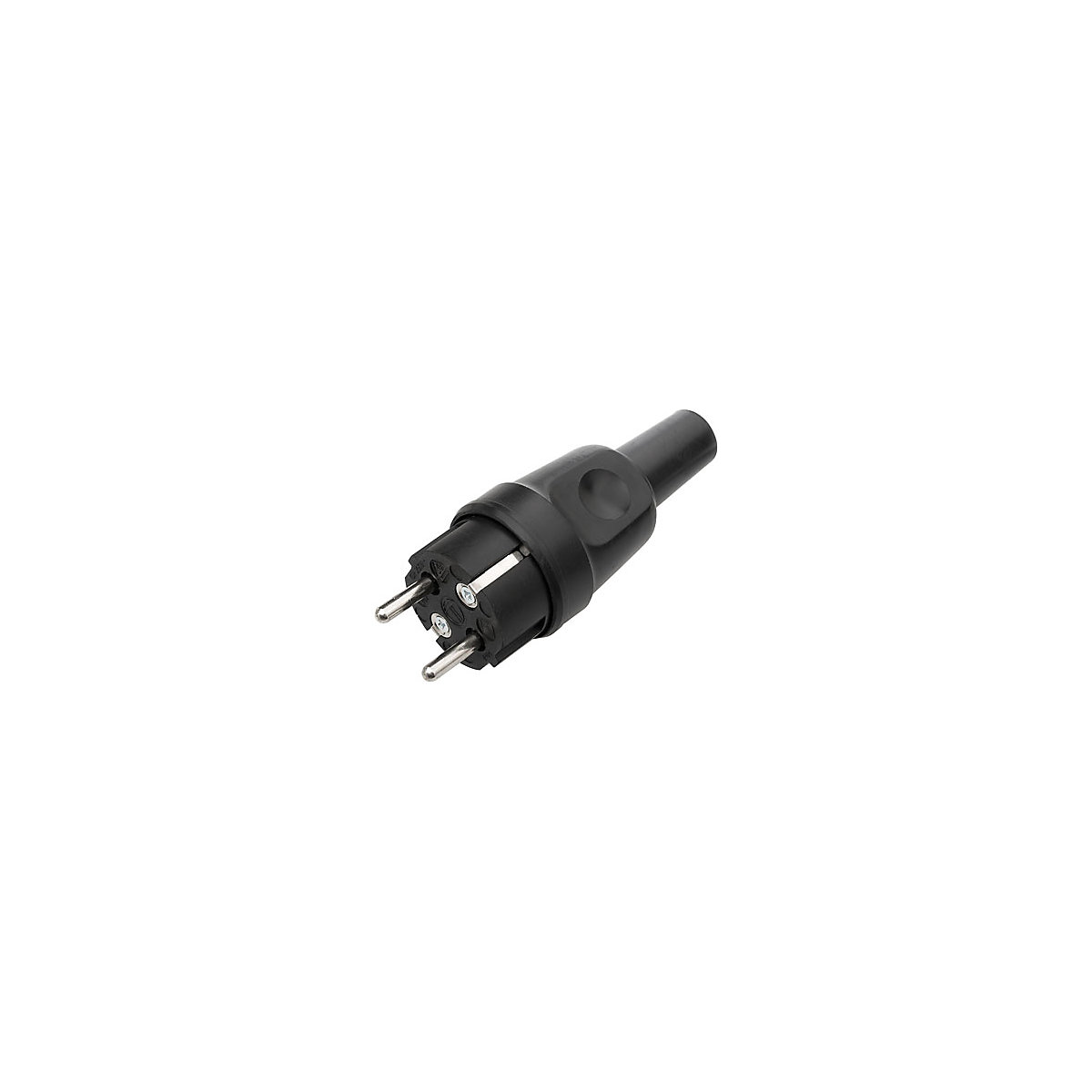

- Ready for immediate use – with 3 m mains cable and electric plug
For heat treatment of gas cylinders to optimise laboratory and industrial processes.
Constant temperatures of gas cylinders provide for a consistent gas flow and prevent freezing.
Protection from UV radiation.

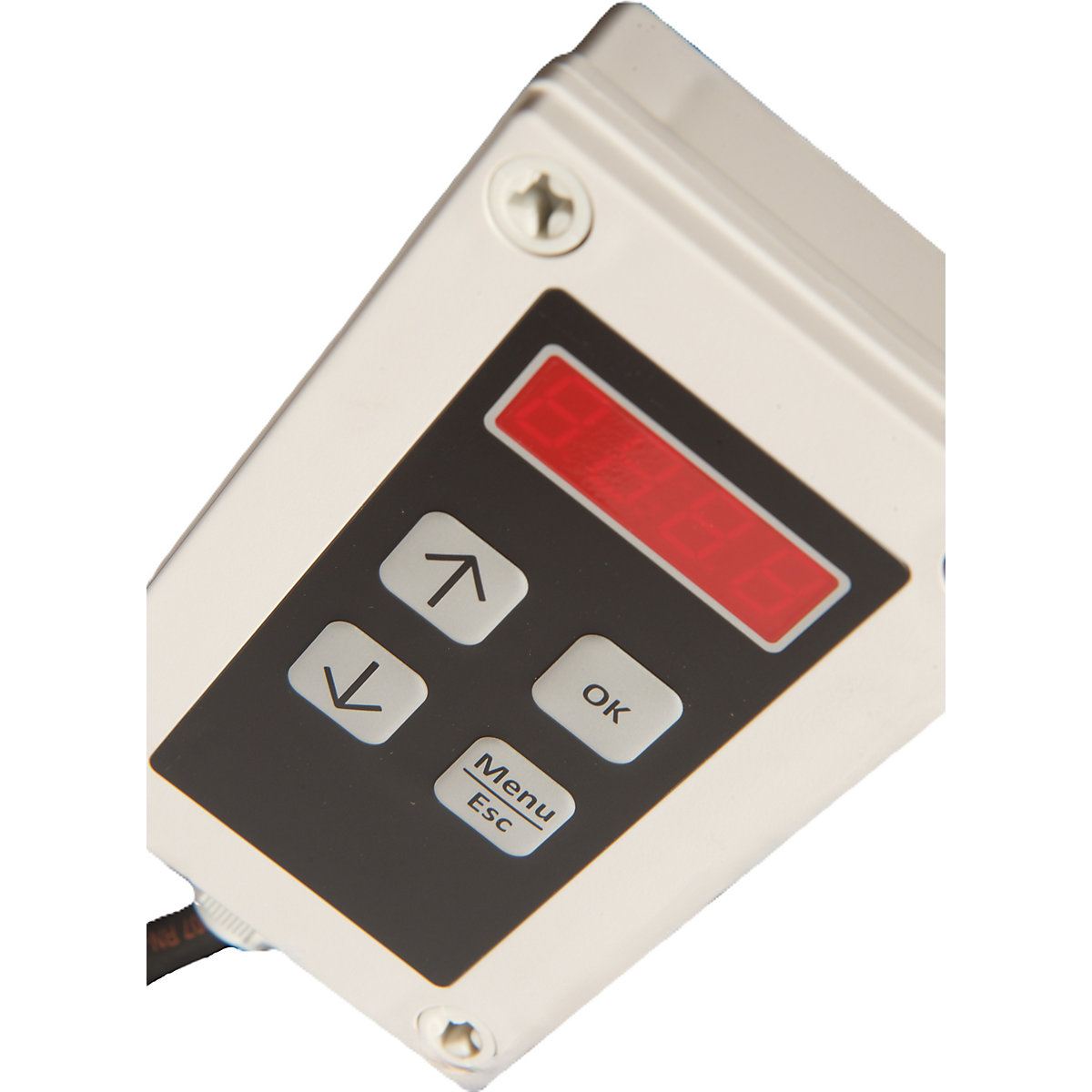

Gas cylinder heating jacket with digital temperature controller with timer function and display showing the current temperature, steplessly adjustable.

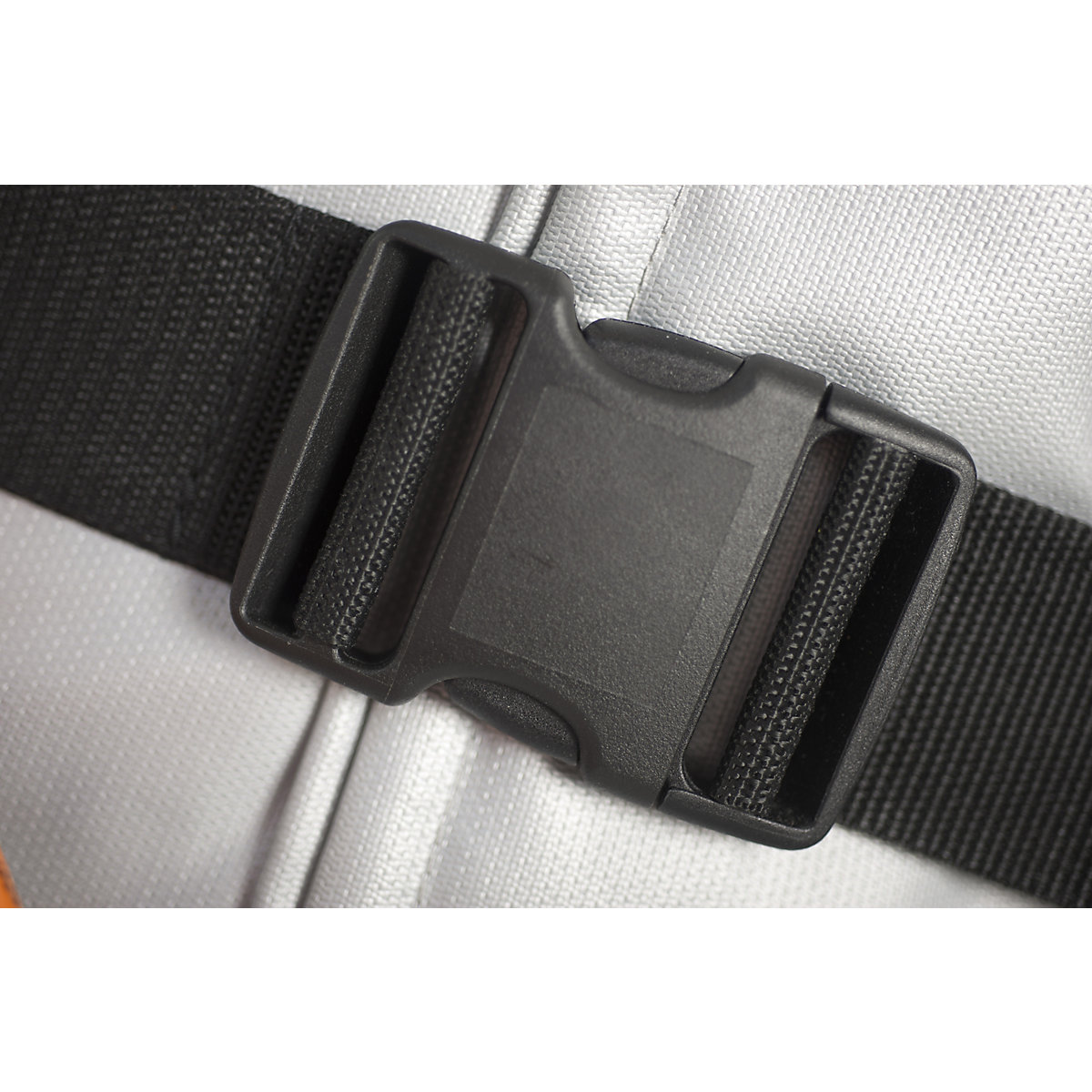

Made of hardwearing, durable, high quality and lightweight material. Quick and easy to attach to the gas cylinder using cargo restraint straps.
Constant temperatures of gas cylinders provide for a consistent gas flow and prevent freezing.
Protection from UV radiation.
Gas cylinder heating jacket with digital temperature controller with timer function and display showing the current temperature, steplessly adjustable.
Made of hardwearing, durable, high quality and lightweight material. Quick and easy to attach to the gas cylinder using cargo restraint straps.
Please note:
Check/observe the maximum temperature resistance of the gas cylinder.
The temperatures specified are only values to provide orientation.
The temperatures that can be reached depend on many variables – for example, the ambient temperature, the supply voltage, the medium, the material that the gas cylinder is made of, the size of the gas cylinder and many other factors.
Check/observe the maximum temperature resistance of the gas cylinder.
The temperatures specified are only values to provide orientation.
The temperatures that can be reached depend on many variables – for example, the ambient temperature, the supply voltage, the medium, the material that the gas cylinder is made of, the size of the gas cylinder and many other factors.
Technical data
| Suitable for | 50 l gas cylinders, Ø 220 – 270 mm |
|---|---|
| For container circumference | 691 – 847 mm |
| For cylinder diameter | 220 – 270 mm |
| Height | 1050 mm |
| Width | 860 mm |
| Depth | 10 mm |
| Power | 435 watt |
| Nominal voltage | 230 V |
| Protection type | IP40 |
| Test symbol | EU Directive (2006/42/EU), (2014/35/EU), (2014/30/EU), (2015/863/EU) |
| Fittings | digital temperature controller |
| Cable length | 3000 mm |
| Product type | heater jackets |
| Type of mounting | with restraint strap |
| Material | silicone fibreglass |
| Finish | silicone coated |
| Place of use | indoors / sheltered outdoor areas |
| Colour | silver |
| Supplied | assembled |
| Weight | 4 kg |
| Purpose of use | warming up/keeping warm |
| Control range | 40 °C |
