Ref.: 854613 10

Drum heating belt for 200 – 220 l drums, height 115 mm

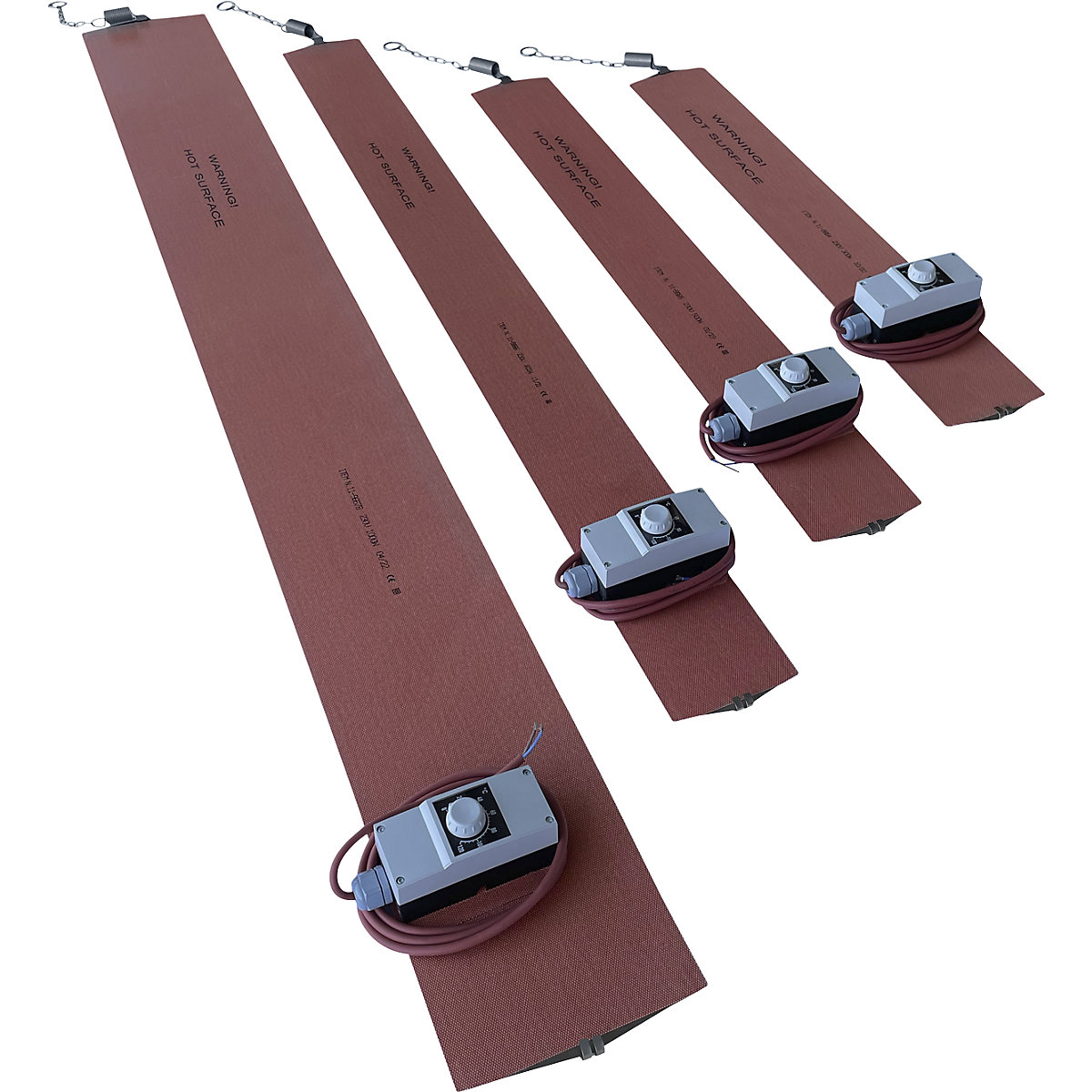

Drum heating belt

max. 120 °C, 1000 W

€ 709.00
Price / item (Excl. VAT)
Delivery time: 12-14 Working Days
Product description

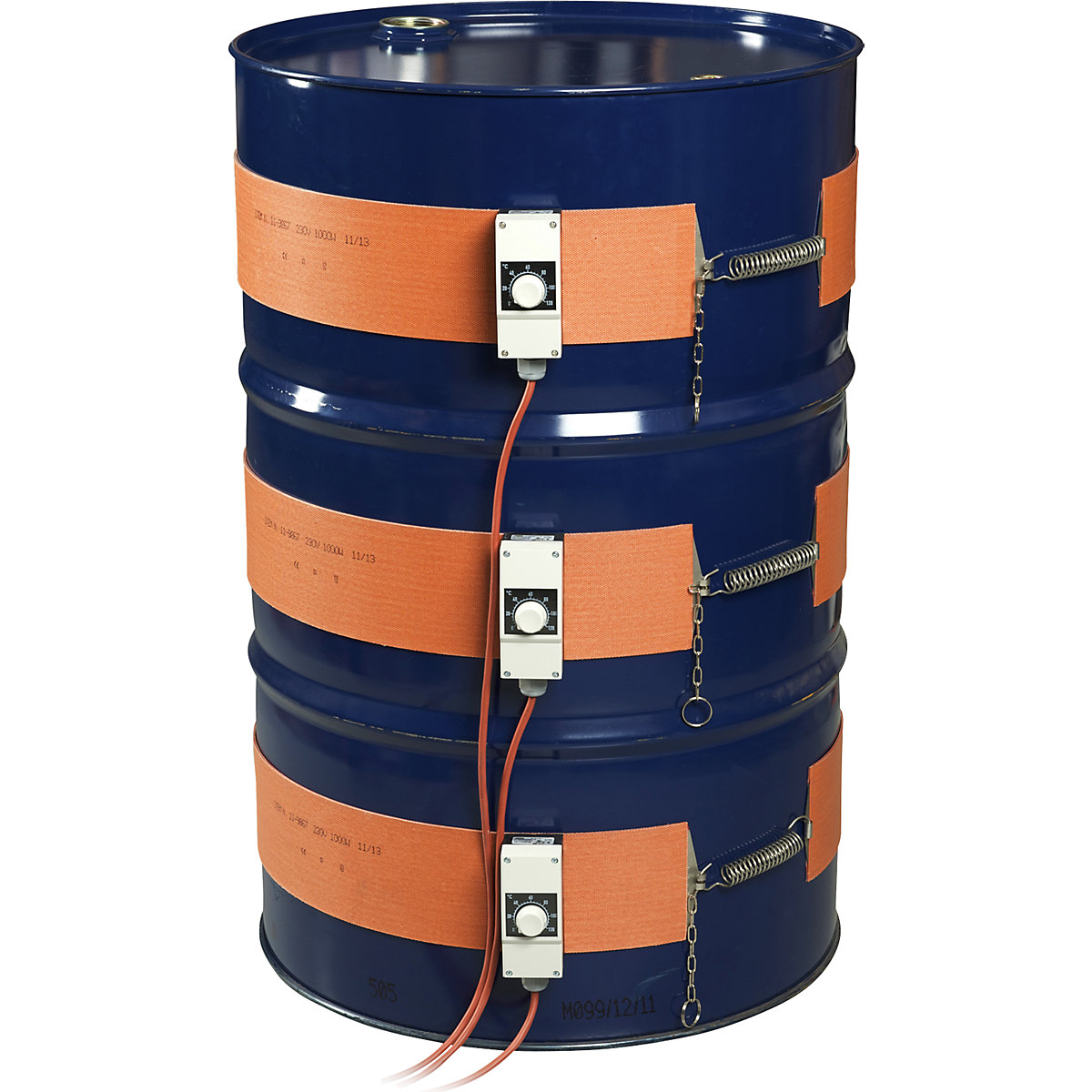

  • Up to 3 heating belts can be combined on each drum – also with different heating zones
  • Fast warming and keeping liquids warm
  • Ready for immediate use – for 200 – 220 l steel drums
  • Thermostat continuously adjustable from 0 – 120 °C with analogue temperature controller
Silicone drum heating belts are the perfect solution when it comes to heating liquids and materials quickly and effectively, making it very easy to empty them without residue or keep them warm.

Made from hardwearing, high quality red silicone.
Equipped with an easy to operate analogue temperature controller, steplessly adjustable from 0 – 120 °C.

Ideal for heating water, oils, greases, waxes, resins and diesel fuel.

For even faster heating, the heating belt can be combined with a floor heating panel.
Please note:
Check/observe maximum temperature resistance of the containers (especially when made of plastic).
The temperatures specified are only values to provide orientation.
The temperatures that can be reached depend on many variables – for example, the ambient temperature, the supply voltage, the medium, the material that the container is made of, the container size, whether an agitator is used and many other factors.
Technical data
Suitable for200 – 220 l steel drums
Purpose of useheating
For container circumference1750 – 1940 mm
For cylinder diameter557 – 618 mm
Height115 mm
Width1670 mm
Depth3 mm
Control range120 °C
Power1 kW
Nominal voltage230 V
Protection typeIP54
Test symbolEU Directive (2014/35/EU), (2014/30/EU)
Fittingsanalogue temperature controller
Cable length1400 mm
Type of mountingwith tension spring
Materialsilicon
Place of useindoors / sheltered outdoor areas
Colourred
Product typeheating belts
Suppliedassembled
Weight1.3 kg
