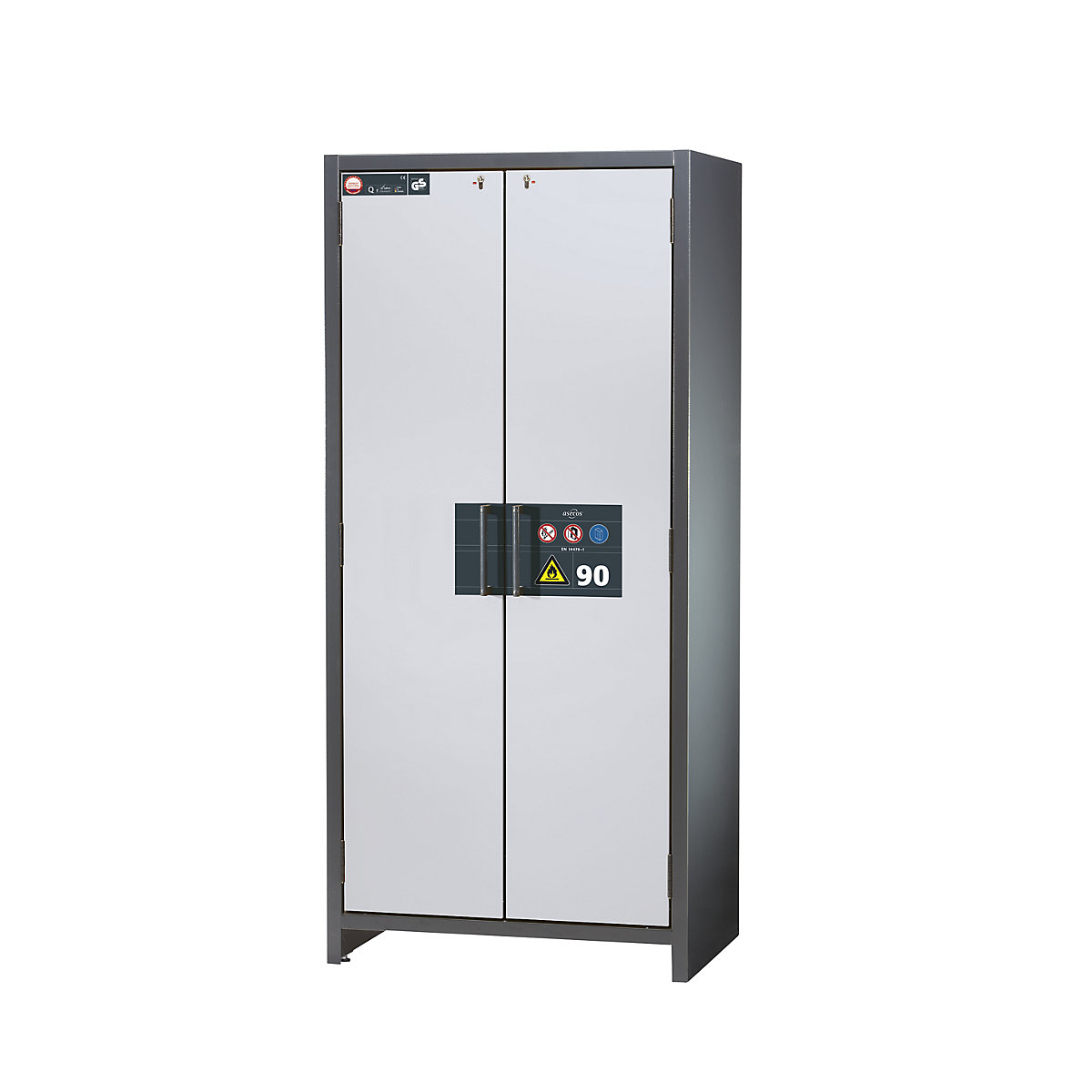

Fire resistant industrial hazardous goods cupboard, type 90 – asecos HxWxD 1955 x 900 x 615 mm
2 door, light grey
Door colour
Ref.: 710999 10
Fire resistant industrial hazardous goods cupboard, type 90 – asecos HxWxD 1955 x 900 x 615 mm
2 door, light grey
2 door, light grey
Door colour
€ 4,250.00
Price / item (Excl. VAT)
Delivery time: > 3 months
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 4,250.00
Price / item (Excl. VAT)
Product description
- For regulation compliant storage of flammable media in laboratories in accordance with EN 14470-1 and TRGS 510 (appendix 3)
- Proven protection against fire for 90 minutes GS tested – self-closing in the event of fire
- Robust, torsion resistant construction – hinged door can be locked in any position, adjustable door dampening mechanism
- Permanently integrated, forklift accessible plinth – for easy transport of the cupboard
- Tamper-proof lock with lock status indicator, can be integrated with lock system
- Robust textured powder coating
The fire resistant industrial hazardous goods storage cupboard type 90 asecos is suitable for the unrestricted and regulation compliant storage of flammable media in workrooms in accordance with EN 14470-1 and TRGS 510 (Annex 3). With a fire resistance rating of 90 minutes, this cupboard provides the maximum level of safety and is both type tested for fire resistance and certified in accordance with fire protection and GS standards.

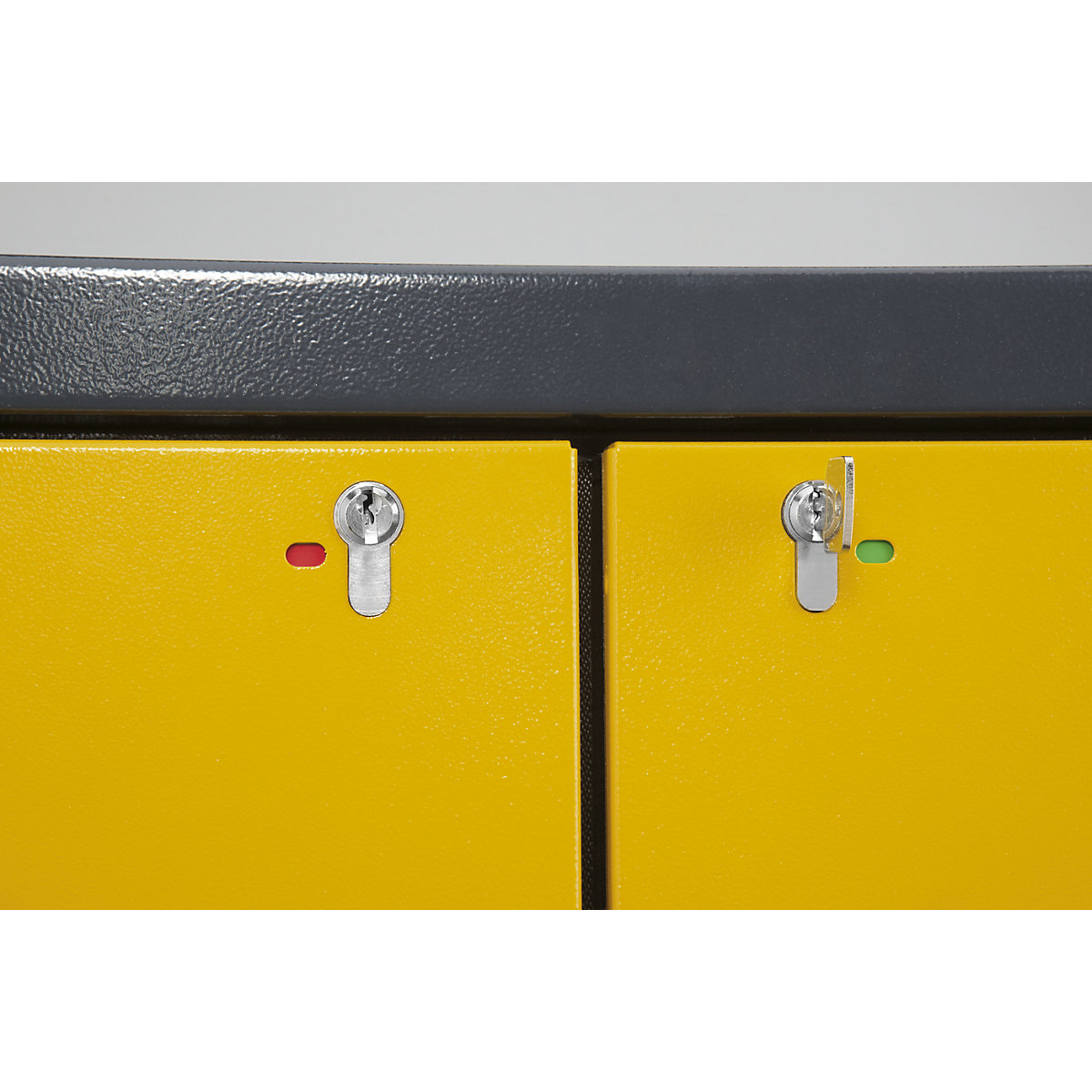

The doors can be locked in any required position and close automatically in the event of a fire. The closing status indicator in red and green makes it quick and easy to check the status of the door. The adjustable door damping and the 3 point door hinges ensure reliable use. The lockable doors are fitted with a profile cylinder lock and can be integrated into locking systems. Fire protection insulation and high quality door seals provide additional protection. The sheet steel housing with a high resistance textured powder coating ensures an extremely robust, torsion resistant and durable construction.
The doors can be locked in any required position and close automatically in the event of a fire. The closing status indicator in red and green makes it quick and easy to check the status of the door. The adjustable door damping and the 3 point door hinges ensure reliable use. The lockable doors are fitted with a profile cylinder lock and can be integrated into locking systems. Fire protection insulation and high quality door seals provide additional protection. The sheet steel housing with a high resistance textured powder coating ensures an extremely robust, torsion resistant and durable construction.

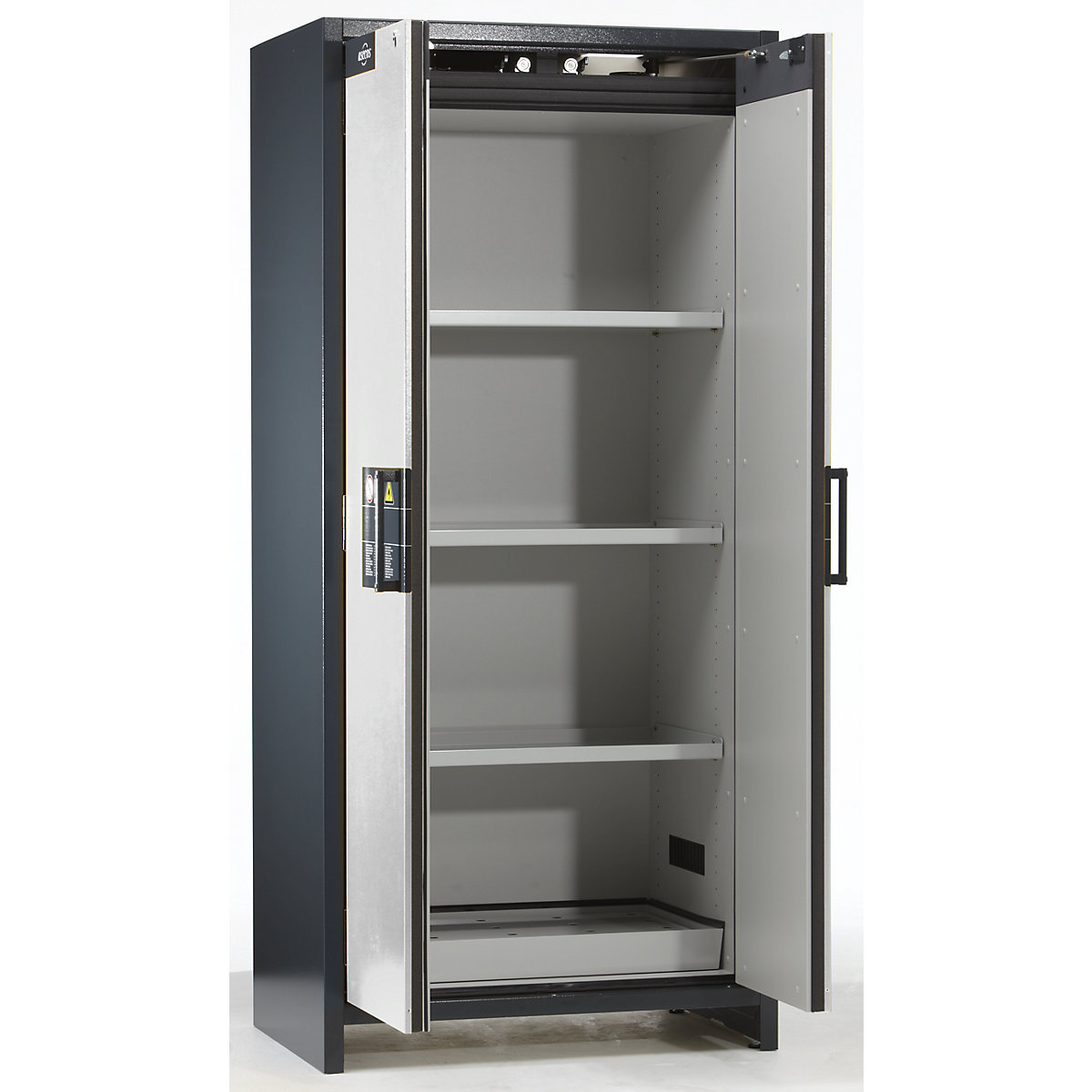

Interior fittings
– 3 shelves, max. load 75 kg (for evenly distributed loads), height adjustable in 32 mm increments, with pull-out stops and anti-tipping device
– 1 base sump, tested in accordance with StawaR / ÜHP, powder coated sheet steel

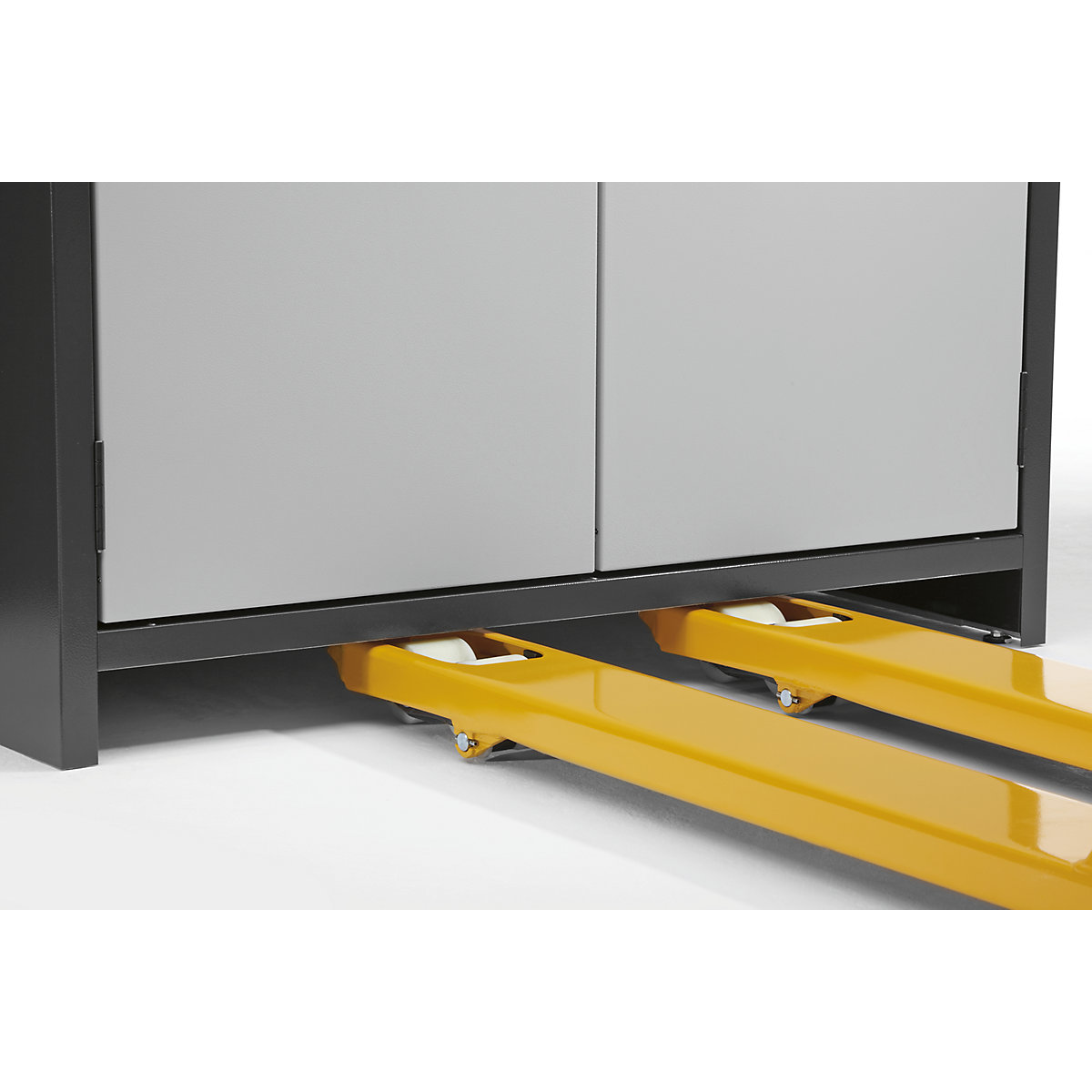

There is an exhaust air connection (DN 75) on the top of the hazardous goods storage cupboard, which is provided for attaching a technical ventilation system – it is labelled in accordance with EN 14470-1. The cupboard can be accessed from below using a pallet truck, for example, to make it easy to transport and change its position. The cupboard is equipped with levelling devices to compensate for uneven flooring. The fire resistant industrial hazardous goods storage cupboard type 90 asecos makes an impression with its robust design and certified safety standards.
– 3 shelves, max. load 75 kg (for evenly distributed loads), height adjustable in 32 mm increments, with pull-out stops and anti-tipping device
– 1 base sump, tested in accordance with StawaR / ÜHP, powder coated sheet steel
There is an exhaust air connection (DN 75) on the top of the hazardous goods storage cupboard, which is provided for attaching a technical ventilation system – it is labelled in accordance with EN 14470-1. The cupboard can be accessed from below using a pallet truck, for example, to make it easy to transport and change its position. The cupboard is equipped with levelling devices to compensate for uneven flooring. The fire resistant industrial hazardous goods storage cupboard type 90 asecos makes an impression with its robust design and certified safety standards.
Delivered to the point of use (at extra cost) – please call for details.
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For water hazardous liquids
For toxic liquids
For flammable liquids
Technical data
| Fire resistance | 90 minutes |
|---|---|
| Material | special fire resistant boards sheet steel, powder coated |
| Height | 1955 mm |
| Width | 900 mm |
| Depth | 615 mm |
| Internal height | 1645 mm |
| Internal width | 750 mm |
| Internal depth | 522 mm |
| Hazard class | for flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3) |
| Ventilation | ventilation connection (NW 75) |
| Body colour | charcoal RAL 7016 |
| Door type | hinged door |
| Door version | 2 doors |
| Lock type | lock with lock status indicator |
| Number of doors | 2 pcs. |
| Number of shelves | 3 pcs. |
| Shelf material | sheet steel, powder coated |
| Max. shelf load | 75 kg |
| Shelf height adjustment increments | 32 mm |
| Number of sump trays | 1 pcs. |
| Base sump tray capacity | 22 l |
| Product type | hazardous goods storage cupboards, fire resistant |
| Supplied | assembled |
| Weight | 378 kg |
| Door colour | light grey RAL 7035 |
