Ref.: 969111 10

Polyurethane tyre, plate dims. 138 x 110 mm – Proroll wheel Ø x width 125 x 50 mm

Polyurethane tyre, plate dims. 138 x 110 mm – Proroll

fixed castor

Structure
Sale
€ 109.00
€ 104.90
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Product description
  • Permanently fixed on precision, machine turned cast rims
  • Easy rolling, quiet
  • Hardwearing and cut resistant
  • Hardness 92 Shore A
  • Temperature resistant from –20 °C to +85 °C
On request
Swivel castors (with and without double stops) with four-way directional stops, can be fitted at a later stage. This converts swivel castors into fixed castors.
Heavy, welded sheet steel housing, zinc plated.

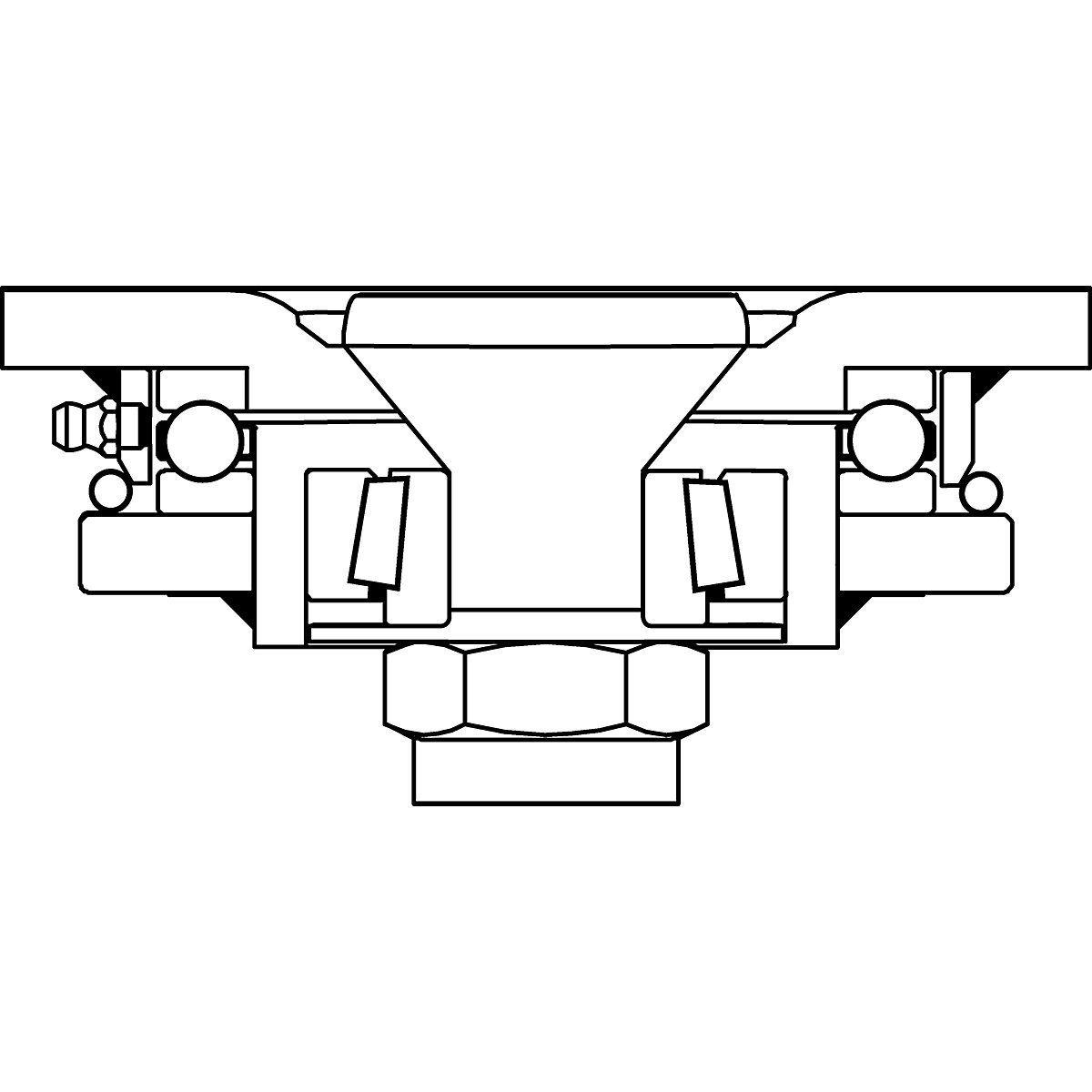

Swivel bearing with sealed fork head and combined deep groove ball bearings and tapered roller bearings, with lubrication nipple.
Ball bearings with lubrication nipple.
Cut resistant
Cut resistant
Hardwearing
Hardwearing
High maximum load
High maximum load
Low rolling resistance
Low rolling resistance
Technical data
Wheel diameter125 mm
Wheel materialpolyurethane (PU)
Material of rimcast iron
Type of mountingwith top plate
Housing materialsteel
Max. load at 4 km/h550 kg
Wheel width50 mm
Overall height175 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +85 °C
Screw hole diameter10 mm
Hub length60 mm
Hub bore20 mm
Modelheavy duty castors
Fixed castor plate dimensions138 x 110 mm
Swivel castor plate dimensions138 x 110 mm
Screw hole spacing105 x 78 – 80 mm
Housing surfacezinc plated
Shore hardness92 A
Featurelow rolling resistance
Suppliedassembled
Structurefixed castor
Product typefixed castors
Weight3.9 kg
