Ref.: 709406 10

Crash protection for pipes – Moravia wall/floor mounting

Crash protection for pipes – Moravia

HxWxD 1000 x 350 x 300 mm

Height [mm]
€ 409.00
Price / item (Excl. VAT)
Delivery time: up to 4 weeks
Product description
  • For utility lines in indoor and outdoor areas
  • Ideal protection against damage to pipes and electrical lines
  • Made of robust and durable tubular steel pipe
  • Good warning effect due to black / yellow colour scheme
  • Hot-dip galvanised and plastic-coated

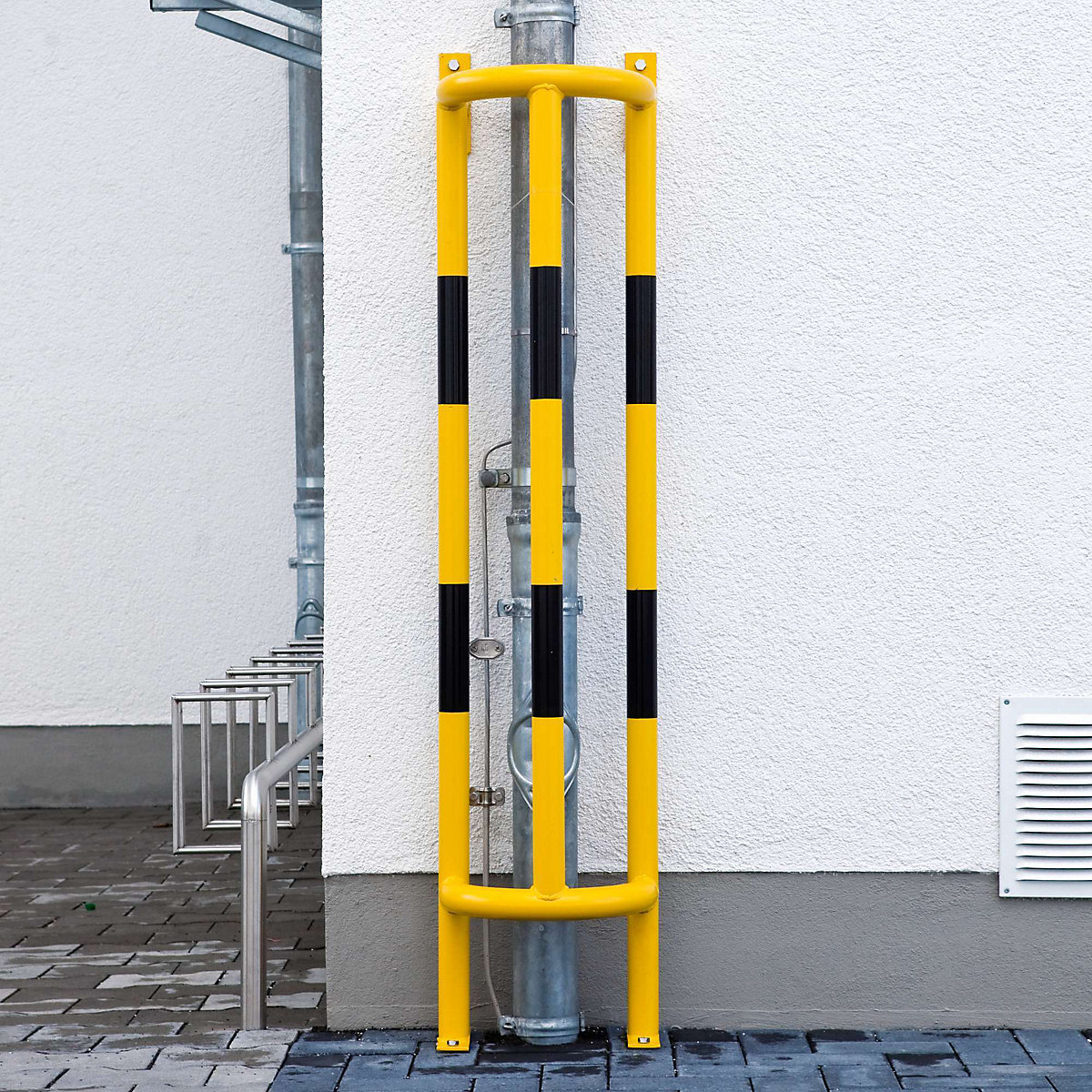

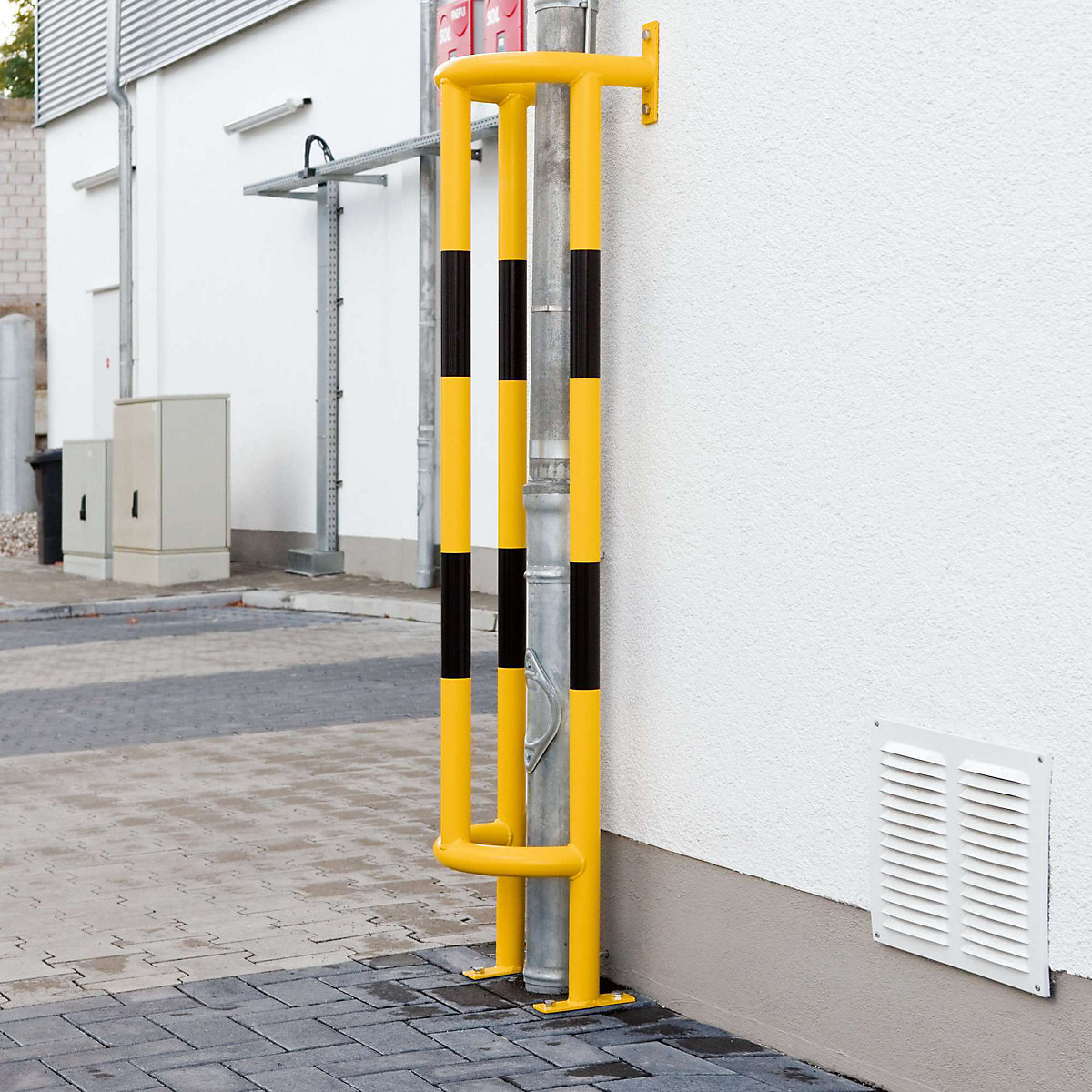

The semi-circular pipe protection protects (down)pipes, cables, cable ducts etc. from collision damage in indoor and outdoor areas. The bars are made of high-quality steel and are additionally hot-dip galvanised and plastic-coated. The black and yellow colour scheme ensures good visibility and a high warning effect.

The sturdy pipes have a diameter of 48 mm and a wall thickness of 2 mm and are fitted with four plates (150 x 50 x 5 mm) for bolting down.

The width of the collision protection is 350 mm with internal dimensions of W x D 250 x 275 mm.
Technical data
Type of mountingwall/floor mounting
Length350 mm
Width300 mm
Colourtraffic yellow RAL 1023 jet black RAL 9005
Materialsteel
Finishhot dip galvanised and plastic coated
Base plate length150 mm
Base plate width50 mm
Panel thickness2 mm
Internal width250 mm
Tube diameter48 mm
Base plate height5 mm
Place of useindoor and outdoor use
Product typecollision protection
Suppliedassembled

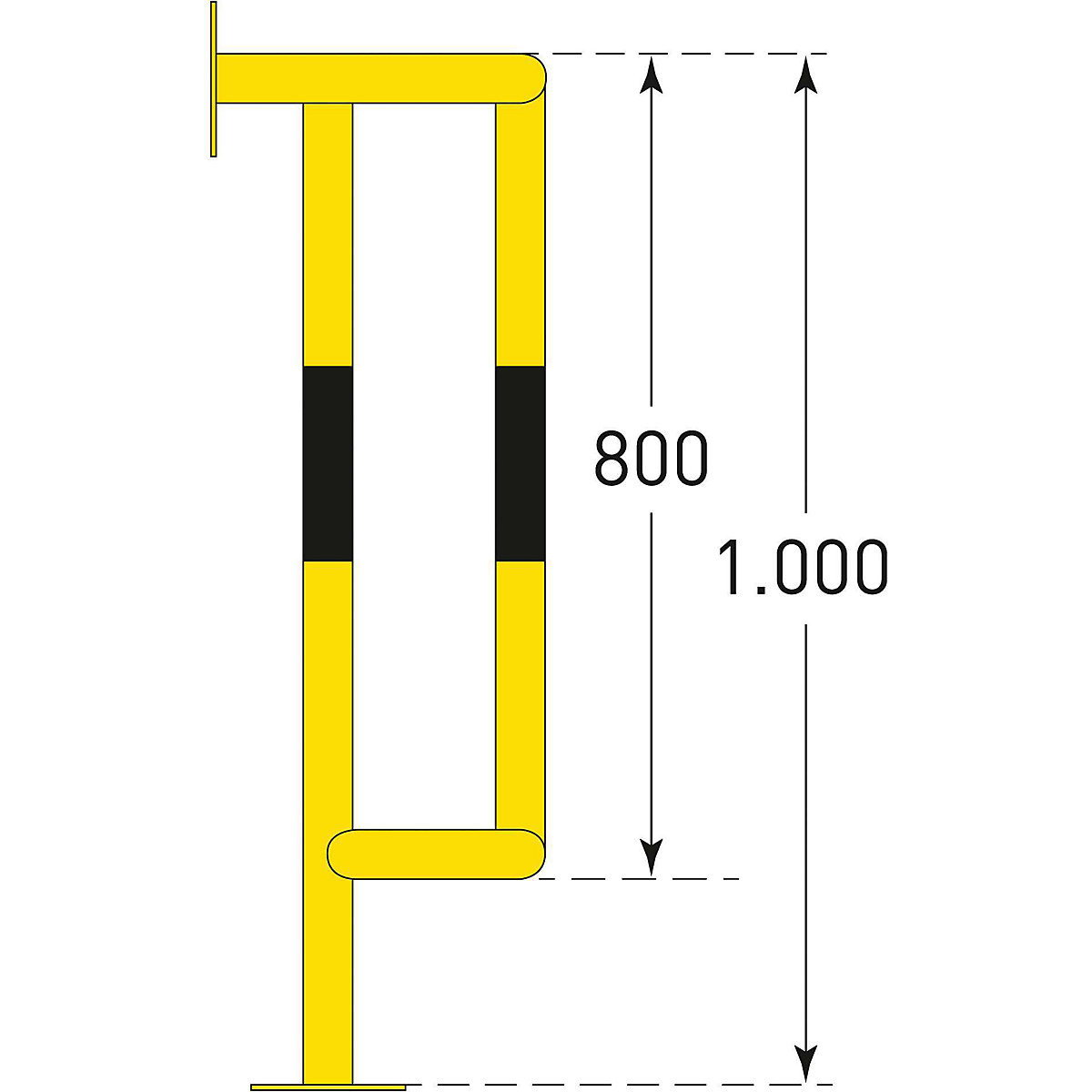

Height1000 mm
Height above ground1000 mm
Weight13 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
60
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

53.31kg CO₂e
LCA Raw Material Extraction & Processing
37.8%
LCA packaging production
1.9%
LCA Product Manufacturing
50.8%
LCA Inbound and Outbound Transportation
9.4%
‌
‌
‌
