TPE wheel on PP rim, ESD ball bearings
- ESD model
- Do not damage floors, non-marking
- Low rolling resistance, quiet, very smooth running
- Hardness 65 Shore A
- Temperature resistant from –20 °C to +60 °C
New
Ref.: 568285 10

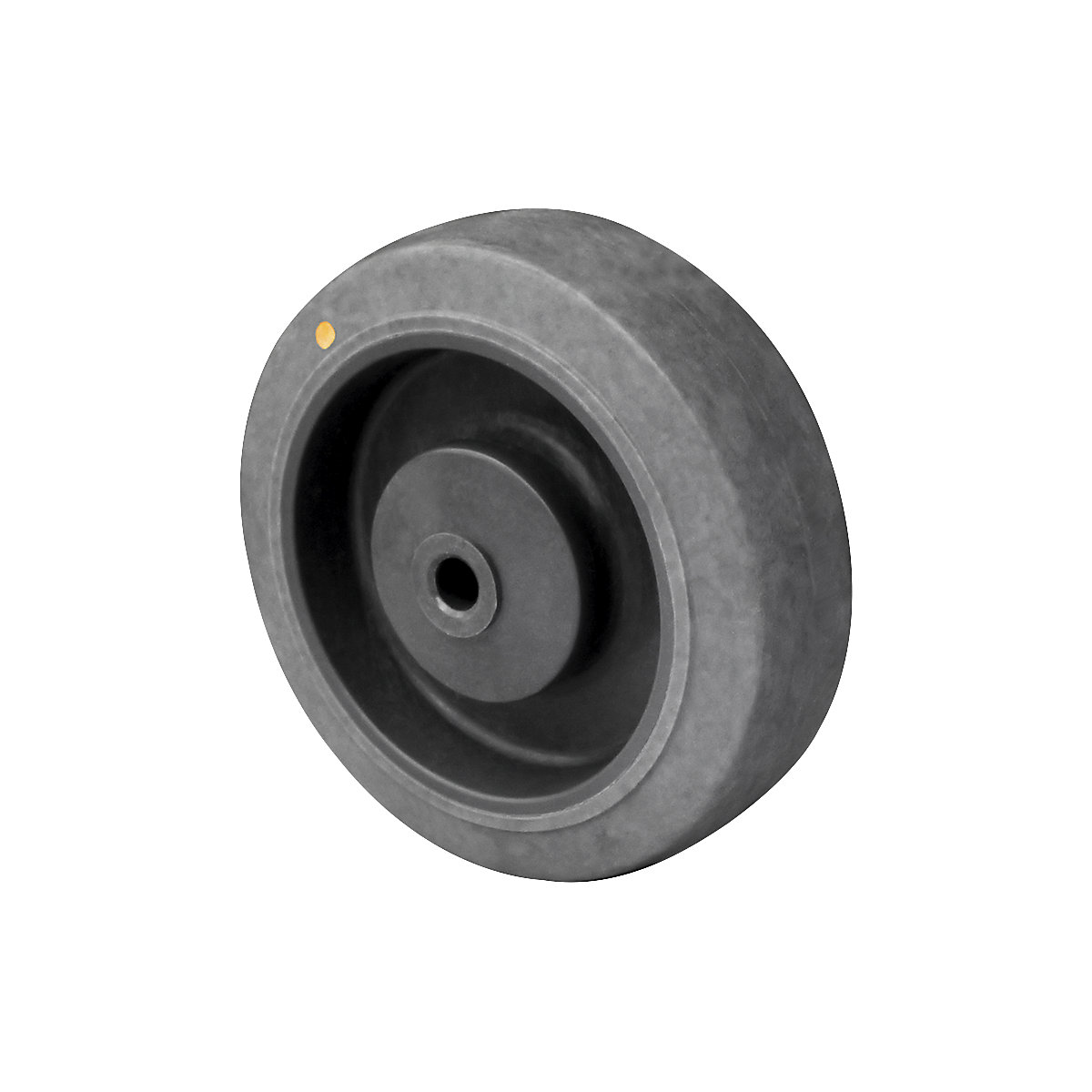

TPE wheel on PP rim, ESD, ball bearings, wheel Ø x width 125 x 40 mm
Price / items (net)
€ 27.90
Product description
+
With an electrical conductivity up to a resistance of 1000 – 100,000 ohm.
Bolted wheel axle (incl. complete axle material), small plastic thread guard. Ball bearings.
Bolted wheel axle (incl. complete axle material), small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
- ESD model
- Do not damage floors, non-marking
- Low rolling resistance, quiet, very smooth running
- Hardness 65 Shore A
- Temperature resistant from –20 °C to +60 °C
Technical data
+
| Structure | wheel |
|---|---|
| Wheel material | thermoplastic elastomer |
| Material of rim | polypropylene |
| Wheel diameter | 125 mm |
| Max. load at 4 km/h | 120 kg |
| Wheel width | 40 mm |
| Wheel bearing | ball bearing |
| Temperature resistance | –20 °C to +60 °C |
| Hub length | 50 mm |
| Hub bore | 15 mm |
| Axle diameter | 10 mm |
| Shore hardness | 65 A |
| Supplied | assembled |
