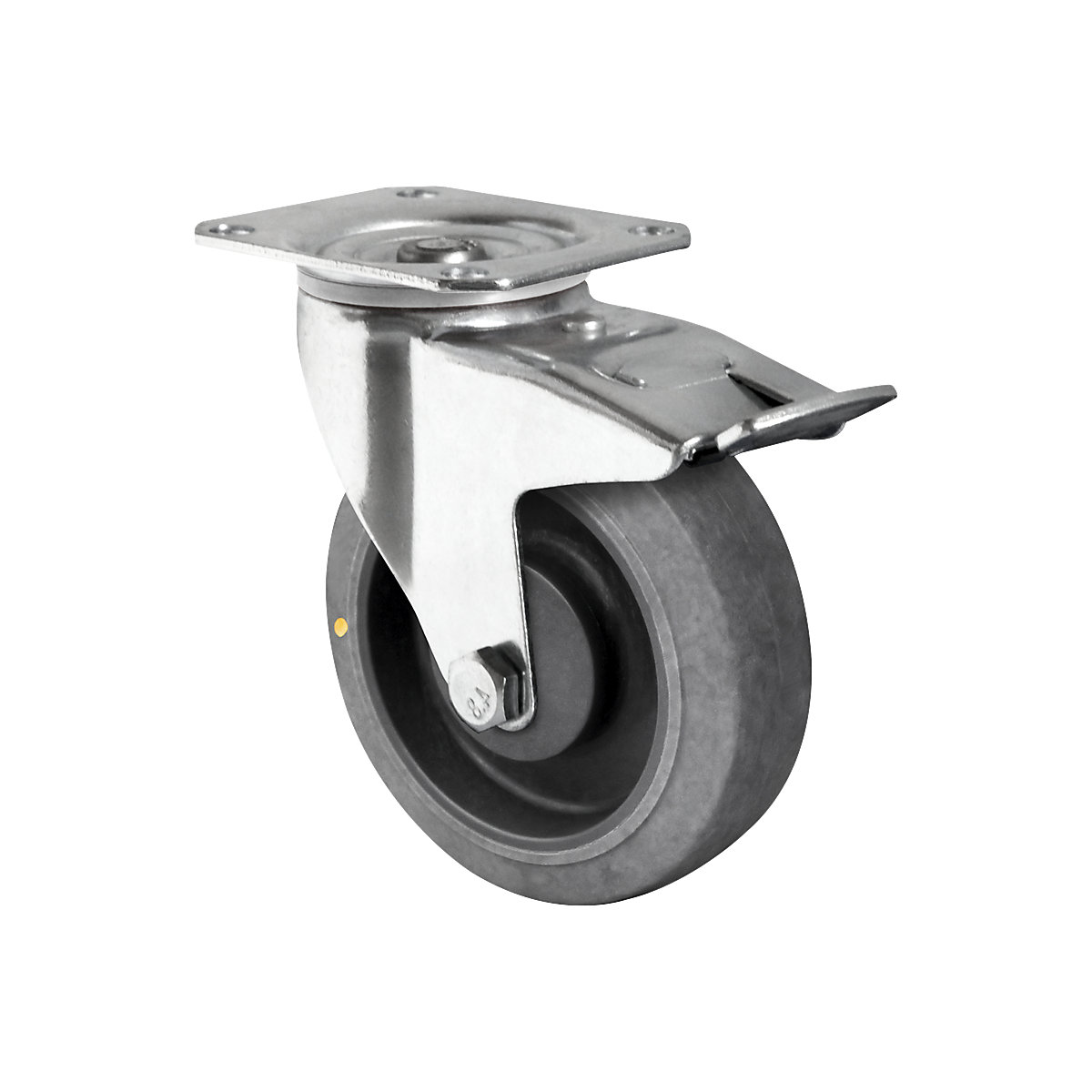

TPE tyre on PP rim, ESD wheel Ø x width 125 x 40 mm, 2+ items

  • ESD model
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Hardness 65 Shore A
  • Temperature resistant from –20 °C to +60 °C
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
New
TPE tyre on PP rim, ESD, wheel Ø x width 125 x 40 mm, 2+ items, fixed castor
Price / items (net)
from
€ 24.90

Product description
+
With an electrical conductivity up to a resistance of 1000 – 100,000 ohm.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
  • ESD model
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Hardness 65 Shore A
  • Temperature resistant from –20 °C to +60 °C
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Technical data
+
Wheel diameter125 mm
Wheel materialthermoplastic elastomer
Material of rimpolypropylene
Housing materialsteel
Max. load at 4 km/h120 kg
Type of mountingwith top plate
Wheel width40 mm
Overall height155 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +60 °C
Screw hole diameter10 mm
Hub length50 mm
Hub bore15 mm
Plate dimensions105 x 80 mm
Screw hole spacing80/77 x 60 mm
Housing surfacezinc plated by galvanization
Shore hardness65 A
Suppliedassembled
