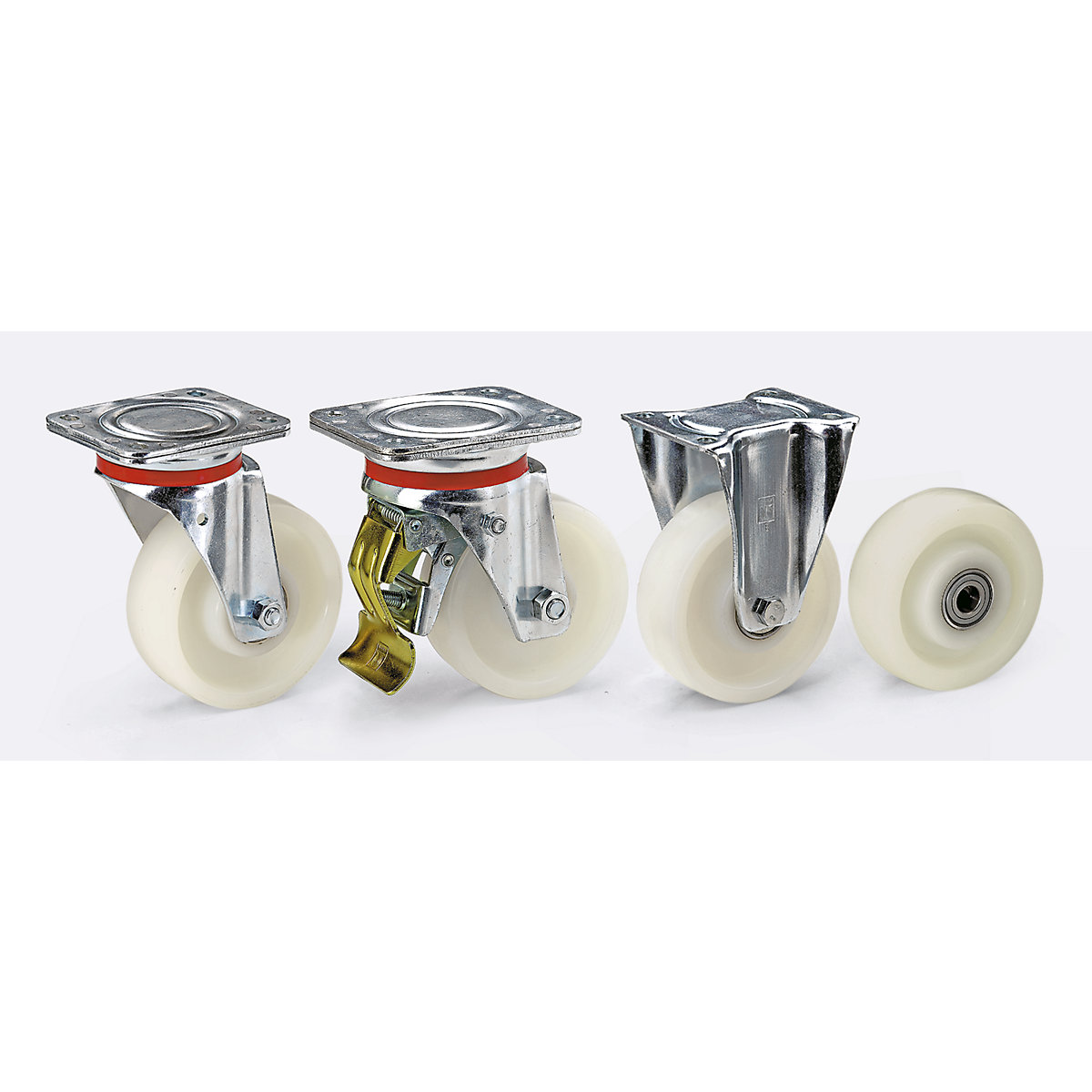

Wicke – Nylon wheel, sheet steel housing

Wicke – Nylon wheel, sheet steel housing

wheel Ø x width 80 x 30 mm

Extremely durable
Reinforced housing
High maximum load
Temperature resistant from –20 °C to +80 °C

Swivel bearing with hardened double ball race, swivel bearing protection. Lubrication nipple, fork head without central bolt.

Quality advantages

Wicke – Nylon wheel, sheet steel housing, wheel Ø x width 80 x 30 mm

Price / item (Ex. VAT)

from €24.90

Price / item (Inc. VAT)

from €29.88

Order quantity:

{"articleNo":"M7508","name":"Wicke – Nylon wheel, sheet steel housing wheel Ø x width 80 x 30 mm","baseProduct":"","productUrl":"/p/M7508/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Nylon_wheel_sheet_steel_housing_pdpsmall--000060157129_PRD_f_all.jpg"}

Give us a call!

1 800 677 300

Versions Versions
Combinations Combinations
Alternatives Alternatives
Technical data
Select item

3 of 3 items correspond to your selection criteria:

Item no.: 645206 10

Wicke – Nylon wheel, sheet steel housing, wheel Ø x width 80 x 30 mm, swivel castor, plain bearings

Structure: swivel castor
Swivel castor offset: 40 mm
Plate dimensions: 105 x 85 mm
Weight: 0.98 kg

10-15 Working Days

Price / item

Ex. VAT €49.90

Price / item

Inc. VAT €59.88

{"articleNo":"645206","name":"Wicke – Nylon wheel, sheet steel housing wheel Ø x width 80 x 30 mm","baseProduct":"M7508","productUrl":"/p/M7508/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Nylon_wheel_sheet_steel_housing_pdpsmall--000060157129_PRD_f_all.jpg"}

{"features":[{"name":"Structure","normalizedName":"","value":"swivel castor","formattedValue":"swivel castor"},{"name":"Swivel castor offset [mm]","normalizedName":"","value":"40","formattedValue":"40"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"105 x 85","formattedValue":"105 x 85"},{"name":"Weight [kg]","normalizedName":"","value":"0.98","formattedValue":"0.98"}]}

Item no.: 645346 10

Wicke – Nylon wheel, sheet steel housing, wheel Ø x width 80 x 30 mm, fixed castor, plain bearing

Structure: fixed castor
Plate dimensions: 100 x 87 mm
Weight: 0.58 kg

10-15 Working Days

Price / item

Ex. VAT €24.90

Price / item

Inc. VAT €29.88

{"articleNo":"645346","name":"Wicke – Nylon wheel, sheet steel housing wheel Ø x width 80 x 30 mm","baseProduct":"M7508","productUrl":"/p/M7508/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Nylon_wheel_sheet_steel_housing_pdpsmall--000060195808_PRD_f_all.jpg"}

{"features":[{"name":"Structure","normalizedName":"","value":"fixed castor","formattedValue":"fixed castor"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"100 x 87","formattedValue":"100 x 87"},{"name":"Weight [kg]","normalizedName":"","value":"0.58","formattedValue":"0.58"}]}

Item no.: 771163 10

Wicke – Nylon wheel, sheet steel housing, wheel Ø x width 80 x 30 mm, swivel castor with double stop, plain bearings

Structure: swivel castor with double stop
Swivel castor offset: 40 mm
Plate dimensions: 105 x 85 mm
Weight: 1.24 kg

10-15 Working Days

Price / item

Ex. VAT €67.90

Price / item

Inc. VAT €81.48

{"articleNo":"771163","name":"Wicke – Nylon wheel, sheet steel housing wheel Ø x width 80 x 30 mm","baseProduct":"M7508","productUrl":"/p/M7508/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Nylon_wheel_sheet_steel_housing_pdpsmall--000060157316_PRD_f_all.jpg"}

{"features":[{"name":"Structure","normalizedName":"","value":"swivel castor with double stop","formattedValue":"swivel castor with double stop"},{"name":"Swivel castor offset [mm]","normalizedName":"","value":"40","formattedValue":"40"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"105 x 85","formattedValue":"105 x 85"},{"name":"Weight [kg]","normalizedName":"","value":"1.24","formattedValue":"1.24"}]}

Technical data

Wheel diameter	80 mm
Wheel material	nylon
Material of rim	nylon
Housing material	steel
Max. load at 4 km/h	250 kg
Type of mounting	with top plate
Wheel width	30 mm
Overall height	118 mm
Wheel bearing	plain bearing
Temperature resistance	–20 °C to +80 °C
Screw hole diameter	9 mm
Hub length	40 mm
Hub bore	12 mm
Screw hole spacing	80 x 60 mm
Housing surface	galvanised and chrome-plated
Supplied	assembled
