Tubular boltless shelving unit – Manorga shelf unit height 1996 mm, shelf width 960 mm

(3)
Tubular boltless shelving unit – Manorga
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
from
€ 415.00
Price / item (Excl. VAT)
Product description
  • Particularly user friendly and versatile due to tubular steel shelves for bulky goods, providing a better overview of stored products and for rooms with sprinkler systems
  • Double sided use possible, as cross braces are not required
  • Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
Upright frames
Rectangular tubular steel 50 x 30 x 1.5 mm.
Light grey RAL 7035, plastic coated.
Incl. zinc plated metal base plates (110 x 50 x 3 mm) for anchoring to floor. Anchoring holes Ø 13 mm.
Bolts and plugs not included.
62.5 mm shelf height adjustment grid.

Tubular shelves
Rectangular steel tubing (35 x 20 x 1.25 mm and 20 x 20 x 1 mm).
Blue RAL 5015, plastic coated.
Each shelf has 5 steel tubes.
External dimensions

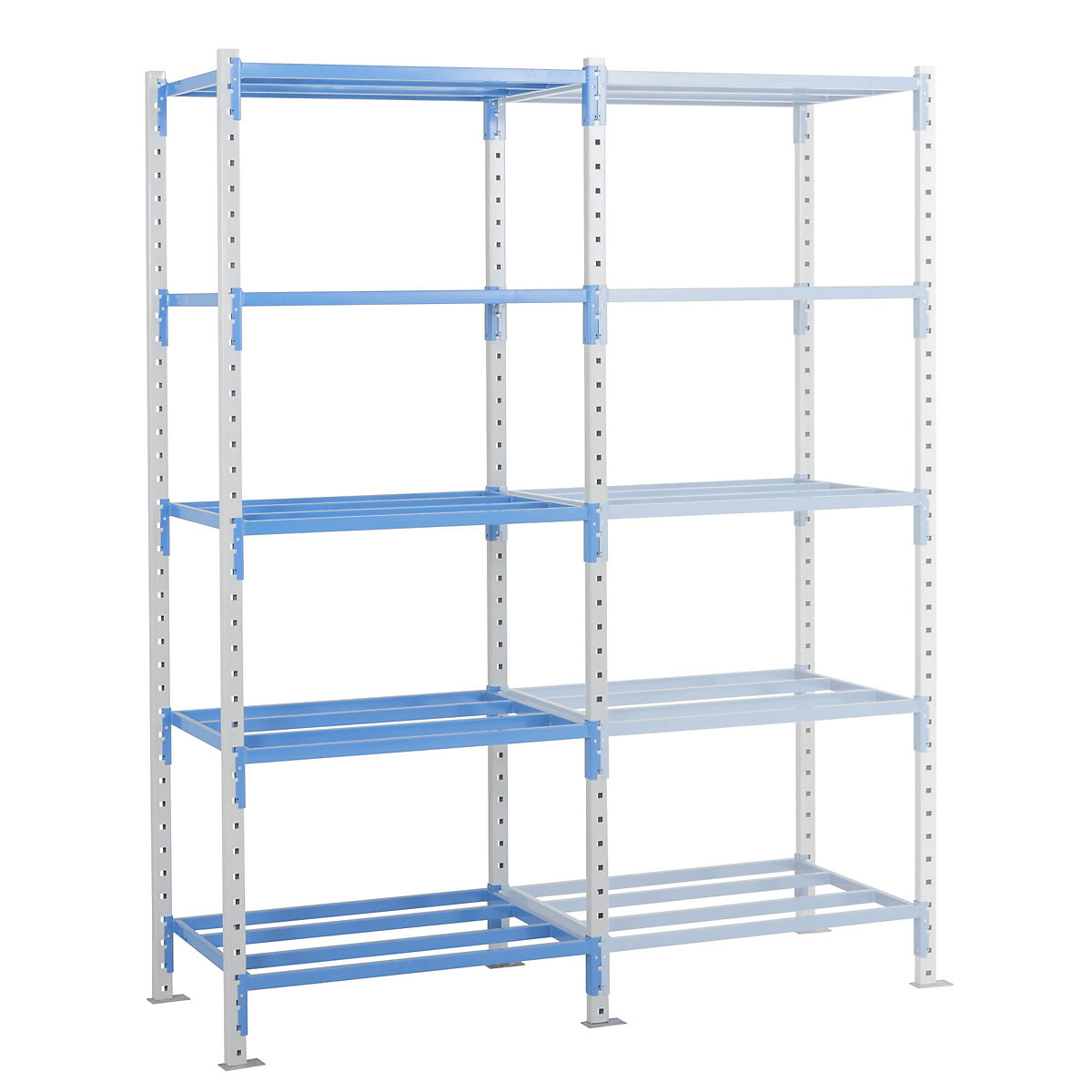

Shelf unit width
Standard shelf unit: 1060 mm + 1310 mm.

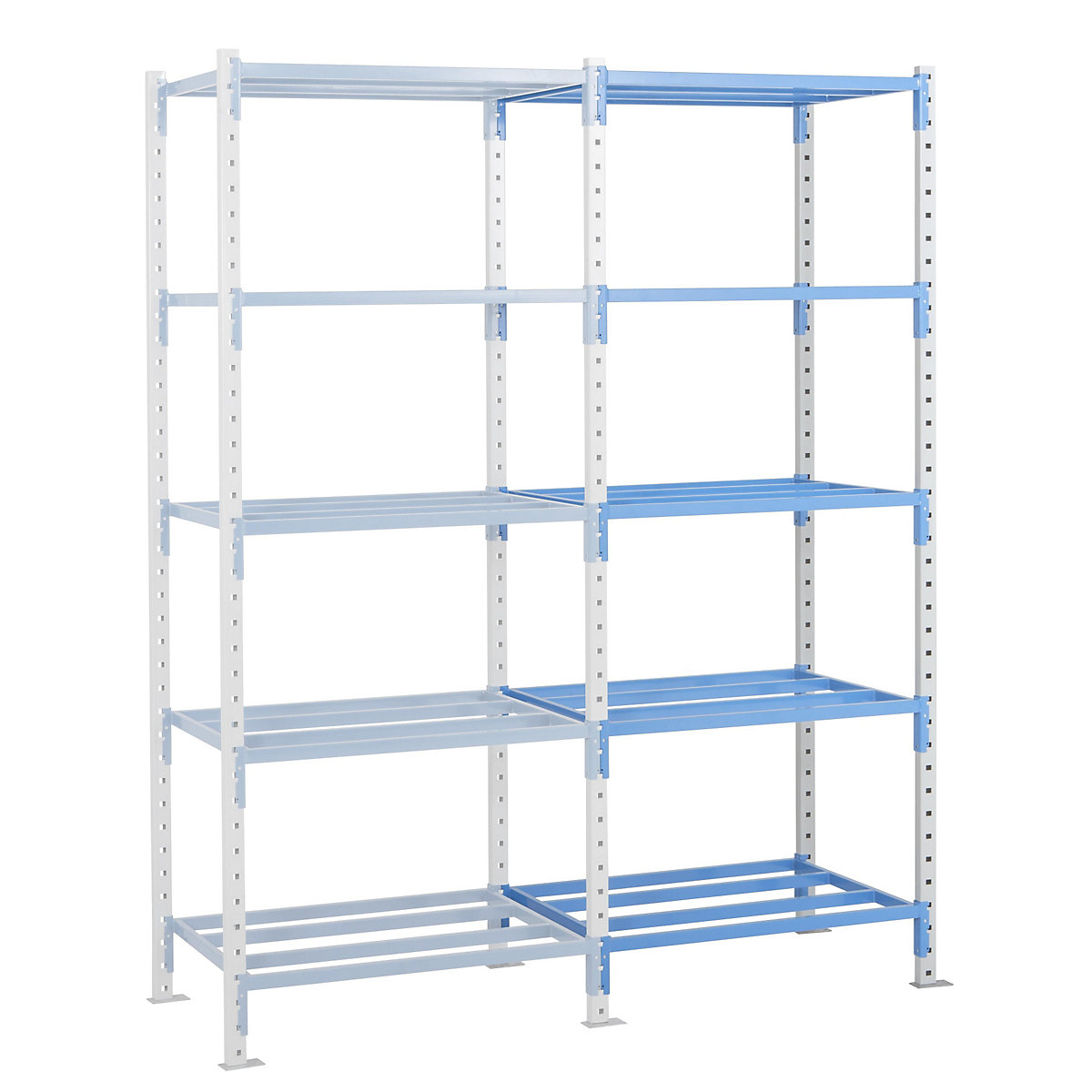

Extension shelf unit: 1010 mm + 1260 mm.
Shelf unit width incl. foot plates
Standard shelf unit: 1120 mm + 1370 mm.
Extension shelf unit: 1010 mm + 1260 mm.
Shelf unit depth
Shelf depth + 10 mm.
Shelf unit depth incl. foot plates
Shelf unit depth + 20 mm.

Upright profile width: 50 mm
Upright profile depth: 30 mm
The specified max. load values are applicable with uniform load distribution. Additional shelves may be used if the specified max. bay load is observed.
Technical data
Colourlight grey RAL 7035 sky blue RAL 5015
Max. bay load2500 kg
Shelf height adjustment increments62.5 mm
Shelf materialrectangular steel pipe plastic coated
Designplug in
Materialsteel
Finishplastic coated
Shelf unit designdouble sided
Shelf unit fittingswithout rear panel
Width of upright profile50 mm
Depth of upright profile30 mm
Product typeboltless shelving units
Suppliedflat pack
