Ref.: 805504 10
Tool trolley 2004 – GEDORE 9 drawers
HxWxD 1020 x 865 x 605 mm
Ref.: 805504 10
Tool trolley 2004 – GEDORE 9 drawers
HxWxD 1020 x 865 x 605 mm
HxWxD 1020 x 865 x 605 mm
New
on request
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?on request
Price / item (Excl. VAT)
Product description
- Each drawer with individual locking
- Wide drawers with full extension
- High max. drawer load of 40/60 kg
- Easy to move, manoeuvrable and directional stability due to Gedore steering and driving handle

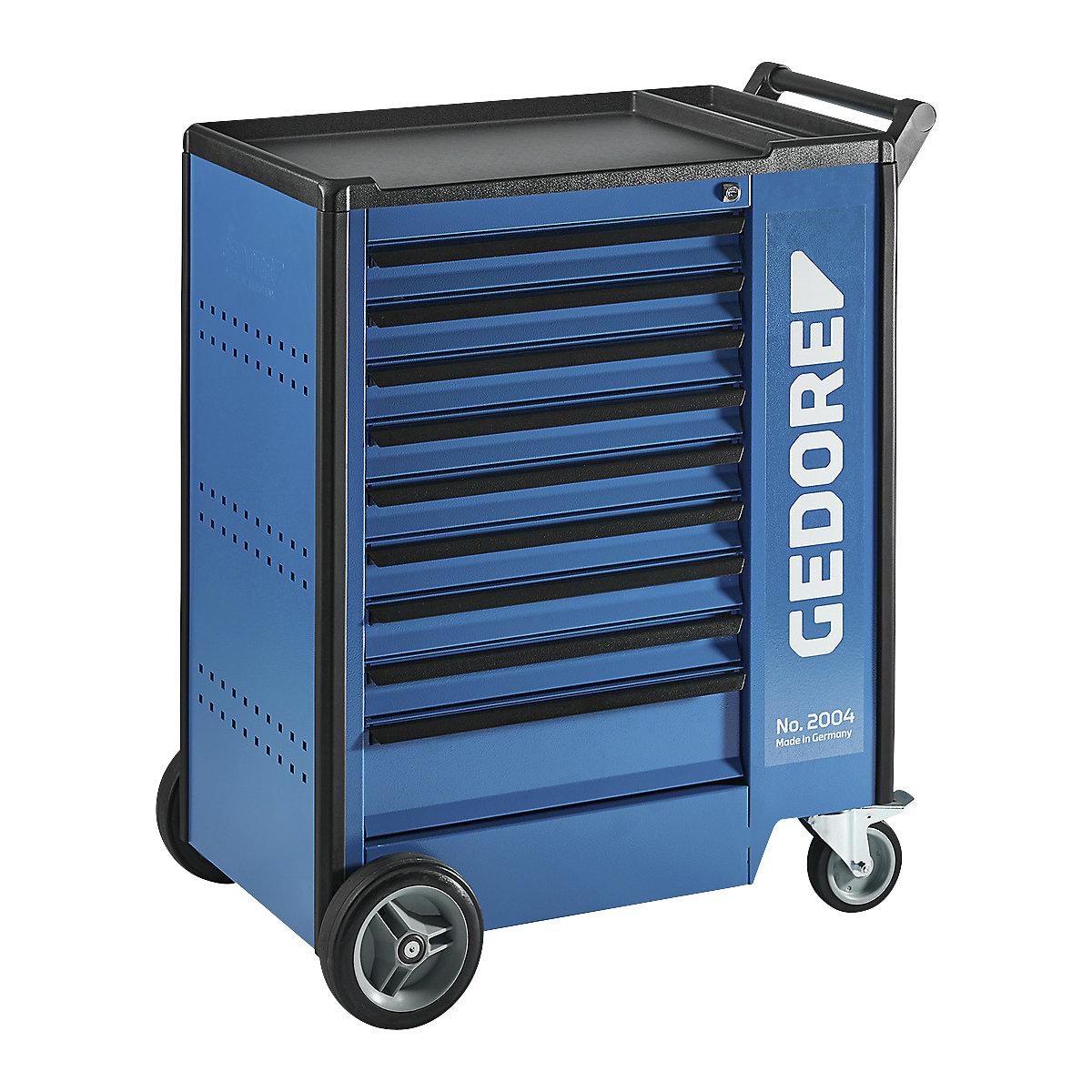

The Gedore 2004 tool trolley is specifically designed for professional use and provides a wide range of technical features that make your work processes safer and more efficient. It is made of high quality, scratch resistant and corrosion resistant sheet steel in GEDORE blue.
The drawers (width x depth 480 x 400 mm) run on ball bearing mounted full extensions. Each drawer can be loaded with up to 40 kg, the 207 mm high drawer has a max. load of up to 60 kg and the total max. load of the trolley is 750 kg (dynamic).
For optimum mobility and stability, the trolley is equipped with two high performance, roller bearing mounted fixed castors (Ø 200 mm) with two ball bearing mounted swivel castors (Ø 125 mm, one with wheel stop).
The safety locking system ensures precise locking of the drawers during mobile use.

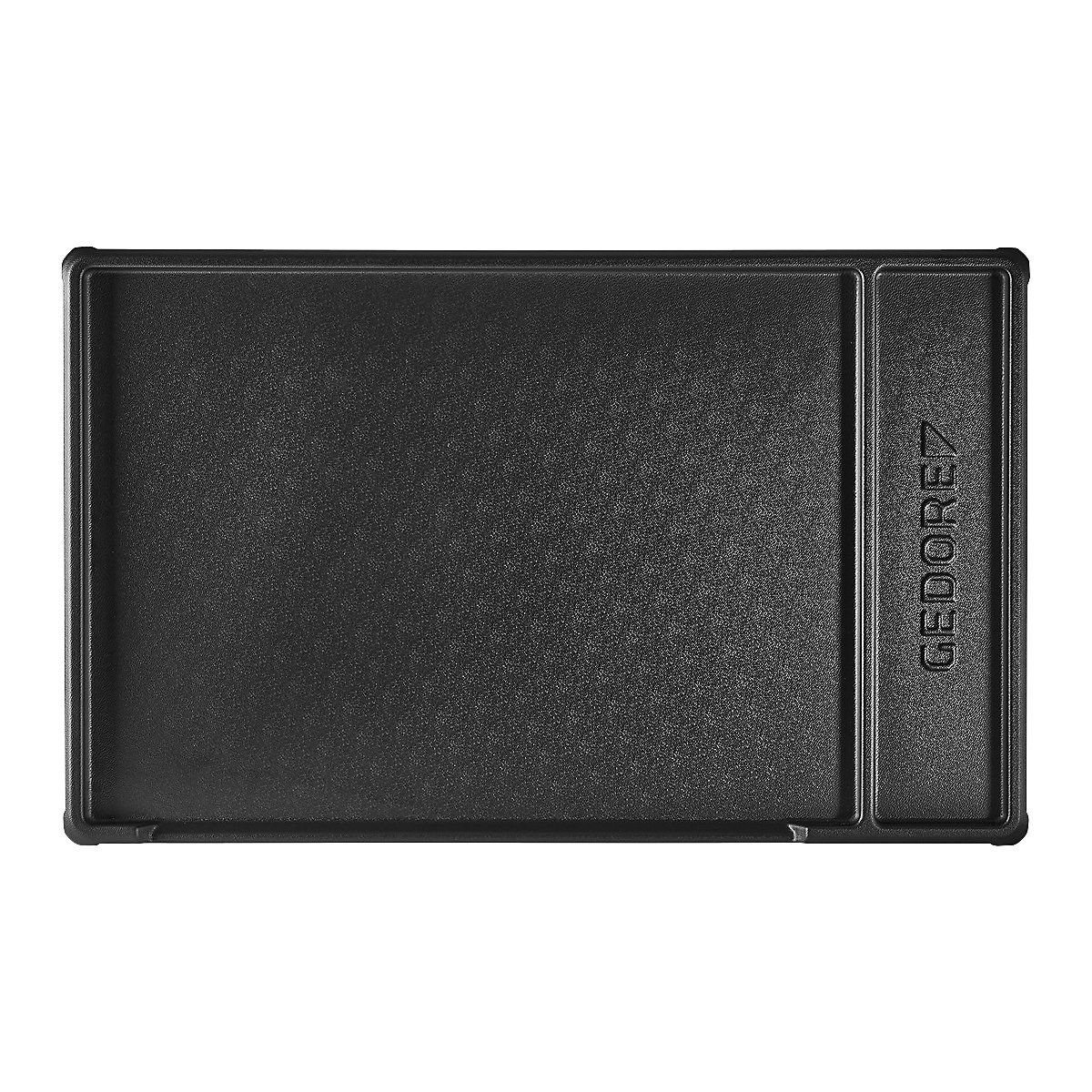

The top cover made of ABS plastic is oil and acid resistant and has three integrated moulds as small parts compartments and a raised edge.

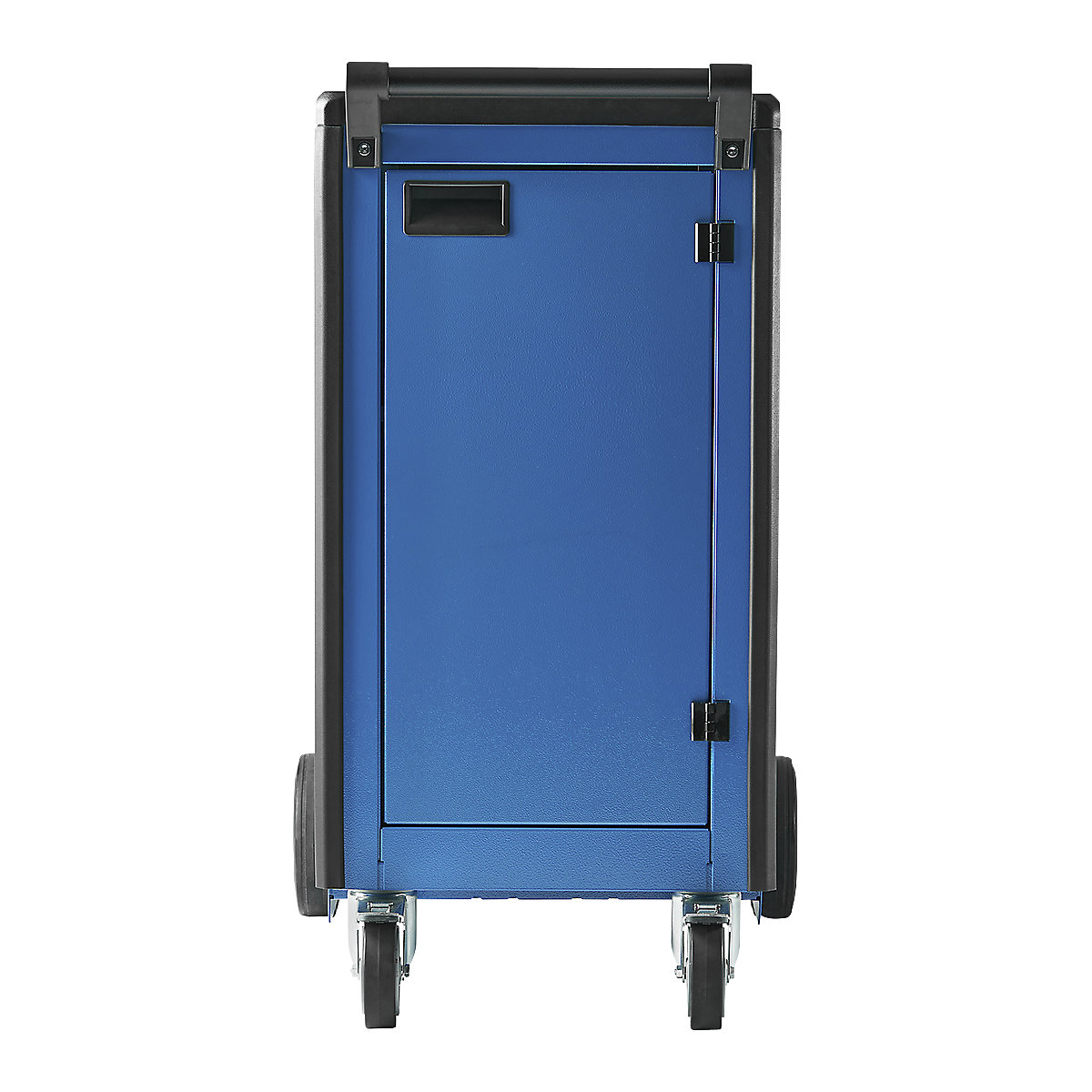

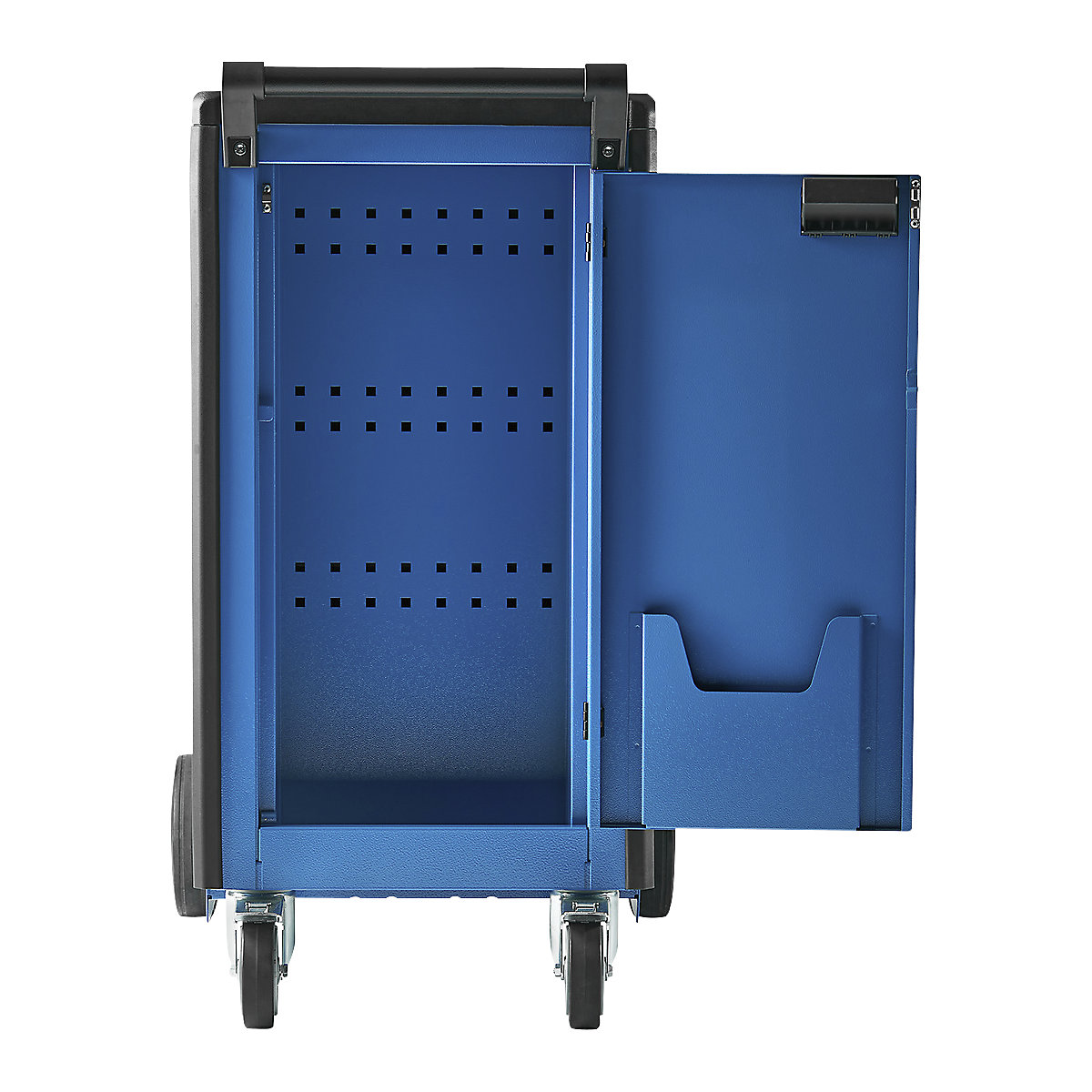

Additional storage space is provided by the lockable storage compartment at the side with four removable small parts drawers and perforated panel to which accessories and tools can be attached.
9 drawers: 8 drawers, height 67 mm, 1 heavy duty drawer, height 207 mm.
The drawers (width x depth 480 x 400 mm) run on ball bearing mounted full extensions. Each drawer can be loaded with up to 40 kg, the 207 mm high drawer has a max. load of up to 60 kg and the total max. load of the trolley is 750 kg (dynamic).
For optimum mobility and stability, the trolley is equipped with two high performance, roller bearing mounted fixed castors (Ø 200 mm) with two ball bearing mounted swivel castors (Ø 125 mm, one with wheel stop).
The safety locking system ensures precise locking of the drawers during mobile use.
The top cover made of ABS plastic is oil and acid resistant and has three integrated moulds as small parts compartments and a raised edge.
Additional storage space is provided by the lockable storage compartment at the side with four removable small parts drawers and perforated panel to which accessories and tools can be attached.
9 drawers: 8 drawers, height 67 mm, 1 heavy duty drawer, height 207 mm.
Technical data
| Number of drawers | 9 pcs. |
|---|---|
| Drawer height | 8 x 67, 1 x 137 mm |
| Max. drawer load | 40 kg |
| Height | 1020 mm |
| Width | 865 mm |
| Depth | 605 mm |
| Body colour | blue |
| Drawer colour | blue |
| Wheel fittings | 2 fixed castors, 2 swivel castors with stops |
| Fixed castor diameter | 200 mm |
| Swivel castor diameter | 125 mm |
| Product type | tool trolleys |
| Supplied | assembled |
| Weight | 95 kg |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
