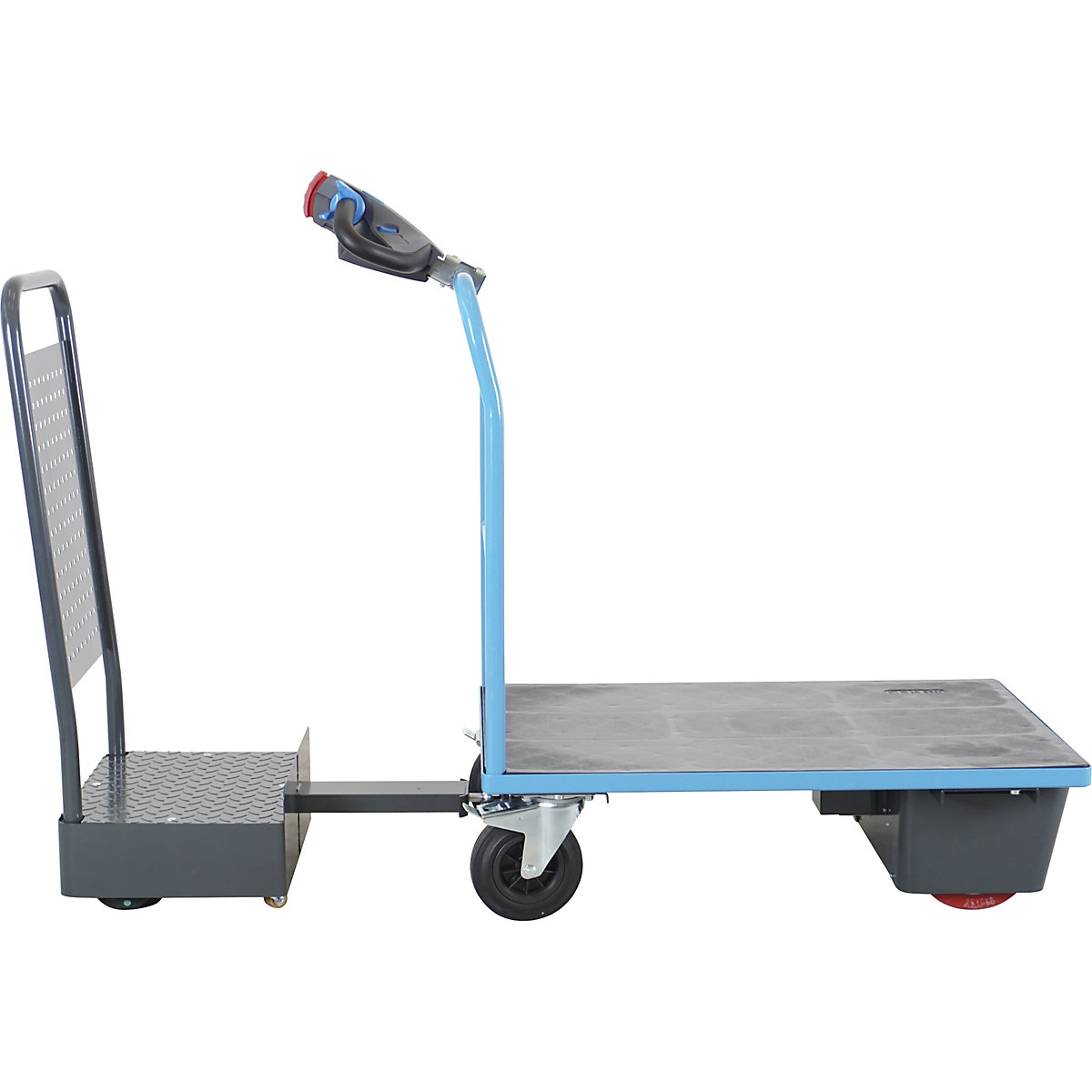

Platform truck with electric drive – eurokraft pro with driver's platform

The platform trolley with electric drive and operator platform, complete with powerful lithium-ion battery and charger. Wireless – the drive is controlled via Bluetooth via the tiller head. Promote ergonomic workflows in the workplace for the well-being of your employees, as heavy loads can be transported easily, ergonomically, and efficiently. Particularly suitable for industry, manufacturing companies, and warehouses.

Operator Platform

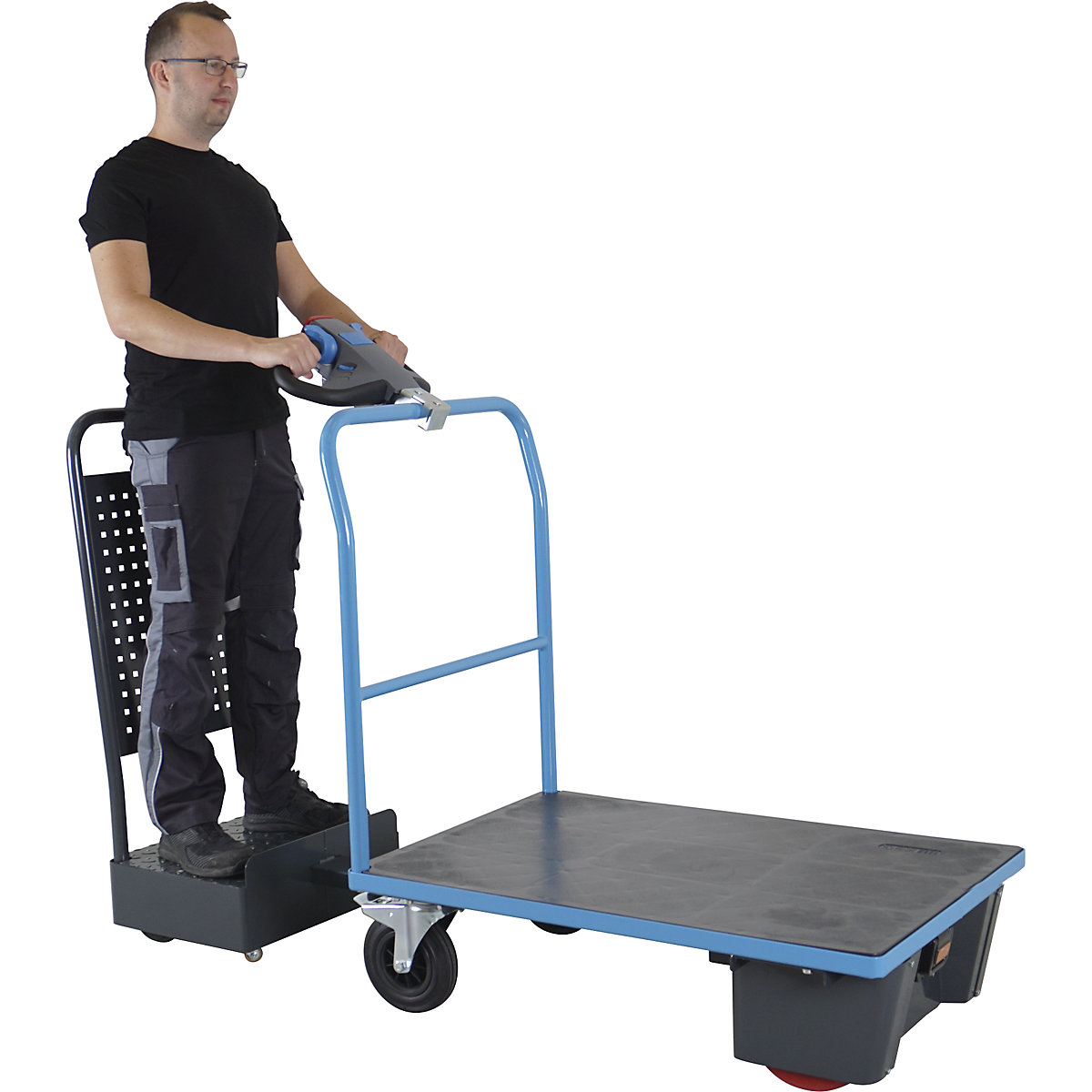

The operator platform is designed for the E-module series and allows a person to drive with a transport trolley and electric drive, on which the goods are transported. The operator stands securely on the platform, controls the electric drive directly via the tiller head, and thus moves effortlessly with the trolley. This reduces walking distances, minimises physical strain, and makes workflows in warehouses and production significantly more efficient.

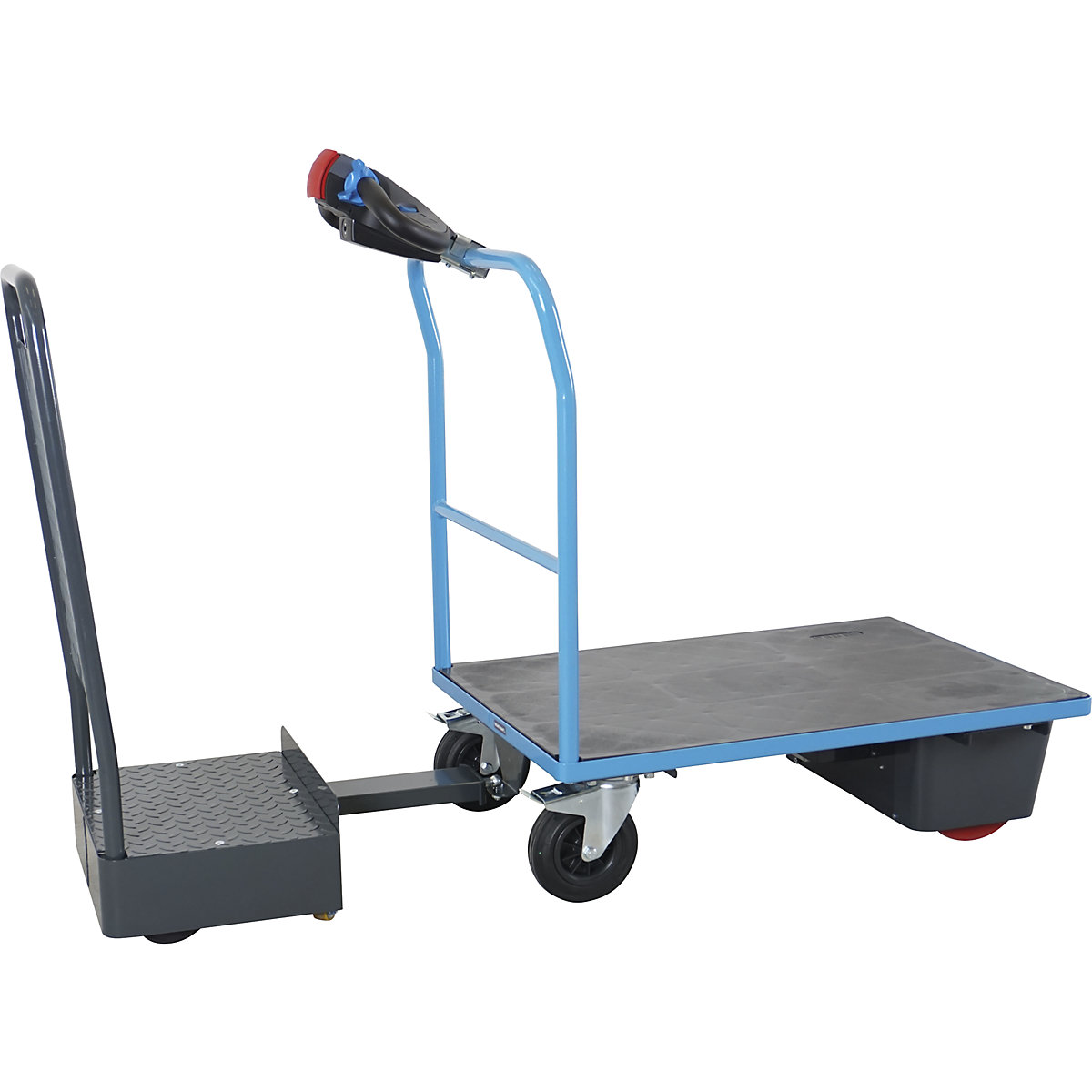

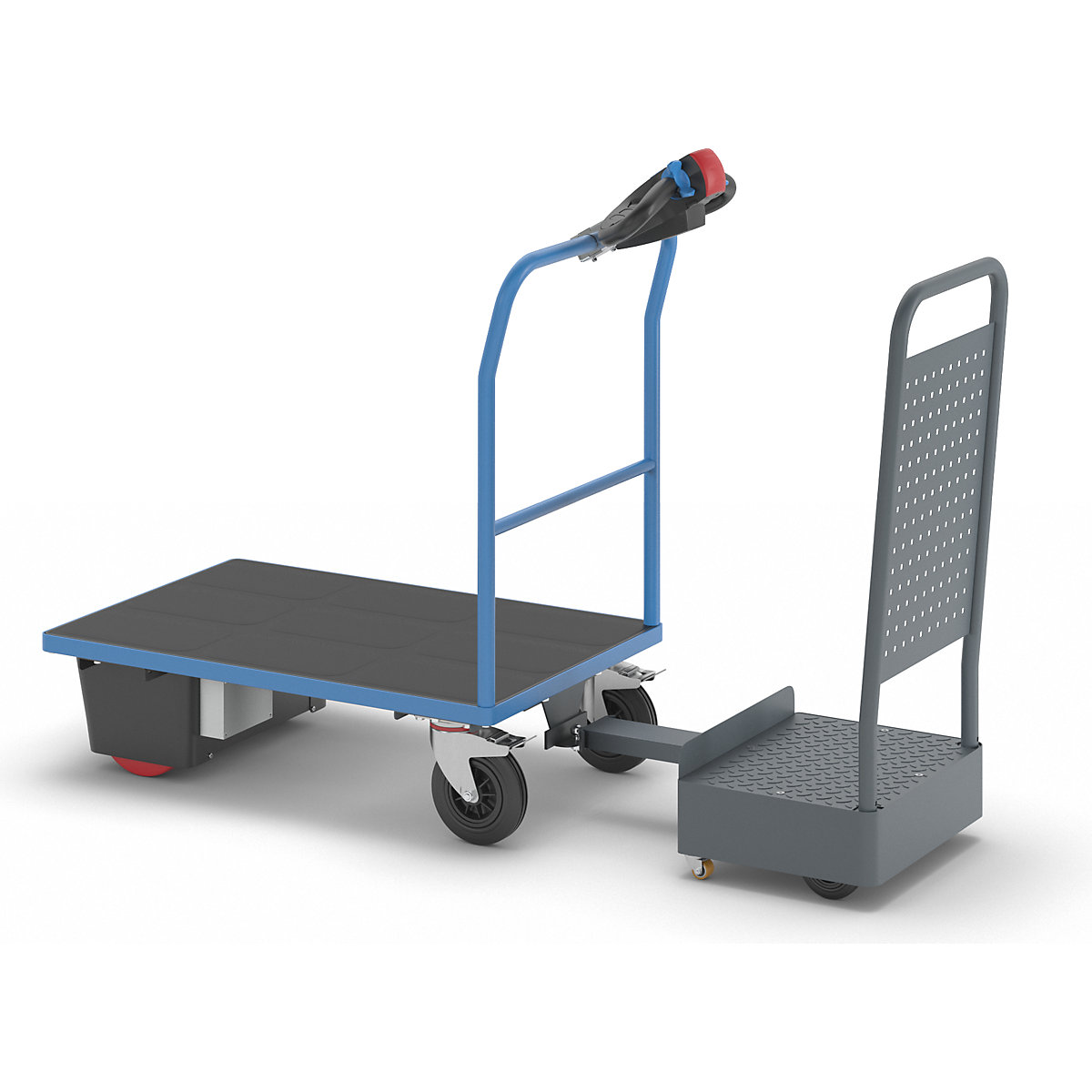

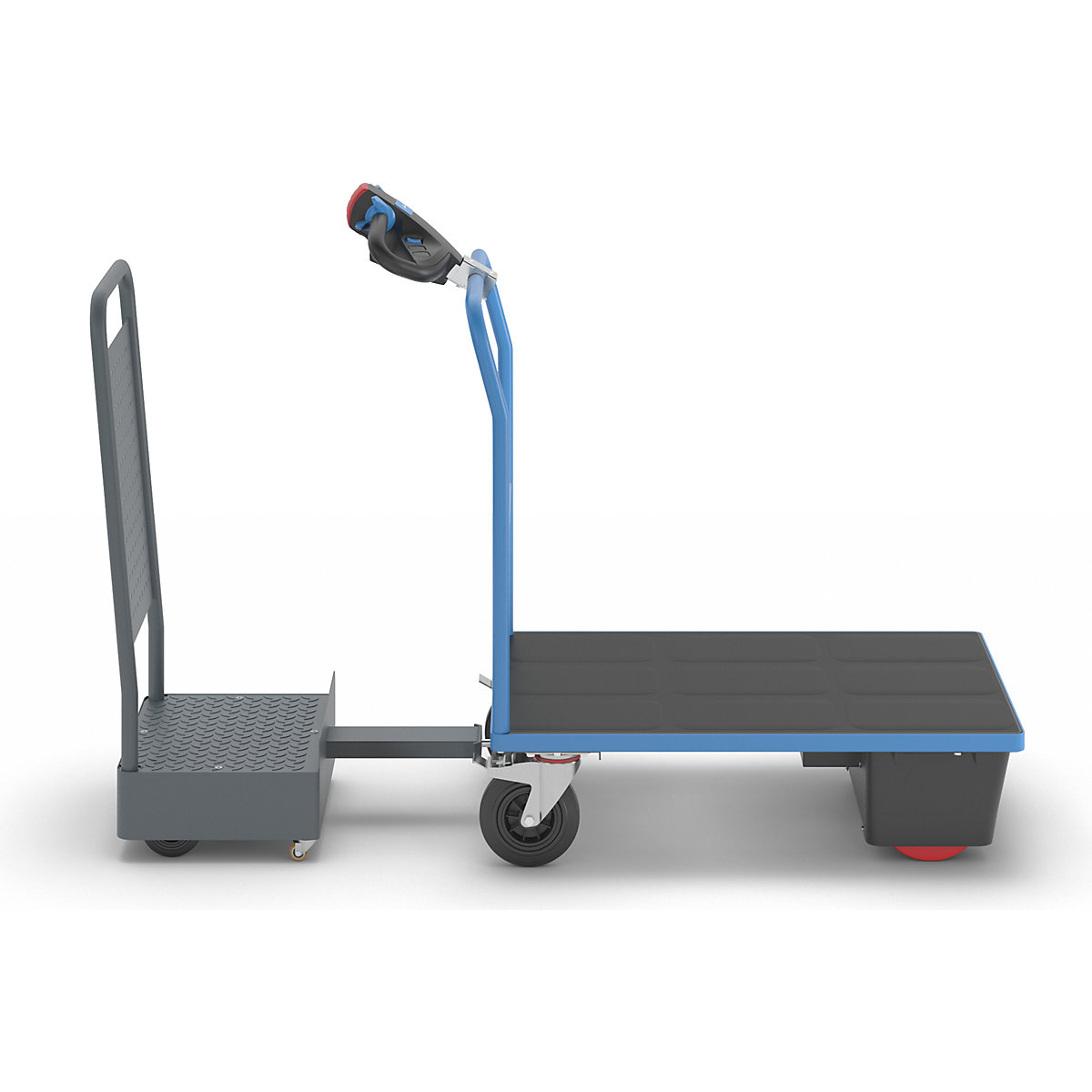

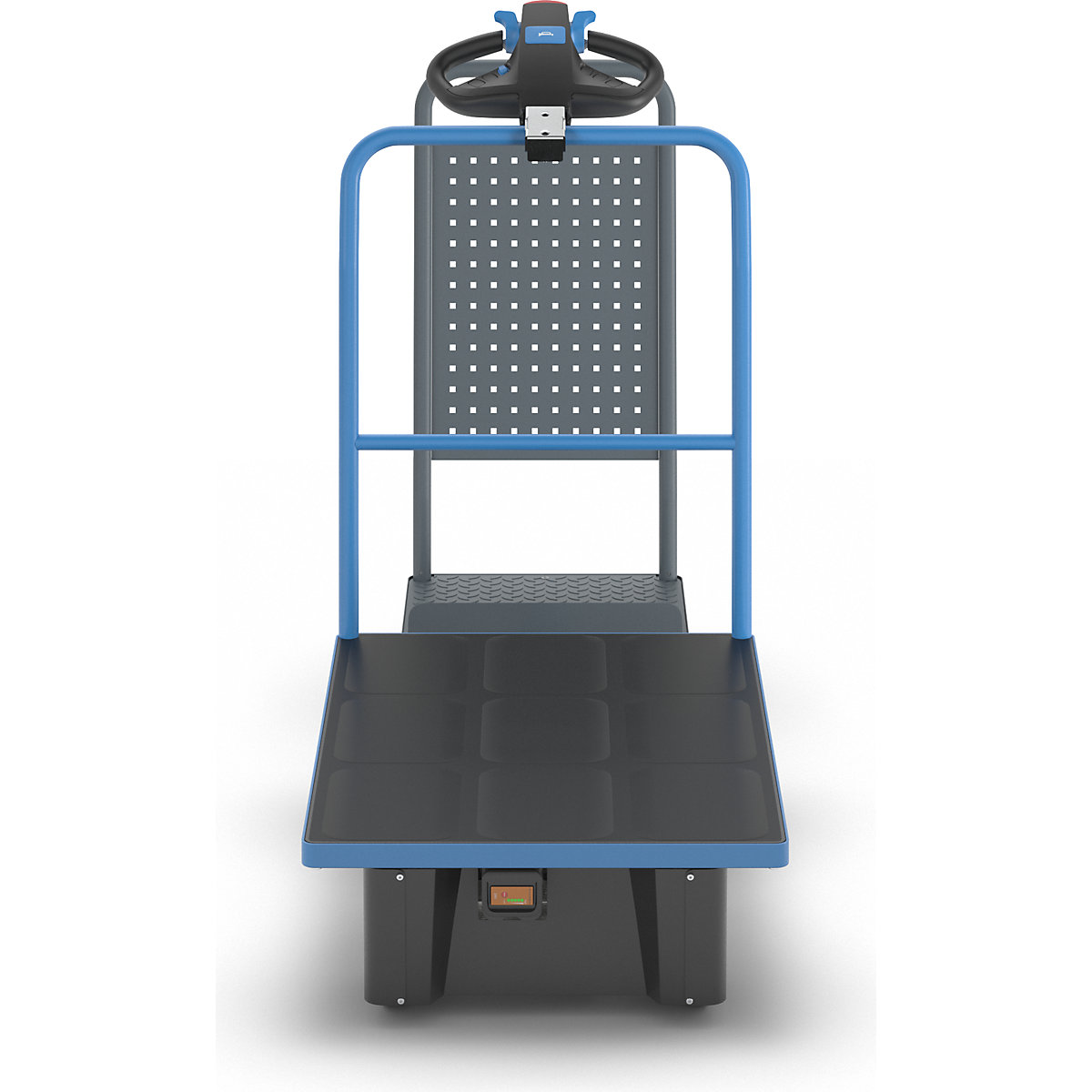

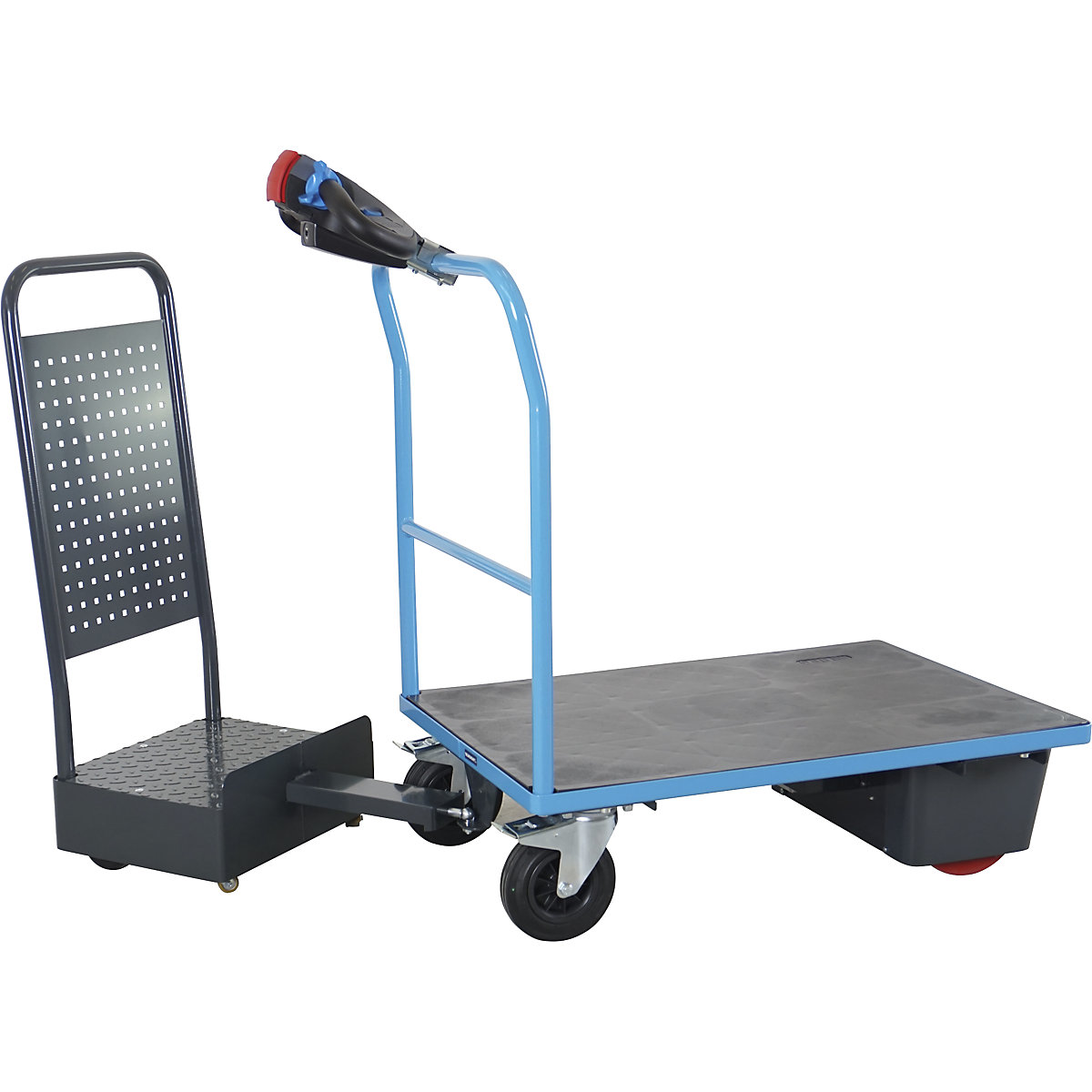

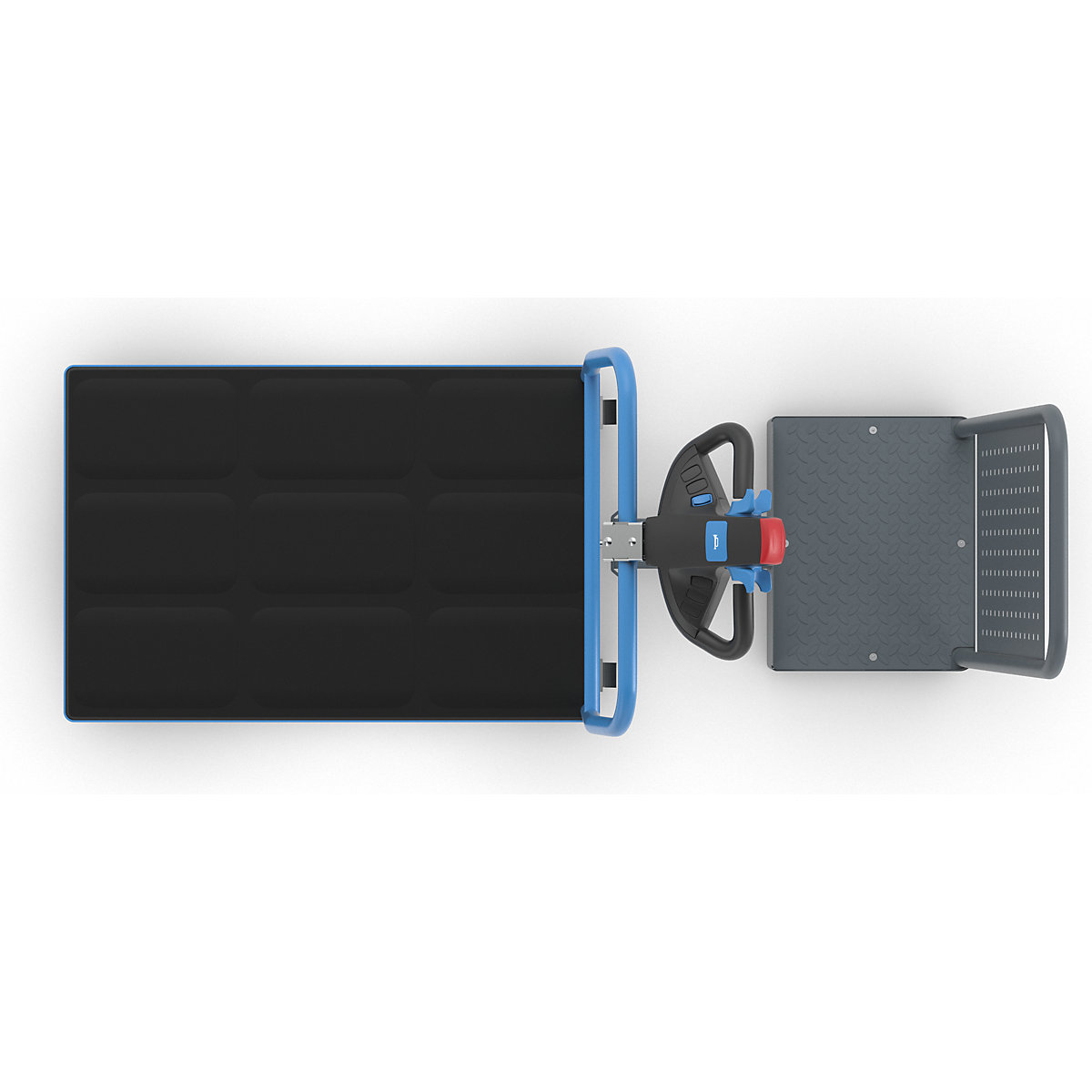

The operator platform is connected to the transport trolley via an angle ball joint and can be easily assembled or disassembled if required – use without the operator platform is also possible. The ergonomic control via the tiller head ensures easy steering behaviour: the system is very manoeuvrable, track-stable, and tip-proof. The operator platform is equipped with non-slip checker plate, step-over protection, and all-round foot protection. The tubular bar with perforated sheet metal back panel ensures safe driving. The load capacity is a maximum of 500 kg for the transport trolley and 150 kg for the operator platform. When using the operator platform, the load capacity of the trolley is reduced by the weight of the person to at least 350 kg. The delivery is in a disassembled state; assembly is simple. Only usable in combination with the designated eurokraft pro transport trolleys.

E-module

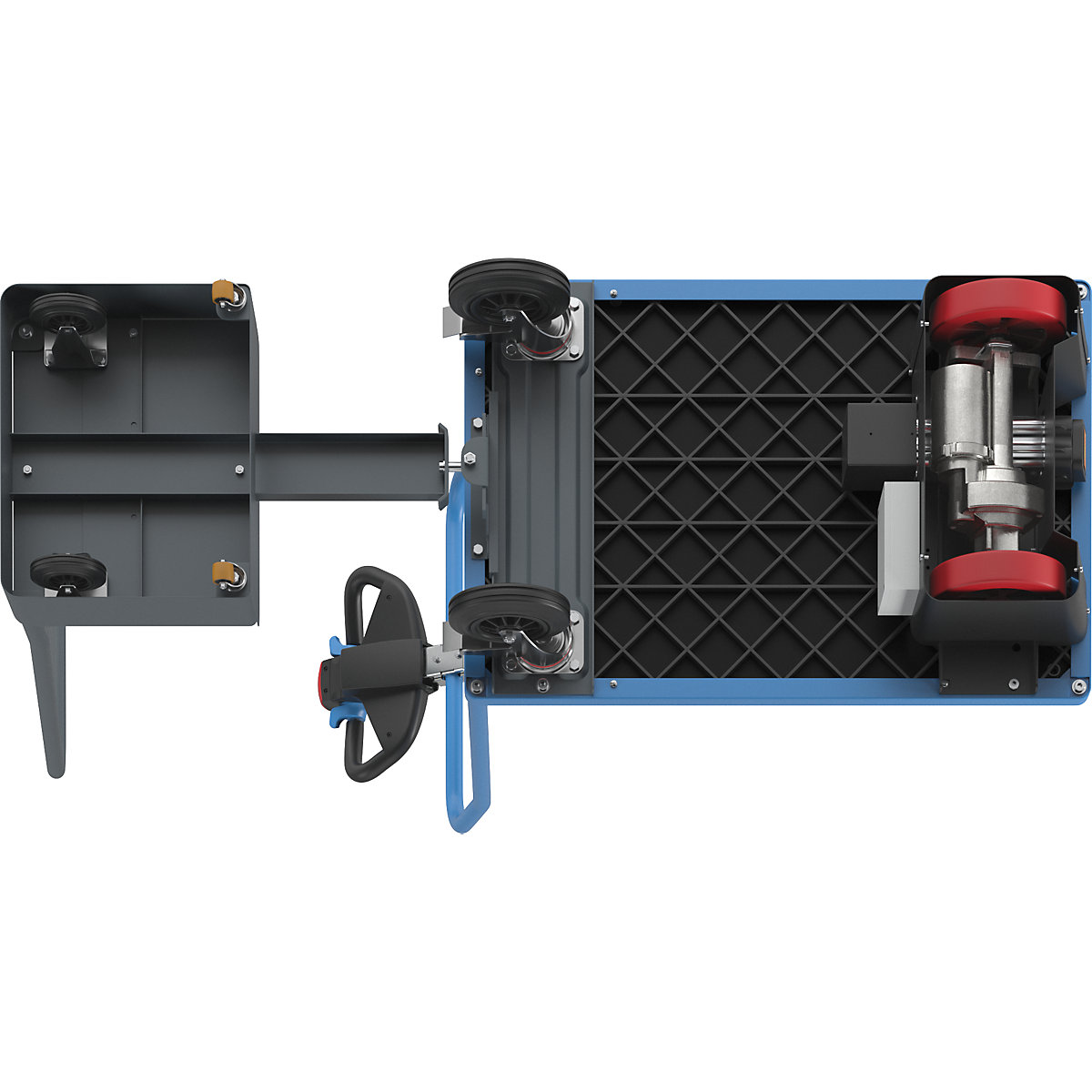

The E-module features intuitive operation with perfect control to easily transport loads up to 500 kg. The drive battery consists of a replaceable lithium-ion battery, whose charge status can be visually checked via a battery level indicator. The operating time is up to 8 hours per battery charge with average use. The replaceable battery system makes it possible to easily swap the empty battery for a full one to ensure uninterrupted operation. The connection between the tiller head and the drive is wireless via Bluetooth, which also enables use in fleet operations. The charging time is only 6 hours for a full charge.

The electric drive offers easy navigation, supported by fatigue-free operation thanks to the ergonomically shaped, multifunctional tiller head. Light steering is ensured by stable tubular handles, and stepless speed control is carried out via two thumb buttons, with a maximum speed of 4 km/h. If required, a creep speed can be activated, which allows for highly precise forward and reverse movement. Additional safety features include a warning function in the form of a horn on the tiller head, as well as a belly button which prevents pinching when reversing. The integrated foot protection ensures that there is no risk of pinching under the drive. The E-module does not require proof of competence for operation and features anti-theft protection through access control via a lock on the drive battery.
