Ref.: 839119 10
Gas cylinder trolley with automatic clamps for 1 cylinder with Ø 200 – 300 mm
max. load 150 kg
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 839119 10
Gas cylinder trolley with automatic clamps for 1 cylinder with Ø 200 – 300 mm
max. load 150 kg
max. load 150 kg
Ref.: 839119 10
Product not available
Currently not availableWe will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Lift, transport and put down gas cylinders safely and ergonomically, without a large amount of physical effort

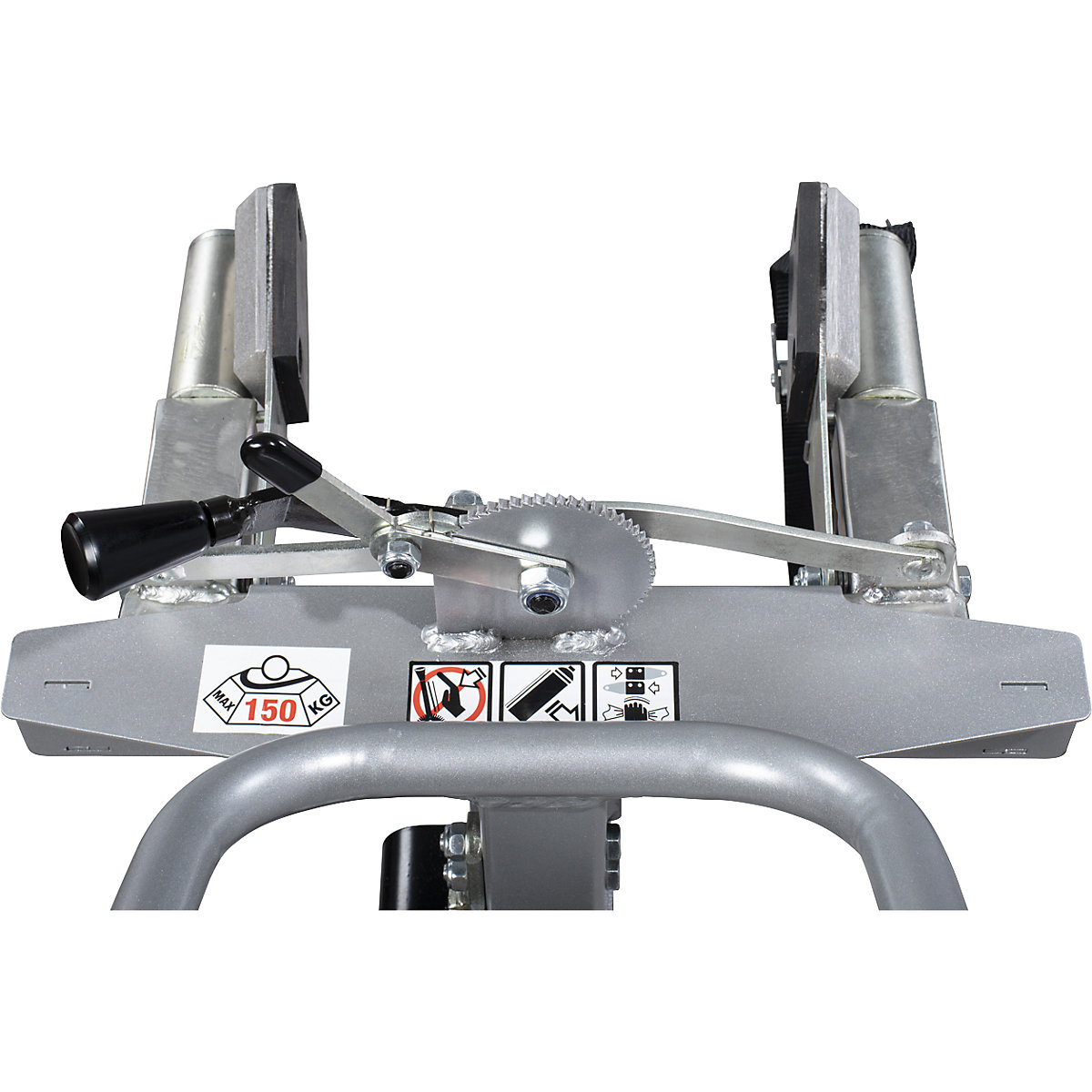

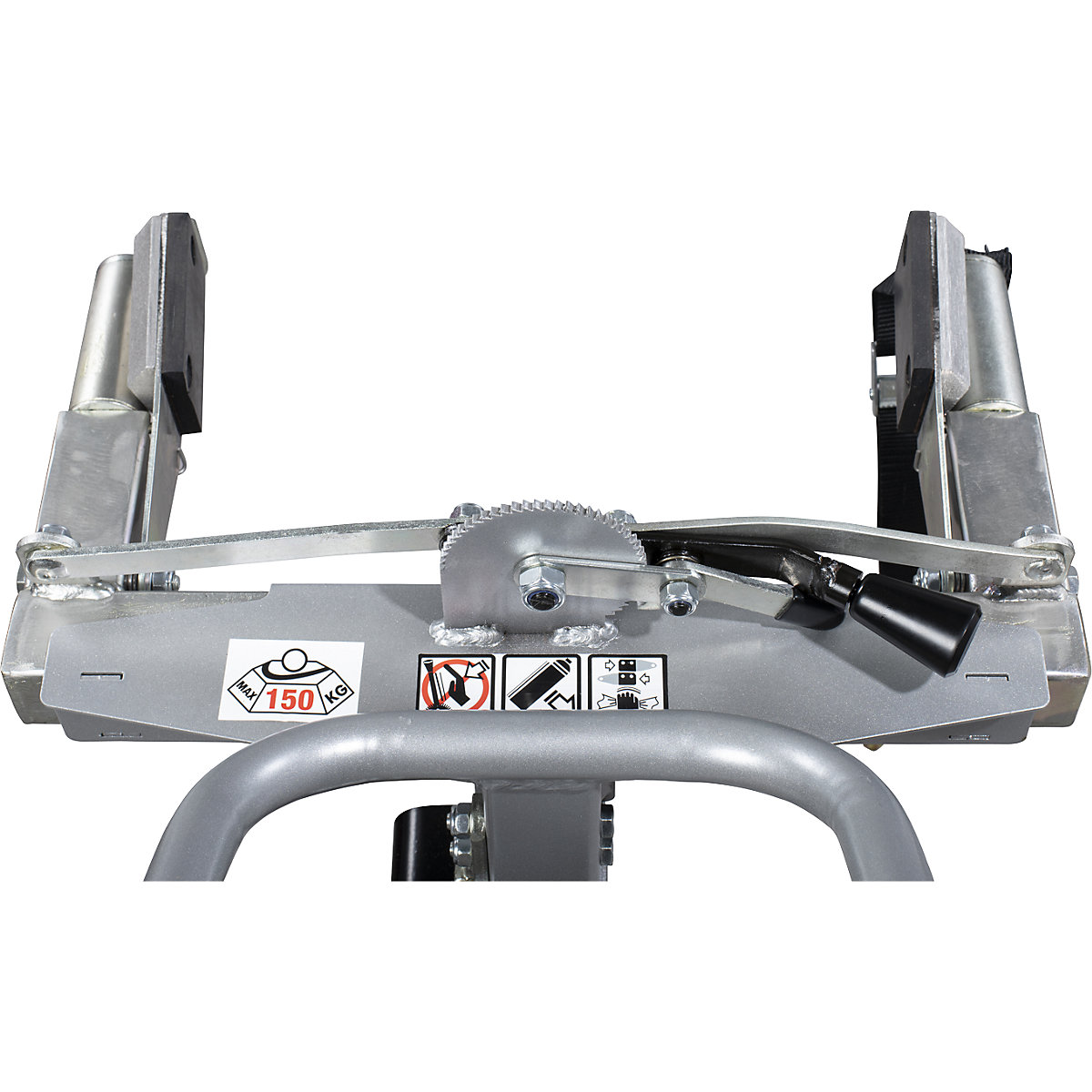

- Grasp and lift the bottle directly from the floor using the lifting winch and clamping jaws
- Automatic clamping and release when lifting and lowering the bottle
- Adjustable jaw spacing to adapt to the cylinder size
- The cylinder can also be picked up and set down on higher shelves
- Effortless and comfortable travel due to the large wheels
- Ideal for the user when there are many repetitions/movements

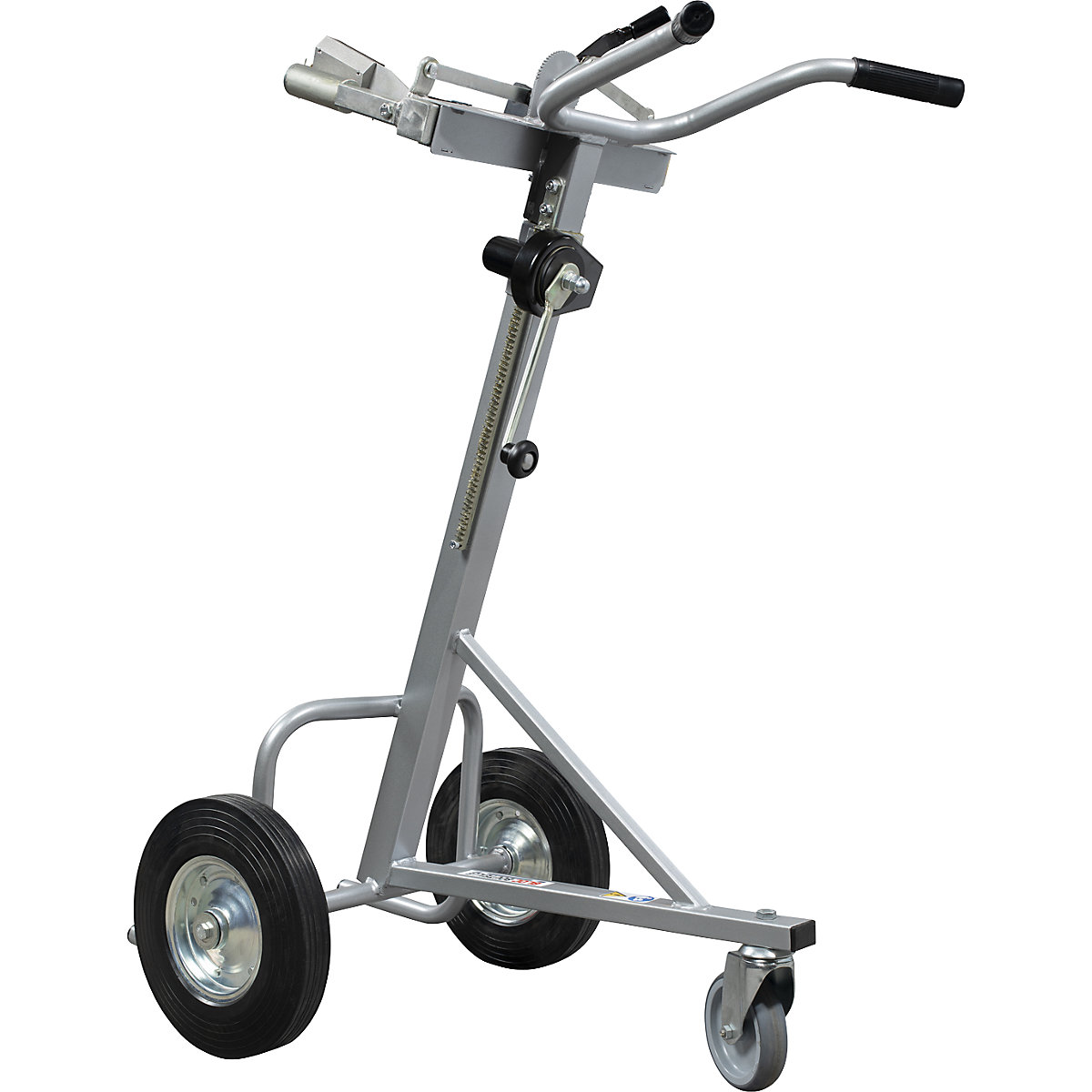

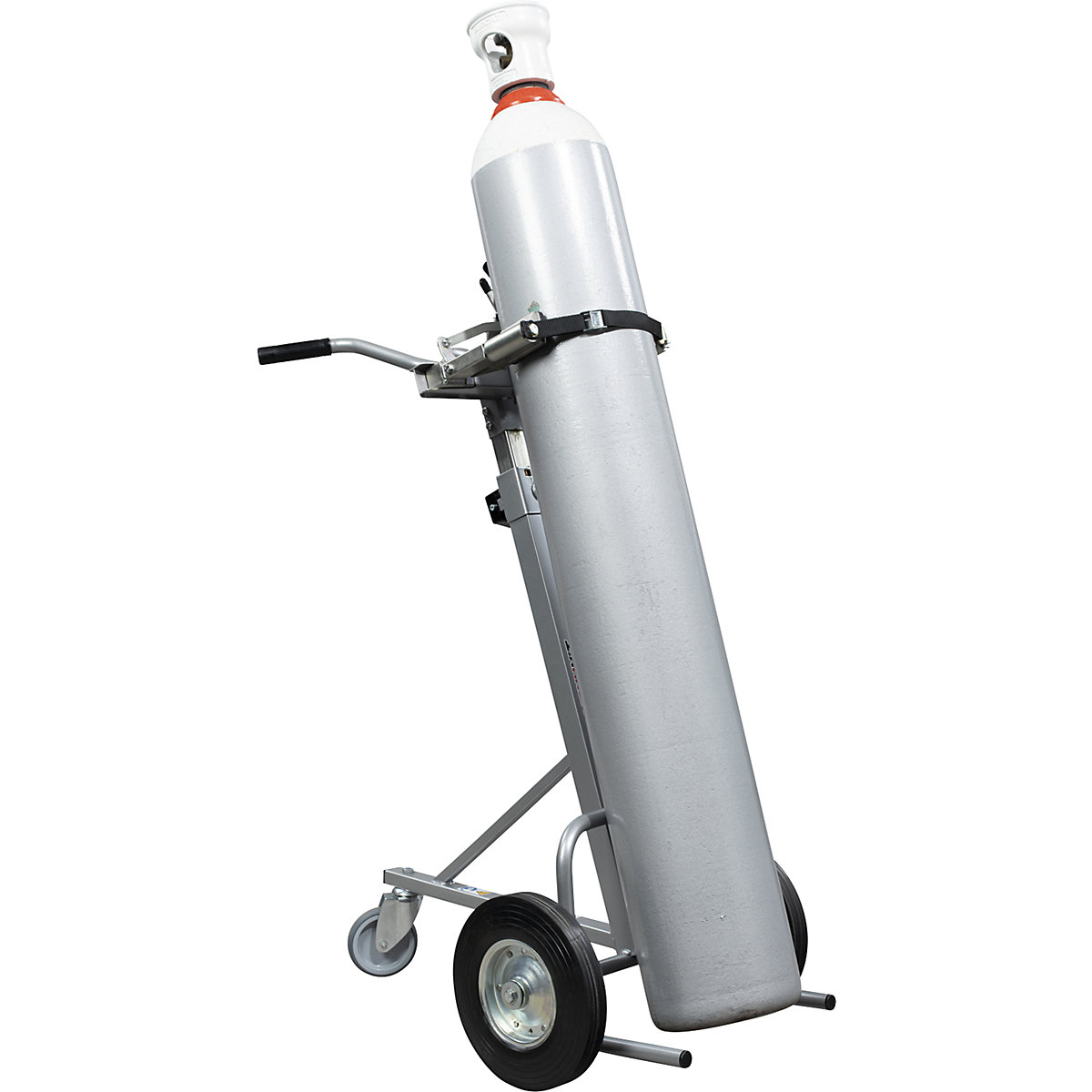

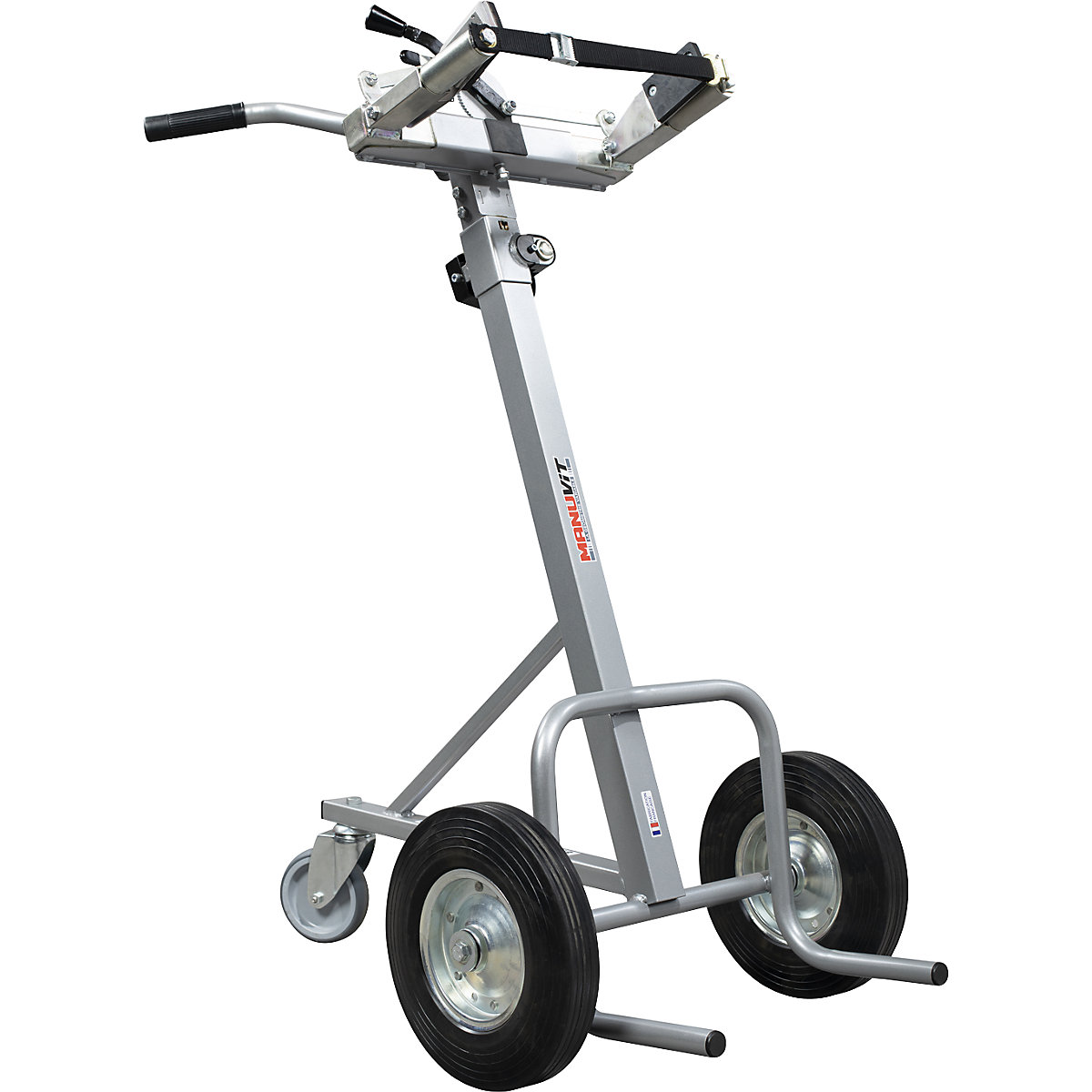

This innovative sack truck provides an ergonomic and safe solution for handling gas cylinders with a maximum weight of 150 kg. Equipped with a patented lifting system, it minimises the physical effort required by this activity considerably. The height adjustable lifting mast that uses a lifting winch means it is suitable for diverse cylinder diameters from 200 – 300 mm. The lifting height makes it easy to put cylinders in place, or remove them, without having to lift them. The cylinders can be picked up directly from the floor. The clamping jaws secure the cylinder. Gas cylinders can also be placed directly on and removed from raised surfaces, such as pallets, with ease. The support leg with one swivel castor and two large rubber castors (300 mm) ensures effortless and easy transport of the gas cylinders.
Technical data
Number of cylinders | 1 pcs. |
---|---|
For cylinder diameter | 200 – 300 mm |
Height | 1247 mm |
Width | 554 mm |
Max. load | 150 kg |
Material | sheet steel |
Finish | painted |
Colour | light grey |
Wheel type | solid rubber |
Wheel diameter | 300 mm |
Fittings | with clamping jaws and lifting winch |
Support wheel diameter | 125 mm |
Product type | steel cylinder trucks |
Supplied | assembled |
Weight | 26 kg |
Instructions |
