Ref.: 523527 10

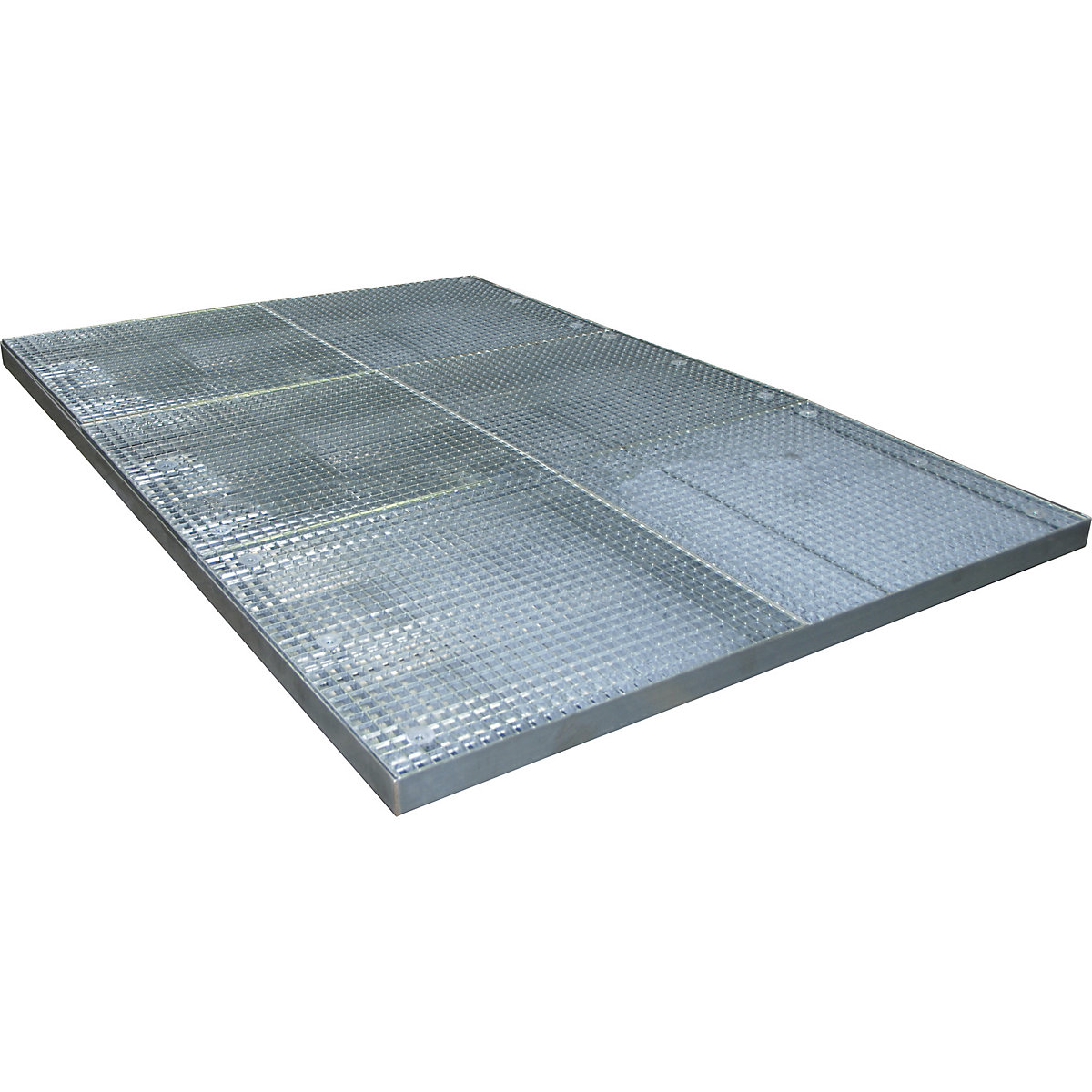

Low profile steel sump tray – eurokraft pro width 1900 mm
(1)
length 2850 mm, capacity 242 l
Ref.: 523527 10
Low profile steel sump tray – eurokraft pro width 1900 mm
(1)
length 2850 mm, capacity 242 l
length 2850 mm, capacity 242 l
€ 1,745.00
Price / item (Excl. VAT)
Delivery time: up to 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 1,745.00
Price / item (Excl. VAT)
Product description
- Easily driven over, minimal space required, large trays
- Can be easily accessed and driven over with drum trucks, pallet trucks, forklifts etc. due to particularly low overall height of only 78 mm
- Large footprint – large areas can be covered with only a few trays – and are thus cost effective as well
- Minimal space requirement due to narrow ramps (see accessories)
- Approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4
Made of hot dip galvanised 3 mm sheet steel.
Includes removable, hot dip galvanised grates.
Max. wheel load 500 kg, max. load 5000 kg/m² (distributed load).
Suitable for the storage of 200 litre drums.
Includes removable, hot dip galvanised grates.
Max. wheel load 500 kg, max. load 5000 kg/m² (distributed load).
Suitable for the storage of 200 litre drums.
Tray with 242 litre sump capacity is suitable for the storage of 200 litre drums.
10 year guarantee
For water hazardous liquids
For flammable liquids
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Sump capacity | 242 l |
| Length | 2850 mm |
| Width | 1900 mm |
| Height | 78 mm |
| Material | sheet steel |
| Finish | hot dip galvanised |
| Colour | hot dip galvanised |
| Design of sump tray | can be walked/driven on |
| Max. load | 5000 kg/m² |
| Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Distributed load | 5000 kg/m² |
| Max. wheel load | 500 kg |
| Certification | with |
| Product type | floor protection trays |
| Supplied | assembled |
| Weight | 347 kg |
