Ref.: 829345 10

Hook-in sump tray – eurokraft pro with PE insert and grate

Hook-in sump tray – eurokraft pro
Hook-in sump tray – eurokraft pro, with PE insert and grate, LxWxH 3265 x 1265 x 115 mm, hot dip galvanised-0

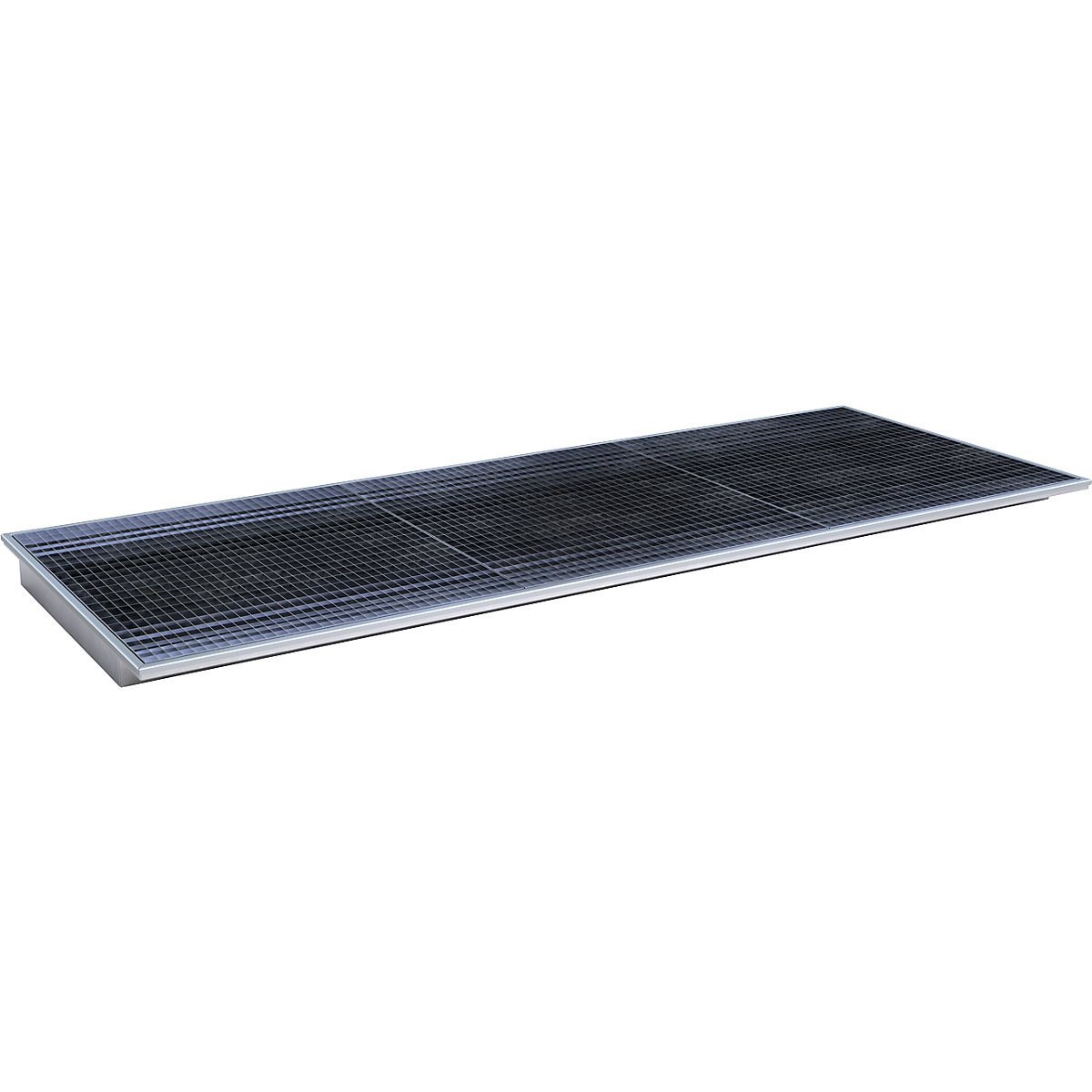

Hook-in sump tray – eurokraft pro (Product illustration 2)-1

LxWxH 3265 x 1265 x 115 mm, hot dip galvanised

Sump capacity [l]
Length [mm]
Height [mm]
Finish
Colour
New
on request
Price / item (Excl. VAT)
Delivery time: 9-10 Week Delivery
Product description
  • Convert existing shelving systems into regulation compliant hazardous goods storage shelving
  • For the storage of aggressive media
  • Easy to place on the support profiles of shelving systems
  • Max. load 1000 kg/m² (with evenly distributed load)
You can quickly and economically convert existing shelving systems into regulation compliant hazardous goods storage with these shelf sump trays.

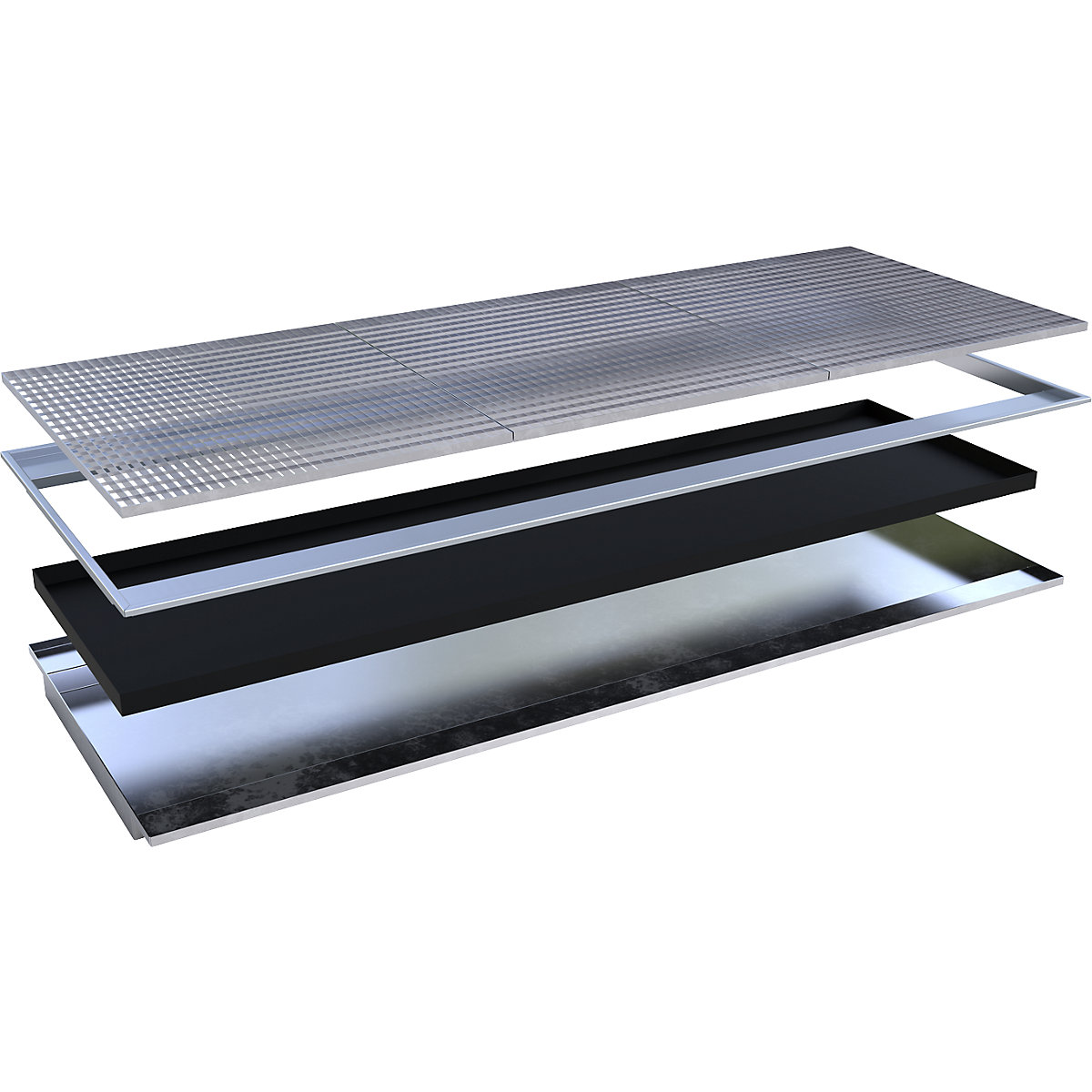

Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.

This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.

Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.

For placement on the cross beams or suspension in the shelf unit. Distance between cross beams 915 mm.
10 year guarantee
10 year guarantee
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
Type of gratewith zinc plated grate
Width1265 mm
Materialsheet steel polyethylene
Max. load1000 kg/m2 kg
Test symbolmanufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin
Material thickness3 mm
For mediaflammable liquids flammable and water hazardous liquids acids, alkalis, corrosive media
Hazard classfor flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1
Certificationwith
Product typeshelf sump trays shelving unit hook-in sump trays
Suppliedassembled
Sump capacity175 l
Length3265 mm
Height115 mm
Finishhot dip galvanised
For width3300 mm
Weight246 kg
