Ref.: 841954 10
Crane arm – Eichinger telescopic and height adjustable
560 – 2500 kg, pure orange
Max. load from – to [kg]
Colour
Ref.: 841954 10
Crane arm – Eichinger telescopic and height adjustable
560 – 2500 kg, pure orange
560 – 2500 kg, pure orange
Max. load from – to [kg]
Colour
New
on request
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?on request
Price / item (Excl. VAT)
Product description
- Height adjustable in 3 steps up to 45°
- Telescopic in 7 steps
- Extends the reach of a forklift as a mobile crane
- Including 2 rotatable swivel hooks
- Bolt securing directly on the mast for the utilization of the stacker max. load
- Practical stand
- TÜV-certified (GS Mark)

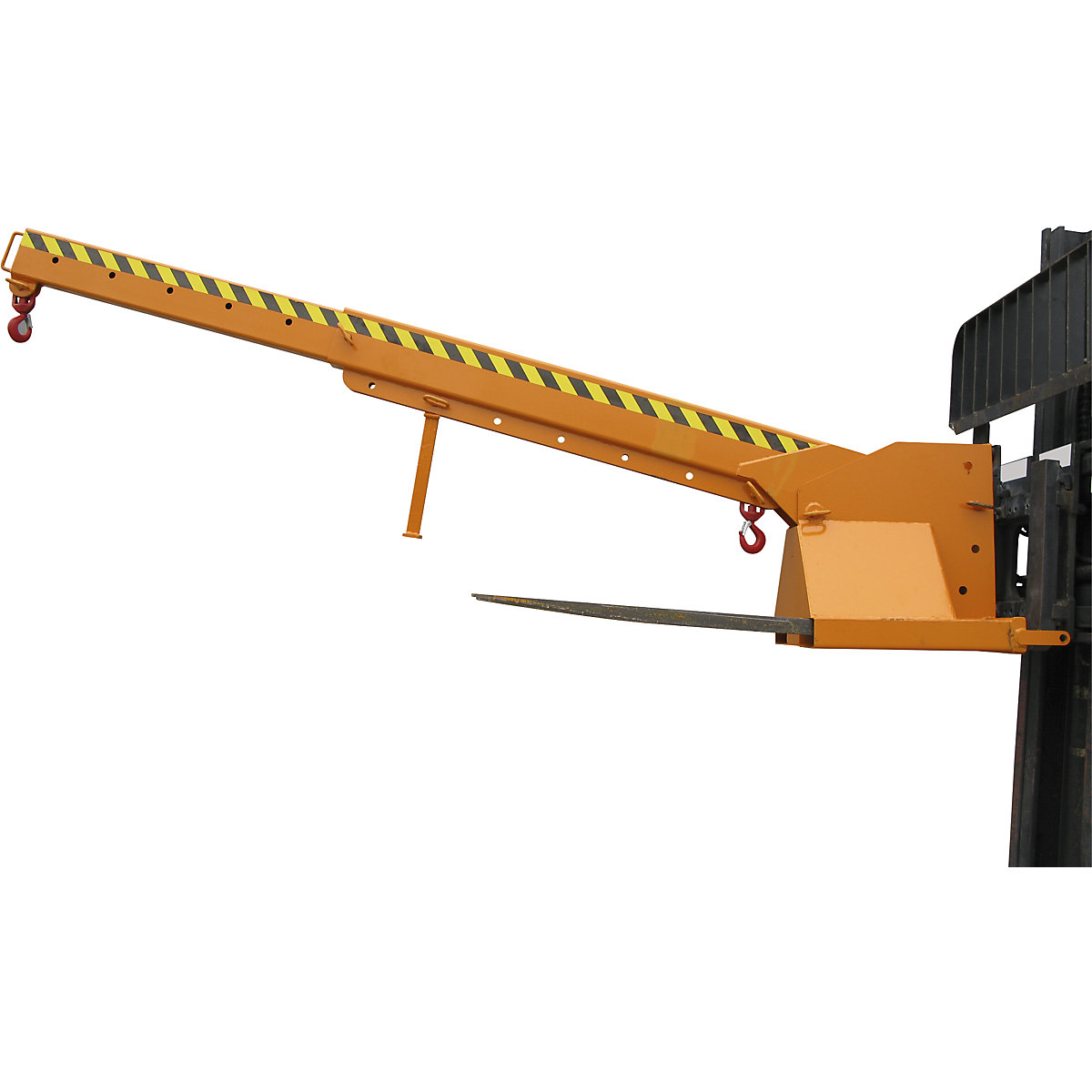

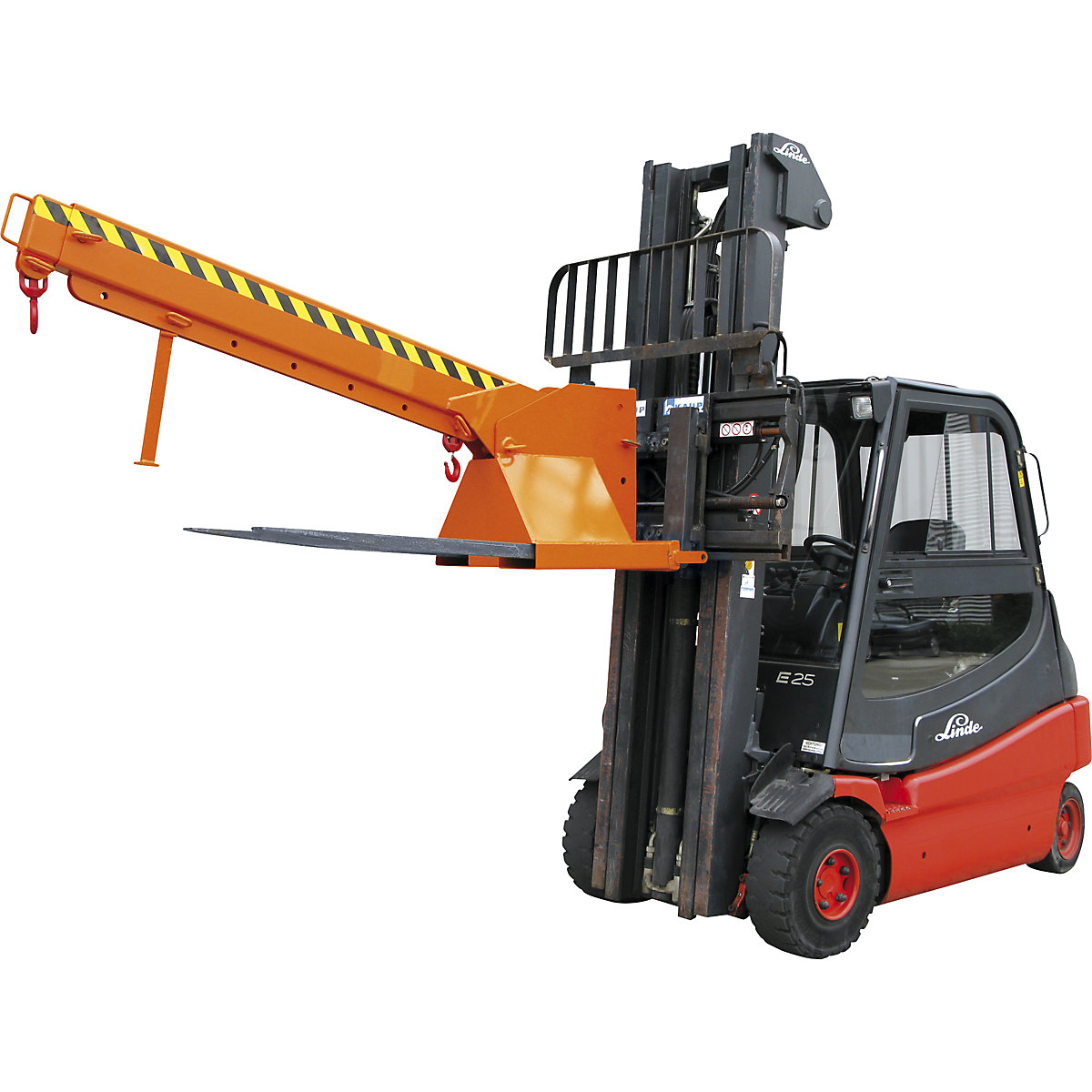

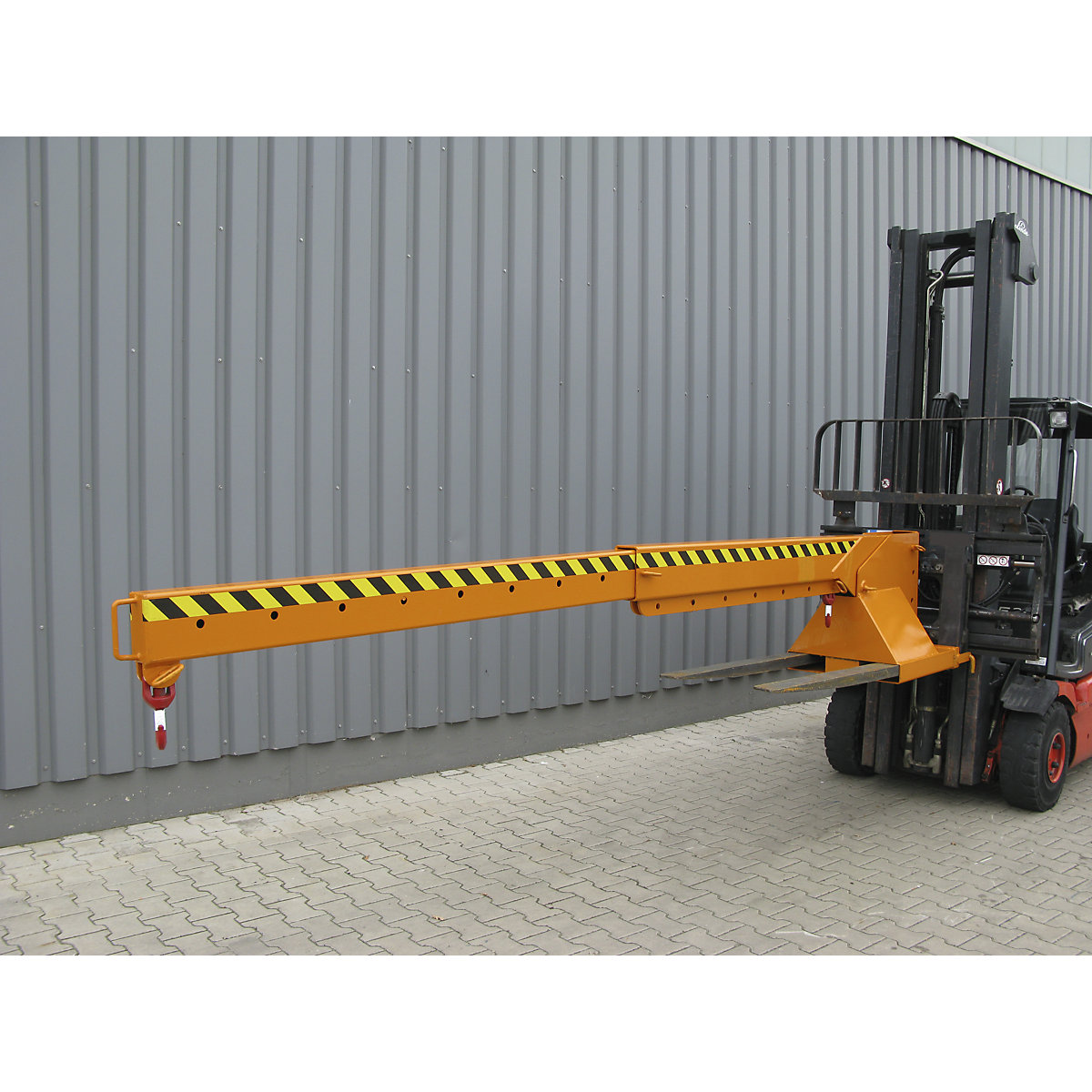

The crane arm is a robust attachment that transforms forklift trucks into versatile mobile cranes, thus significantly extending their reach. This robust telescopic arm made of profile tubes enables the precise picking up, lifting, and transporting of hanging loads.
Its seven-stage telescopic length adjustment from 740 – 3735 mm offers high flexibility. The flexible length adjustment enables loads to be precisely positioned even in hard-to-reach places and the reach of the forklift to be optimally adapted to the respective task. Additionally, the crane arm can be height-adjusted by up to 45° in three stages, which ensures adaptability to different requirements. This allows loads, for example, to be lifted over obstacles or positioned at different heights.
Its seven-stage telescopic length adjustment from 740 – 3735 mm offers high flexibility. The flexible length adjustment enables loads to be precisely positioned even in hard-to-reach places and the reach of the forklift to be optimally adapted to the respective task. Additionally, the crane arm can be height-adjusted by up to 45° in three stages, which ensures adaptability to different requirements. This allows loads, for example, to be lifted over obstacles or positioned at different heights.
Two rotatable swivel hooks are included and facilitate working with lifting gear such as ropes or chains. The integrated pin lock on the mast guarantees secure attachment and use of the stacker's max. load. For easy pick-up on the forklift truck, the telescopic loader is equipped with a practical stand. The TÜV certification with GS mark confirms the high quality and safety of this attachment.

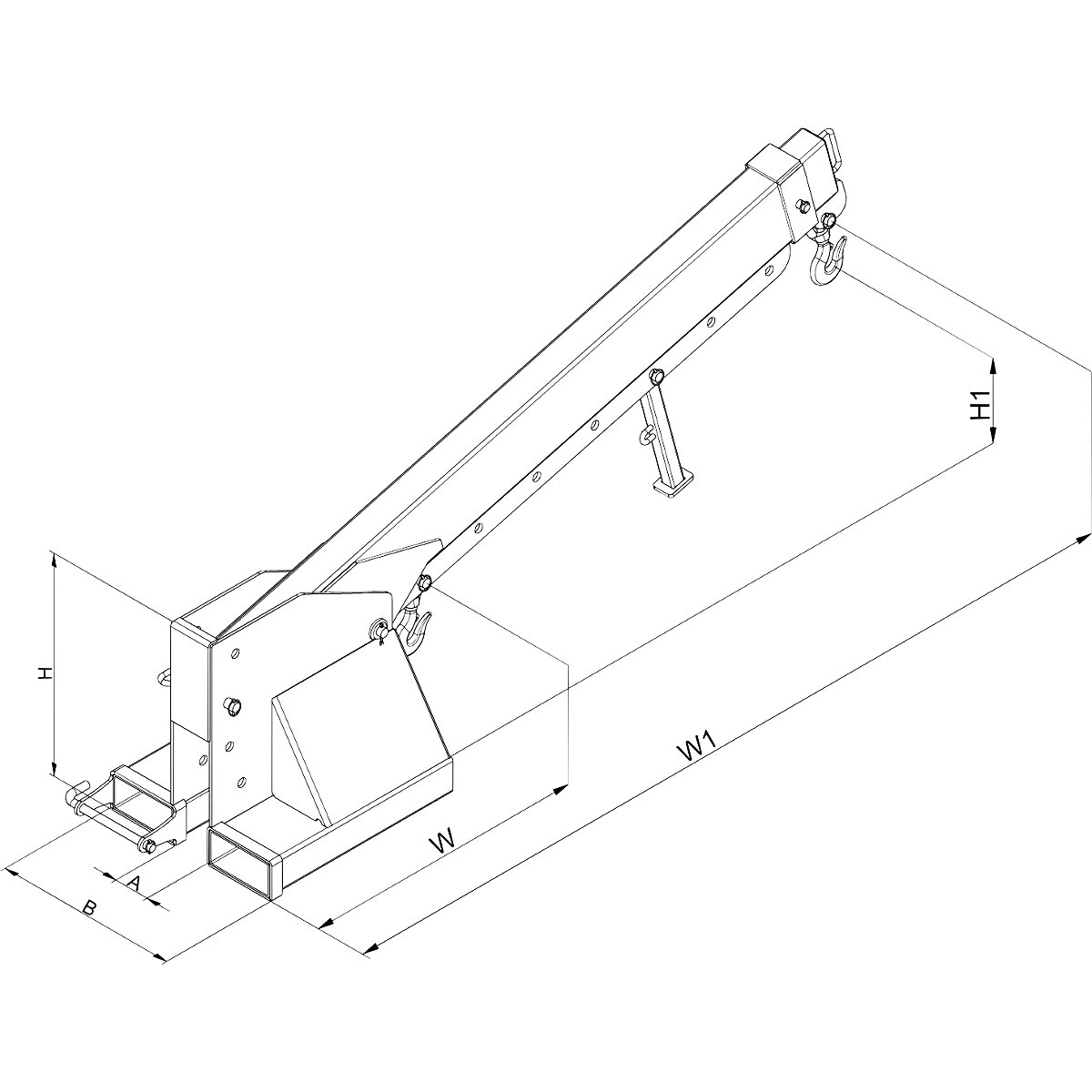

Technical data
| Adjustable length | 740 – 3735 mm, 7 positions |
|---|---|
| Width | 540 mm |
| Height | 645 mm |
| Length | 740 mm |
| Finish | powder coated |
| Distance across forks | 130 mm |
| Product type | load arms |
| Fork pocket dimensions | 190 x 90 mm |
| Material | steel |
| Supplied | assembled |
| Max. load from – to | 560 – 2500 kg |
| Colour | pure orange RAL 2004 |
| Weight | 220 kg |
