Ref.: 867003 10

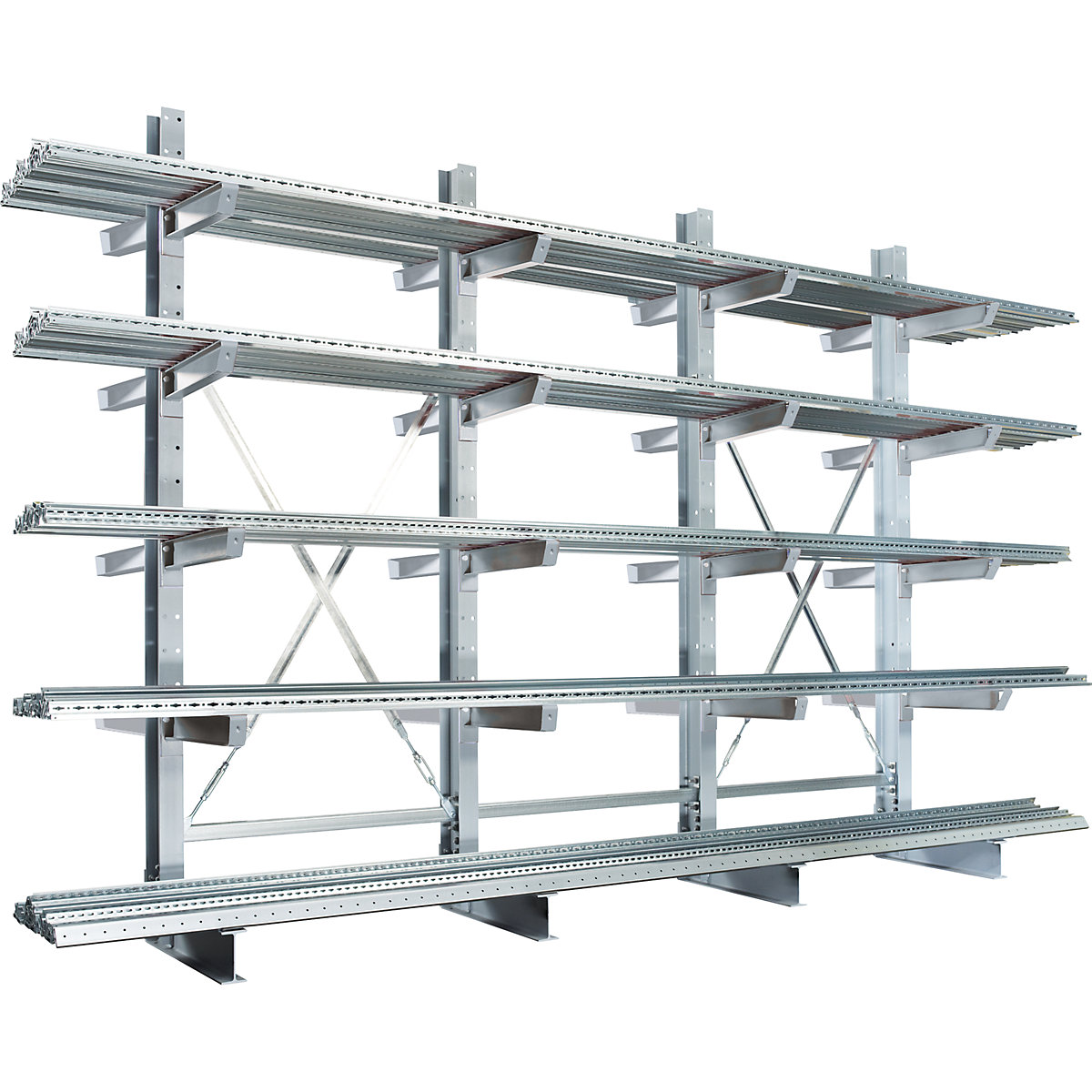

Cantilever racking unit double sided, hot dip galvanised
HxWxD 4550 x 4500 x (2 x 750) mm
Ref.: 867003 10
Cantilever racking unit double sided, hot dip galvanised
HxWxD 4550 x 4500 x (2 x 750) mm
HxWxD 4550 x 4500 x (2 x 750) mm
Ref.: 867003 10
Product not available
Currently not availableWe will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Outdoor installation thanks to hot-dip galvanised surface coating
- Very stable rails made of IPE profiles
- For bulky, long and heavy stored goods
- Can be operated with a forklift
- Cantilever load capacity: 750 kg
Reliable outdoor storage – with the weatherproof, double-sided cantilever racking unit. The hot-dip galvanised surface coating allows the robust racking unit to be set up outdoors, so that long, bulky and heavy goods can also be stored outside. This simplifies storage processes within the business.
The uprights made of IPE profiles are very stable and the cantilever arms each have a load capacity of 750 kg. The cantilever racking unit can be operated using an industrial truck to facilitate the storage and transport of bulky goods such as pipes, panels and beams.
The cantilever racking unit is calculated in accordance with: DIN EN 1991-1-3 Snow loads, DIN EN 1991-1-4 Wind loads, DIN EN 1993-1-1 Design of steel structures and DIN EN 1090 – Execution of steel structures. The annual inspection in accordance with EN 15635 must be carried out by a qualified inspector.
The uprights made of IPE profiles are very stable and the cantilever arms each have a load capacity of 750 kg. The cantilever racking unit can be operated using an industrial truck to facilitate the storage and transport of bulky goods such as pipes, panels and beams.
The cantilever racking unit is calculated in accordance with: DIN EN 1991-1-3 Snow loads, DIN EN 1991-1-4 Wind loads, DIN EN 1993-1-1 Design of steel structures and DIN EN 1090 – Execution of steel structures. The annual inspection in accordance with EN 15635 must be carried out by a qualified inspector.
Technical data
| Shelf unit type | complete shelf unit |
|---|---|
| Height | 4550 mm |
| Distance between uprights | 1500 mm |
| Cantilever arm length | 750 mm |
| Shelf unit length | 4500 mm |
| Effective depth | 2x750 mm |
| Depth of upright profile | 240 mm |
| Max. cantilever arm load | 750 kg |
| Max. load | 24000 kg |
| Number of storage levels incl. foot | 7 pcs. |
| Number of uprights | 4 pcs. |
| Material | steel |
| Colour | hot dip galvanised |
| Design of cantilever shelving | double sided |
| Product type | complete cantilever racking units |
| Supplied | flat pack |
| Weight | 1069 kg |
