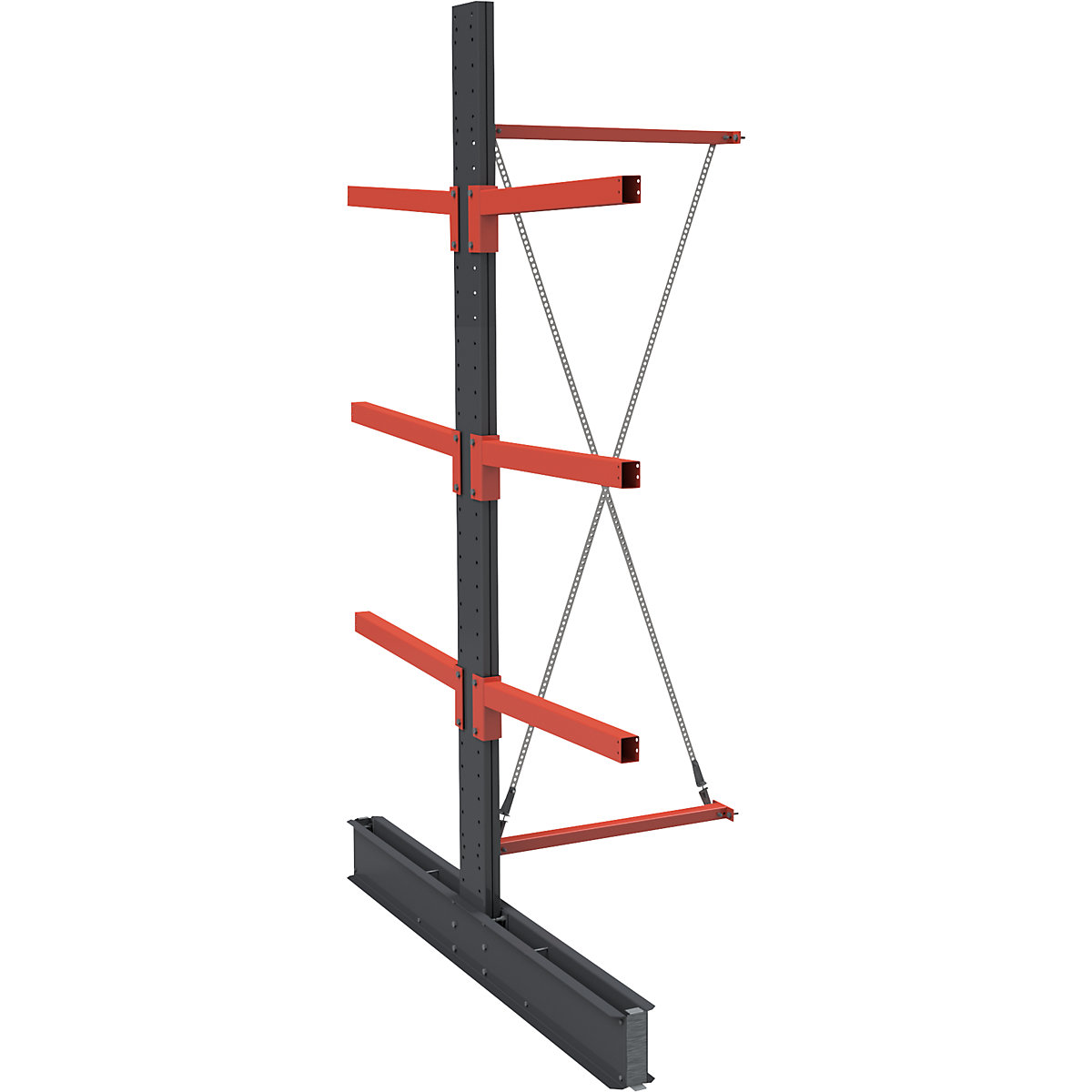

Cantilever racking unit Igor Super Heavy-Duty double sided

Cantilever racking unit Igor Super Heavy-Duty

HxW 4000 x 1200 mm, interval 2000 mm, extension shelf unit

Shelf unit type
Height [mm]
Distance between uprights [mm]
Cantilever arm length [mm]
Ref.: 838811 10
Product description
  • For heavy long goods, of the highest quality, fulfils applicable safety requirements FEM10.2.09
  • The height of the cantilever arms are easy to adjust and can be customised as required
  • With impact resistant plastic coating
Complete cantilever racking unit with stands, feet, cantilever arms, longitudinal and cross connectors and concrete screws for anchoring to the floor. Specified max. load per upright including base beam.
Technical data
Width of upright profile80 mm
Depth of upright profile265 mm
Adjustment grid100 mm
Materialsteel
Colourgraphite grey RAL 7024 vermilion RAL 2002
Designscrew system
Design of cantilever shelvingdouble sided
Product typecomplete cantilever racking units
Suppliedflat pack
Shelf unit typeextension unit
Height4000 mm
Distance between uprights2000 mm
Cantilever arm length1200 mm
Shelf unit length2040 mm
Effective depth2665 mm
Max. bay load6400 kg
Max. cantilever arm load800 kg
Max. load6400 kg
Number of storage levels incl. foot4 pcs.
Number of uprights1 pcs.
Weight288.83 kg
