Ref.: 677993 10

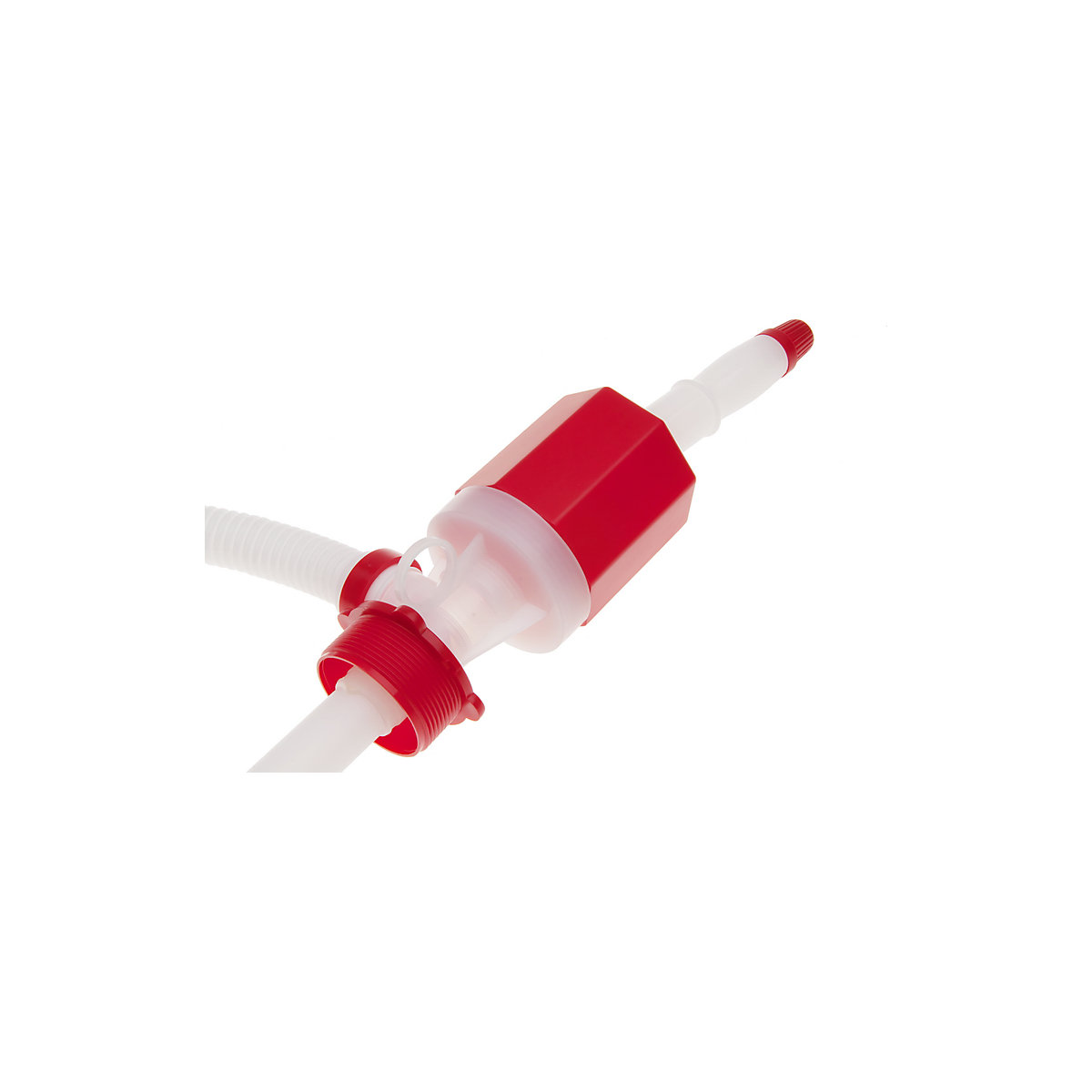

Canister/drum siphon hand pump – eurokraft basic for light oils, solvents, acids
PE
Ref.: 677993 10
Canister/drum siphon hand pump – eurokraft basic for light oils, solvents, acids
PE
PE
€ 37.90
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 37.90
Price / item (Excl. VAT)
Product description
- Suitable for canisters and for 60 and 200 litre drums
- Easy and safe metering
- For light oils, solvents, acids, kerosine, petrol etc.

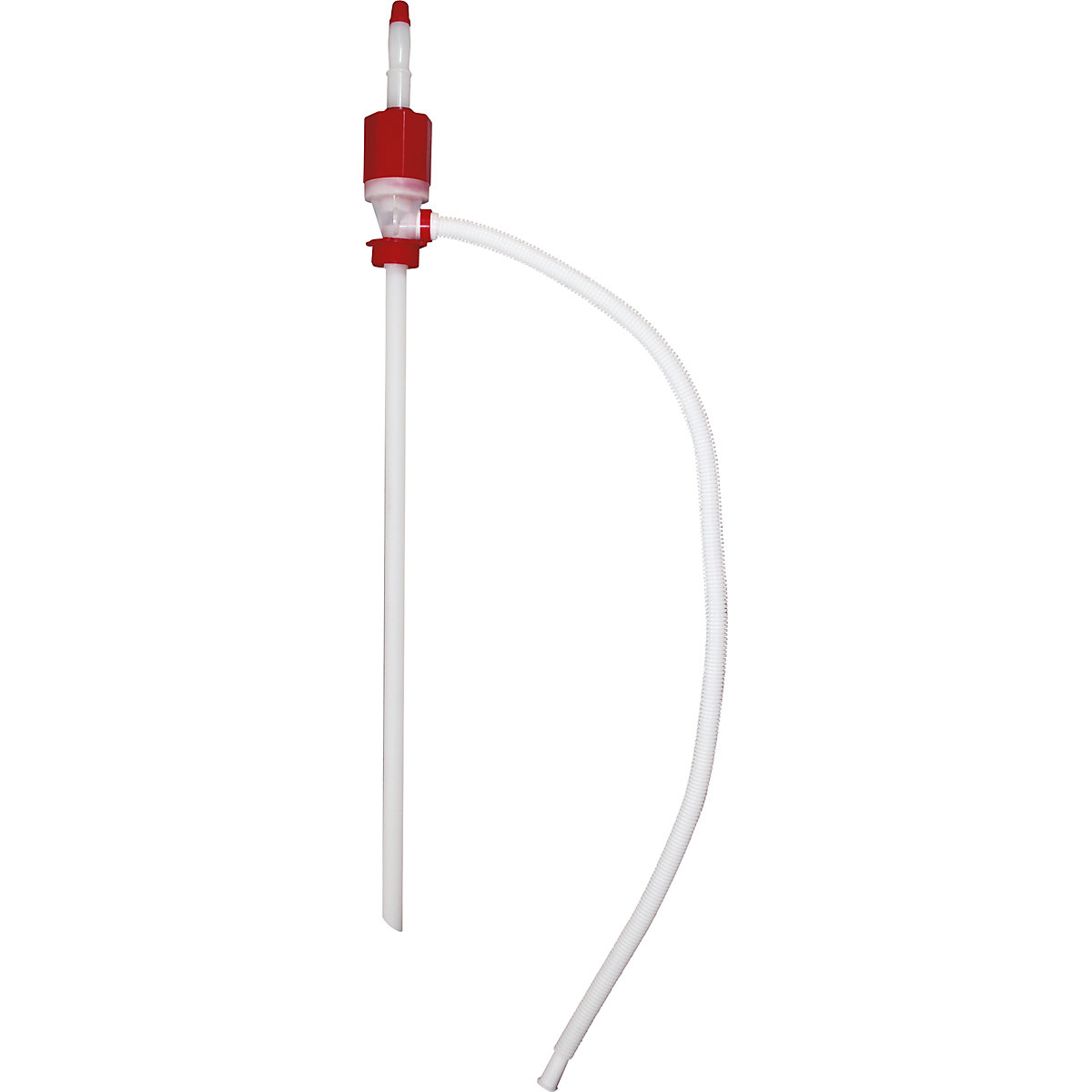

The hand pump is designed as a siphon pump and is supplied complete with a 1380 mm long discharge hose.
After the suction pipe and the discharge hose have been filled manually, the pump continues to pump automatically. Venting valve to regulate emptying.
For light oils, a range of light solvents, light thinners, light acids, paraffin etc.
Not suitable for strong acids, nitric acid, strong alkaline solutions, acetone, easily flammable and viscous substances.
Pump rate: 20 l/min
Immersion/suction tube length: 860 mm
Discharge hose length: 1380 mm
Secured using: 2'' barrel bung adapter
Maximum liquid temperature: 60 °C
Materials in contact with the media: polyethylene
Maximum viscosity: 90 mPas
Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.
After the suction pipe and the discharge hose have been filled manually, the pump continues to pump automatically. Venting valve to regulate emptying.
For light oils, a range of light solvents, light thinners, light acids, paraffin etc.
Not suitable for strong acids, nitric acid, strong alkaline solutions, acetone, easily flammable and viscous substances.
Pump rate: 20 l/min
Immersion/suction tube length: 860 mm
Discharge hose length: 1380 mm
Secured using: 2'' barrel bung adapter
Maximum liquid temperature: 60 °C
Materials in contact with the media: polyethylene
Maximum viscosity: 90 mPas
Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.
Technical data
| Design of pump | hand pump with immersion tube |
|---|---|
| For media | petrol and oil diesel anti-freeze kerosene solvents acids and alkalis water |
| Material of pump | PE |
| Drive shaft material | PE |
| Immersion depth | 830 mm |
| Immersion tube diameter | 26 mm |
| Pump rate | 20 l/min |
| Tube diameter | 26.5 mm |
| Suction hose / discharge hose length to cut to size | 1380 mm |
| Immersion tube length | 860 mm |
| Nominal hose diameter | 21.42 |
| Thread | 2 inch |
| Max. viscosity at +20 °C | 90 mPas |
| Weight | 0.35 kg |
| Colour | white red |
| Product type | hand pumps |
| Supplied | assembled |
