Trailer 2-wheel turntable steering, max. load 5 t
platform 2.0 x 1.0 m, solid rubber tyres
- 2-wheel double turntable steering
- Impregnated wooden platform for weather resistant and non-destructive load support
- Manoeuvrable
- Robust welded steel construction
- Low maintenance
- Low maintenance
- Durable
- In line with workplace safety regulations for transport vehicles
Ref.: 757748 10
Properties
Platform length [mm]: 2000, Platform width [mm]: 1000, Loading height [mm]: 540, Wheel type: solid rubber, Wheel width [mm]: 130, Wheel diameter [mm]: 405, Weight [kg]: 315
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
Chassis
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.

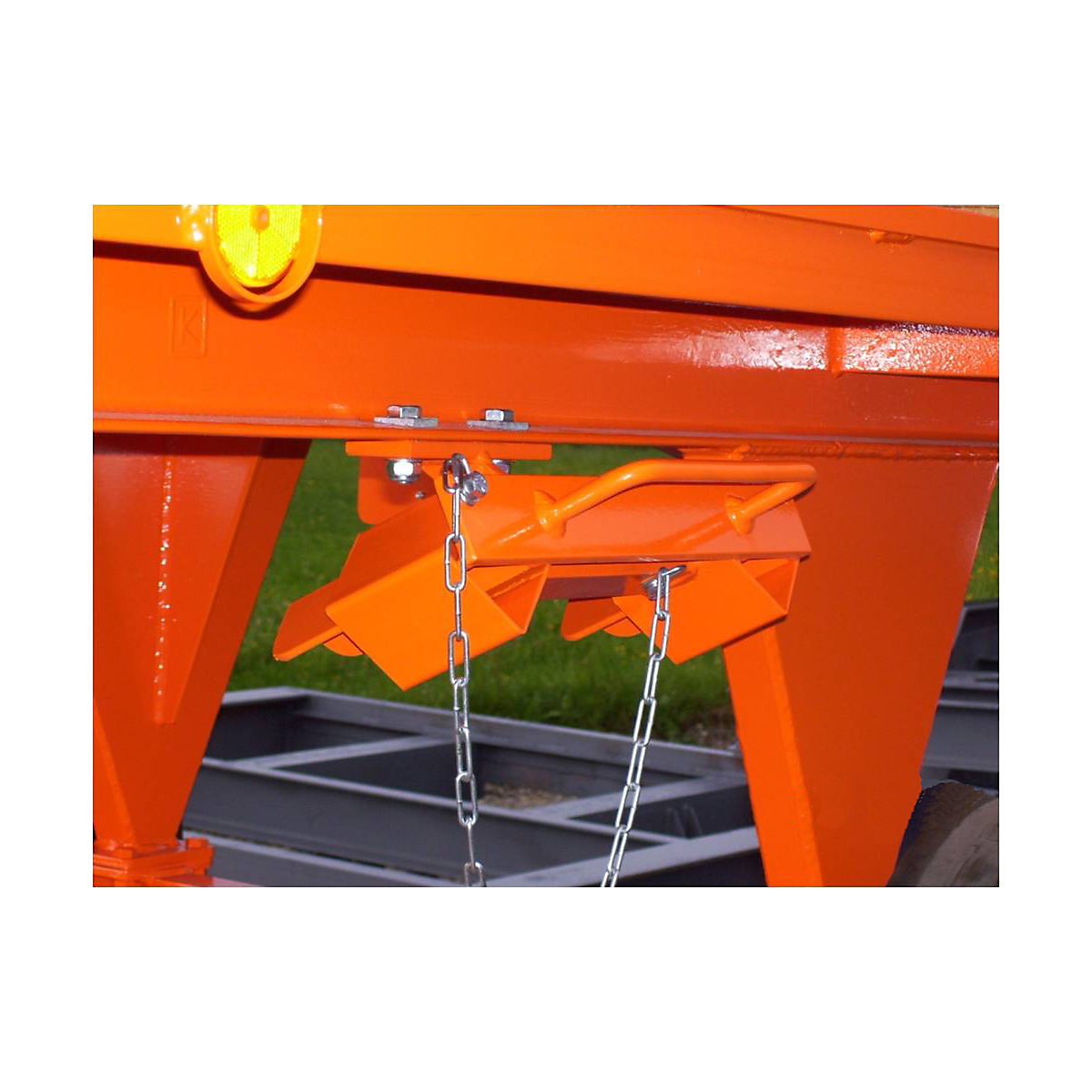

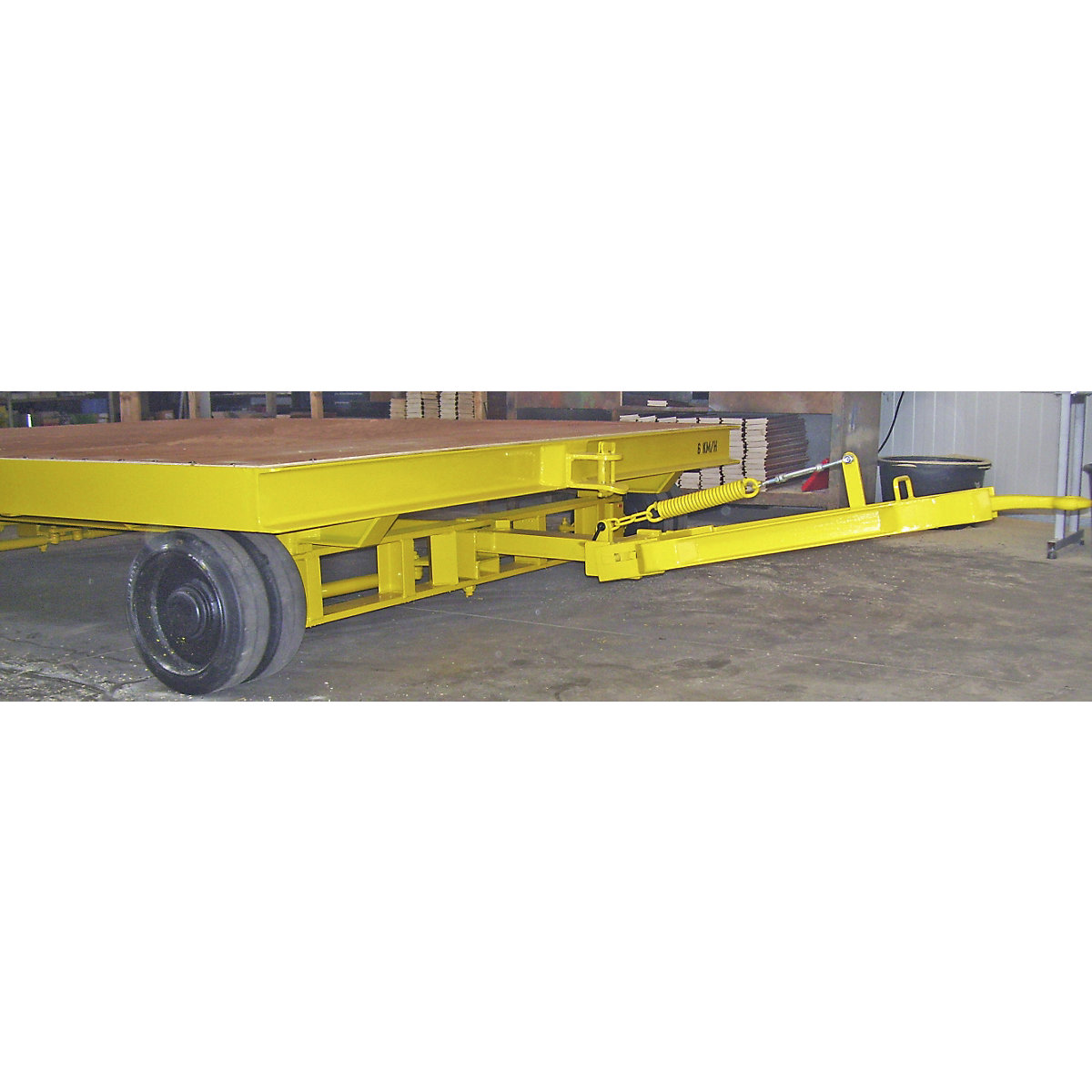

Turntable steering with ball bearing live ring. Triangular drawbar height adjustable with fall arrest.
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.
Turntable steering with ball bearing live ring. Triangular drawbar height adjustable with fall arrest.
Parking brake, rubber axle and lead spring, CSE tyres, side walls and other accessories available on request.
The technical specifications for these trailers makes it necessary to manufacture them to order.
For this reason, please be aware that there is no right of return for these items.
For this reason, please be aware that there is no right of return for these items.
- 2-wheel double turntable steering
- Impregnated wooden platform for weather resistant and non-destructive load support
- Manoeuvrable
- Robust welded steel construction
- Low maintenance
- Low maintenance
- Durable
- In line with workplace safety regulations for transport vehicles
Technical data
| Max. load at 6 km/h | 5 t |
|---|---|
| Steering | two-wheel turntable |
| Platform material | wood coating, treated with preservative |
| Type of tyre | single tyre |
| Finish | painted |
| Colour | pure orange RAL 2004 |
| Towing eyelet diameter | 35 mm |
| Product type | industrial trailers |
| Supplied | assembled |
