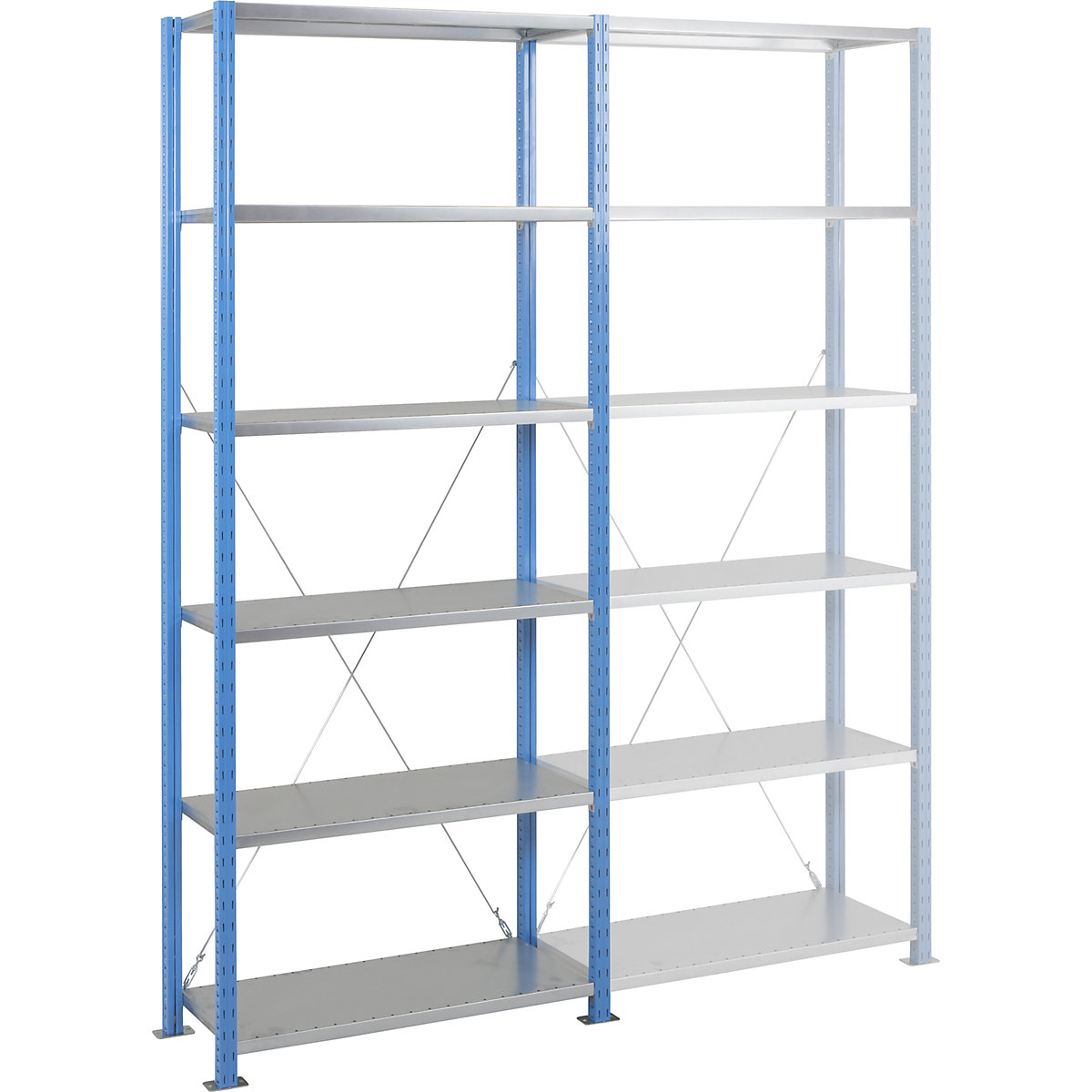

Heavy-duty boltless shelving – Manorga shelf WxD 1000 x 600 mm, max. shelf load 310 kg
(6)
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
Heavy-duty boltless shelving – Manorga shelf WxD 1000 x 600 mm, max. shelf load 310 kg
(6)
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
from
€ 355.00
Price / item (Excl. VAT)
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?from
€ 355.00
Price / item (Excl. VAT)
Product description
- Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
- Wide range of accessories
Shelf levels
Zinc plated cross beams with removable sheet steel shelves, 0.6 mm thick. Shelves with holes spaced at 50 mm at front and rear for shelf divider attachment (accessory). Shelf height 32 mm.
25 mm shelf height adjustment grid.
Upright frames
43 x 39 x 1 mm, with high quality plastic coating, blue RAL 5015.
Incl. zinc plated metal base plates (100 x 57 x 3 mm) for anchoring to floor (bolts and plugs not included).
Anchoring hole Ø 11 mm.
Cross brace (zinc plated)
Included with delivery. Required for every standard shelf unit and for every 3rd extension shelf unit.
Upright profile width: 43 mm
Upright profile depth: 39 mm
Zinc plated cross beams with removable sheet steel shelves, 0.6 mm thick. Shelves with holes spaced at 50 mm at front and rear for shelf divider attachment (accessory). Shelf height 32 mm.
25 mm shelf height adjustment grid.
Upright frames
43 x 39 x 1 mm, with high quality plastic coating, blue RAL 5015.
Incl. zinc plated metal base plates (100 x 57 x 3 mm) for anchoring to floor (bolts and plugs not included).
Anchoring hole Ø 11 mm.
Cross brace (zinc plated)
Included with delivery. Required for every standard shelf unit and for every 3rd extension shelf unit.
Upright profile width: 43 mm
Upright profile depth: 39 mm
Max. number of shelf dividers per shelf level
18 items for 1000 mm shelf width.
18 items for 1000 mm shelf width.
External dimensions
Shelf unit width
Standard shelf unit: 1043 mm / 1293 mm.
Extension shelf unit: 1000 mm / 1250 mm.
Shelf unit width incl. foot plates
Standard shelf unit: 1100 mm / 1350 mm.
Extension shelf unit: 1000 mm / 1250 mm.
Shelf unit depth
Shelf depth + 12 mm.
Shelf unit depth incl. foot plates
Shelf unit depth + 9 mm.
Please note:
If the height of the shelf unit equals more than 5 times its depth, the shelf unit must be secured against tipping by means of wall fasteners.
Shelf unit width
Standard shelf unit: 1043 mm / 1293 mm.
Extension shelf unit: 1000 mm / 1250 mm.
Shelf unit width incl. foot plates
Standard shelf unit: 1100 mm / 1350 mm.
Extension shelf unit: 1000 mm / 1250 mm.
Shelf unit depth
Shelf depth + 12 mm.
Shelf unit depth incl. foot plates
Shelf unit depth + 9 mm.
Please note:
If the height of the shelf unit equals more than 5 times its depth, the shelf unit must be secured against tipping by means of wall fasteners.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
Technical data
| Colour | sky blue RAL 5015 zinc plated |
|---|---|
| Max. bay load | 2000 kg |
| Shelf height | 32 mm |
| Shelf height adjustment increments | 25 mm |
| Shelf material | sheet steel |
| Design | plug in |
| Material | steel |
| Finish | plastic coated |
| Shelf unit fittings | with zinc plated cross brace |
| Width of upright profile | 43 mm |
| Depth of upright profile | 39 mm |
| Product type | heavy duty boltless shelving units |
| Supplied | flat pack |
| Pictorial instructions |
