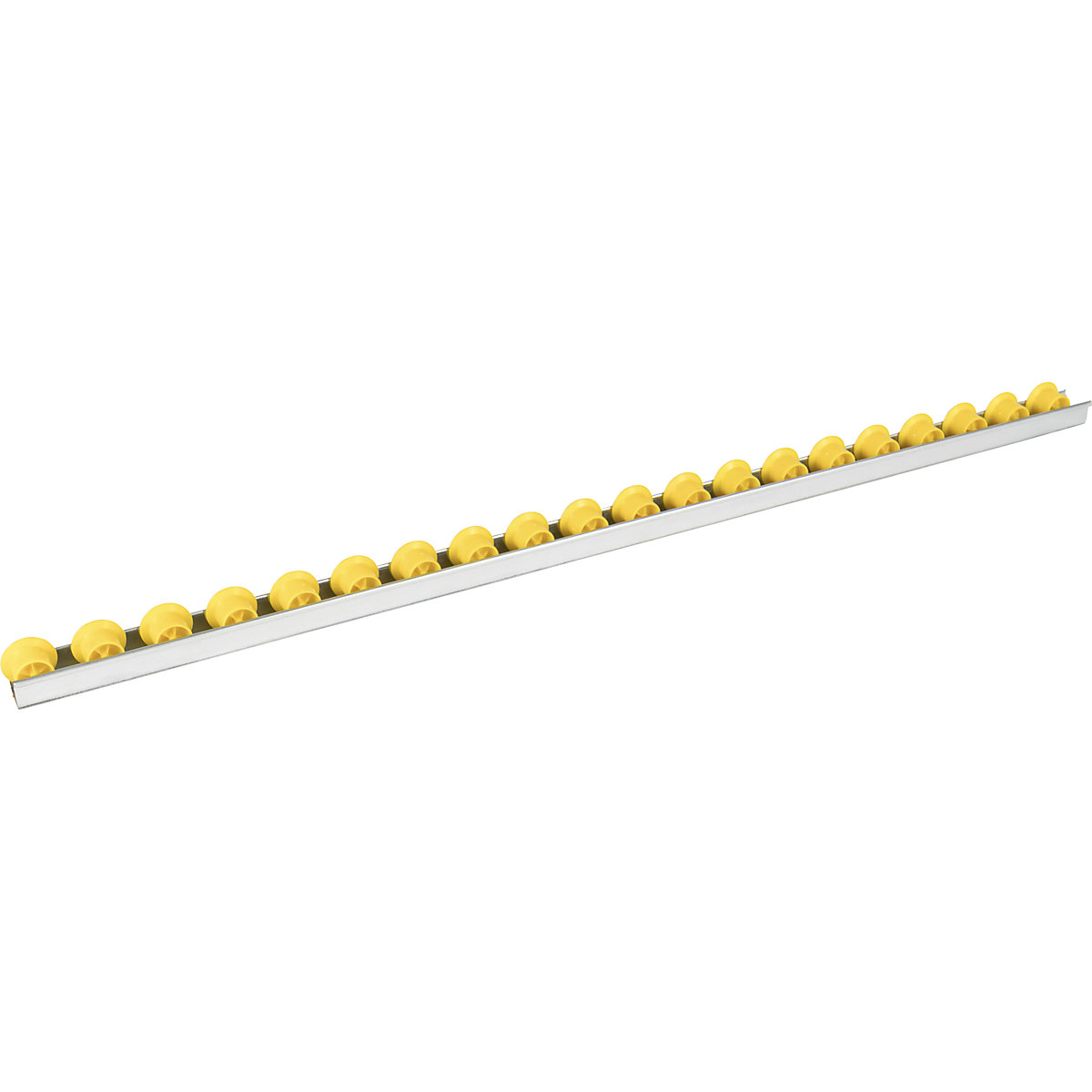

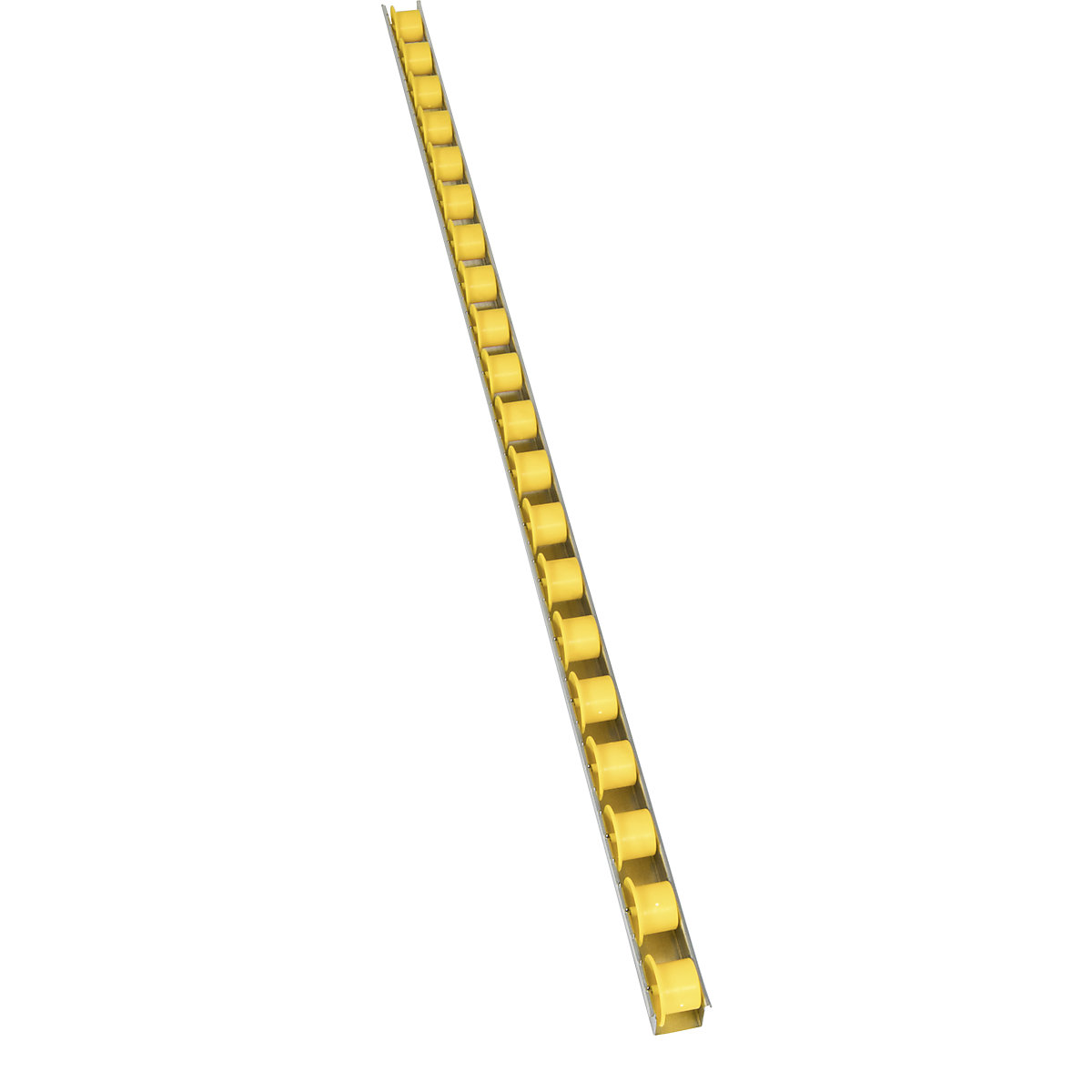

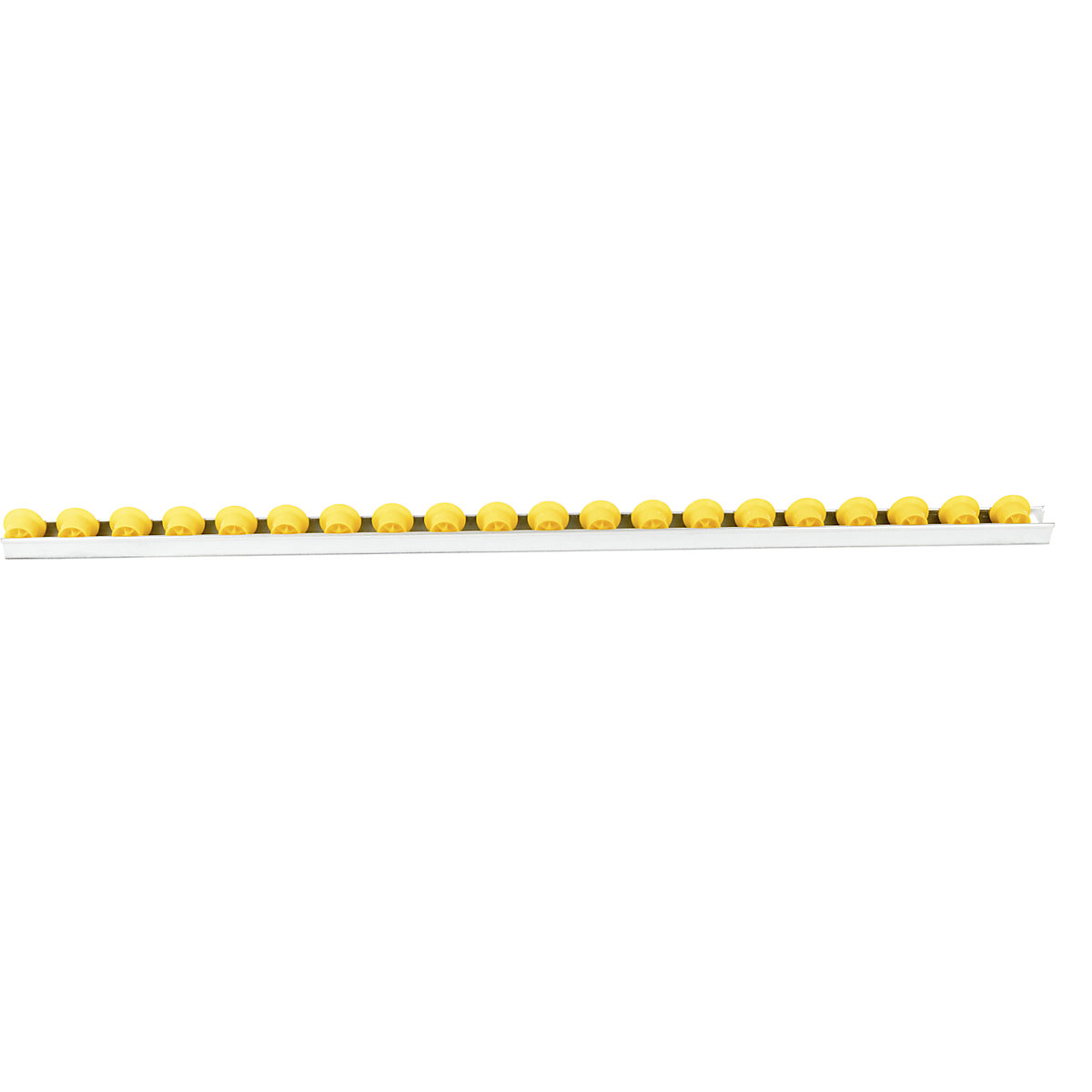

Roller track with flanged rollers

spacing 50 mm, Ø 28 mm, plastic

  • Optimises the flow of goods in the company and in production
  • Easy to assemble and highly versatile
  • Smooth, easy running with little noise
Roller tracks transport goods reliably and safely from the point of departure to the final destination. They are used in carton flow racking systems, on packaging and order picking tables, or as a link between two different work steps. Flanged rollers have a pronounced side edge that is ideally suited for e.g. transporting packaged goods over a pitched flow bed without them being able to fall off.

This model features plastic rollers, which are particularly suitable for sensitive and lightweight goods.
The contact surface of the goods to be transported must be flat.
Individual lengths and custom solutions for other applications are available on request.
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic
Price / item (Ex. VAT)
from 16.95
Price / item (Inc. VAT)
from 20.34
Order quantity:
{"articleNo":"M3346669","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897066_PRD_org_all.jpg"}
Give us a call!
Give us a call! 1 800 677 300
6 of 6 items correspond to your selection criteria:
  • View:
length 1 m
Item no.:  499478 10
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic, length 1 m
  • Length: 1 m
  • Weight: 0.6 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 16.95
Price / item
Inc. VAT €20.34
{"articleNo":"499478","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"M3346669","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897370_PRD_org_all.jpg"}
{"features":[{"name":"Length [m]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"0.6","formattedValue":"0.6"}]}
length 2 m
Item no.:  499481 10
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic, length 2 m
  • Length: 2 m
  • Weight: 1.28 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 35.90
Price / item
Inc. VAT €43.08
{"articleNo":"499481","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"M3346669","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897370_PRD_org_all.jpg"}
{"features":[{"name":"Length [m]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Weight [kg]","normalizedName":"","value":"1.28","formattedValue":"1.28"}]}
length 1 m, 4+ items
Item no.:  532035 10
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic, length 1 m, 4+ items
  • Length: 1 m
  • Weight: 0.6 kg
10-15 Working Days
Order quantity: items
Min. order quantity: 4 items
Price / item
Ex. VAT 14.95
Price / item
Inc. VAT €17.94
{"articleNo":"532035","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"M3346669","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897370_PRD_org_all.jpg"}
{"features":[{"name":"Length [m]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"0.6","formattedValue":"0.6"}]}
length 1 m, 10+ items
Item no.:  532038 10
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic, length 1 m, 10+ items
  • Length: 1 m
  • Weight: 0.6 kg
10-15 Working Days
Order quantity: items
Min. order quantity: 10 items
Price / item
Ex. VAT 14.49
Price / item
Inc. VAT €17.39
{"articleNo":"532038","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"M3346669","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897370_PRD_org_all.jpg"}
{"features":[{"name":"Length [m]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"0.6","formattedValue":"0.6"}]}
length 2 m, 4+ items
Item no.:  532045 10
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic, length 2 m, 4+ items
  • Length: 2 m
  • Weight: 1.28 kg
10-15 Working Days
Order quantity: items
Min. order quantity: 4 items
Price / item
Ex. VAT 33.90
Price / item
Inc. VAT €40.68
{"articleNo":"532045","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"M3346669","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897370_PRD_org_all.jpg"}
{"features":[{"name":"Length [m]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Weight [kg]","normalizedName":"","value":"1.28","formattedValue":"1.28"}]}
length 2 m, 10+ items
Item no.:  532046 10
Roller track with flanged rollers, spacing 50 mm, Ø 28 mm, plastic, length 2 m, 10+ items
  • Length: 2 m
  • Weight: 1.28 kg
10-15 Working Days
Order quantity: items
Min. order quantity: 10 items
Price / item
Ex. VAT 29.90
Price / item
Inc. VAT €35.88
{"articleNo":"532046","name":"Roller track with flanged rollers spacing 50 mm, Ø 28 mm, plastic","baseProduct":"M3346669","productUrl":"/p/M3346669/","imageUrl":"/Conveyor_systems/Roller_tracks/Roller_track_with_flanged_rollers_pdpsmall--000066897370_PRD_org_all.jpg"}
{"features":[{"name":"Length [m]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Weight [kg]","normalizedName":"","value":"1.28","formattedValue":"1.28"}]}

Technical data

Height 42.5 mm
Width 36 mm
Roller diameter 28 mm
Roller shape wheel flange
Roller bearing steel axle
Roller spacing 50 mm
Roller material plastic
Max. load per roller 10 kg
Flange diameter 41 mm
Supplied assembled
