Ref.: 803925 10

Tilting skip with scissor tilt mechanism

Tilting skip

capacity 500 l, pure orange RAL 2004

Capacity [m³]
Colour
New
on request
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Product description
  • Can be tilted at any height using a cable pull from the driver's seat
  • Chain restraint to prevent unintentional slippage
  • The scissor tilt mechanism guarantees emptying with ease using a forklift

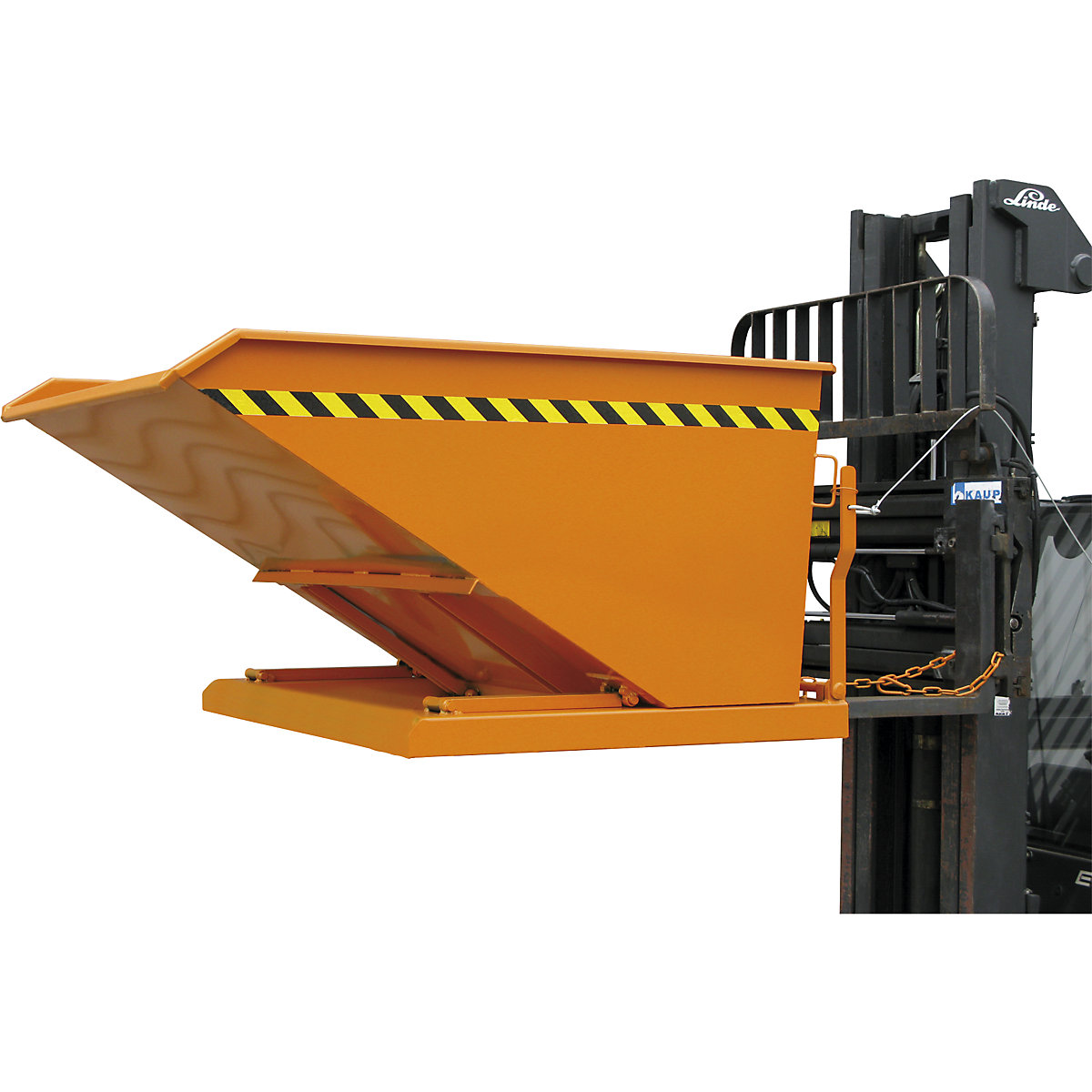

The tilting skip with a low container is equipped with a special scissor type tilting mechanism. The base frame and the container feature a robust connection using the scissor type arms, ensuring optimal control during the tilting process. Contact with solid obstacles, such as the edge of a refilling container, does not affect the tilting process either. With a safety device to prevent unintentional slippage and tipping, and a stable base frame with integrated forklift pockets and crane eyes.

Optionally available:
– 2 swivel castors and 2 fixed castors
– Push handle
– Cover, zinc plated, multi-part
– Hydraulic tilting mechanism
– Crane eyelets
– Towing connection
– Powder coated in special RAL colour
– Painted in special RAL colour
– Hot dip galvanised model
– Stainless steel model
Technical data
Max. load1000 kg
Materialsteel
Material thickness3 mm
Finishpowder coated
Design of tipping containerself-tipping container, emptied using a cable pull from the driver's seat
Fork pocket dimensions190x80 mm
Wheel fittingswithout castors
Product typetilting skips
Suppliedassembled
Capacity0.5 m³
Colourpure orange RAL 2004
Weight150 kg
Forklift pocket spacing185 mm
Length1530 mm
Width830 mm
Height795 mm
Height of front edge710 mm
Container width750 mm
Container height695 mm
Container length1420 mm
