RS TOWER 34 folding tower – Altrex module 1+2
working height 3.80 m
Ref.: 686540 10
RS TOWER 34 folding tower – Altrex module 1+2
working height 3.80 m
working height 3.80 m
€ 1,460.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 1,460.00
Price / item (Excl. VAT)
Product description
- Narrow frame – fits through standard door frames
- Modular, can be extended
- Compact and lightweight – folds together into one piece
- Safe and stable – double stop swivel castors

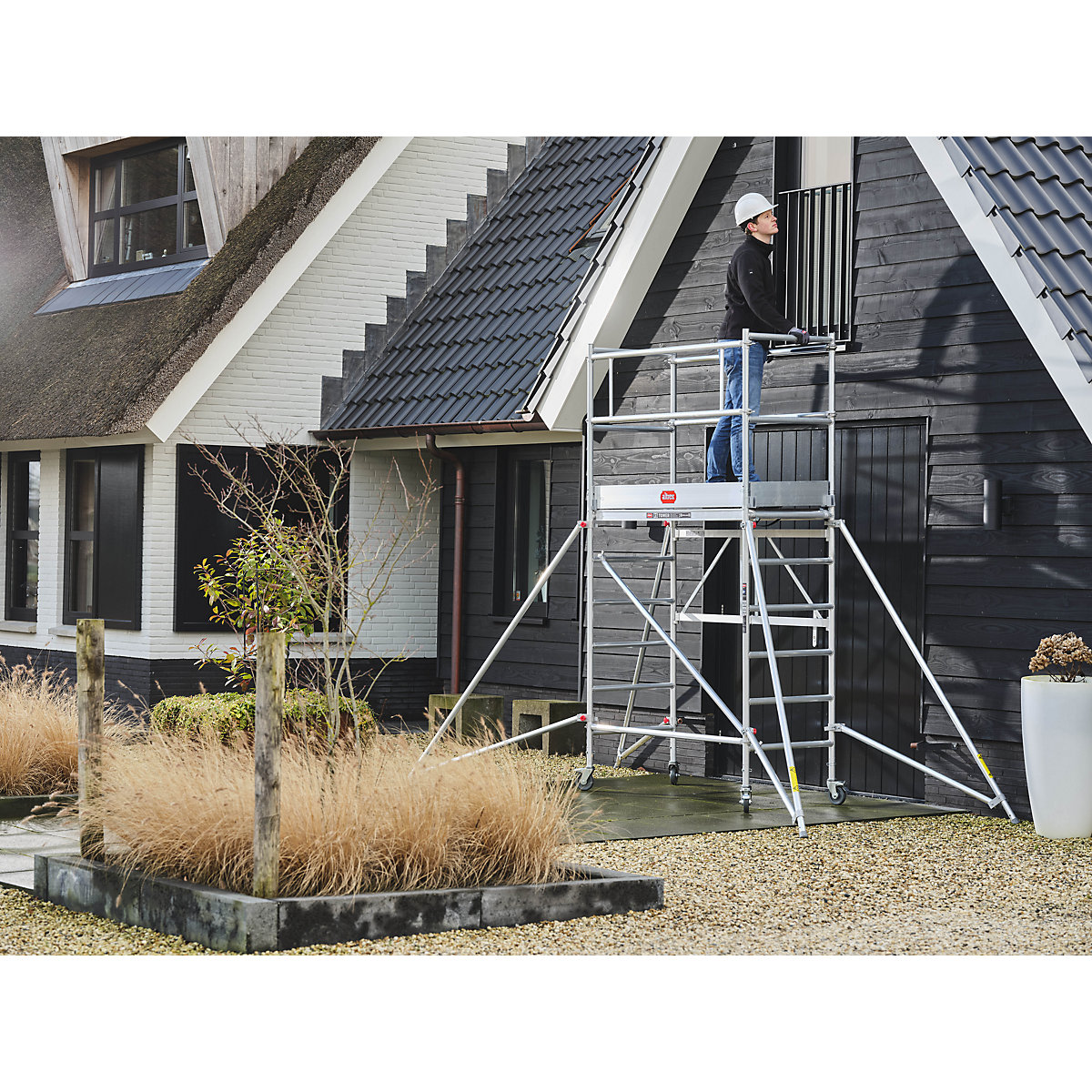

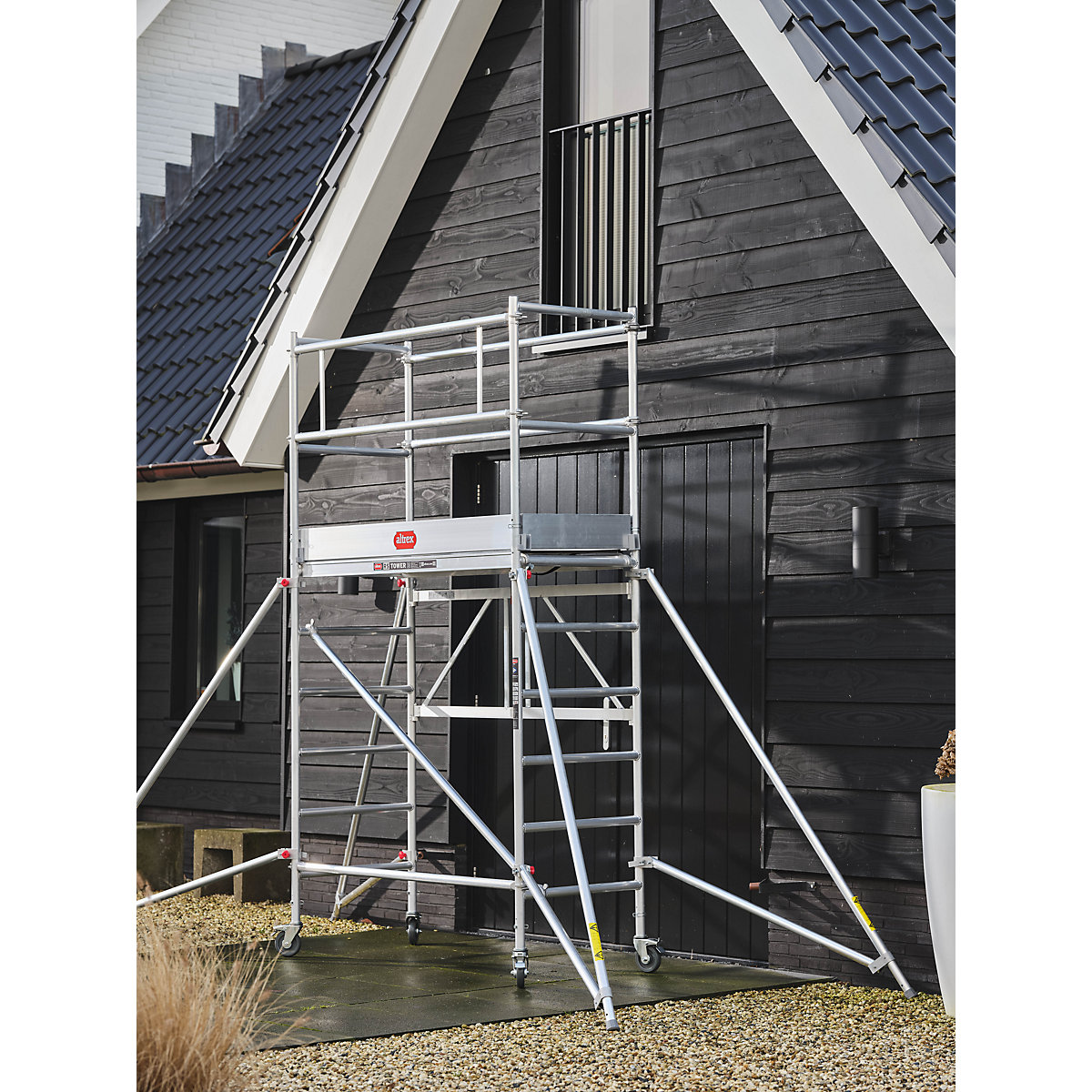

Due to its compact format, the mobile, lightweight RS TOWER 34 scaffold is ideal for indoor use, but also for outdoor use.
The permissible maximum load is 150 kg. The mobile access tower therefore complies with load class 2 according to standard EN 1004 as well as the side protection according to EN 1004-2 and is also particularly suitable for use by professional tradespeople. The castor wheels (Ø 125 mm) are adjustable and have a double stop – for a secure and stable stand.
The system is modular.
Module 1 (max. working height 2.70 m) can be used individually.
For modules 2 and 3, module 1 is required for further assembly.
The combination of modules 1 + 2 allows for a max. total working height of 3.80 m.
The combination of modules 1 + 2 + 3 allows for a max. total working height of 5.80 m.
KK Art. 686426:
Module 1 includes: 1 6-rung folding section, 1 platform with hatch, 1 horizontal brace,
4 triangular stabilisers (Module 1), 4 wheels Ø 125 mm (adjustable)
KK Art. 686427:
Module 2 includes: 4 flanged tubes, 2 guardrail frames, 1 diagonal brace,
2 horizontal braces, 1 double guardrail brace, 1 set of toe boards, 4 triangular stabilisers
KK Art. 686428:
Module 3 includes: 4 flanged tubes, 2 vertical frames, 1 platform with hatch,
2 diagonal braces, 2 double guardrail braces
The permissible maximum load is 150 kg. The mobile access tower therefore complies with load class 2 according to standard EN 1004 as well as the side protection according to EN 1004-2 and is also particularly suitable for use by professional tradespeople. The castor wheels (Ø 125 mm) are adjustable and have a double stop – for a secure and stable stand.
The system is modular.
Module 1 (max. working height 2.70 m) can be used individually.
For modules 2 and 3, module 1 is required for further assembly.
The combination of modules 1 + 2 allows for a max. total working height of 3.80 m.
The combination of modules 1 + 2 + 3 allows for a max. total working height of 5.80 m.
KK Art. 686426:
Module 1 includes: 1 6-rung folding section, 1 platform with hatch, 1 horizontal brace,
4 triangular stabilisers (Module 1), 4 wheels Ø 125 mm (adjustable)
KK Art. 686427:
Module 2 includes: 4 flanged tubes, 2 guardrail frames, 1 diagonal brace,
2 horizontal braces, 1 double guardrail brace, 1 set of toe boards, 4 triangular stabilisers
KK Art. 686428:
Module 3 includes: 4 flanged tubes, 2 vertical frames, 1 platform with hatch,
2 diagonal braces, 2 double guardrail braces
5 year guarantee
Technical data
| Platform length | 1650 mm |
|---|---|
| Platform width | 750 mm |
| Platform height | 1800 mm |
| Working height | 3.8 m |
| Standing height | 1800 mm |
| Material | aluminium wood |
| Weight | 58.4 kg |
| Max. load | 150 - 300 kg |
| Conforms to | EN 1004 class 2 |
| Length | 1.65 m |
| Width | 0.75 m |
| Height | 3.04 m |
| Wheel diameter | 125 mm |
| Tube diameter | 40 mm |
| Product type | rolling scaffolds folding towers |
| Supplied | flat pack |
