Ref.: 572581 10
Rack protection guard rails B – Black Bull HxW 500 x 190 mm
extendable to 1300 mm
Length [mm]
Ref.: 572581 10
Rack protection guard rails B – Black Bull HxW 500 x 190 mm
extendable to 1300 mm
extendable to 1300 mm
Length [mm]
€ 739.00
Price / item (Excl. VAT)
Delivery time: up to 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 739.00
Price / item (Excl. VAT)
Product description
- Diverts the majority of side impact forces through the rolls
- Protects the floor, increases the service life
- Can be used for all shelf unit widths (width adjustable)
- Reliably cushions impacts
- TÜV-tested in accordance with DGUV 208-061

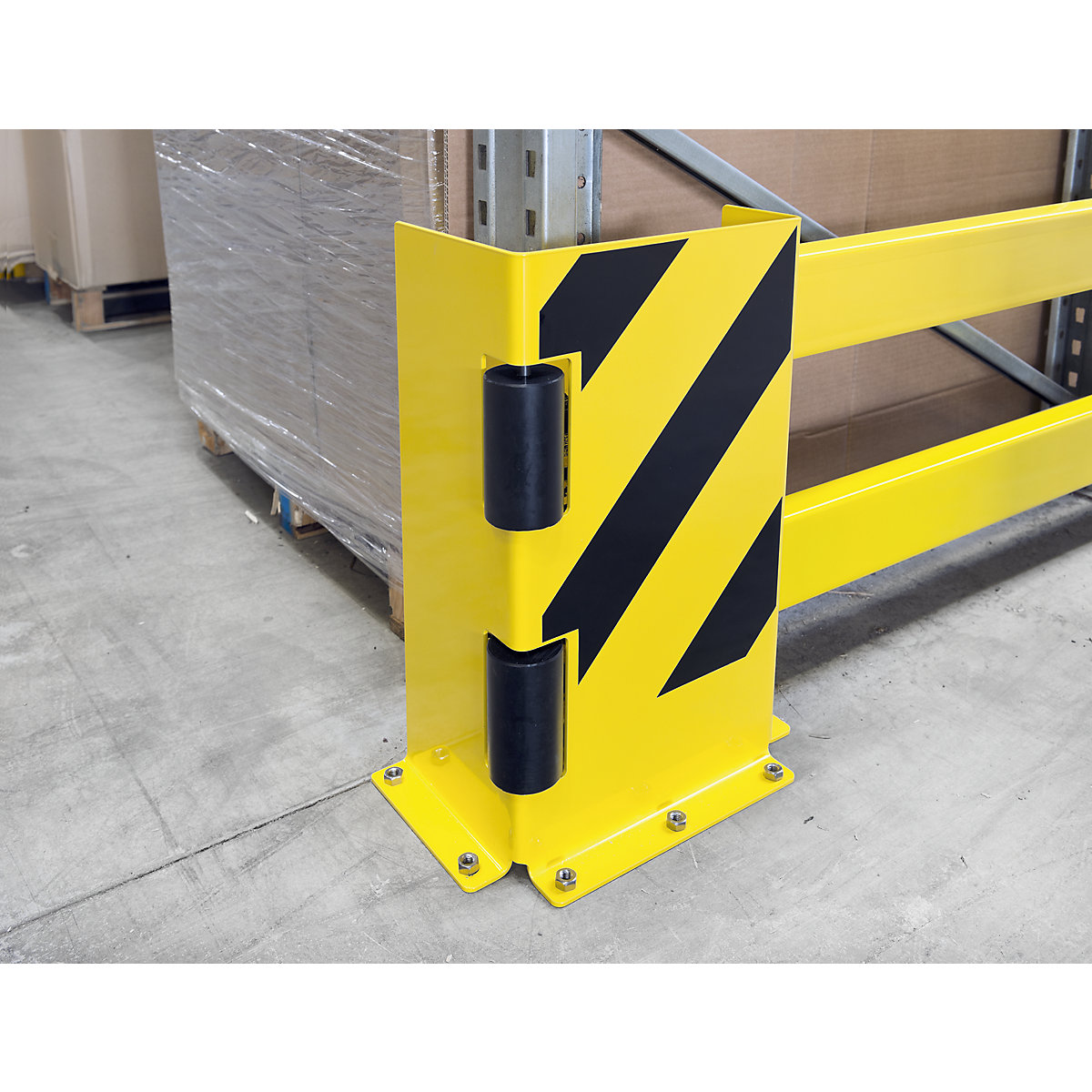

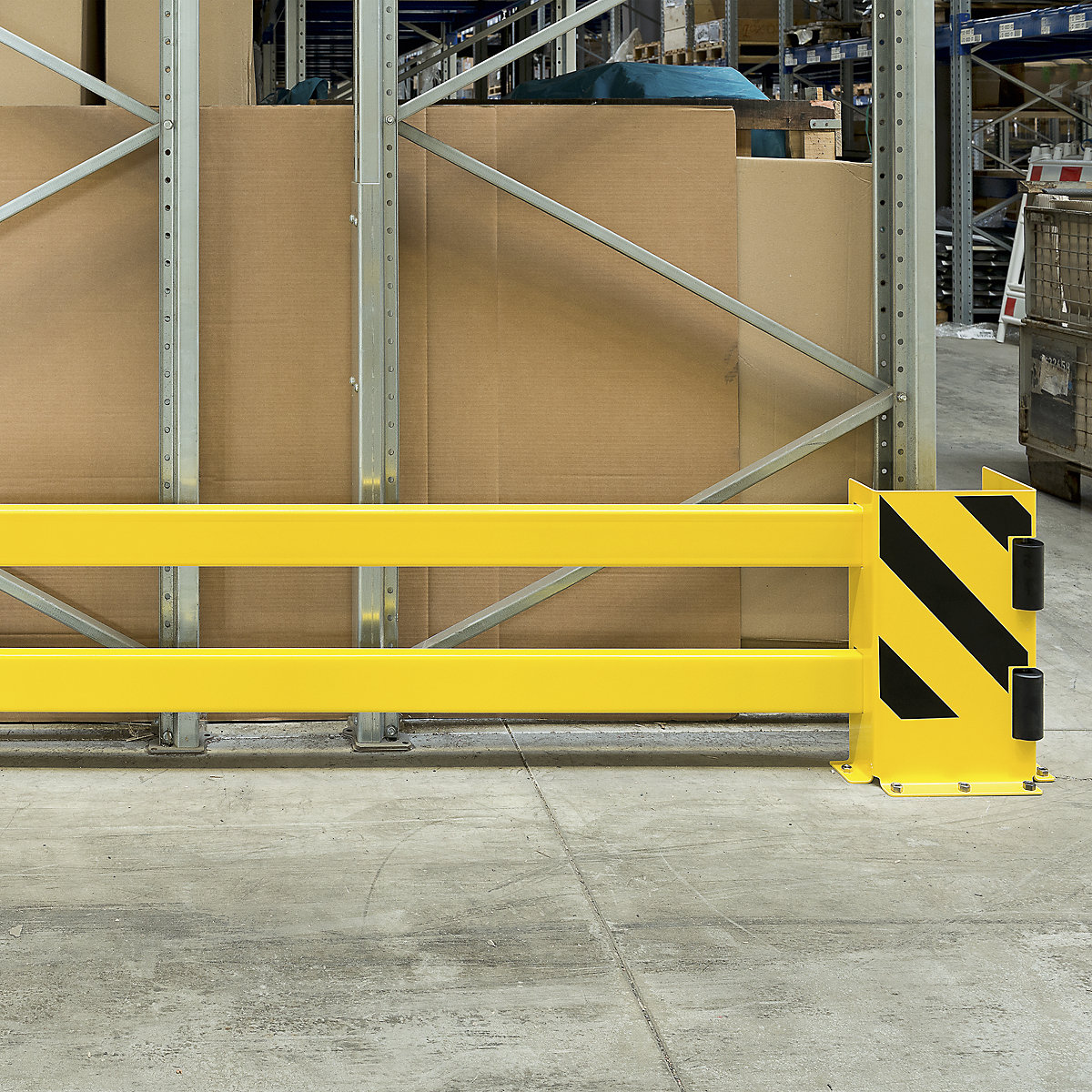

The B-type rack protection guard rails are designed to protect racking from frontal impact damage caused by forklift and manoeuvring traffic and are ideal for use in busy warehouse zones.

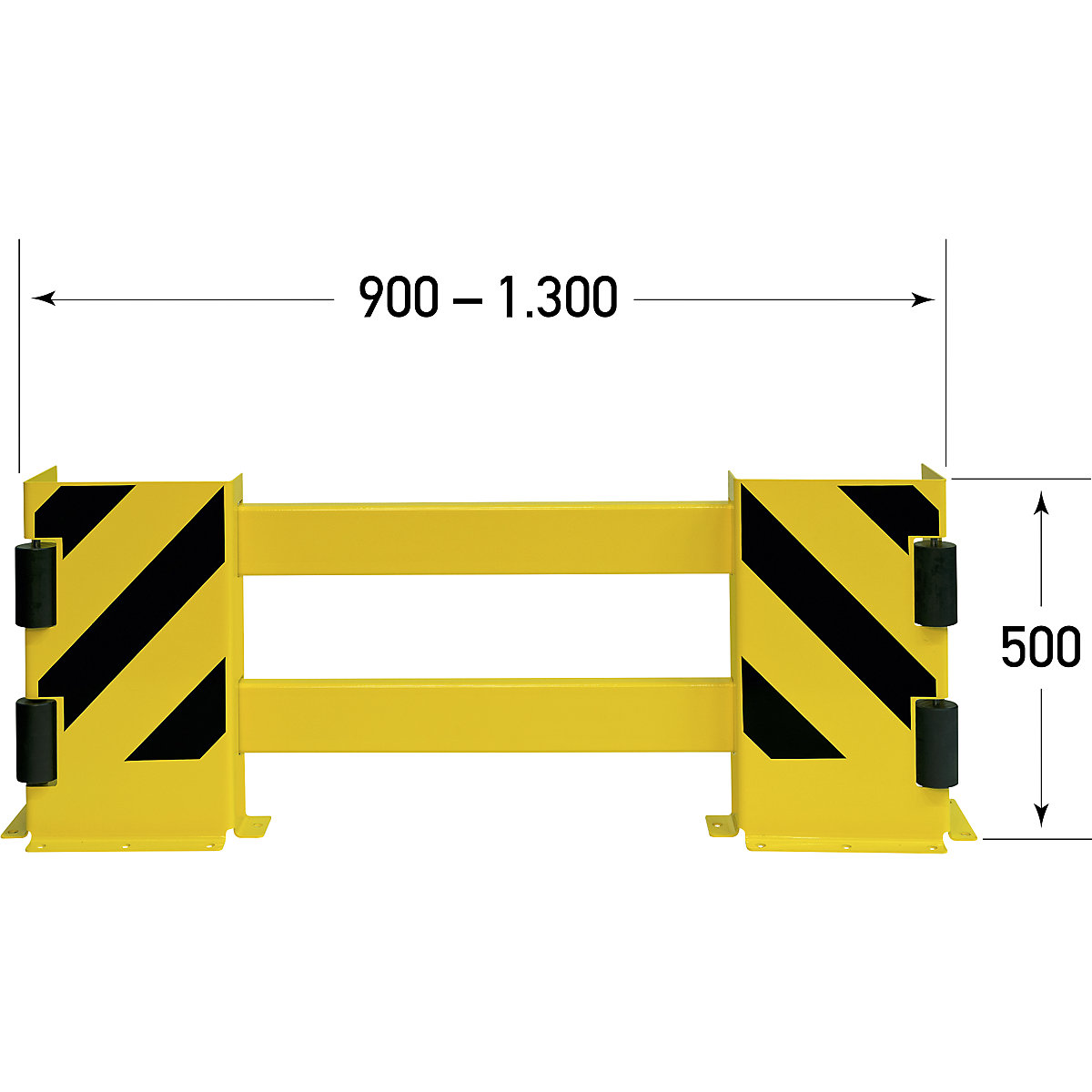

The impact protection angles are shaped so that two steel guard rails with a C-profile can be inserted from the side. The 300 mm wide protection angles allow the guard rails to be adjusted by up to 200 mm per protection angle. This means each guard rail set can be individually adjusted in width by up to 400 mm.
The impact protection angles are each fitted with two vertically mounted guide rollers, which deflect the majority of lateral impact forces, dampen impacts and increase the service life.

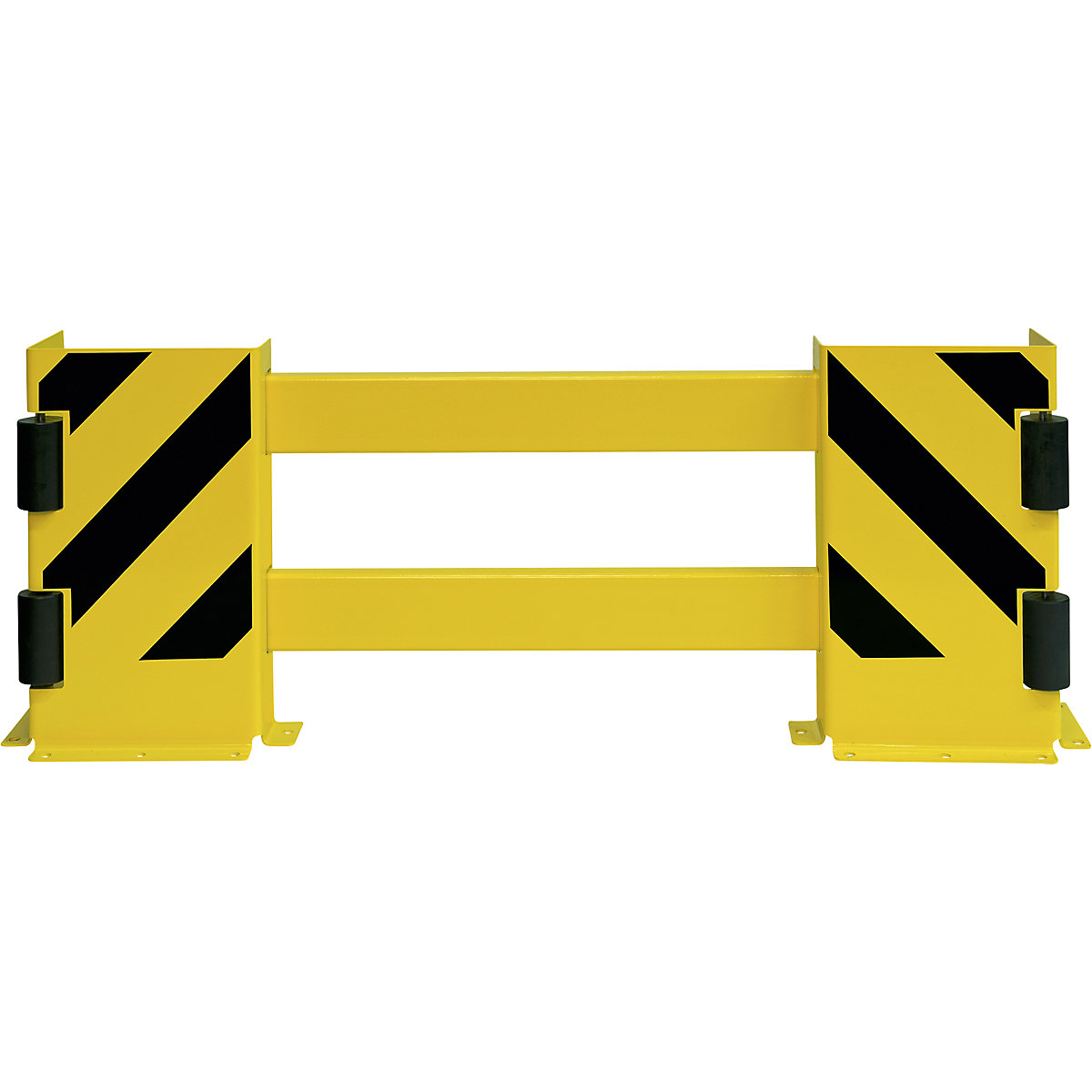

One B-type guard rail set consists of two impact protection angles (500 x 300 x 190 mm, 4 mm material thickness), two guard rails (100 x 40 x 3 mm) and four clamping pieces.
The impact protection angles are shaped so that two steel guard rails with a C-profile can be inserted from the side. The 300 mm wide protection angles allow the guard rails to be adjusted by up to 200 mm per protection angle. This means each guard rail set can be individually adjusted in width by up to 400 mm.
The impact protection angles are each fitted with two vertically mounted guide rollers, which deflect the majority of lateral impact forces, dampen impacts and increase the service life.
One B-type guard rail set consists of two impact protection angles (500 x 300 x 190 mm, 4 mm material thickness), two guard rails (100 x 40 x 3 mm) and four clamping pieces.
Technical data
| Type of mounting | for bolting in place |
|---|---|
| Width | 190 mm |
| Height | 500 mm |
| Colour | yellow black |
| Material | steel |
| Finish | plastic coated |
| Place of use | indoor use |
| Product type | collision protection |
| Supplied | pre-assembled, final assembly by customer |
| Length | 1300 mm |
| Weight | 30.4 kg |
