Ref.: 707569 10
Crash protection bar, steel, Ø 76 mm – Black Bull for indoor use
(1)
HxW 390 x 750 mm
Height [mm]
Width [mm]
Ref.: 707569 10
Crash protection bar, steel, Ø 76 mm – Black Bull for indoor use
(1)
HxW 390 x 750 mm
HxW 390 x 750 mm
Height [mm]
Width [mm]
€ 415.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 415.00
Price / item (Excl. VAT)
Product description
- For indoor use
- Non-marking due to energy absorbing spring element
- Reduction in repair costs as plugs can no longer be yanked out
- Flexible spring element minimises collision damage – inclines upon impact by up to max. 10°
- Can be retrofitted to crash protection bars that are already installed
- TÜV tested in accordance with DGUV 108-007 and patented
- Large range of different heights and widths

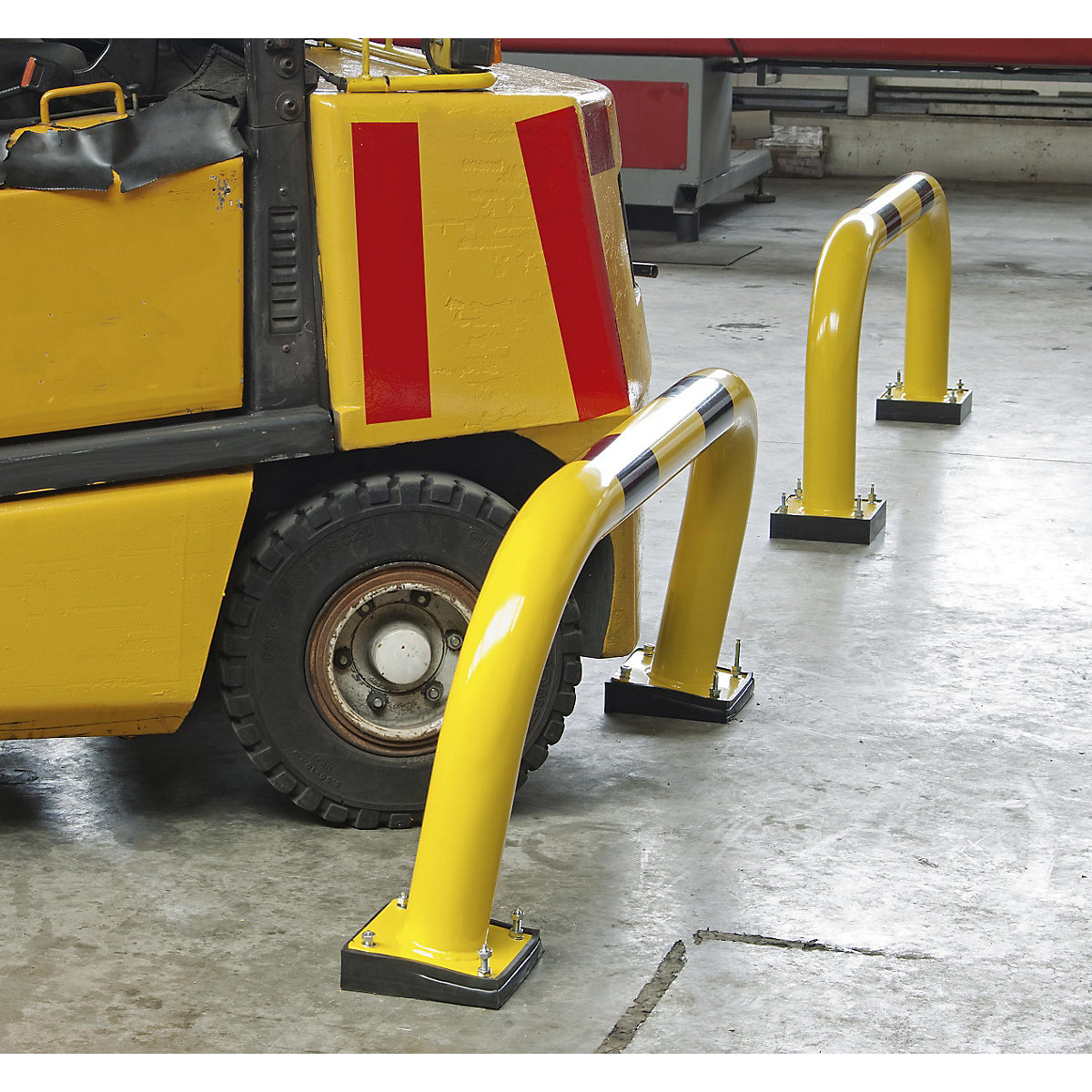

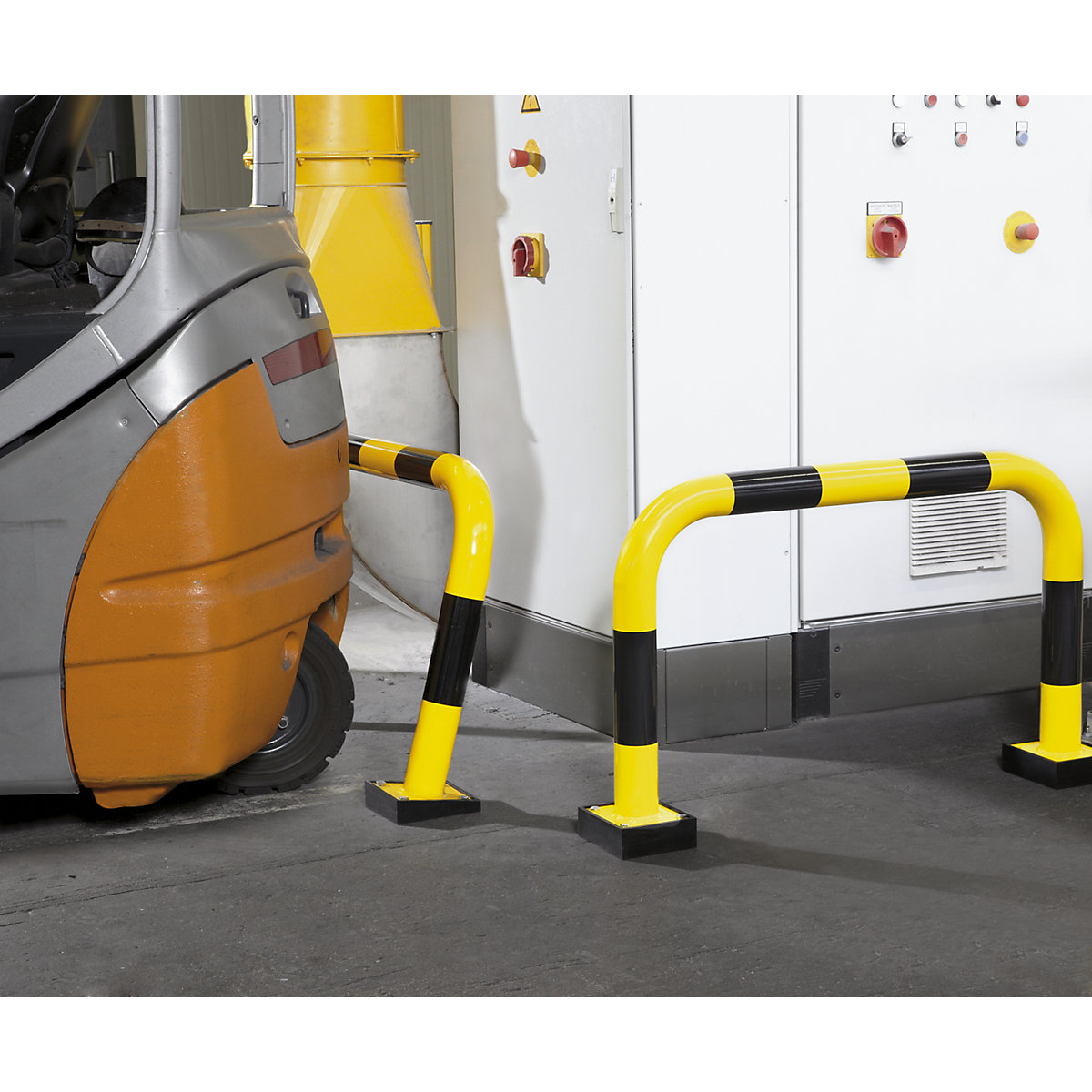

The robust steel crash protection barrier offers effective safety in working environments where vehicles, transport equipment and machines manoeuvre in confined spaces. The particularly durable construction ensures stability even under high loads.
The barrier rail is made of high-quality grade steel and is evenly bent, without welded seams. This continuous design avoids weak points and increases its resilience. Energy-absorbing PU spring elements form the connection to the base. They are UV-resistant, permanently elastic and protect the ground even during repeated impacts. The spring-loaded design allows for inclinations of up to 10° and prevents dowels from being torn out. This keeps the floor permanently intact, minimises damage to vehicles and reduces repair costs.
The signal colour traffic yellow RAL 1023 with warning stripes in jet black RAL 9005 ensures clear visibility and supports safe traffic management on-site.
The barrier rail is ideal for storage areas, production areas and traffic routes where effective protection against collisions is required.
dimensions:
Rail Ø: 76 mm
Wall thickness: 3 mm
Base plates for dowelling: LxW 200 x 140
Quality product manufactured in accordance with DIN EN 1461, EN 1090-2 and ISO/TR 15608.
Plastic coated in yellow with black stripes.
The barrier rail is made of high-quality grade steel and is evenly bent, without welded seams. This continuous design avoids weak points and increases its resilience. Energy-absorbing PU spring elements form the connection to the base. They are UV-resistant, permanently elastic and protect the ground even during repeated impacts. The spring-loaded design allows for inclinations of up to 10° and prevents dowels from being torn out. This keeps the floor permanently intact, minimises damage to vehicles and reduces repair costs.
The signal colour traffic yellow RAL 1023 with warning stripes in jet black RAL 9005 ensures clear visibility and supports safe traffic management on-site.
The barrier rail is ideal for storage areas, production areas and traffic routes where effective protection against collisions is required.
dimensions:
Rail Ø: 76 mm
Wall thickness: 3 mm
Base plates for dowelling: LxW 200 x 140
Quality product manufactured in accordance with DIN EN 1461, EN 1090-2 and ISO/TR 15608.
Plastic coated in yellow with black stripes.
The mounting material can be found under Accessories.
Supplied without fixing material.
Technical data
| Type of mounting | with base plate for bolting in place |
|---|---|
| Tube diameter | 76 mm |
| Base plate length | 160 mm |
| Base plate width | 140 mm |
| Model | versatile |
| Material | steel |
| Finish | plastic coated |
| Colour | traffic yellow RAL 1023 jet black RAL 9005 |
| Panel thickness | 3 mm |
| Slope | 10° |
| Place of use | indoor use |
| Product type | barrier rails |
| Supplied | assembled |
| Height | 390 mm |
| Width | 750 mm |
| Height above ground | 390 mm |
| Weight | 9 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.0 | |
| 30% | 4.5 | |
| 25% | 1.0 | |
| 10% | 3.2 | |
| 5% | 3.9 | |
| Overall score | 3.1 | |
