SUPPORTER height adjustable workbench max. load 500 kg
- Height adjustment by hydraulic foot operation – even when loaded, or with an eccentric load
- No electrical connection cables in the way
- Mobile due to sturdy swivel castors with wheel stops
- Quick adaptation of the working height when working in shifts, etc.
- Makes work more ergonomic – fewer sick days due to physical injuries related to posture
- Large work surface
New
Ref.: 686243 10

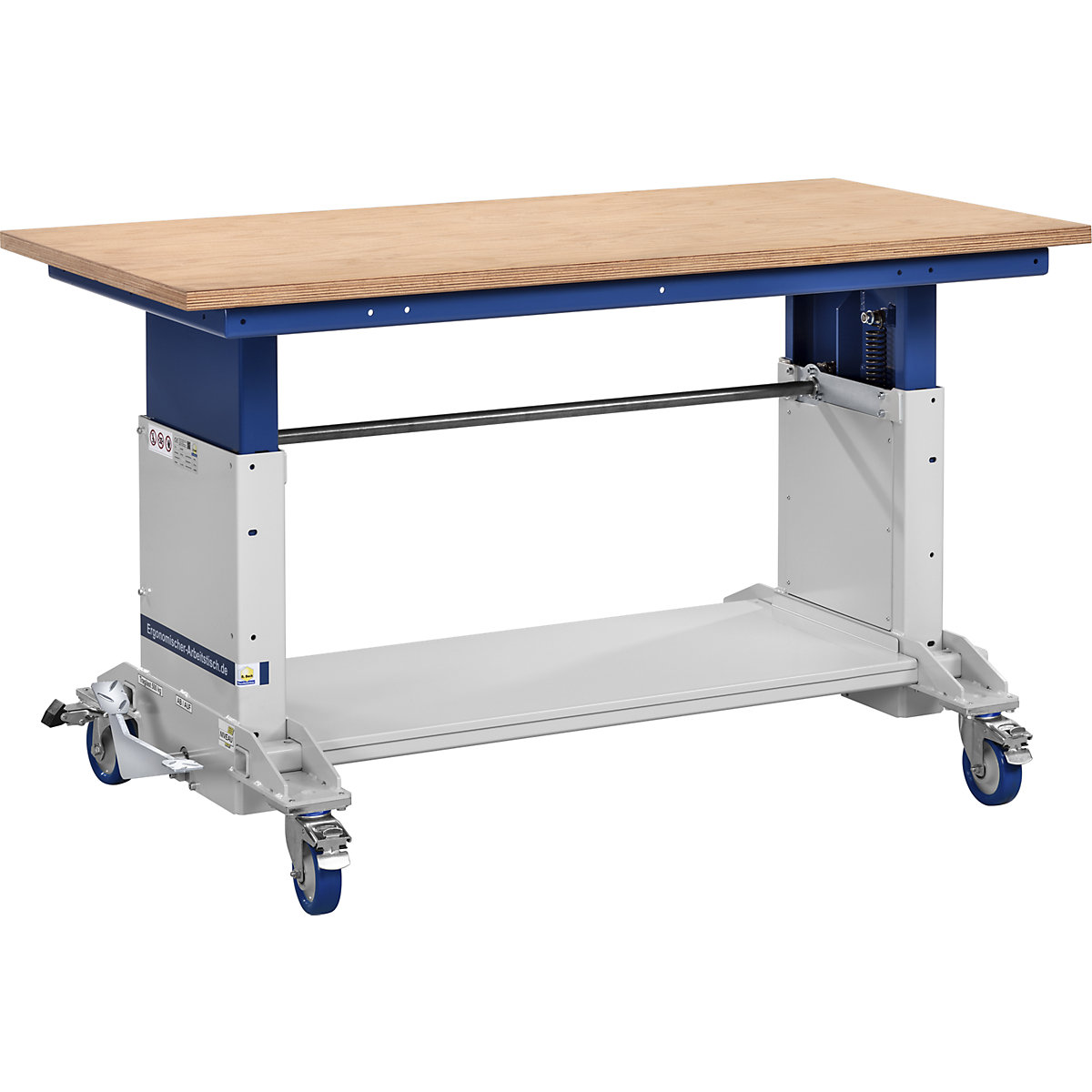

SUPPORTER height adjustable workbench, max. load 500 kg, WxD 1600 x 790 mm
Good reasons to purchase products from us
- 3 year minimum warranty
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pmProduct description

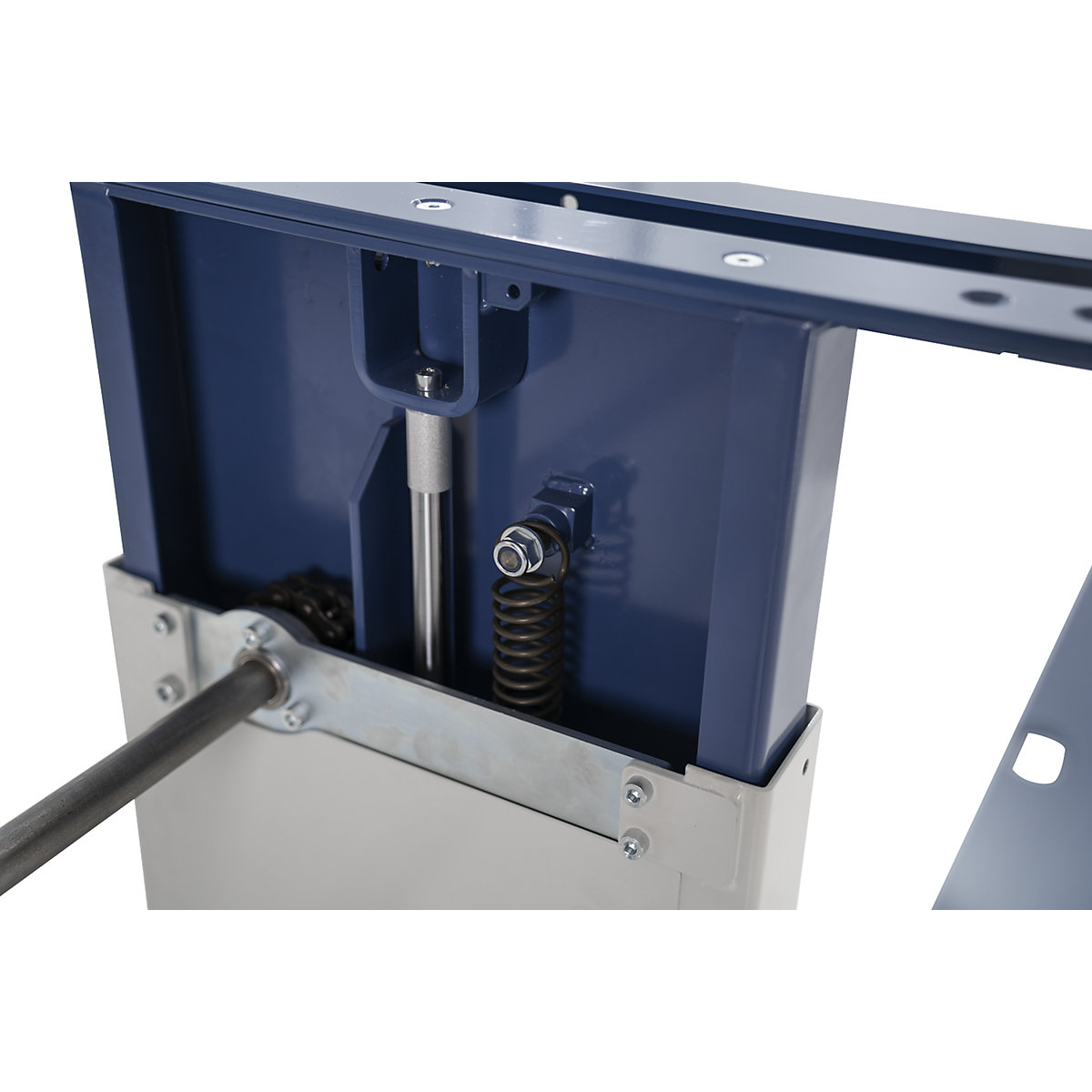

Robust, durable sheet steel construction. The side panels provide the necessary stability while protecting the lifting and lowering mechanism inside them at the same time. High quality drives on both sides raise or lower the worktable to the required level. The table is operated using a foot lever. This makes it easy to use the table at different locations without requiring an electrical connection. 4 heavy duty castors with wheel stops ensure easy mobility. Beech multiplex worktop, WxD 1600 x 790 mm. Thickness 30 mm. Effective lift 300 mm (working height infinitely adjustable from 700 to 1000 mm).

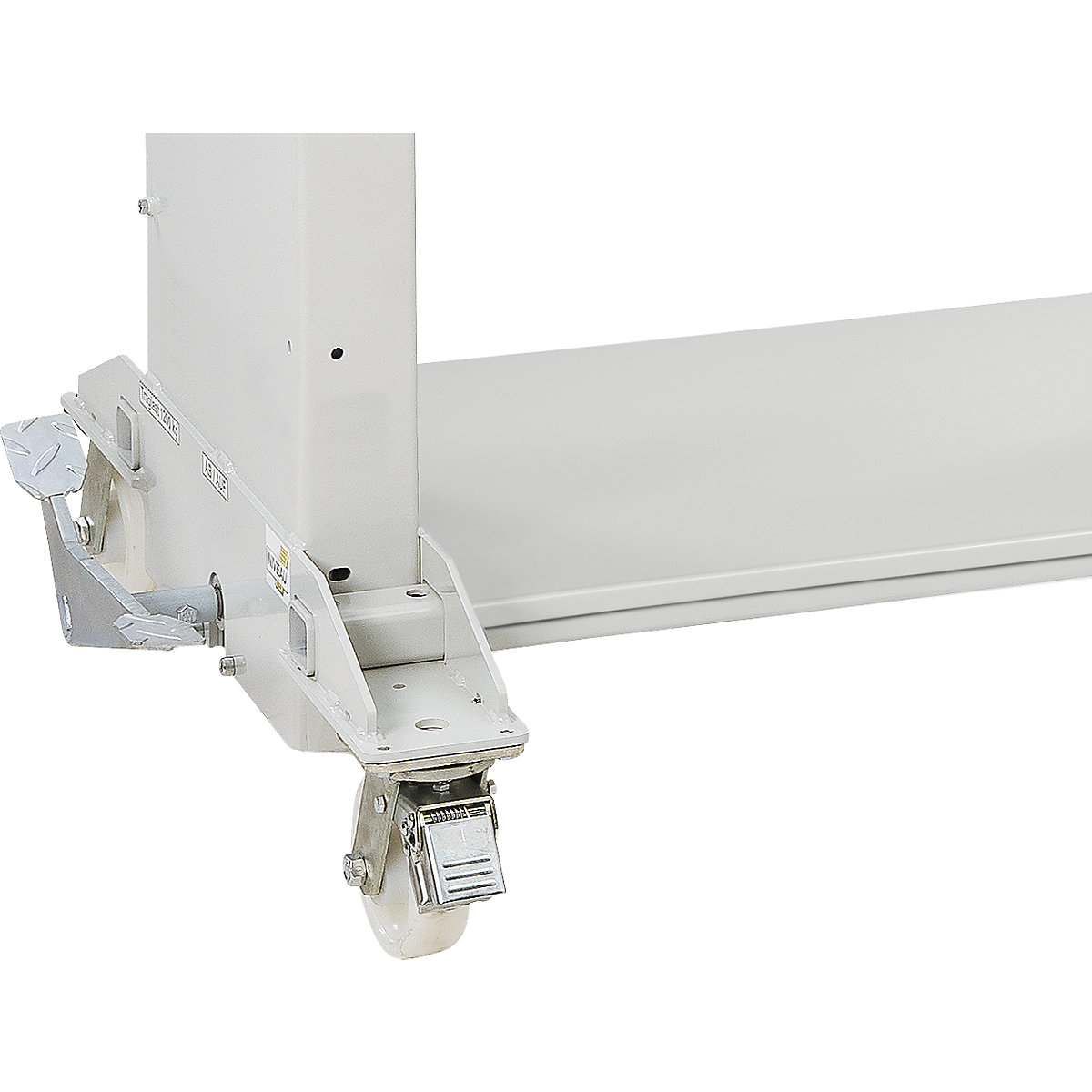

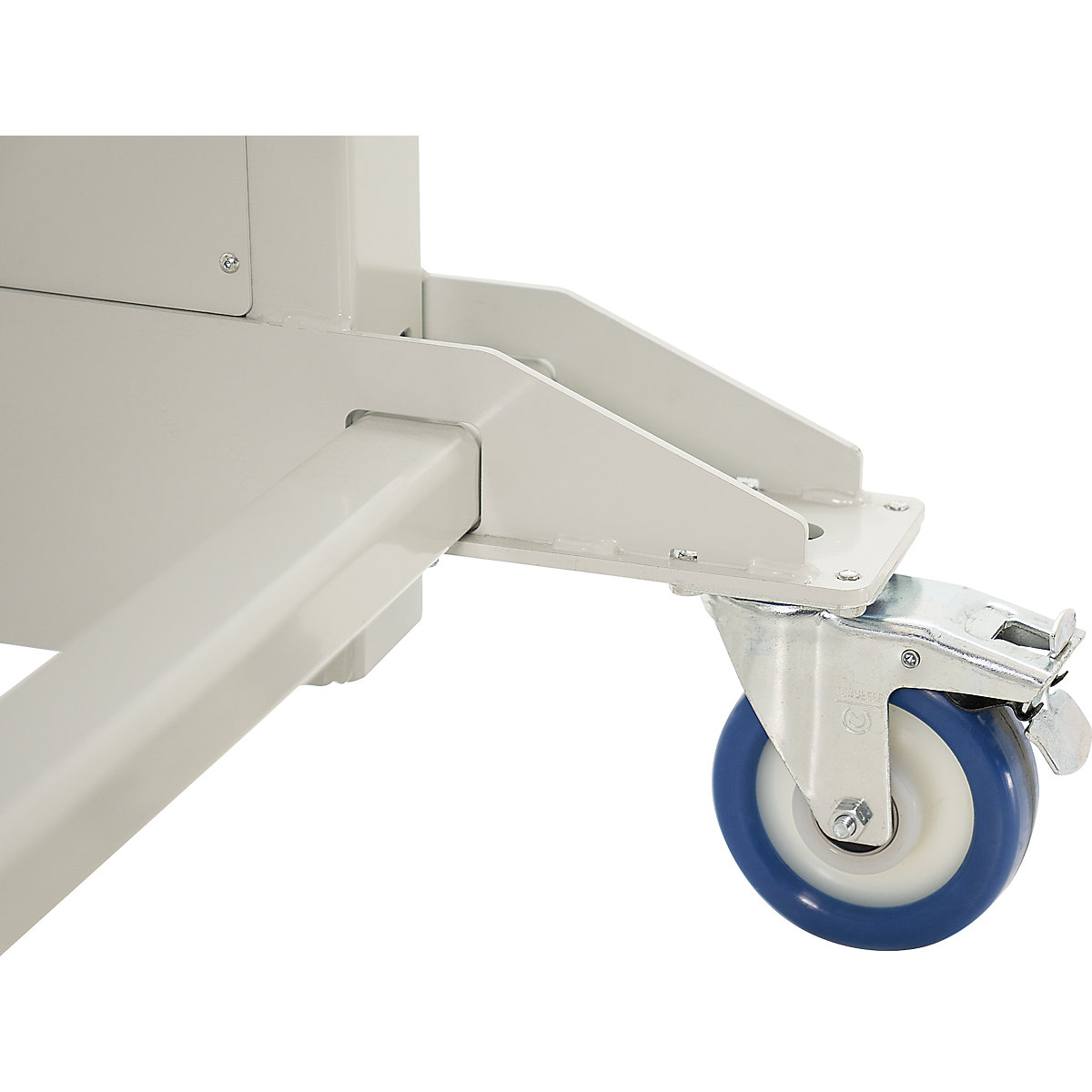

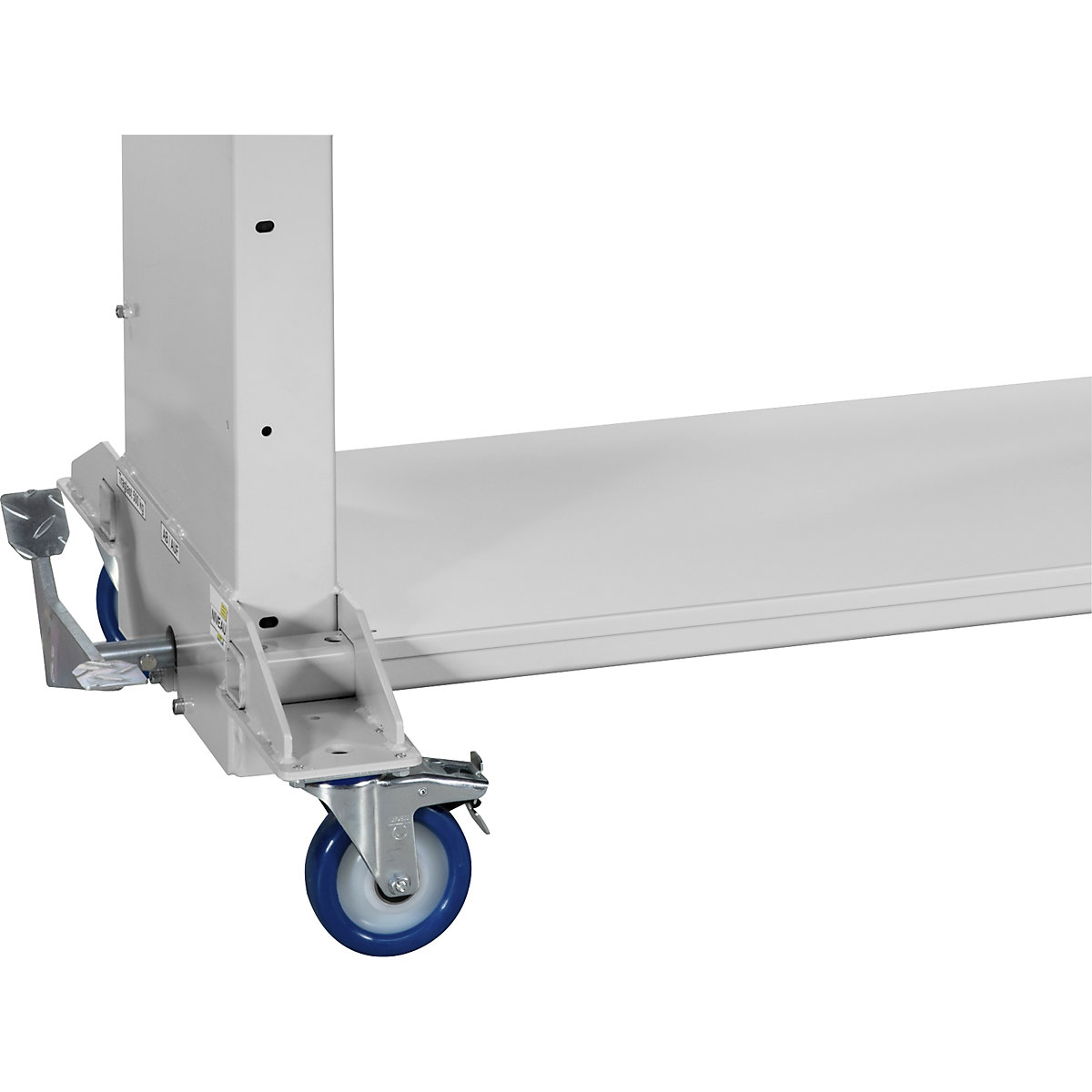

Mobile worktop and assembly table, with beech multiplex worktop, 30 mm. With sheet steel shelf at the bottom. 4 swivel castors, 2 with brake. Wheel Ø 125 mm. Operated using 1 lifting unit.
Mobile worktop and assembly table, with beech multiplex worktop, 30 mm. With sheet steel shelf at the bottom. 4 swivel castors, 2 with brake. Wheel Ø 125 mm. Operated using 1 lifting unit.
Many other models as well as customised solutions possible, e.g. hole matrix multiplex panel for carpenters, HPL worktops, electric height adjustment, suspended drawer unit and much more.
- Height adjustment by hydraulic foot operation – even when loaded, or with an eccentric load
- No electrical connection cables in the way
- Mobile due to sturdy swivel castors with wheel stops
- Quick adaptation of the working height when working in shifts, etc.
- Makes work more ergonomic – fewer sick days due to physical injuries related to posture
- Large work surface
Technical data
| Type of worktop | beech multiplex surface |
|---|---|
| Width | 1600 mm |
| Depth | 790 mm |
| Static distributed load | 500 kg/m² |
| Working height | 700 – 1000 mm |
| Type of height adjustment | infinite with foot hydraulics |
| Panel thickness | 30 mm |
| Frame material | steel |
| Frame colour | light grey RAL 7035 violet blue RAL 5000 |
| Product type | work tables |
| Supplied | assembled |
