EUROKRAFTbasic – Steel sump tray for IBC/CTC tank containers for 2 x 1000 l containers / 4 x 200 l vertical drums

  • Regulation compliant storage of tank containers, drums and small containers
  • Robust trays with certification and zinc plated grates
  • Regulation compliant storage and filling of water hazardous and flammable liquids in tank containers and drums
  • With zinc plated filling attachment and storage shelf in front – for filling tank containers optimally
  • Grates and filling attachments can be combined to allow individual positioning of the attachment on the tray
EUROKRAFTbasic
3 year guarantee
3 year guarantee
For water hazardous liquids
For water hazardous liquids

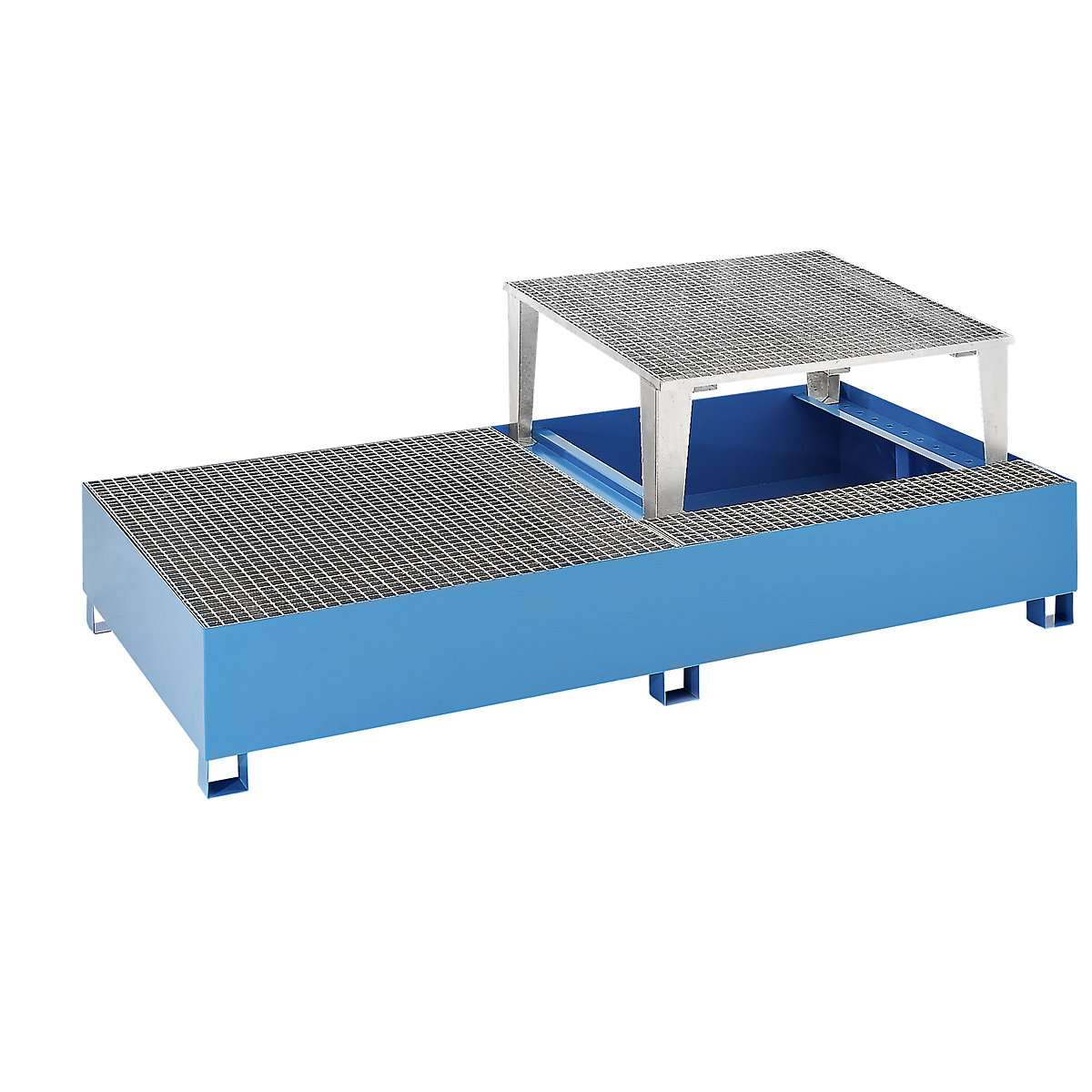

EUROKRAFTbasic – Steel sump tray for IBC/CTC tank containers, for 2 x 1000 l containers / 4 x 200 l vertical drums, powder coated, blue RAL 5012
Price / items (Excl. VAT)
from
€ 1,625.00

Product description
Sump trays with certification with leakproof welds, made of 3 mm sheet steel.
Manufacturers declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3 as well as for water hazardous liquids in GHS categories 1 – 4.

Dimensions per filling attachment
Length x width 1250 x 1210 mm.
Height at front / rear 430 / 493 mm.
  • Regulation compliant storage of tank containers, drums and small containers
  • Robust trays with certification and zinc plated grates
  • Regulation compliant storage and filling of water hazardous and flammable liquids in tank containers and drums
  • With zinc plated filling attachment and storage shelf in front – for filling tank containers optimally
  • Grates and filling attachments can be combined to allow individual positioning of the attachment on the tray
3 year guarantee
3 year guarantee
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
1000 l container capacity2 pcs.
Sump capacity1200 l
Quantity of filling attachments1 pcs.
Filling attachment dimensionsLxBxH 1250 x 1210 x 430 / 493 mm
Length2650 mm
Width1460 mm
Height863 mm
Materialsheet steel
Drum capacity4 x 200 l
Type of gratewith zinc plated grate
Design of sump trayclearance for forklift
Max. load3800 kg
Clearance height100 mm
Test symbolmanufacturers declaration of conformity in accordance with StawaR
Material thickness3 mm
Weight190 kg
Hazard classfor flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4
Certificationwith
Product typetank container sump trays
Suppliedassembled
EUROKRAFTbasic
