Hazardous goods container for the active storage of flammable media external HxWxD 2605 x 5075 x 6560 mm
- Regulation compliant, versatile and mobile active outdoor storage of hazardous flammable media (opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
- With explosion protected forced ventilation to comply with regulatory requirements, five-fold air exchange
- Robust, zinc plated steel construction, integrated sump tray with grate
- Can be used as small container storage in conjunction with shelving (accessory)
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
- Can be moved at any time when empty – crane eyelets, forklift access

For water hazardous liquids

For flammable liquids


Ref.: 605315 10
Hazardous goods container for the active storage of flammable media, external HxWxD 2605 x 5075 x 6560 mm, zinc plated
Price / items (net)
€ 19,500.00
Product description
+
Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.
Snow load in accordance with DIN EN 1055.
Double doors

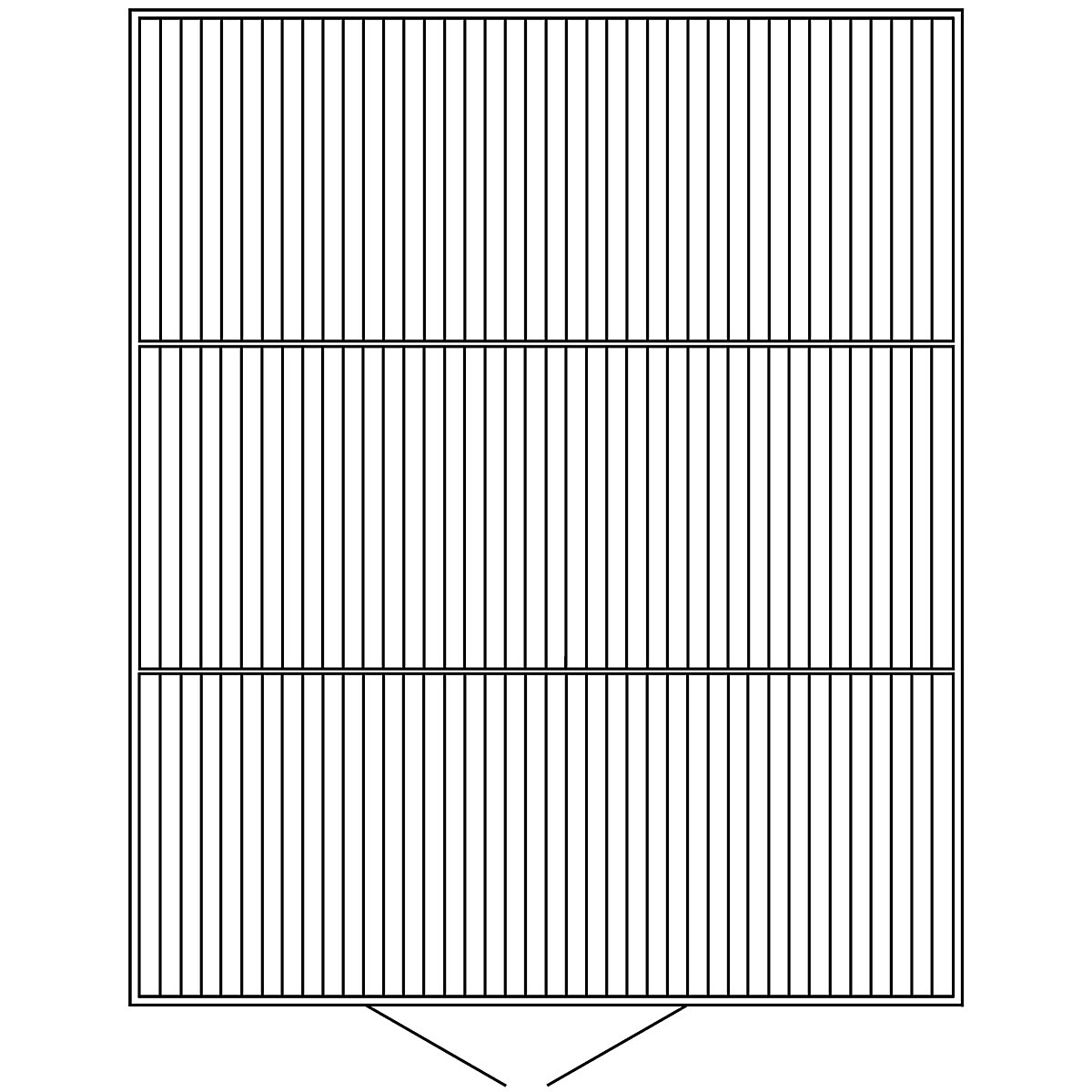

See line drawing for size and position. Alternative door positions on request. With security lock.
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessory) when ordering.
For storing opened containers.
Approved for opening, filling and emptying of containers in storage.
With explosion protected forced ventilation to comply with regulatory requirements, 5-fold air exchange.
Fan wired to exterior mounted switch box, 230 V.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.
Snow load in accordance with DIN EN 1055.
Double doors
See line drawing for size and position. Alternative door positions on request. With security lock.
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessory) when ordering.
For storing opened containers.
Approved for opening, filling and emptying of containers in storage.
With explosion protected forced ventilation to comply with regulatory requirements, 5-fold air exchange.
Fan wired to exterior mounted switch box, 230 V.
Please ask for details of fire protection containers.
- Regulation compliant, versatile and mobile active outdoor storage of hazardous flammable media (opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
- With explosion protected forced ventilation to comply with regulatory requirements, five-fold air exchange
- Robust, zinc plated steel construction, integrated sump tray with grate
- Can be used as small container storage in conjunction with shelving (accessory)
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
- Can be moved at any time when empty – crane eyelets, forklift access

For water hazardous liquids

For flammable liquids

Technical data
+
Place of use | outdoor use |
---|---|
External height | 2605 mm |
External width | 5075 mm |
External depth | 6560 mm |
Material | steel profile |
Sump capacity | 3900 l |
Position of double doors | short side |
Internal height | 1900 mm |
Internal width | 4980 mm |
Internal depth | 6440 mm |
Type of floor | hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load |
Lock type | security lock |
Max. snow load | 150 kg/m² |
Finish | zinc plated |
Door type | double hinged doors |
Door width | 1950 mm |
Door height | 1900 mm |
Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
Hazard class | for the active storage of flammable substances in GHS categories 1 – 3 |
Supplied | pre-assembled, final assembly by customer |
Weight | 3190 kg |
