Hazardous goods container for the active storage of flammable media external HxWxD 2385 x 6075 x 2875 mm

  • Regulation compliant, versatile and mobile active outdoor storage of hazardous flammable media (opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
  • With explosion protected forced ventilation to comply with regulatory requirements, five-fold air exchange
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be used as small container storage in conjunction with shelving (accessory)
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
  • Can be moved at any time when empty – crane eyelets, forklift access
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Ref.: 605302 10
Hazardous goods container for the active storage of flammable media, external HxWxD 2385 x 6075 x 2875 mm, zinc plated
Price / items (net)
€ 12,500.00

Product description
+
Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.

Snow load in accordance with DIN EN 1055.

Double doors

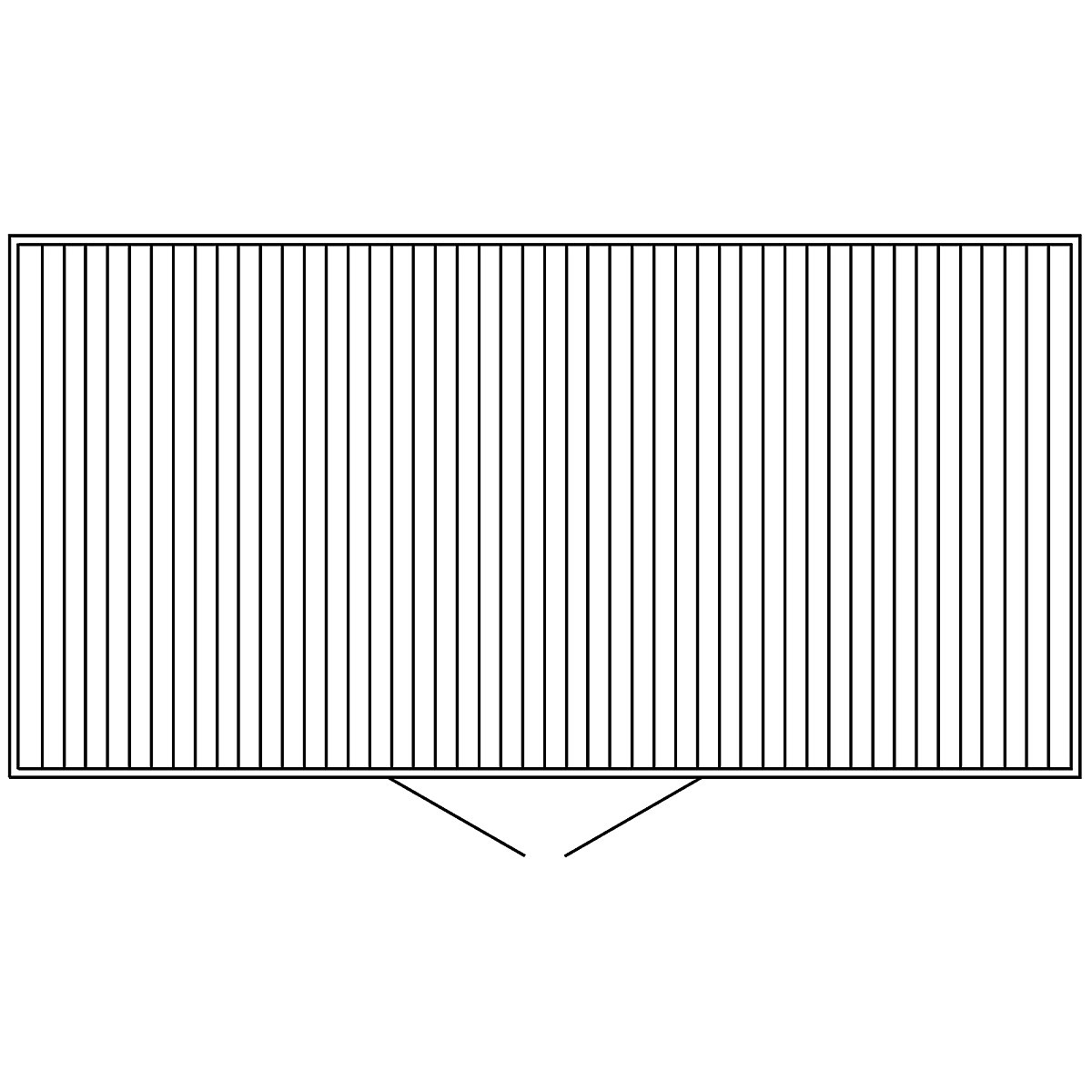

See line drawing for size and position. Alternative door positions on request. With security lock.

The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessory) when ordering.

For storing opened containers.
Approved for opening, filling and emptying of containers in storage.
With explosion protected forced ventilation to comply with regulatory requirements, 5-fold air exchange.
Fan wired to exterior mounted switch box, 230 V.
Please ask for details of fire protection containers.
  • Regulation compliant, versatile and mobile active outdoor storage of hazardous flammable media (opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
  • With explosion protected forced ventilation to comply with regulatory requirements, five-fold air exchange
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be used as small container storage in conjunction with shelving (accessory)
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
  • Can be moved at any time when empty – crane eyelets, forklift access
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
+
Place of useoutdoor use
External height2385 mm
External width6075 mm
External depth2875 mm
Materialsteel profile
Sump capacity2800 l
Position of double doorslong side
Internal height1970 mm
Internal width5980 mm
Internal depth2780 mm
Type of floorhot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
Lock typesecurity lock
Max. snow load150 kg/m²
Finishzinc plated
Door typedouble hinged doors
Door width1950 mm
Door height1900 mm
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
Hazard classfor the active storage of flammable substances in GHS categories 1 – 3
Suppliedflat pack
Weight1810 kg
Items subject to surcharges & services available
Explosion-protected fume monitoring device

for containers

€ 2,150.00
Ex. VAT
Extra cost for exterior paintwork

for external WxD 6075 x 2875 mm

€ 1,095.00
Ex. VAT
