LED machine light 8 W
connection voltage 230 V
- With high light output for industrial and machine workplaces
- Light head remains cool when used continuously
- Dust and splash water protection IP54
- Matt diffusers to reduce reflected glare on shiny surfaces
Ref.: 760131 10
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description

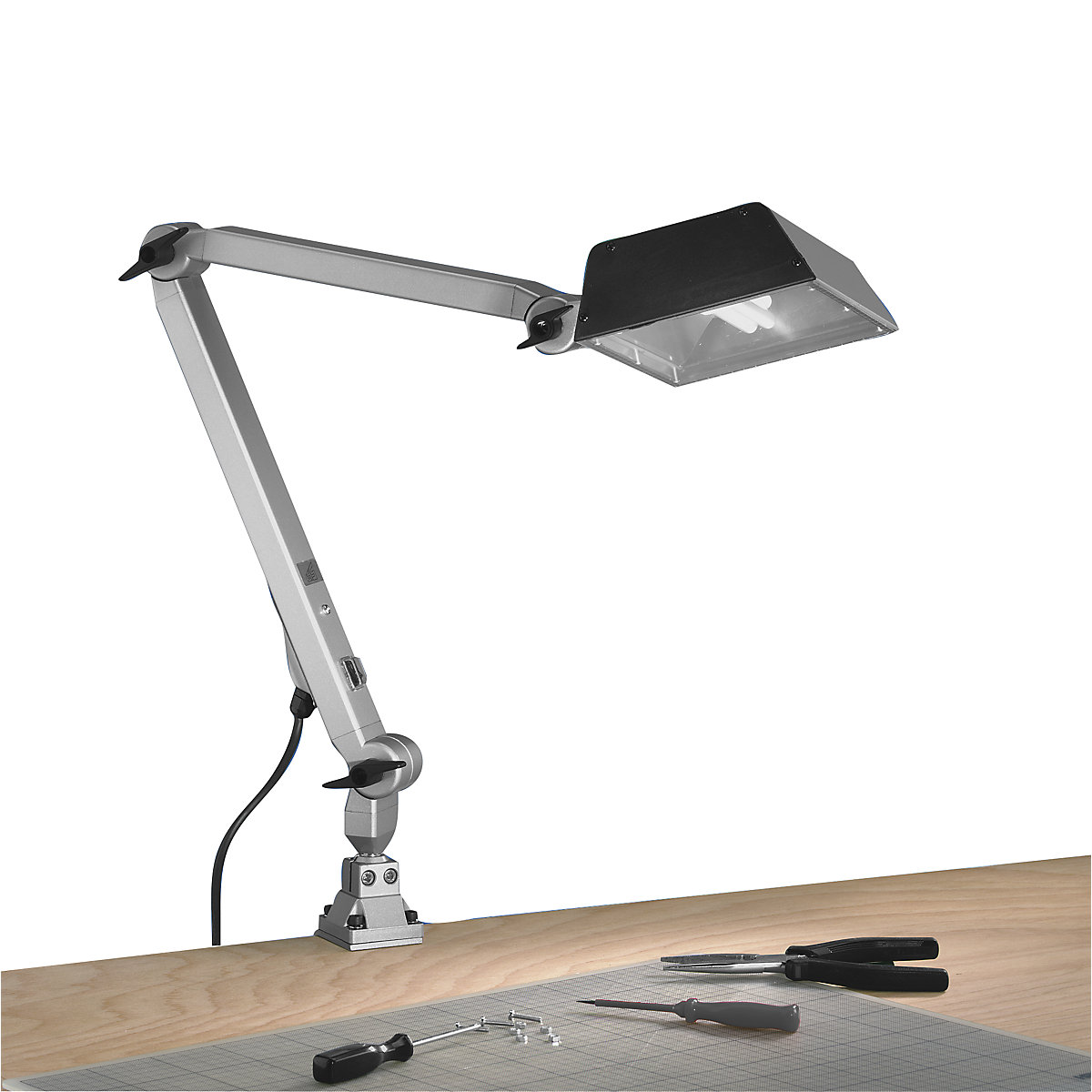

Heavy duty swivel arms made of aluminium profiles with adjustable die-cast joints, arm length 315 + 415 mm. Lamp head made of aluminium profile with side elements made of impact resistant plastic. Switch in arm. LED converter (CC) integrated into the controller, plug type safety plug (CEE 7/7), mains connection using 2 m rubber cable. Supplied complete with 60 x 60 mm screw-on flange.
Please observe: Please include the mounting accessories found under accessories which correspond to your preferred type of mounting with your order.
- With high light output for industrial and machine workplaces
- Light head remains cool when used continuously
- Dust and splash water protection IP54
- Matt diffusers to reduce reflected glare on shiny surfaces
Technical data
| Power | 8 watt |
|---|---|
| Bulb | LED |
| Mains voltage | 220 – 240 V / 50 – 60 Hz |
| Colour | silver grey |
| Protection type | IP54 |
| Energy consumption | 8.8 kWh/1000h |
| Mains cable | 2.0 m |
| Lamp head width | 178 mm |
| Axes | 5 |
| Light head | tilting rotating |
| Light head material | aluminium profile |
| Ballast model | integrated LED drivers |
| Luminous flux | 1400 lumen |
| Lamp head height | 65 mm |
| Lamp head depth | 175 mm |
| Max. brightness | 1500 lux |
| Weight | 2.9 kg |
| Luminous colour | neutral white |
| Colour temperature | 5000 K |
| Material | aluminium plastic |
| Beam angle | 100 ° |
| Energy efficiency class for each light source | C (spectrum A to G) |
| Colour reproduction index | 80 |
| Product type | machine lamps |
| Supplied | assembled |
| Instructions |
