Ref.: 611704 10

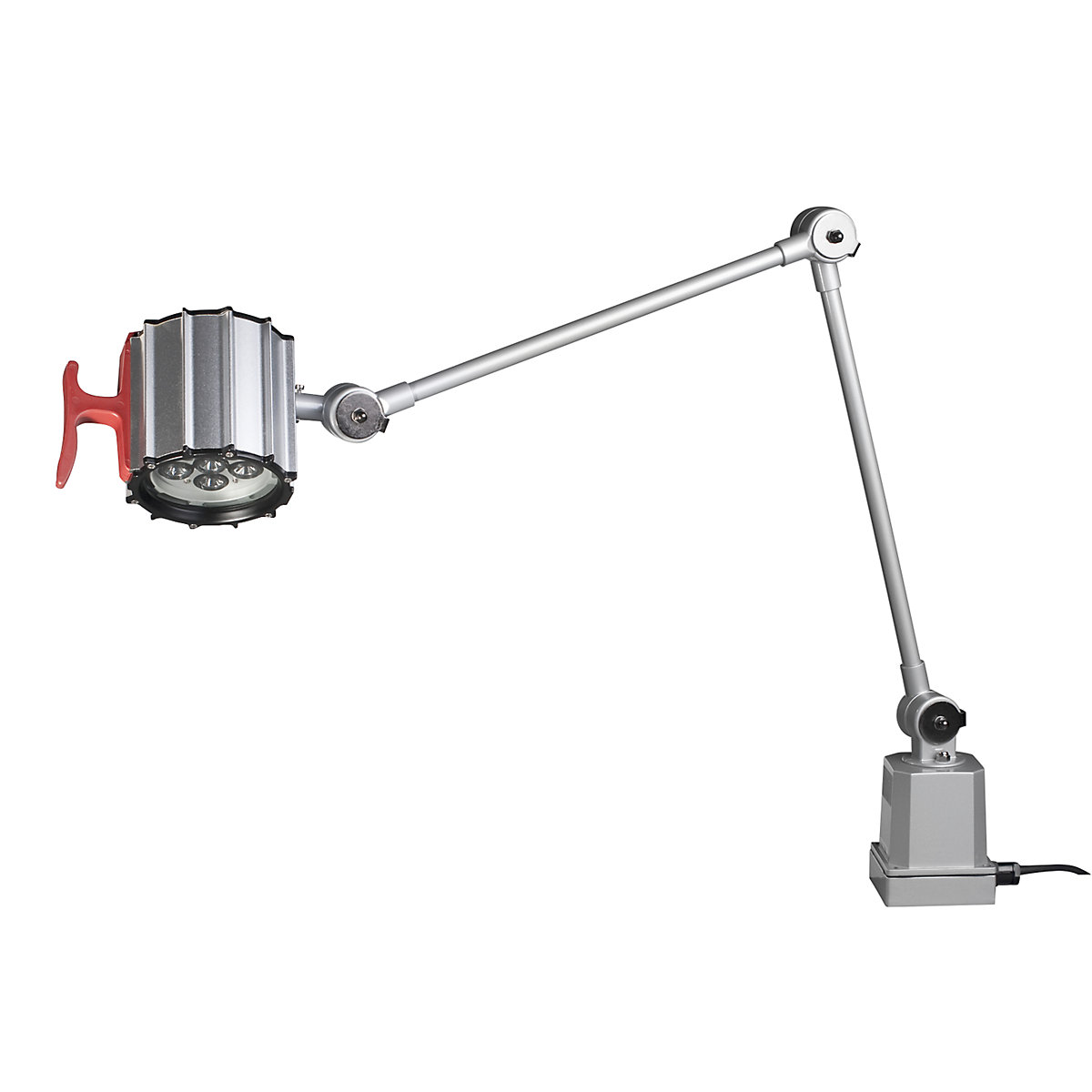

Articulated LED machine lamp IP65 12 W, rotates/tilts

Articulated LED machine lamp IP65

6000 K, 1260 lumens

Ref.: 611704 10
Product description
  • Protection type IP65
  • Robust design with integrated screw-on flange for harsh ambient conditions
  • Powerful and concentrated light
  • Dust and splash water protection IP65
  • Good heat dissipation due to ribbed lamp head made of robust extruded aluminium profile
  • The protective glass does not heat up, preventing coolants or lubricants from leaving burn marks
  • Insensitive to vibrations
  • Ready for connection to mains voltage
Articulated arm made of tubular steel, 5 axes of rotation, joints and transformer housing made of die-cast aluminium, handle made of impact resistant plastic (GRP). Arm length 400 + 400 mm. Switch in lamp head. LED converter (CC) integrated into the controller, plug type safety plug (CEE 7/7), mains connection using 1.5 m rubber cable, screw-on flange 90 x 90 mm.

Including 6 x 2 W high performance LEDs, cool white.
This light contains built-in LEDs. The LEDs cannot be replaced.
All luminaires subject to technical modifications based on EU regulations (EU) 2019/2020 and (EU) 2019/2015. More data can be found in our webshop.
Please note: please include any installation accessories required for your preferred type of installation, which can be found under Accessories, with your order!
Technical data
Power12 watt
BulbLED
Mains voltage100 – 240 V / 50 – 60 Hz
Coloursilver grey
Protection typeIP65
Energy consumption13.2 kWh/1000h
Mains cable1.5 m
Light headtilting rotating
Light head diameter130 mm
Ballast modelintegrated LED drivers
Luminous flux1260 lumen
Lamp head height120 mm
Max. brightness8000 lux
Weight2.9 kg
Luminous colourdaylight white
Colour temperature6000 K
Materialaluminium extruded profile cast aluminium tubular steel glass fibre reinforced plastic
Beam angle25 °
Energy efficiency classD (spectrum A to G)
Colour reproduction index80
Product typemachine lamps
Suppliedassembled
