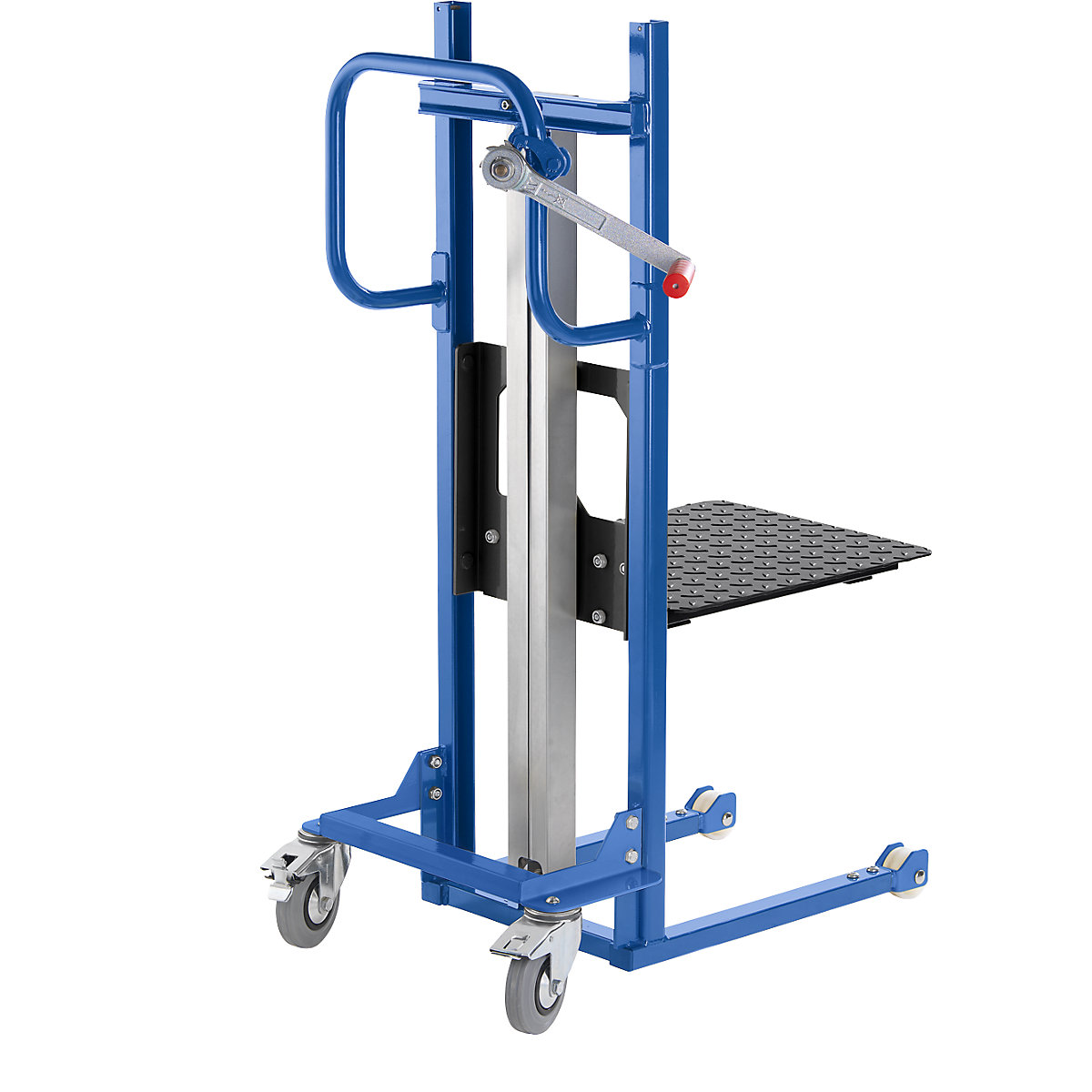

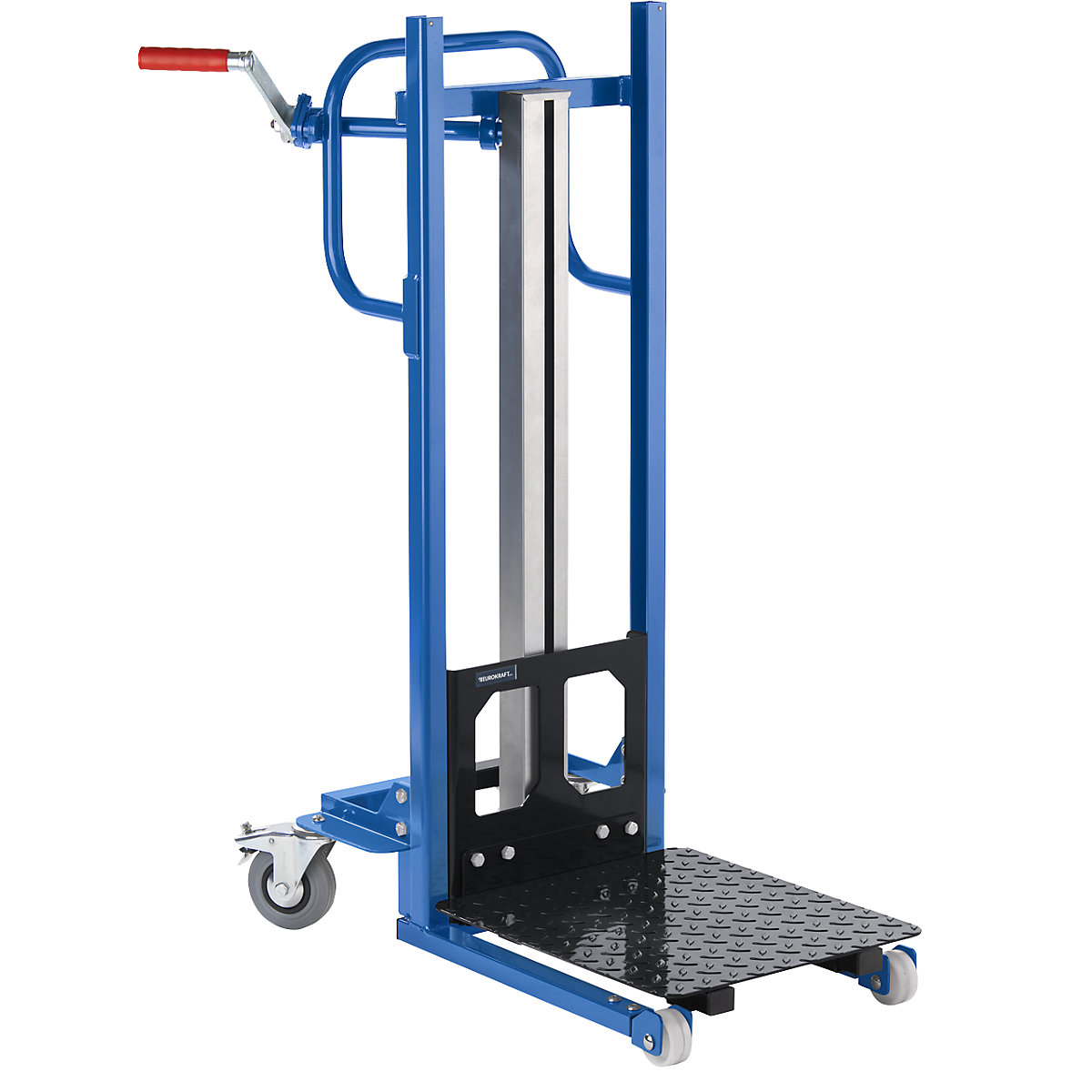

EUROKRAFT – Material lifter

with platform

EUROKRAFT
  • Exchangeable load support
  • Optionally available with fixed castors or 4-way chassis
  • Swivel castors with wheel stops
Material lifters with different load support equipment for many applications. Load centre 300 mm. Brings materials or tools to the ideal working height. Can be transported using 2 swivel castors with wheel stops and 2 fork rollers or with a 4-way chassis. Lifting motion produced by self locking safety winch and precision roller chain.

Particularly large platform for more applications.
Available in most RAL colours. Only 10 % extra.
Quality advantages
10 year guarantee  Products with this symbol have a 10 year guarantee (from the day of delivery) on the quality of material and processing.
Tested safety  This is a test mark. GS stands for tested safety.
Add service here directly:

  • Whether azure blue or salmon pink – we will customise the product for you for a surcharge of just 10%. Please note that this voids your right of return, and that the delivery time may be longer.
    The colours shown on your screen may deviate from the original.
EUROKRAFT – Material lifter, with platform
Price / item (Ex. VAT)
from 679.00
Price / item (Inc. VAT)
from 814.80
Order quantity:
{"articleNo":"M3428360","name":"EUROKRAFT – Material lifter with platform","baseProduct":"","productUrl":"/p/M3428360/","imageUrl":"/Lifting_Equipment/Mini_lifters/Material_lifter_pdpsmall--000067280505_PRD_org_all.jpg"}
Give us a call!
Give us a call! 1 800 677 300
  • At least 10 years guarantee
  • Top quality
  • 5 year re-order guarantee
  • From selected suppliers
  • Custom made products
2 of 2 items correspond to your selection criteria:
  • View:
Item no. / Description of item Delivery time: Order quantity: Price / item
New
with fork rollers
Item no.:  522654 10
EUROKRAFT – Material lifter, with platform, with fork rollers
Over 6 Weeks
items
Ex. VAT 689.00
Inc. VAT €826.80
{"articleNo":"522654","name":"EUROKRAFT – Material lifter with platform","baseProduct":"M3428360","productUrl":"/p/M3428360/","imageUrl":"/Lifting_Equipment/Mini_lifters/Material_lifter_pdpsmall--000067280505_PRD_org_all.jpg"}
Item properties:

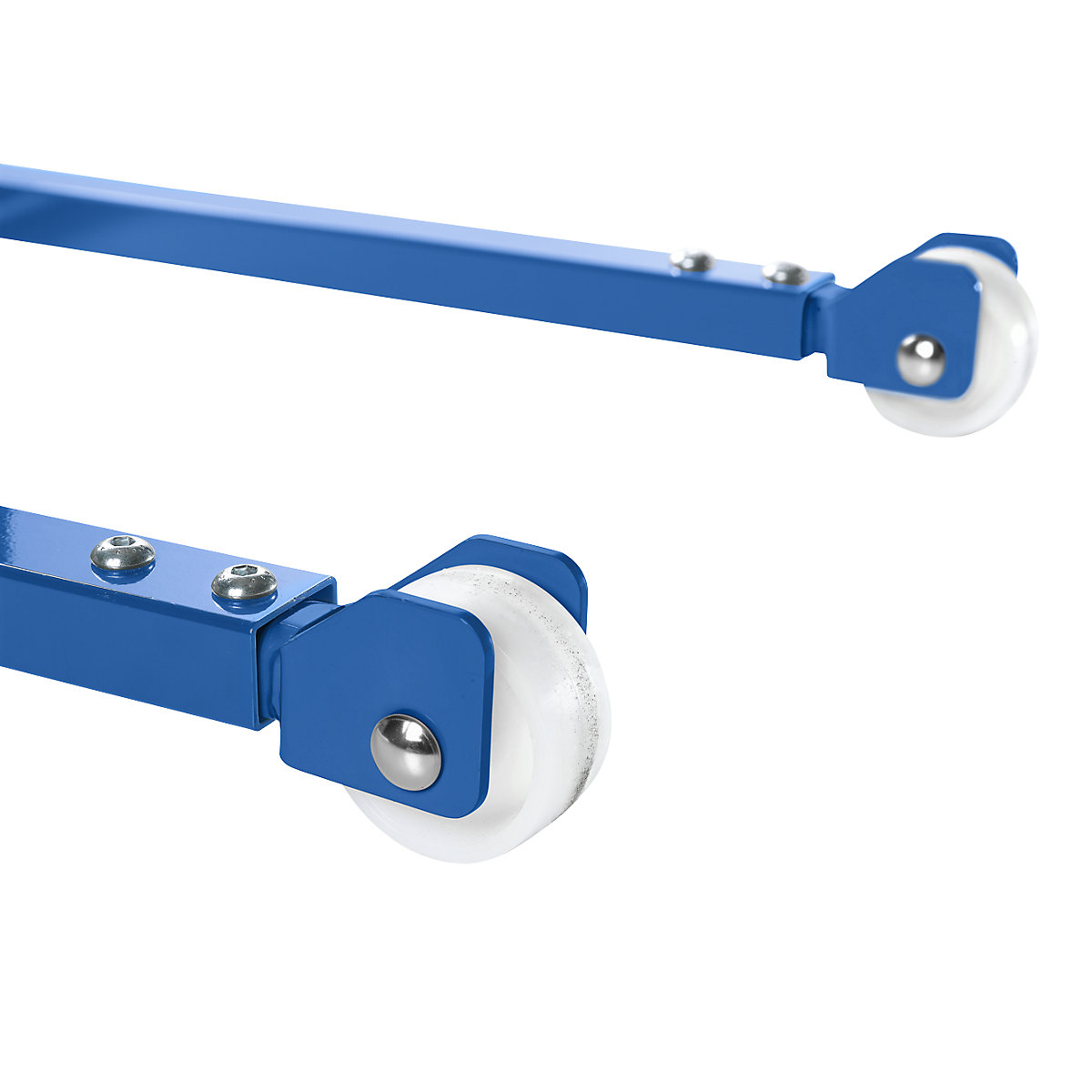

Wheel fittings: 2 swivel castors with wheel stops, 2 fork rollers Castor diameter front / rear: 70 / 125 mm Fork roller material: nylon Fork roller diameter: 70 mm Model: with platform / fixed castors
{"features":[{"name":"Wheel fittings","normalizedName":"","value":"2 swivel castors with wheel stops, 2 fork rollers","formattedValue":"2 swivel castors with wheel stops, 2 fork rollers"},{"name":"Castor diameter front / rear [mm]","normalizedName":"","value":"70 / 125","formattedValue":"70 / 125"},{"name":"Fork roller material","normalizedName":"","value":"nylon","formattedValue":"nylon"},{"name":"Fork roller diameter [mm]","normalizedName":"","value":"70","formattedValue":"70"},{"name":"Model","normalizedName":"","value":"with platform / fixed castors","formattedValue":"with platform / fixed castors"}]}
New
with 4 swivel castors
Item no.:  522655 10
EUROKRAFT – Material lifter, with platform, with 4 swivel castors
Over 6 Weeks
items
Ex. VAT 679.00
Inc. VAT €814.80
{"articleNo":"522655","name":"EUROKRAFT – Material lifter with platform","baseProduct":"M3428360","productUrl":"/p/M3428360/","imageUrl":"/Lifting_Equipment/Mini_lifters/Material_lifter_pdpsmall--000067280633_PRD_org_all.jpg"}
Item properties:
Wheel fittings: 2 steering wheels with wheel stops, 2 swivel castors Castor diameter front / rear: 35 / 125 mm Fork roller material: polyurethane Fork roller diameter: 35 mm Model: with platform / 4-way chassis
{"features":[{"name":"Wheel fittings","normalizedName":"","value":"2 steering wheels with wheel stops, 2 swivel castors","formattedValue":"2 steering wheels with wheel stops, 2 swivel castors"},{"name":"Castor diameter front / rear [mm]","normalizedName":"","value":"35 / 125","formattedValue":"35 / 125"},{"name":"Fork roller material","normalizedName":"","value":"polyurethane","formattedValue":"polyurethane"},{"name":"Fork roller diameter [mm]","normalizedName":"","value":"35","formattedValue":"35"},{"name":"Model","normalizedName":"","value":"with platform / 4-way chassis","formattedValue":"with platform / 4-way chassis"}]}

Technical data

Max. load 120 kg
Load centre 300 mm
Lifting range 80 – 945 mm
Distance across forks 430 mm
Overall length 970 mm
Overall width 506 mm
Overall height 1,265 mm
Clearance height 75 mm
Material steel
Finish powder coated
Colour signal blue RAL 5005
Steering wheel diameter 125 mm
Weight 44 kg
Support leg length 610 mm
Conforms to DIN EN ISO 3691-5:2014
Lift per crank rotation 130 mm
Platform colour jet black RAL 9005
Platform width 430 mm
Platform length 600 mm
Load suspension device LxW/Ø 600 x 430 mm
Supplied partially assembled
