Ref.: 707731 10

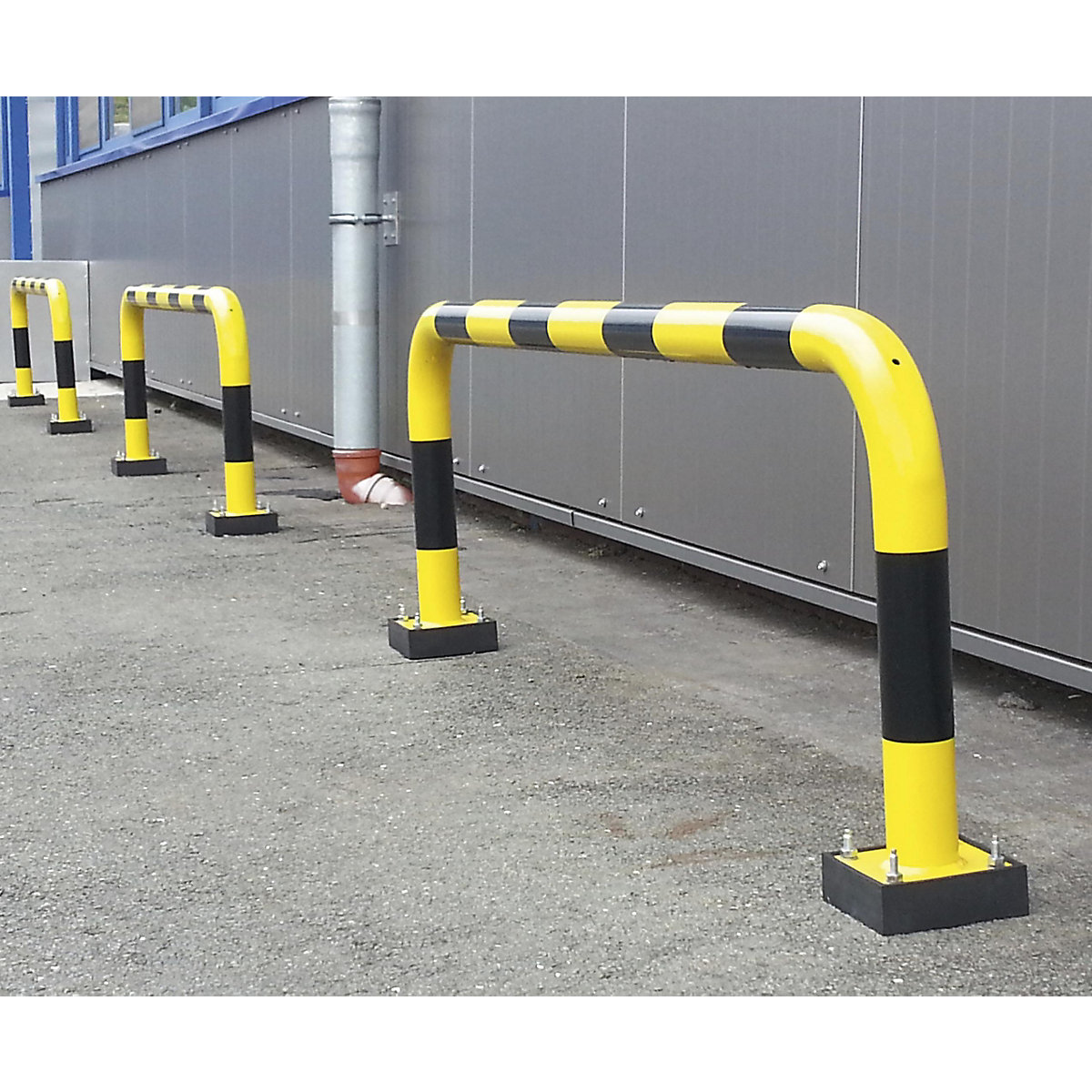

Crash protection bar, steel, Ø 76 mm for outdoor use
HxW 390 x 750 mm
Height [mm]
Width [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 707731 10
Crash protection bar, steel, Ø 76 mm for outdoor use
HxW 390 x 750 mm
HxW 390 x 750 mm
Height [mm]
Width [mm]
€ 449.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 449.00
Price / item (Excl. VAT)
Product description
- For outdoor use
- Non-marking due to energy absorbing spring element
- Reduction in repair costs as plugs can no longer be yanked out
- Flexible spring element minimises collision damage – inclines upon impact by up to max. 10°
- Can be retrofitted to crash protection bars that are already installed
- TÜV tested in accordance with DGUV 108-007 and patented
- Large range of different heights and widths
High quality steel. Bar Ø 76 mm, wall thickness 3.0 mm. Evenly bent, no welded joints.
Spring components made of UV resistant polyurethane enable tilting up to 10°.
For bolting in place, base plates 160 x 140 mm.
Hot dip galvanised and additionally plastic coated in yellow with black stripes.
Spring components made of UV resistant polyurethane enable tilting up to 10°.
For bolting in place, base plates 160 x 140 mm.
Hot dip galvanised and additionally plastic coated in yellow with black stripes.
The mounting material can be found under Accessories.
Supplied without fixing material.
Technical data
Type of mounting | with base plate for bolting in place |
---|---|
Tube diameter | 76 mm |
Base plate length | 160 mm |
Base plate width | 140 mm |
Model | versatile |
Material | steel |
Finish | hot dip galvanised and plastic coated |
Colour | traffic yellow RAL 1023 jet black RAL 9005 |
Panel thickness | 3 mm |
Slope | 10° |
Place of use | outdoor use |
Product type | barrier rails made of steel |
Supplied | assembled |
Height | 390 mm |
Width | 750 mm |
Height above ground | 390 mm |
Weight | 9 kg |
Sustainability
Enkelfähig
Enkelfähig product
Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.
For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.
For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Circular economy
A circular economy is an economic system in which waste is avoided and resources are used efficiently by recirculating materials, products and waste in closed cycles and reusing them as raw materials or sources of energy for new products.
This product makes a greater contribution to achieving a circular economy. The greater contribution compared to other products is the result of several factors, including the use of hardwearing materials, the ability to be recycled, and the use of recycled materials in the product design. Sustainable packaging is also factored into any assessment within a circular economy.
Innovation and technological progress
This product scores points within its product group due to the use of an innovative product design or innovative materials that advance product sustainability. Compared to other products, the product utilises, for example, material solutions that are more sustainable, the use of an increased share of recycled materials, or an optimised product design that has a positive impact on the recyclability, service life, durability and therefore the general sustainability of the product solution.
